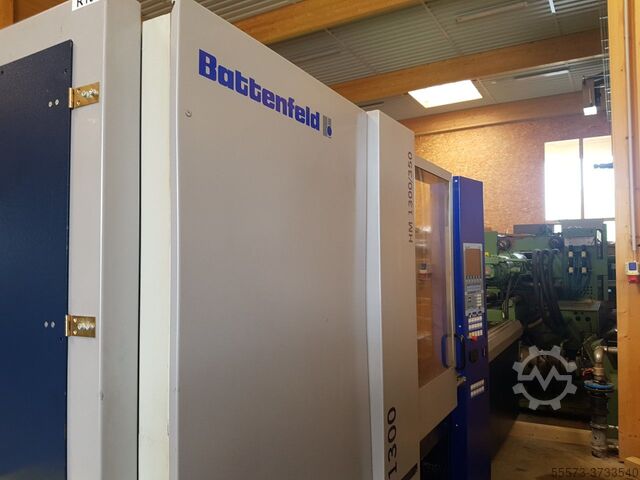

HM 1300/350

Battenfeld

Year of construction: 2006, condition: ready for operation (used), A complete Battenfeld compact extrusion line for the production of PVC profiles is available. 1) Twin-screw extruder Battenfeld MBEX 2-50-16 V, year of manufacture: 2006, output capacity: 15kg-60kg/h, screw diameter: 52mm, screw length: 16×D, barrel zones: 4, barrel cooling zones: 3, adapter zones: 1, die heating zones: 9, control system: BMCtouch. Including dry vacuum pump, pressure measuring points, clamping flange, water-air separator, blow-off device, mounting elements and hopper cover. 2) Calibration table Battenfeld KP 125 V 2/4m, mounting frame length: 4100mm, mounting rail width: 320mm, longitudinal adjustment: 500mm, transverse adjustment: +/-15mm. 3) Speck vacuum system, pumps: 2, motor power: 2×4kW, operating pressure: 200mbar, max. air capacity: 2×140m³/h. 4) Battenfeld RP 125 SE caterpillar haul-off, passage height: 100mm, contact length: 1100mm, pad width: 160mm, haul-off speed: 15m/min, max. haul-off force: 7kN. 5) Battenfeld SP 63 E underfloor saw, max. cross-section capacity X/Y: 200mm/300mm, sawing accuracy: +/-0.5mm. Overall line dimensions X/Y/Z: approx. 12000mm/1200mm/2000mm, weight: approx. 4500kg, operating hours: approx. 319h. Including chip extraction. The line touchscreen is defective (nothing is visible), however, the line can be operated using an external monitor, mouse and keyboard. Documentation available. An on-site inspection is possible. Ncsdjzg Iqhepfx Aniju

Condition: good (used), Year of construction: 2005, Ref. no.: 16369 Manufacturer: BATTENFELD Type: EM 75-120 Unilog B4 All-electric Year of construction: 2005 Clamping unit Clamping force: 75 ton Opening stroke: 800 mm Distance between tie bars: 405 x 405 mm Mould height min.: 150 mm Mould height max.: 480 mm Injection unit Screw diameter: 18 mm Injection volume: 30 cm³ Shot weight: 27 g Injection pressure: 2440 bar Measurements and weight Dimensions: 4,5 x 1,7 x 2,0 m Machine weight: 4500 kg Further information: BATTENFELD EM 75/120 UNILOG B4 All-Electric Precision Injection Moulding Machine The BATTENFELD EM 75/120 UNILOG B4 is a high-quality Austrian-made all-electric injection moulding machine. The BATTENFELD EM series was considered one of the most advanced servo-electric machine concepts of its time and was specifically designed for energy-efficient and highly precise production processes. All major machine movements are driven by modern servo motors, providing: * very low energy consumption * high repeatability and precision * smooth and quiet machine operation * low maintenance requirements * stable and accurate production performance The machine is especially suitable for: * technical plastic components Ncjdpfewl Rucsx Anieu * electronic parts * precision moulded products * small and medium-sized production runs Compared to conventional hydraulic machines, the all-electric technology offers significantly improved energy efficiency and process stability. Equipped with the reliable BATTENFELD UNILOG B4 control system, the machine provides: * user-friendly operation * precise process control * stable cycle times * accurate servo axis management The machine has approximately 69,094 operating hours and appears to be in clean and well-maintained condition. The photos clearly show: * a clean electrical cabinet * well-maintained mechanical components * properly kept servo-electric units * a clean injection unit The BATTENFELD EM 75/120 UNILOG B4 is a reliable and energy-efficient solution for demanding plastic injection moulding applications.

Condition: used, Year of construction: 2001, operating hours: 60,790 h, clamping force: 60 kN, displacement volume: 224 cm³, injection pressure: 2,224 bar, overall weight: 3,350 kg, screw conveyor diameter: 18 mm, Min. mold height 15mm_Max. platen distance 575 + mm Payment: 100% prior to delivery Manufacturer: Battenfeld Ncedpfx Ajh Tk Rveniju Type: BA600-50CDC Condition: überarbeitet Operating hours: 60.790 CLAMPING UNIT: - Clamping force: 60 t Öffnungsweg: 425 mm Mould installation height min.: 350 mm Mould installation height max.: - Tie bar distance (h x v): 320 x 320 mm Plate dimension (h x v): 490 x 490 mm Centering (fix- movingplate): 125 / 125 mm INJECTION UNIT: IU50 Screw diameter: 18 mm Injection weight in polystyrol: 20,4 g Stroke volume: 22,4 cm³ Einspritzdruck: 2.224 bar CONTROL: Unilog 4B Screen language: DE Operating manuel: DE EQUIPMENT: - Core pulls: ! Air valves: - Hot runner control devices: - Robot interface: Euromap 12 GENERAL DATA: - Installed heating capacity: 3,6 kW Pump drive power: 11,0 kW Total installed power: Motor + Heizung Total weight: 3.350 kg Total size L x B x H: 4,0 x 1,5 x 2,1 m

Condition: used, Year of construction: 2003, operating hours: 67,092 h, functionality: fully functional, clamping force: 10,000 kN, screw diameter: 120 mm, displacement volume: 5,655 cm³, injection pressure: 1,632 bar, total length: 11,600 mm, total width: 2,900 mm, total height: 2,500 mm, overall weight: 76,500 kg, clamping force: 10000 kN distance between tie-bars h x v: 1120 x 1400 mm size of mould plates h x v: 1960 x 1690 mm min. mould height: 550 mm max. mould height: 1020 mm max. open daylight: 2120 mm opening stroke: 1100 mm screw diameter: 120 mm Ncsdpfxozgt Rys Anisu swept volume: 5655 ccm injection pressure: 1632 bar equipment included screen text german complact flash drive core pulling hydraulically 4x Anti vibration mounts electric interface for handling units according to Euromap 12 interface for temperature control units increased oil cooler mould heating 16x measures of machine l x w x h: 11.6m x 2.9m x 2.5m total weight: 76500KG

Condition: good (used), Year of construction: 2008, operating hours: 26,033 h, functionality: fully functional, clamping force: 4,000 kN, screw diameter: 75 mm, displacement volume: 1,657 cm³, injection pressure: 2,022 bar, total length: 7,200 mm, total width: 1,750 mm, total height: 2,420 mm, overall weight: 16,400 kg, clamping force: 4000 kN distance between tie-bars h x v: 710 x 710 mm size of mould plates h x v: 1010 x 1010 mm min. mould height: 300 mm max. mould height: 710 mm max. open daylight: 1380 mm opening stroke: 670 mm screw diameter: 75 mm swept volume: 1657 ccm Nodpfx Aszgt I Ssniscu injection pressure: 2022 bar measures of machine l x w x h: 7.2m x 1.75m x 2.42m total weight: 16400KG

Condition: like new (used), Year of construction: 2019, operating hours: 950 h, functionality: fully functional, clamping force: 1,800 kN, screw diameter: 55 mm, clearance between the columns: 710 mm, displacement volume: 653 cm³, injection pressure: 2,041 bar, mold height (min.): 300 mm, opening stroke: 650 mm, total length: 5,500 mm, total width: 1,800 mm, total height: 2,300 mm, overall weight: 10,500 kg, Injection molding machine for processing PVC-H. Conversion for processing PS/PP/PA etc. can be offered upon request! warehouse no.: 503679 manufacturer: Wittmann Battenfeld type: Smart Power XL 180-1330 Nodpfxezgt Ifs Aniscu controller: UNILOG B8 year of construction: 2019 operation hours: 950 h clamping force: 1800 kN distance between tie-bars h x v: 710 x 660 mm size of mould plates h x v: 950 x 955 mm min. mould height: 300 mm max. open daylight: 950 mm opening stroke: 650 mm screw diameter: 55 mm swept volume: 653 ccm injection pressure: 2041 bar equipment included screen text german CEE-socket 16A core pulling hydraulically 2x air valve 1x machine with material hopper PVC-U injetion unit Schuko-socket 10A measures of machine l x w x h: 5.5m x 1.8m x 2.3m total weight: 10500KG

Condition: excellent (used), Wittmann Battenfeld Type: SmartPower 210 Wittmann Battenfeld injection molding machine with UNILOG B8 control For use with thermoset materials Current software version: IO4.26 The machine was serviced/inspected and brought up to the most current possible standard by the manufacturer WITTMANN BATTENFELD Deutschland GmbH in 2026. In addition to the pressure switches already present, the machine can be equipped with two additional mold internal pressure switches (Kistler module for mold internal pressure switching, range 1: 20,000 pC, range 2: 10,000 pC). The parts for the mold internal pressure switch upgrade are included in the scope of supply. Injection molding machine: Series: SmartPower Machine type: 210/1330 Control type: UNILOG B8 Machine number: 137949-100 Ncjdpfozdywnsx Anisu Machine weight, gross/net Main dimensions of the machine Noise level (DIN EN ISO 3744-46): 65 dB(A) Ambient temperature: +15 - +40°C (+59 - +104°F) Year of manufacture: 2017 Operating hours: 1437 hours Hydraulic system: Hydraulic oil, tank capacity Oil temperature min / max. (HLP 32): min 30°C (86°F) / max. 40°C (104°F) Oil temperature min / max. (HLP 46): min 40°C (104°F) / max. 50°C (122°F) Switching temperature for oil cooling (HLP 32): 35°C (95°F) Switching temperature for oil cooling (HLP 46): 45°C (113°F) Electrical system: Drive power, hydraulic pump: 37kW Motor voltage Frequency Water system: Oil cooler: Cooling water consumption: approx. 0.5 - 1.5 m³ / h (0.65 - 1.96 cu yd) Cooling water inlet max. 35°C (95°F), NW ⅜" Cooling water battery: Cooling water inlet ∅ ¾", max. 10 bar (max. 145 psi) Cooling water outlet ∅ ¾" Number of heating zones including nozzle: 5 Closing unit: SmartPower 210 Clamping force: 2100kN Type: SmartPower 210 Condition: used Scope of supply: (See image) (Changes and errors in the technical data and information are subject to change!) We will be happy to answer any further questions you may have by telephone.

Condition: excellent (used), Year of construction: 2008, Battenfeld HM 100/525 with Battenfeld R10S Robot / Operating Hours: approx. 19,000 in automatic mode Year of manufacture: 2008 Injection Unit: Screw diameter: 40 mm Shot weight: 228.4 g Injection pressure: 2,100 bar Ncodpfezc Nu Uex Aniju Dosage volume: 251 ccm Clamping Unit: Clamping force: 100 t Tie bar spacing: 470x420 mm Platen size: 680x663 mm Ejector: hydraulic Clamping unit: hydraulic Control system: UNILOG B6 - touchscreen Additional equipment: Machine in very good technical condition Operating hours: approx. 19,000 in automatic mode Total operating hours: 26,580 Euromap 67 Robot interface Air valve x 1 Hydraulic core pull x 1 Injection unit is wear-resistant and corrosion-resistant Battenfeld R10S Robot Year of manufacture: 2015 5-axis robot: 3 axes powered by servomotors (electric); axis B - pneumatic, axis C Robot with adapter Purchase of robot at extra cost Dimensions: Weight: 4,600 kg Length/Width/Height: 4.23x1.41x2.05 m All machines offered are started up by our service technicians prior to sale. It is possible to receive a video of the technical tests for the selected machine or to participate in live technical tests at our premises in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2007, Battenfeld TM 100/525 Year of manufacture: 2007 injection unit: Screw diameter: 40 mm Injection weight: 228.4 g Injection pressure: 2100 bar Metering volume: 251 ccm Clamping unit: clamping force: 100 t tie bar distance: 420x420 mm size of clamping platens: 640x640 mm ejector: hydraulic clamping unit: toggle lever Control system: UNILOG B2 Nsdpfozc Nu Iox Aniocu Additional equipment: Euromap 67 Robot interface Hydraulic core pull x 1 Control with hot runners x 12 Injection unit is wear resistant and resistant to corrosion Central lubrication Automatic mold height adjustment Dimensions: Weight: 3900 kg Length/width/height: 4.46x1.33x1.78 m Drive: Pumps/motor: 18.5 kW Heating power: 12,1 kW Total power: 30.6 kW All offered machines are started by our service technicians before sale. It is possible to get a video of technical tests of the selected machine or participate in live technical tests in our company in Łódź. Price: Upon request

Condition: excellent (used), Year of construction: 2019, Wittmann Battenfeld EcoPower 110/350 / All-Electric Machine / Operating hours: approx. 15,000 in automatic mode Year of manufacture: 2019 Injection Unit: Screw diameter: 35 mm Shot weight: 153.8 g Injection pressure: 2083 bar Dosage volume: 168 cc Clamping Unit: Clamping force: 110 t Tie bar spacing: 470 x 420 mm Platen size: 682 x 682 mm Ejector: electric Clamping unit: toggle lever Control system: UNILOG B8 - Touchscreen Additional features: Machine in excellent technical condition All-electric machine: energy-efficient and very quiet Operating hours: approx. 15,000 in automatic mode Njdpfx Ajzc Nuzjniocu Total operating hours: 21,800 Euromap 67 Robot interface Air valve x 1 Hydraulic core pull x 1 Hot runner control system Injection unit is wear-resistant and corrosion-resistant Central lubrication Dimensions: Weight: 4,800 kg Length/Width/Height: 4.91 x 1.42 x 2.10 m All machines offered are started up by our service technicians prior to sale. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our facility in Łódź. Price: On request
