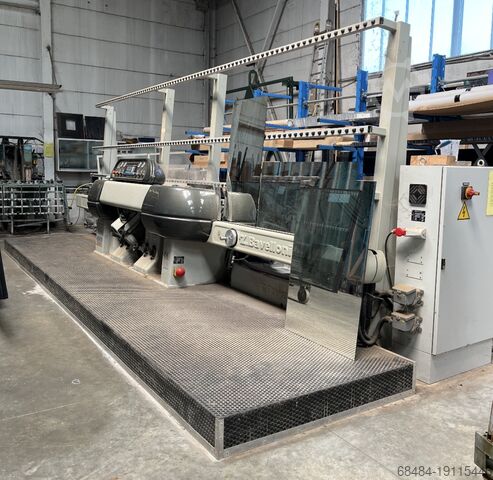

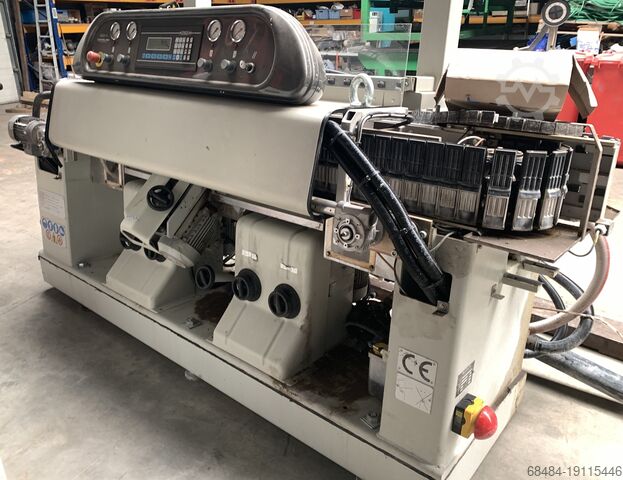

Glass grinding machine

Bavelloni GEMY 6

Gemy 6 is the straight edging machine with 6-cup wheels, with innovative design and
technology. It executes high quality work on thickness up to 35 mm and is equipped with an NC
that, among various functions, also automatically adjusts the speed of the machine according to
to the thickness to be processed. Thanks to the use of ABS covers it proves exceptionally
soundproof and safe due to the complete acoustic and electrical insulation. .
Hnjdpfx Ajwinq Aohusg
Ergonomic and easy to use
Multifunctional NC
Central lubrication
ABS covers
Possible regulation of the amount of glass to be removed (0÷5 mm with a 0.25 mm step)
Front regulation of the wheel that executes the back arrive
Stainless steel casing and tanks
Technical data:
Workable glass thickness: 3 ÷ 35 mm
Min. workable dimensions: with corner chamfering (15 mm) 45 mm
Without corner chamfering 35 mm
Max weight allowed per meter of conveyance: 200 kg/m and total load 350 kg
Working speed 0.5 ÷ 5 m/min
Pneumatic feed: pressure 6 bar
Water tank: 1 x 360 liters
Total power installed: Kw 16.5
Total length (L) 6700 mm
Machine width (W) 1300 mm
Total height (H) 2300mm
Height of working plane ≈ 840 mm
Total weight (with empty water tank): 2600 kg
Numerical control RS150
Operator interface CN 23
Programmable control (PLC) Integrated in the NC
Screen Liquid Crystal Display (LCD)
Operative keyboard sensitive keys

The listing was translated automatically. Translation errors are possible.
