Plate shear

BAYKAL HGL

Condition: new, functionality: fully functional, Year of construction: 2022, operating hours: 10 h, We are selling a new, unused (stock machine) swing-cut guillotine shear with CNC control for the backgauge. Technical data: - Cutting length: 3060 mm - Cutting capacity ( ST 42 ): 8.0 mm - Cutting capacity V2A stainless steel: 5.0 mm - Cutting angle: 1.8° - System pressure: 200 kg/cm² - Hold-down device: 17 pieces - Strokes per minute: 12 cuts/min. - Pump throughput: 32 cm³/rev - Oil tank capacity: 160 l - Usable measuring range of the back gauge: 5.0 mm to 750 mm Ijdpfx Adsu Dk S Ro Dstp - Main motor 400 V, 50 Hz, 3 ph.: 15 KW - Back gauge servomotor: 0.37 KW - Increase of the backgauge range from 750 to 1000 mm - Design of the two front support brackets with scale, T-slots and tilting cams - Finger protection light barrier at the front instead of protective grille (allows unobstructed view into the cutting zone) - Weight 6380.00 kg - Dimensions (LxWxH) 3930 x 2890 x 1600 mm Standard accessories: - CNC-controlled, motorized back gauge - travel 750 mm - with backlash-free ball screws - with automatic folding up of the cross beam for cutting extra-long sheets - Closed table design, consisting of interchangeable support plates including ball rollers - Manual cutting gap adjustment, centrally operated on the right-hand side stand - electric motor: 400 V, 50 Hz, 3-phase - Single or continuous stroke - Tip operation for lowering the upper beam, e.g. for adjusting the cutting gap - 90° side stop, 920 mm long, measuring length from cutting line 1000 mm - 2 additional support brackets (version of the two front support brackets with scale, T-slots and tilting cams) Cybelec "Cybtouch 8W" CNC control for automatic adjustment of the cutting gap (optional): - the cutting gap (optional) - the backgauge - the cutting length Further programming functions: - Step repetition - piece counter - Backgauge - retraction - "Return to sender", smallest piece of sheet metal 100 mm x 160 mm (not possible with sheet holder type "A", only with sheet holder type "U") - RS-232 interface, LCD screen 128 x 64 mm - 1 set of knives mounted on the machine, for cutting steel with a strength of 450 - 700 K/mm² - Cutting edges: upper knife 2, lower knife 4, material grade "K110", manufacturer: Böhler Germany/Austria - Individually acting hydraulic hold-down device with plastic inserts - Safety devices according to CE, with light barrier at the rear - Oil level indicator - Indication of the cutting line by blade lighting and wire - Operating hours counter - CE conformity - Operating instructions, spare parts list, wiring diagram, hydraulic diagram

Condition: new, functionality: fully functional, Year of construction: 2024, MOSER Hydraulic Guillotine Shear Model: HGL 3106 Stock Machine Serial No.: 30603 Year: 104/2024 Specification: - Swing beam cutting design - Upper blade with two cutting edges - Lower blade with four cutting edges - Designed for single and continuous stroke operation - Motorized blade gap adjustment - Motorized backgauge, 750 mm, with ball screw spindles, swing-away function, NC positioning via CYBELEC controller, Model: CybTouch 8 W - Fixed angle gauge with scale and fold-down stop cam - Worktable with support plates and ball inserts - 2 front support arms - Finger guard with light barrier - Side and rear safety covers - Cutting line illumination - Technical documentation included - CE compliant version - Colors: * RAL 7015 – Slate Grey * RAL 7035 – Light Grey * RAL 3003 – Ruby Red Technical Data: Sheet thickness ≤ 450 N/mm²: 6 mm Sheet thickness ≤ 700 N/mm²: 4 mm Cutting length: 3,060 mm Cutting angle: 1.6° Main motor: 11 kW Number of hold-downs: 17 pcs Strokes per minute: 20 Oil tank: 160 liters Itodpfjxgtq Tex Ad Dep Usable measuring range of backgauge: 750 mm Backgauge drive motor: 0.37 kW Dimensions (L x W x H): 4,000 x 2,200 x 1,700 mm Weight: 5,500 kg

Condition: used, Year of construction: 1999, sheet width 3060 mm plate thickness 8.0 mm thickness at "Niro-steel" 6.0 mm distance between columns 3100 mm down holder 16 Stück no. of strokes max. 10 - 15 Hub/min oil volume 160 ltr. cutting angle 1.6 ° back stop - adjustable 6.0 - 750 mm Control ELGO P9521 total power requirement 18.5 kW weight 6300 kg range L-W-H 3900 x 2300 x 1630 mm Features: - Robust electro-hydraulic swing beam shear - ELGO digital display model P9521, for electric backgauge * Backgauge travel X = 750 mm * Backgauge-free ball screw drive * Travel speed 100 mm/s - 1x stable side stop * With T-slot, flip-stop, and millimeter scale - 2x stable front support arms - Electric cutting length limiter * Cutting length limiter to increase the stroke rate/min. - Manual cutting gap adjustment * Centrally operated on the right side stand - Front support plates - Front finger/interference guard Iedpfjxaci Esx Ad Dstp - Inching operation with push buttons on the left control panel - Protective grille = safety device behind the machine - Operating instructions (PDF)

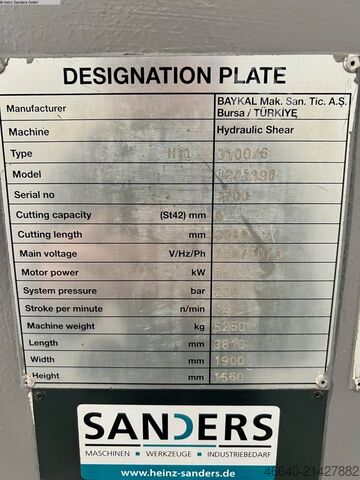

Condition: used, Year of construction: 2000, sheet width 3060 mm plate thickness 6.0 mm thickness at "Niro-steel" 4.0 mm distance between columns 3100 mm down holder 16 Stück no. of strokes 20 Hub/min oil volume 160 ltr. cutting angle 1.6 ° Control ELGO Number of working hours ~ 1.100 h total power requirement 11.0 kW weight 5250 kg range L-W-H 3800 x 1940 x 1560 mm from a maintenance workshop with only approx. 1.100 operating hours (!!) Equipment: - electro-hydraulic swing beam shears - ELGO NC control unit * for electric back stop * Input of target/actual position value possible - NC electro-motoric back stop * travel path of back stop X = 750 mm * back stop ball screw with no play * travel speed 100 mm/sec - electric cutting length limitation * cutting length limitation to increase the number of strokes/min. - manual cutting gap adjustment, via eccentric - tip operation with push buttons on the control panel on the left - front support plates with ball rollers - front finger/interference protection - 1x side stop with T-slot & millimeter scale - 2x front support arms - original operating instructions including CE declaration Itedpfsxacfaex Ad Dop
