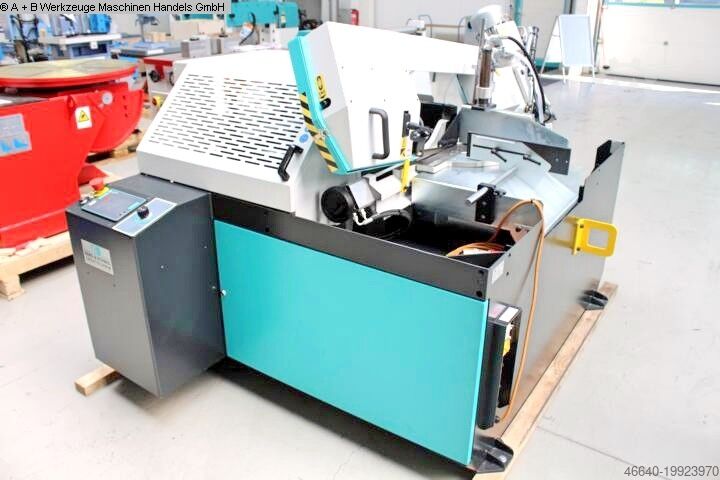

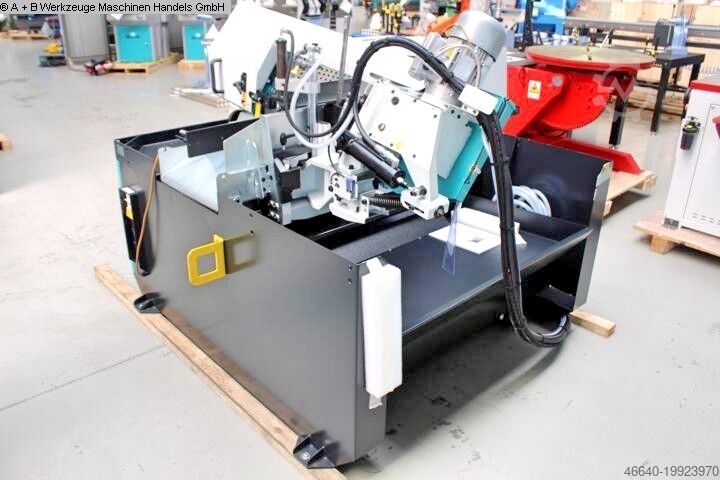

Band Saw - Automatic - Horizontal

BERG & SCHMID GBS 305 VA-I CNC

Condition: new, cutting diameter 305 mm capacity 90 degrees: flat 350 x 200 mm capacity 90 degrees: square 260 mm capacity 45 degrees: flat 230 x 200 mm capacity 45 degrees: round 250 mm capacity 45 degrees: square 230 mm capacity 60 degrees: flat 170 x 100 mm capacity 60 degrees: square 155 mm capacity 60 degrees: round 175 mm turning speed range: 18 – 110 m/min dimensions of saw-band 3.375 x 27 x 0,90 mm work height max. 880 mm total power requirement 1,5 / 1,8 kW weight of the machine ca. 840 kg dimensions of the machine ca. 1.900 x 1.850 x 2000 mm Furnishing : - miter left 45 ° automatic operation - miter left 60 ° semi-automatic operation (cuts without programming) - Material height sensor (automatic cut start detection) - Frame and gear from a single source - very quiet cut and very low vibration - Chip tray can be removed (disinfection) - Shockproof and ergonomic control panel with oil-proof EPDM cover - Easy access to the saw, material and feed unit - Foldable safety cover - Fine adjustment of the feed rate - semi-automatic cut BERG SCHMID CNC control: - Possibility to enter various parameters such as number of pieces and material length, automatic calculation of the cutting channel - for 10 different sawing programs, with 99 sub-programs - for different lengths and quantities e.g. 1x cutting program with various cut lengths - Incremental feed with automatic length compensation - Adjustable for cut lengths from 2 mm to 9,999 mm, remaining piece length 170 mm - Single stroke - feed slide 500 mm Info from the manufacturer: When installing this saw in the network with Residual current circuit breaker (FI) should this universal current sensitive and not below 300 mA be executed. Nljdoxabacspfx Ac Hsk

Condition: new, saw blade diameter 370 mm capacity 90 degrees: round 120 mm capacity 90 degrees: square 100 mm 180x100 mm Working height 925 mm saw blade turning speeds 17 - 70 U/min total power requirement 3,0 kW weight of the machine ca. t dimensions of the machine ca. 1,9 x 1,45 x 2,1 m SPECIAL PRICE!!! High-performance vertical circular saw Hydropneumatic fully automatic. (20195) · miter left 60° + right 45° · Hydro-pneumatic control of the saw unit · Electro-pneumatic material feed unit · Smooth-running, powerful worm drive with large Transmission ratio, integrated in a stable cast housing for Achieving optimal cutting results · Vice with double clamping arm for low-burr cuts Lateral quick shift when changing the miter · Precision prism guide of the gear head, laterally adjustable · Particularly stable base frame with built-in automatic cooling system · Large chip drawer · Chip removal brush in the saw blade protective hood CNC control: · With button for over 90 different sawing programs with 99 sub-programs for length, quantity and angle · Automatic feed unit 2,000 mm via ball screw Incremental feed with automatic length compensation. Adjustable for cutting lengths from 25 - 9,999 mm. Nodpfxsd Iin Eo Ac Hslk · Fully hydraulic control of saw frame and clamping devices · Pre-selection of 3 different material feed speeds · Visualization of the entire workflow with simple data entry ATTENTION: Price is without saw blade!!! (saw blade price EUR 204)

Condition: new, capacity 90 degrees: round 350 mm capacity 90 degrees: square 330 mm 500 x 310 band speed 15 - 100 m/min table height 844 mm dimensions of saw-band 4250 x 34 x 1,1 mm total power requirement 2,2 kW weight of the machine ca. 1,2 t dimensions of the machine ca. 1,4 x 2,4 x 1,935 m ACTION PRICE!!! 2-column double miter band saw K-tech DG 50/33 HA-I • 2-column miter saw • Solid, yet easy to use • Material height sensor (automatic cut start detection) • Smooth running thanks to bevel cut, feed controller + cutting pressure controller • Massive material infeed roller • Removable chip tray (disinfection) • Energy-saving and low-vibration thanks to bevel cut Njdpfx Acsfg E Hle Helk • Ergonomic, safe and free-standing control panel • Frequency-controlled saw drive 15 -100 m/min. • Hydraulic cutting pressure control valve • Hydraulic control of saw frame and vice • LEDs for monitoring all safety functions • Large dimensioned wheels (520 mm) a. • Clear miter setting up to 60° Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the start of the material or the same for series cutting cut 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise

Condition: new, Year of construction: 2025, Product information for metal bandsaw type: straight cutting bandsaw 90° sawing process: automatic automation: serial-cut max. cutting capacity Ø: 300 mm max. cutting capacity width: 300 mm max. cutting capacity: height: 300 mm Technical data: Njdpfx Asdr Sbkec Hslk Motor [kW]: 3 Saw blade [mm]: 4900 x 34 x 1,1 Dimensions [mm] (length x width x height): 2500 x 1650 x 1800 Weight [kg]: 2500 Material weight: max. 250 kg/m Highlights: Machine cover: secure and compact Saw blade guiding: accurate and reliable Saw frame speed: powerful and dynamic Vice system: innovative and smooth Operation and control: intelligent and ergonomic

Condition: new, capacity 90 degrees: round 305 mm capacity 90 degrees: square 260 mm Nljdpfxsd Iipxe Ac Hsk 350x200 saw band length 3375x27x0,9 mm band speed 37 + 74 m/min table height 940 mm total power requirement 1,5/1,8 kW weight of the machine ca. 0,65 t dimensions of the machine ca. 1,5 x 1,75 x 1,9 m SPECIAL PRICE!!! Double miter metal band saw, hydraulic semi-automatic GBS 305 HA-I Easy - Miter cuts up to 60° left and 45° right - Material height button - Ball bearing turntable - hydraulic Vice, laterally displaceable - Massive, large material support - Automatic cooling

Condition: new, saw blade diameter 300 mm capacity 90 degrees: round 102 mm capacity 90 degrees: square 90 mm capacity 90 degrees: flat 120x80 mm capacity 45 degrees: round 90/80 mm capacity 45 degrees: square 80/70 mm capacity 60 degrees: flat 90x70/85x70 mm Nlodpfxjfg Rlaj Ac Hjk total power requirement 1,5/2,0 kW weight of the machine ca. 0,135 t dimensions of the machine ca. 0,5 x 1,05 x 1,0 m The versatile professional metal circular saw. Convincing in performance and price. · For miter cuts left up to 45° · For sawing steel, stainless steel and, to a limited extent, aluminum profiles · Spindle vice with double clamping arm for low-burr cuts · Cone safety clutch to protect the saw blades. · 2 speeds 33 + 66 rpm · Automatic cooling directly on the saw blade · Double bearing for saw head · 24 V safety switch in the handle with restart lock · Length stop, assembly tool · Closed cast, solid cast superstructures · Miter adjustment on operator side machine base (option) ATTENTION: Price is without saw blade!!! (saw blade price EUR 93 / EUR 123)

Year of construction: 1996, condition: excellent (used), Automatic slotting machine with two oscillating tables BALESTRINI 2CAP Maximum length of the groove 120 mm Maximum recess depth in mm 80 Spindle speed 9000 rpm Spindle motor 3 Hp Oscillating motor Hp 1 Pneumatic clamp for the workpiece Overall dimensions: mm 1000 x 900 x 1250 Nledjgmucpopfx Ac Hjk Weight kg 500

Condition: ready for operation (used), Year of construction: 1988, functionality: fully functional, milling spindle length: 150 mm, power: 11 kW (14.96 HP), spindle diameter: 40 mm, overall weight: 1,500 kg, Double-sided swivel unit bearings with two sturdy segment guides, modern steel construction column, heavy-walled, heavily ribbed cast iron table, replaceable milling arbor, three-phase motor with 4 speeds, electric height and tilt adjustment Nedpowcpqqofx Ac Hslk in rapid and creep speed, and electronic digital display, incremental dimension switching for height adjustment, milling stop with fine adjustment and metal stop jaws and replaceable aluminum splinter guards, extraction nozzles on the milling stop and below the table, each 120 mm in diameter, minimum extraction speed at the extraction nozzle: 20 m/s, rotating table insert, locked reversing switch for left and right rotation, lockable main switch, cam switch, automatic motor brake Table size: 1350 x 800 mm Table height: 880 mm Motor power: 11 kW MK 5 milling arbor mount Speeds 3000/4500/6000/9000 rpm Mill arbor swivel range: -5° to +45° Height adjustment: approx. 145 mm Control: CNC Table extension on both sides, total length 2500 mm, including extendable frame support Stepless 4-roller feed 2-axis control Mill arbor with 40 mm diameter and 150 mm length

Condition: new, The SBS 355, a Horizontal Mitre Cutting Bandsaw from KNUTH, is a compact and efficient machine designed for semi-automatic operation. This universal workshop band saw features a robust one-piece cast-iron saw frame that swivels 60° to the right and 45° to the left, allowing for versatile cutting angles. Users benefit from a rigid vise with a long stroke, providing excellent stability for both small and large workpieces, and an infinitely variable saw blade speed that enhances performance across varied materials. The saw includes features such as a high-capacity coolant system, a hydraulic quick-action clamping fixture, and a well-designed feed system that accommodates sensitive machining characteristics. With a cutting capacity of 355 mm for round stock and dimensions of 300x490 mm for flat material, the SBS 355 is perfect for small batch processing in industrial environments. Experience increased productivity and precision with this reliable semi-auto bandsaw. Request a quote today to explore the capabilities of the Horizontal Mitre Cutting Bandsaw from KNUTH. Nlodpfx Aeuy Ii Esc Hsk

Condition: new, capacity 90 degrees: round 500 mm capacity 90 degrees: square 420 mm 600x400 saw band length 5320x34x1,1 mm band speed 15 - 100 m/min table height 805 mm total power requirement 3,0 kW weight of the machine ca. 1,45 t dimensions of the machine ca. 1,72 x 2,5 x 2,5 m Double miter band saw, hydraulic semi-automatic, DGS 500/600 HA-I • miter left + right 60° • Frequency-controlled saw drive • 34 mm saw band height • Wear-free material support turntable, ball-bearing Nodpfx Aoupxupec Hslk • To position the saw blade guides using a very wide linear guide • Strong, robust gearbox • Large chipboards • 2 integrated support rollers left and right • Removable chip tray (disinfection) • Free-standing control panel, safe and ergonomic • Storage space for tapes, consumables • Hydraulic cutting pressure control valve • Material height sensor (automatic cut start detection) • Preload super fast (front loading) • Hydraulic control of saw frame and vice • LEDs for monitoring all safety functions • Minimum cutting range from around 10 mm Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the start of the material or the same for series cutting cut 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise
