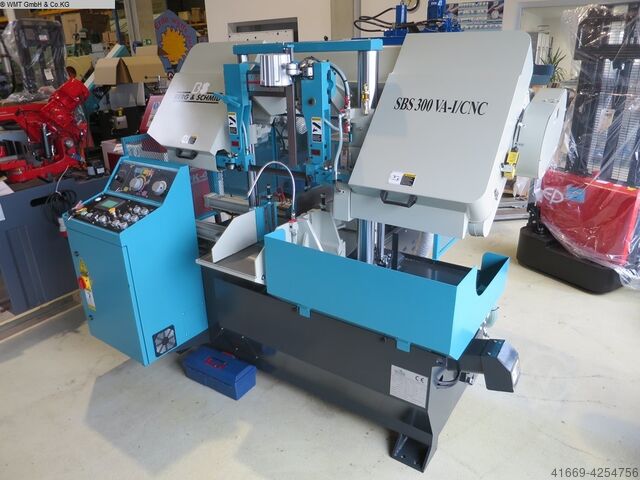

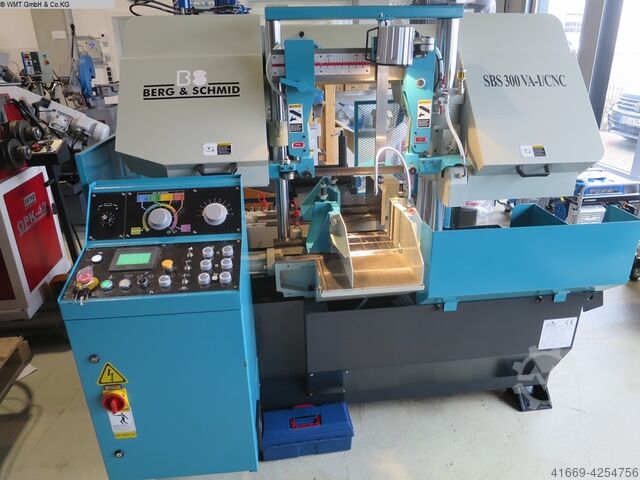

Band Saw - Automatic - Horizontal

BERG & SCHMID SBS 300 VA-I / CNC

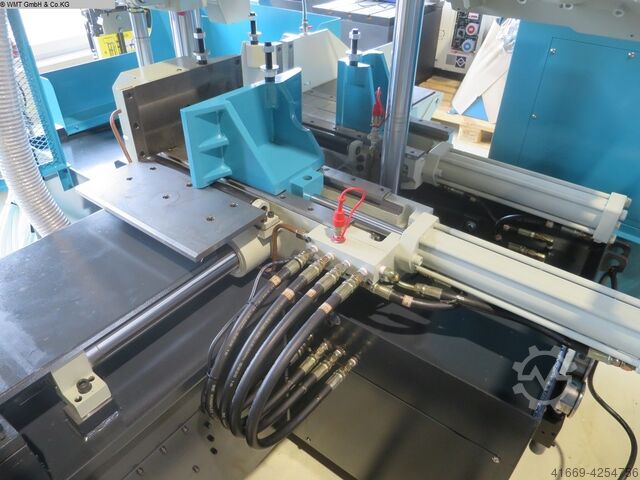

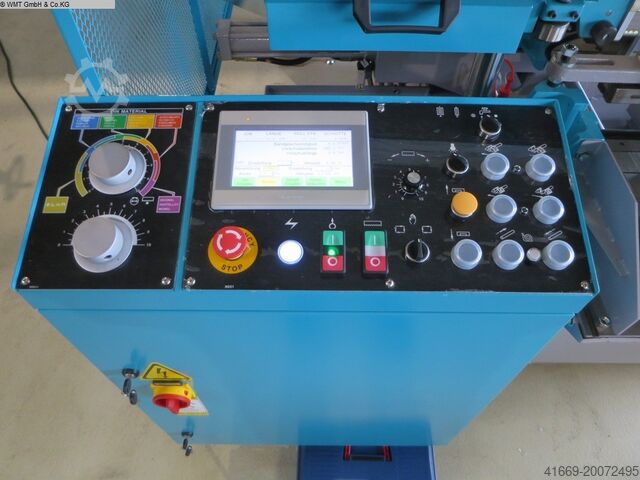

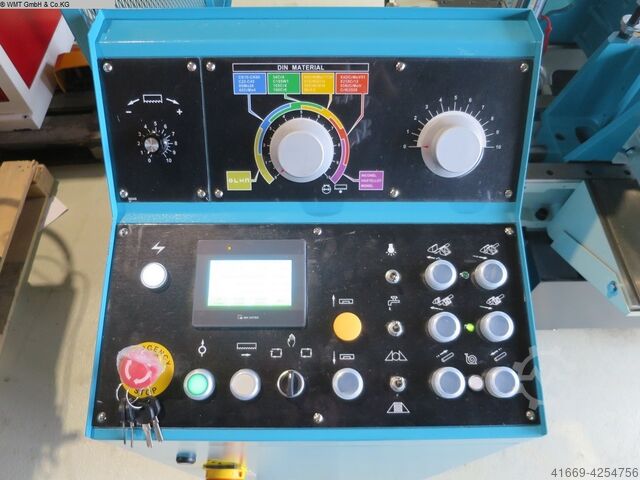

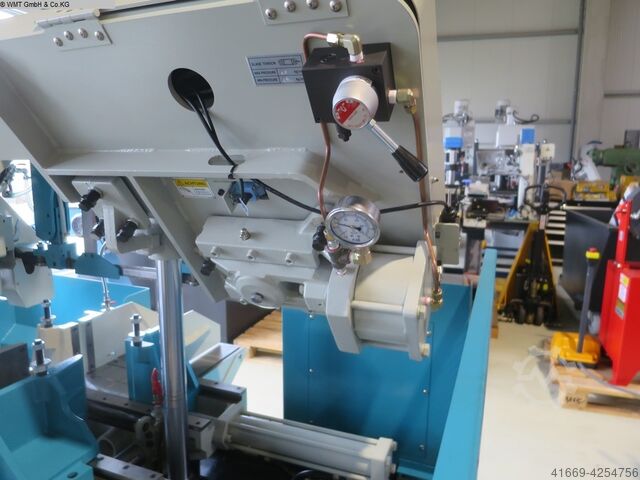

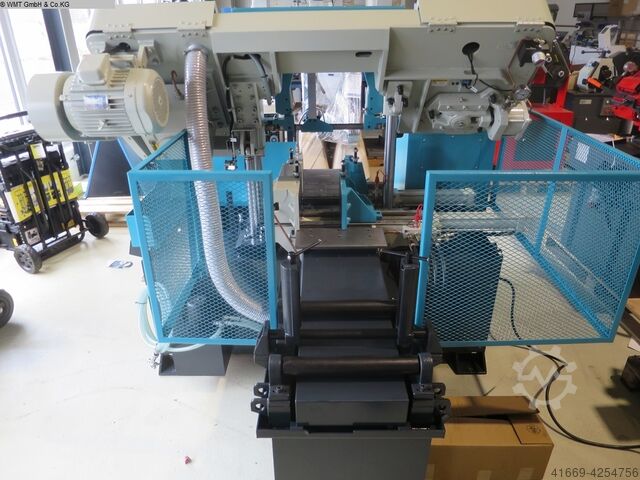

Condition: new, 300 mm 300 mm 300 x 260 mm saw band length 3920 x 34 x 1,1 mm table height 780 mm Fsdpfxoxfwbte Aa Nepp band speed 20 - 100 m/min total power requirement 3,7 kW weight of the machine ca. 1,65 t dimensions 2,0 x 2,05 x 1,7 m Unused display machine!!!! 2-column high-performance automatic band saw from the SBS series • Modern SNC 20 control system for CNC models • Frequency-controlled saw drive • Work light • Powered chip brush • Hydraulic band tensioning • Clamping pressure adjustment • Double vise (before and after the band) • Creep speed for positioning • Bundle tensioning, electrically and hydraulically prepared • Chip conveyor The SNC 20 control system allows for convenient and uncomplicated input of up to 20 different sawing tasks (length and quantity). When the target dimension is entered, the control system automatically calculates the saw waste and the number of feeds. In addition, the error code display system provides quick analysis for troubleshooting. Including band path detection (1800 EUR)

Condition: new, capacity 90 degrees: round 255 mm capacity 90 degrees: square 240 mm 300 x 180 saw band length 2.765 x 27 x 0,9 mm mm table height 950 mm band speed 18 - 110 m/min total power requirement 1,5 kW weight of the machine ca. 0,42 t dimensions of the machine ca. 1,23 x 1,7 x 1,75 m Fodpfxofgyh Uj Aa Nopp SPECIAL PRICE!!! Double miter metal band saw, frequency converter hydraulic semi-automatic GBS 250 Super HA-I Easy • miter left 60° + right 45° • Material height sensor (automatic cut start detection) • Frame and gear made from one piece, very quiet cut and very low vibration • Hydraulic vice can be moved sideways a. • Guided, high quality industrial bearings • Solid vice + machine casting • Large machine bed • Machine base with tool compartment and chip drawer • Cut monitoring by ammeter • Cutting pressure feed regulator • Support roller (infeed side) • Ball bearing turntable Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the start of the material or the same for series cutting cut 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise

Condition: new, saw blade diameter 370 mm capacity 90 degrees: round 120 mm capacity 90 degrees: square 100 mm 180x100 mm Working height 925 mm saw blade turning speeds 15+30 oder 30+60 U/min total power requirement 1,8/2,2 kW weight of the machine ca. 0,44 t dimensions of the machine ca. 0,8 x 1,1 x 2,1 m SPECIAL PRICE!!! High-performance vertical circular saw Hydropneumatic semi-automatic. (20185/ 20188) · miter left 60° + right 45° · Vice with double clamping arm · Robust prism guide of the saw head, adjustable dovetail guide. · Chip brush · Automatic cooling · Metal tension wheel for high power transmission c. · Solid, strong cast iron table Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the beginning of the material Fpodpfjd Iin Isx Aa Nep or cut the same for series cutting 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise MPS control: · Save cut start/end · Display of current consumption, number of pieces, cutting time... · Adjustable water cooling · Cutting pressure regulator ATTENTION: Price is without saw blade!!! (saw blade price EUR 204)

Condition: new, saw blade diameter 370 mm capacity 90 degrees: round 120 mm capacity 90 degrees: square 100 mm 180x100 mm Working height 925 mm saw blade turning speeds 17 - 70 U/min total power requirement 3,0 kW weight of the machine ca. t dimensions of the machine ca. 1,9 x 1,45 x 2,1 m SPECIAL PRICE!!! High-performance vertical circular saw Hydropneumatic fully automatic. (20195) · miter left 60° + right 45° · Hydro-pneumatic control of the saw unit · Electro-pneumatic material feed unit · Smooth-running, powerful worm drive with large Transmission ratio, integrated in a stable cast housing for Achieving optimal cutting results · Vice with double clamping arm for low-burr cuts Lateral quick shift when changing the miter Fpedpfx Ajd Iin Eja Nsp · Precision prism guide of the gear head, laterally adjustable · Particularly stable base frame with built-in automatic cooling system · Large chip drawer · Chip removal brush in the saw blade protective hood CNC control: · With button for over 90 different sawing programs with 99 sub-programs for length, quantity and angle · Automatic feed unit 2,000 mm via ball screw Incremental feed with automatic length compensation. Adjustable for cutting lengths from 25 - 9,999 mm. · Fully hydraulic control of saw frame and clamping devices · Pre-selection of 3 different material feed speeds · Visualization of the entire workflow with simple data entry ATTENTION: Price is without saw blade!!! (saw blade price EUR 204)

Condition: new, capacity 90 degrees: round 350 mm capacity 90 degrees: square 330 mm 450x320 saw band length 4250x34x1,1 mm band speed 40 + 80 m/min table height 845 mm saw band width 34 mm total power requirement 2,2 kW weight of the machine ca. 0,985 t dimensions of the machine ca. 1,4 x 2,0 x 2,2 m Double miter band saw, hydraulic semi-automatic, DGS 350/450 HA-I · miter left + right 60° without machine conversion · 34 mm saw blade width · Large material support turntable, ball bearings · To position the saw blade guides using a very wide linear guide · Strong, robust transmission · Large chipboards · Infeed and outfeed roller Removable chip tray (disinfection) · Free-standing control panel, safe and ergonomic · Storage space for tapes, consumables · Cutting pressure regulator Feed regulator · Fully hydraulic vise Preload super fast (front loading) · Material height sensor (automatic cut start detection) Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the start of the material or the same for series cutting cut 4. Saw band off 5. Raise the frame to just above the material Fedpfx Aasfgyics Njpp 6. Open the vise Optimum, material-independent cutting result through fine adjustment of the saw frame by means of: *Pressure Control Valve (Cutting Pressure Force) *Feed Control Valve (Speed) *Switch with pictogram, easy and clear to use

Condition: new, capacity 90 degrees: round 510 mm capacity 90 degrees: square 450 mm Fodpfx Aajd Iipmj Nopp 650x450 band speed 15 - 100 m/min table height 844 mm dimensions of saw-band 5320 x 34 x 1,1 mm total power requirement 3,0 kW weight of the machine ca. 2,1 t dimensions of the machine ca. 1,9 x 2,87 x 1,3 m PROMOTIONAL PRICE!!! 2-column double miter band saw K-tech DG 62/45 HA-I • 2-column miter saw • Solid, yet easy to use • Material height sensor (automatic cut start detection) • Smooth running thanks to diagonal cutting, feed regulator + cutting pressure regulator • Solid material inlet roller • Removable chip tray (disinfection) • Energy-saving and low-vibration thanks to diagonal cutting • Control panel ergonomic, safe and free-standing • Frequency-controlled saw drive 15 -100 m/min. • Hydraulic cutting pressure control valve • Hydraulic control of saw frame and vice • LEDs for monitoring all safety functions • Large-sized wheels (520 mm) a. • Clear miter adjustment up to 60° Semi-automatic function: 1. Tension the material 2. Saw starts 3. Lowering in rapid traverse to the beginning of the material or the same for series cutting cut 4. Saw blade off 5. Raise the frame until it is just above the material 6. Vice opens

Condition: new, capacity 90 degrees: round 350 mm capacity 90 degrees: square 330 mm 500 x 310 band speed 15 - 100 m/min table height 844 mm dimensions of saw-band 4250 x 34 x 1,1 mm total power requirement 2,2 kW weight of the machine ca. 1,2 t dimensions of the machine ca. 1,4 x 2,4 x 1,935 m Fpedpfx Aefg E Hlja Njp ACTION PRICE!!! 2-column double miter band saw K-tech DG 50/33 HA-I • 2-column miter saw • Solid, yet easy to use • Material height sensor (automatic cut start detection) • Smooth running thanks to bevel cut, feed controller + cutting pressure controller • Massive material infeed roller • Removable chip tray (disinfection) • Energy-saving and low-vibration thanks to bevel cut • Ergonomic, safe and free-standing control panel • Frequency-controlled saw drive 15 -100 m/min. • Hydraulic cutting pressure control valve • Hydraulic control of saw frame and vice • LEDs for monitoring all safety functions • Large dimensioned wheels (520 mm) a. • Clear miter setting up to 60° Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the start of the material or the same for series cutting cut 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise

Condition: new, Year of construction: 2025, Product information for metal bandsaw type: straight cutting bandsaw 90° sawing process: automatic automation: serial-cut max. cutting capacity Ø: 300 mm max. cutting capacity width: 300 mm max. cutting capacity: height: 300 mm Technical data: Motor [kW]: 3 Saw blade [mm]: 4900 x 34 x 1,1 Dimensions [mm] (length x width x height): 2500 x 1650 x 1800 Weight [kg]: 2500 Material weight: max. 250 kg/m Highlights: Machine cover: secure and compact Saw blade guiding: accurate and reliable Saw frame speed: powerful and dynamic Vice system: innovative and smooth Fpsdpfx Ajdr Sbkja Nsp Operation and control: intelligent and ergonomic

Year of construction: 2020, condition: new, Available from stock Fpedoiryf Sspfx Aa Nsp Strip dimensions: 4420 x 34 x 1.1 mm Cutting capacity (square): 360 x 400 mm Cutting capacity (round): 360 mm bundled cutting: 180 - 280 x 50 - 160 mm Cutting speed: 35 - 85 m/min Motor power main drive: 3.75 kW Engine power hydraulic pump: 0.75 kW Motor power coolant pump: 0.125 kW table height: 755 mm Weight: 1680 kg Dimensions W x D x H: 2400 x 2120 x 1840 mm

Condition: new, saw blade diameter 300 mm capacity 90 degrees: round 102 mm capacity 90 degrees: square 90 mm capacity 90 degrees: flat 120x80 mm capacity 45 degrees: round 90/80 mm capacity 45 degrees: square 80/70 mm capacity 60 degrees: flat 90x70/85x70 mm total power requirement 1,5/2,0 kW weight of the machine ca. 0,135 t dimensions of the machine ca. 0,5 x 1,05 x 1,0 m Fsdpsfg Rlajfx Aa Njpp The versatile professional metal circular saw. Convincing in performance and price. · For miter cuts left up to 45° · For sawing steel, stainless steel and, to a limited extent, aluminum profiles · Spindle vice with double clamping arm for low-burr cuts · Cone safety clutch to protect the saw blades. · 2 speeds 33 + 66 rpm · Automatic cooling directly on the saw blade · Double bearing for saw head · 24 V safety switch in the handle with restart lock · Length stop, assembly tool · Closed cast, solid cast superstructures · Miter adjustment on operator side machine base (option) ATTENTION: Price is without saw blade!!! (saw blade price EUR 93 / EUR 123)
