Spray booth with supply air ceiling

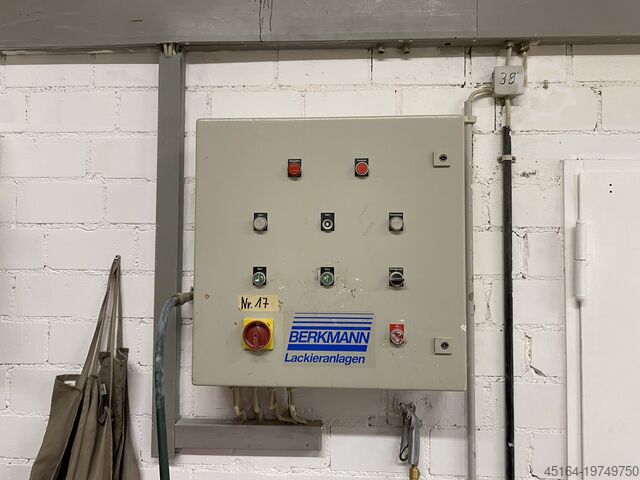

Berkmann

Condition: used, Year of construction: 1996, Used machine Year of manufacture: 1996 Features and technical data: - Berkmann extraction systems operate on the principle of displacement flow, meaning that a negative pressure is created on the wall side of the room, while an overpressure is generated on the opposite side by the supply air unit. - Almost the entire room air flows in a directed and low-turbulence manner from the supply air side toward the exhaust air side. - Paint mist generated within the flow area is captured and discharged. - With Berkmann extraction systems, air is extracted across the entire area, not just in the collection zone in front of the spray wall as with conventional systems. - This allows larger components to be painted as well. - It is also not necessary to work directly in front of the extraction unit. - The patented 'gap extraction' enables high extraction velocities at all sides (including at floor level, where solvents accumulate). - Due to the special arrangement, extremely large filter surfaces could be accommodated, resulting in very long filter service lives. - Compared to traditional spray booths, Berkmann extraction systems operate with significantly lower air volumes, enabling energy savings of up to 50%. - Includes paint mist extraction unit BASIC 7000 m³/h - With supply air unit - With solvent evaporation unit - System is installed underground with grating cover - Dimensions of grating approximately 3,500 x 3,400 mm - Filter area of the unit: approx. 3.7 m² - Supply air unit approx. 82 kW, type 3072 FL/WW (two-stage) - Solvent evaporation unit approx. 3,000 m³/h exhaust air volume - Motor 1.1 kW - With supply air duct system featuring 4 large-area filter ceilings with explosion-proof lights - With control cabinet featuring microprocessor control - With used Kremlin paint application unit Price excludes dismantling, removal, and collection on site Njdpsxwz H Rsfx Afcjwc Availability: approx. mid-April 2026 Location: Hesse

Condition: used, Year of construction: 1996, Press dimensions: 2550 x 1350 mm Plates: Gold anodized Total pressing force: 80 t Specific pressure: 2.8 – 4.0 kg/cm² Hydraulic cylinders: 4 x 90 mm Opening width and press stroke: 400 mm Safety release line Safety frame Push-button control Connected load: 19.3 kW External dimensions: 2960 x 1490 x 1890 mm Storage location: Supplier Njdpfx Aoxy Tl Refcswc

Year of construction: 1997, condition: good (used), - Working width (mm): 1300 Njdpfx Aeidi Ivofcowc - CSD system - Cross sanding unit - Longitudinal sanding unit - Shoe - Brush unit - Ionization

Condition: reconditioned (used), Year of construction: 1987, functionality: fully functional, machine/vehicle number: 9673240, grinding width: 1,100 mm, power: 15 kW (20.39 HP), height adjustment type: electric, grinding belt length: 1,900 mm, compressed air connection: 6 bar, grinding belt width: 1,120 mm, Combination sanding unit with contact roller and air sanding pad Brush roller Pneumatic sanding belt tensioning Motorized thickness adjustment Technical data max. working width 1100 mm max. workpiece thickness 150 mm min. workpiece thickness 3 mm Sanding belt dimensions 1900 x 1120 mm Feed speed 5/10 m/min. Motor power sanding unit 15 kW Motor power height adjustment 0.50 kW Motor power feed carpet 0.5/1.0 kW Operating pressure 6 bar Air consumption approx. 20 l/min Suction nozzle 2 x 200 mm Weight approx. 2100 kg Nwsdotppzvepfx Afcsc Machine width approx. 1750 mm Machine depth approx. 1700 mm Machine height approx. 1900 mm

Condition: excellent (used), Year of construction: 2003, total height: 2,950 mm, total length: 3,300 mm, total width: 1,350 mm, Complete clean air extraction system with briquette press and piping with sliders etc. Extraction system for woodworking companies with a briquette press underneath. Extraction system ALKO Type: MOBIL-JET 250 Year of manufacture 2003 Extraction diameter 250 mm Rated output 4900 m³/h Motor output 6.5 KW Dimensions approx. 330 x 135 x 2.95 cm With extraction control for automatic slider control. Briquette press Nodjvr S Ncopfx Afcewc WEIMA/ALKO Type: APC30S Year of manufacture 2007 Motor output 5.5 KW Pressing capacity 30 - 50 kg/h Briquette diameter approx. 50 mm Incl. complete piping with branches, bends, sliders. There is another item of suction pipes with fittings available that can be purchased cheaply. The system has been dismantled and packed ready for loading. See pictures for condition, or refer to the item description. Parts can also be picked up yourself. All dimensions are approximate. All information is provided to the best of our knowledge but without guarantee. Subject to prior sale. The items can be picked up yourself or shipping is at the buyer's expense. Shipping costs are a guideline and may vary depending on distance and unloading options. The stated sales price is the net final amount plus VAT. An invoice with VAT identification will be issued.

Condition: reconditioned (used), Year of construction: 2003, functionality: fully functional, briquette diameter: 60 mm, Refurbished machine suitable for smaller, single-shift carpentry operations. It offers a robust construction while providing solid performance. Maximum briquette output: 70 kg/h. Year of manufacture: 2003. In very good and well-maintained condition. Original warranty and post-warranty service available directly from our company. Professional PRODECO hydraulic briquetting presses are ideal for small and medium-sized woodworking operations. They enable efficient processing of waste into environmentally clean, high-calorific fuel without the need for binders. These machines are characterized by compact space requirements, low energy consumption, and easy operation. Nsdpfx Aovva Rpjfcewc Technical specifications: - Motor power: 5.5 kW - Briquette output: 35 to 70 kg/h (depending on material) - Briquette diameter: 60 mm - Briquette stroke length up to 60 mm (so-called endless briquette) - Hopper diameter: 1000 mm - Weight: 650 kg - Machine dimensions: 1170 x 1700 x 1510 mm Features: - Hydraulic unit with 7 pressing cycles/min - Dual manometer for improved pressure monitoring - Level sensor for the height of briquetted material - Oil level sensor - Inspection window - CE safety standard compliant - Moisture content of processed material must not exceed 18% The machine is refurbished, calibrated, and tested.

Condition: good (used), Year of construction: 2000, • Sanding width (mm): 1350 • Workpiece thickness (mm): 3 - 150 • Total sanding units: 2 • Longitudinal belt: 2 • Contact roller diameter = 200 mm: 1 /15 kW • Combination unit: with small roller • Cleaning brush: 1 x diameter = 120 mm • Vacuum table • Intermediate lacquer sanding • Constant table height • Carpet cleaning • Longitudinal unit, motor: 15 kW, 1.8 - 18 m/s • Feed rate: 3 - 12 m/min • Sanding belt length, longitudinal unit (mm): 2,100 x 1,400 • Pressure beam: CSD system, electromagnetic, wear-free • Conveyor belt: new • Availability: inspected, in stock Nwedpswwlm Dofx Afcoc

Condition: used, Year of construction: 2008, machine/vehicle number: 0-411-49-1873, Technical data:- Manufacturer: Bütfering - Type: Optimat SGO 211/RC - Number of grinding units: 2 - Year of manufacture: 2008 - Working width: 1.100 mm - Grinding belt width: 1.120 mm - Grinding belt length: 1.900 mm - Workpiece thickness: 3-160 mm - Feed speed: 2,5-13 m/min. - Table height adjustment Standard equipment: - Automatic workpiece thickness adjustment - Stepless feed speed via requency converter. - 125 grinding programs can be stored - Wear-free braking system 1. Grinding unit (R) - Calibration roller - Profiled steel contact roller - Diameter 160 mm - Drive motor: 15 kW 2nd grinding unit (C) - Combination unit with roller and grinding shoe - Rubberized contact roller 65 Shore - Contact roller diameter 160 mm - Electronic link pressure bar with segment width 35 mm. - Belt speed: 12 and 21 m/s - Tolerance compensation up to 1 mm - Suitable for veneered surfaces and solid wood. - Drive motor: 11 kW - Total connected load: approx. 28 kW - Operating voltage: 400 V / 50 Hz. - Compressed air consumption at 6 bar, 20 L/min. - Belt blow-off device per pressure surge 440 L/min. - Extraction volume: approx. 2,880 m3/h/ at 20 m/s - Extraction connection: Dedusting: 1 x Ø 160 mm (grinding unit, roller) 1 x Ø 160 mm (grinding unit, shoe) Dimensions: - Length: 1,700 mm - Width: 1,850 mm - Height: 2,100 mm - Location: not in stock Nodpfsyh Hwuex Afcjwc - Available from April 2026

Condition: used, Year of construction: 2001, Abrasive belt length 1st unit: 2,150 mm Max. working width: 1,300 mm Nwedpfxoxzi S Ns Afcsc Number of belts: 3 Belt 1st unit: cross belt Design 1st unit: cross belt Sanding pad 1st unit: electronic segmented pad Abrasive belt width 1st unit: 150 x 4,800 mm Drive 1st unit: kW 2nd unit: longitudinal roller Design 2nd unit: steel calibration roller Abrasive belt length 2nd unit: 2,150 mm Abrasive belt width 2nd unit: 1,350 mm Abrasive belt speed 2nd unit: 18 m/sec 3rd unit: pad unit Design 3rd roller: electronic segmented pressure beam SDS system Sanding pad 3rd unit: electronic segmented, 32 mm width Abrasive belt length 3rd unit: 2,150 mm Abrasive belt width 3rd unit: 1,350 mm Suitable for lacquer sanding: yes Belt air blast: yes Vacuum conveyor: yes Feed speed, fixed: stepless 5 – 15 m/min Control: screen control Electrical/pneumatic belt oscillation: electrical Infeed height: variable (lower table moves) Table height adjustment: electric motor Table height display: digital Working height / feed table height: 880 mm Location: Supplier

Condition: used, Year of construction: 1985, Used machine Year of manufacture: 1991 Plate size: 2200 x 1100 mm Equipped with Busse aluminum energy-saving plates (The spots visible in the photos are purely optical; the plates are in perfect condition) Total pressing force: 80 t Press cylinders: 4 x 90 mm Opening stroke: 400 mm Nwedpfx Afex Enp Rjcec Weight approx. 3,100 kg Overall length: 2,610 mm Overall width: 1,240 mm Overall height: 1,890 mm Motor power connection: 1.1 kW Connection per electric heating plate: approx. 6.6 kW Weight approx. 3.1 t Availability: short notice Location: Röllbach
