Lathe-conventional-electronic

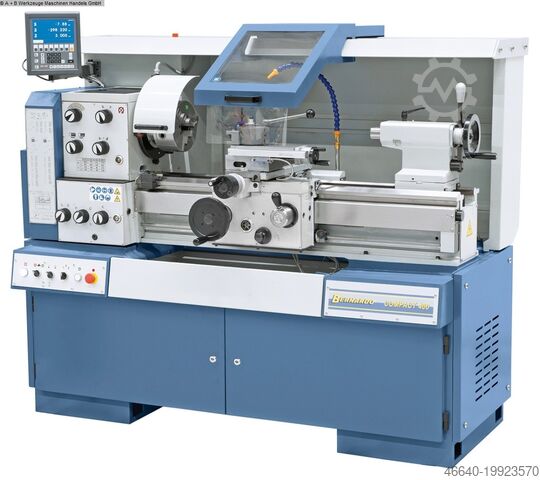

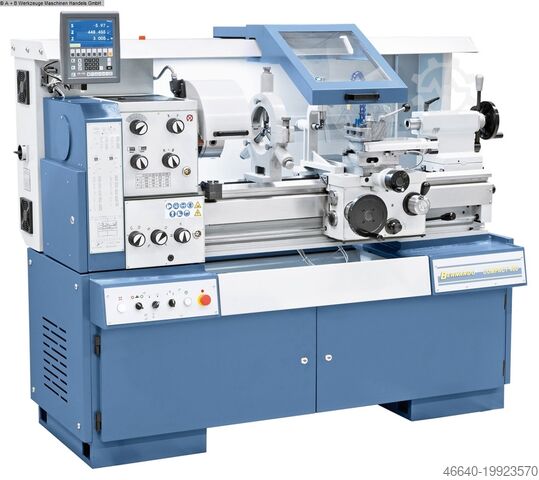

BERNARDO COMPACT 400 - ES 12 V

Condition: good (used), Year of construction: 1988, Weiler lathe Type Condor B 2-axis digital readout Center height 165 mm Center distance 750 mm Rotation over bed 330 mm Rotation over cross slide 185 mm Spindle bore 40 mm Connected load 3 kw Rodovgmbvjpfx Afcop Speed 22-2800 rpm Tailstock MK 3 Coolant pump (not connected) work light Automatic longitudinal and planar feed spindle brake - Folding jaw chuck guard - splash guard Weight approx. 1040 kg 3 jaw lathe chuck Multifix B Rotating center point

Condition: new, TC 165 x 750V Illustration shows MIOTAL® TC 180 x 1000 Center distance: 750 mm Center height: 165 mm Swing diameter over bed: Ø 330 mm Bed width: 190 mm Cross slide travel: 160 mm Top slide travel: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm Max. Chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 1/min Mechanical feed stages: 3 Motor power: 2.2 kW Rsdpfx Asir Igwofcsp Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Face feeds X: (40) 0.022 - 0.98 mm/rev Metric thread: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 Gg/inch Thread module: (32) 0.4 - 7.0 Diametral thread: (32) 7.5 - 112 Quill diameter tailstock: Ø 40 mm Inner taper of quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Features: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with recirculating oil lubrication, precision bearing-mounted spindle, hardened and ground gears for long-lasting quality - Electromagnetic spindle brake (TC), frequency converter with electric braking device (V models) - Torsion-resistant machine beds made of MEEHANITE quality casting, stress-free annealed and multi-ribbed for extremely smooth running - Electrical equipment from SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Pulse button for main spindle - CE / IEC as well as German documentation and German service Basic equipment (standard accessories): - Machine stand with splash guard rear panel - 3-jaw lathe chuck - 4-fold steel holder - Foot pedal with mech. brake device - Coolant device - Chuck guard and spindle cover in accordance with European safety standards CE - 1 Fixed center point for main spindle - 1 Fixed center point MK3 - 1 Test report - Safety devices and electrical equipment according to CE - Reducing sleeve for main spindle Operating tool Available options for this lathe: - 3-axis digital readout - Quick-change holder system Multifix also available as a gearbox version

Condition: used, Technical details: turning diameter over bed: 320 mm turning length: 800 mm centre distance: 800 mm centre height: 150 mm spindle bore of work spindle: 30 mm range of revolution per miute: 35 - 1500 / 16 step U/min range of feed in x - axis: 0,04 - 2,4 / 30 step m/min tailstock quill adjustment:: 125 mm tailstock taper MT: MK2 dimension machine xH: 1,7 x 0,8 x 1,5 m Equipment and other features: -3-jaw chuck Röhm 160mm -chuck guard Redpfx Afsu Ixy Djcsp -protection system WxH: 510x400mm -Multifix tool clamp (4 pieces) -Tip in tailstock -Upper slide swivels +/- 45°, maximum travel = 100mm -Cross slide travel = 300mm feed Pump for coolant device (without feed) *

Condition: like new (used), functionality: fully functional, Weiler center lathe Model Condor 81 guidance and feed spindle lathe with 3-axis digital display from K&C, NEW Geometrically overhauled with inspection protocol for new machine tolerances Technical data: >> Machine No. 84-121 >> Center height 165 mm >> Center distance 750 mm >> Spindle speeds: from 22 to 2800 rpm >> Spindle bore 40 mm >> Short taper spindle head DIN 55027 size 5 with bayonet lock >> Tailstock MK 3 >> Feeds from 0.015 to 0.46 mm/rev >> Possible threads: metric, imperial, module, and diametral pitch >> Metric thread pitches from 0.18 to 28 mm >> Weight approx. 1100 kg >> Spindle brake switchable >> Length 1.83 m, Height 1.29 m, Depth 0.88 m Rjdpfx Afowrm Dtscsp Equipment and accessories: >> 3-axis digital display from K&C, new, 12 months manufacturer warranty with operating instructions Functions: switching mm/inch, coordinate selection ABS/INC, value halving, reference mark, tool programming for 200 pcs., taper calculation, radius/diameter, quick zeroing, count direction switching >> Collet chuck NEW, collets NEW from 3 to 26mm, increments of 1mm >> 160 mm three-jaw chuck with 2 sets of jaws NEW >> Multifix size B NEW with 3 piece steel holders >> Bed stop >> Electric chuck guard NEW >> Rear wall >> Operating manual >> Coolant device >> Machine feet About the machine: A Weiler Condor 81 guide and feed spindle lathe in a very good, geometrically overhauled condition is being offered. The guides are newly ground or newly scraped. Inspected according to test protocol. The accessories collets and chuck are new. For safety: The machine has a brake motor, electronic spindle guard and two emergency stops, making it an absolutely as-new lathe. Even at high speeds, the Weiler runs very smoothly. This newer generation of Weiler lathes is very user-friendly and allows surfaces as if ground to be produced. Take the opportunity to view this machine on site under power and convince yourself of its condition.

Condition: good (used), Year of construction: 2010, Conventional lathe, center high 254 mm, between centers 1000 mm, bore Ø 80 mm, 12 speed 30 - 2200 rpm, motor 5,5 kw, camlock 6'', dimensions 230x115x165 cm, weight ca. 1750 kgs; equipement: DRO on 2 axis, coolant device, 3-jaws chuck Ø 250 mm, rotating pin, tool post MULTIFIX C with toolholders, steady and following rest Rsdotv Iy Eopfx Afcjp

Condition: excellent (used), - Digital 3-axis position display. - Accessories included. Working Range Centre distance: 1000 mm Centre height: 200 mm Swing diameter over bed: 400 mm Swing diameter over cross slide: 250 mm Distance from top slide to turning centre: 40 mm Bed width: 260 mm Rodpfx Aow U Ac Nofcop Longitudinal slide travel: 900 mm Cross slide travel: 220 mm Top slide travel: 110 mm Bed carriage guide length: 380 mm Turning tool cross-section: 20 x 20 mm Spindle Spindle nose according to DIN 55 029 (Camlock): 5" Spindle bore: Ø 50 mm Internal taper according to 7178: 1:22 Max. faceplate diameter: Ø 260 mm Max. chuck diameter: Ø 200 mm Spindle speeds: 40 – 3000 rpm Speed control: stepless Mechanical speed ranges: 4 Drive Motor Three-phase AC motor with integrated brake Infinitely variable speed (frequency inverter) Power at 40% duty cycle: 5.3 kW Max. nominal torque at main spindle: 640 Nm Tailstock Quill diameter: Ø 50 mm Quill stroke: 120 mm Quill internal taper: MT 3 Machine Dimensions Overall length: 1950 mm Overall height: 1635 mm Overall width: 1060 mm Spindle height above floor: 1133 mm Total machine weight: 865 kg

Condition: used, functionality: fully functional, Manufacturer: Haaf (formerly Gema) Type: LZ 185 Swing diameter over bed: 365 mm, over cross slide: 225 mm Turning length: 750 mm Centre height: 185 mm Spindle bore: 40 mm Spindle flange: KK5 (DIN 55022) Spindle taper: MT5 Speed range: 20 – 1,600 rpm Digital readout: Heidenhain VRZ 773 B on 2 axes (scales on compound and longitudinal slides) Dimensions: 1,900 x 900 x 1,700 mm Features: - Spindle brake with foot pedal - Adjustable stop on compound slide (disengages feed) - Splash guard Accessories: - Operating manual - Multifix B tool holder with 2 inserts - Coolant pump integrated in machine base (no coolant hose connected) - Röhm 3-jaw chuck 200 mm with hard and soft jaws Weight: approx. 950 kg Condition: Used Rjdpfx Afsw Svtcocsp The machine runs smoothly and can be inspected under power. All information is supplied without guarantee. Subject to errors and prior sale; all dimensions are approximate. Offer is non-binding. The machine can be inspected by appointment. Specifications, information and prices are subject to change and prior sale! All prices are net plus VAT. Payment in advance within 14 days of contract conclusion, including any applicable freight costs. In case of incomplete payment within this period, the seller reserves the right to cancel the purchase contract. Sale is only to businesses as defined by § 14 BGB. The machine is sold excluding liability for material defects. This exclusion does not apply to claims for damages based on grossly negligent or intentional breach of obligations by the seller or his agents, or in case of injury to life, body, or health. Any remaining claims against third parties for material defects will be assigned to the buyer. Please understand that compliance with any applicable safety regulations for the sold machine and its components is the responsibility of the end user. No liability is assumed by us for such compliance. German law exclusively applies to all our contracts, to the exclusion of the United Nations Convention on Contracts for the International Sale of Goods (CISG). Place of jurisdiction is agreed to be Mannheim.

Condition: used, functionality: fully functional, Distance between centers: 1000 mm Swing over bed: 420 mm Swing over cross slide: 210 mm Rodpfjxu Arijx Afcep Spindle bore: 42 mm Spindle speeds: 50-2500 RPM Accessories: - 3-jaw chuck - 4-jaw chuck - Fixed steady rest - Follow rest - Quick-change tool holder - Digital readout (Mitutoyo) - Coolant system

Condition: new, functionality: fully functional, turning diameter over cross slide: 240 mm, spindle bore: 58 mm, turning diameter over bed slide: 430 mm, center height: 215 mm, turning length: 760 mm, quill stroke: 127 mm, quill diameter: 58 mm, total length: 1,885 mm, total width: 810 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, bed width: 300 mm, overall weight: 1,680 kg, quill mount: MK 4, Equipment: rotational speed infinitely variable, Tip height: 215 mm Center width: 760 mm Spindle bore: 58 mm Spindle nose according to DIN 55029 Camlock D6 Motor power: 7.5 kW Spindle speed range: 20-2000 mm Weight approx. 1680 kg Features include infinitely variable speed control Rjdpfx Afju T E Ehocep Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surface) of the tool and cross slides Manual central lubrication with one pump for longitudinal and cross slides Complete coolant system with rear splash guard and splash guard on the slide Chuck guard Switch rod with 3 adjustable cams Machine light Fixed center point Set of machine mounting plates

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 2025-09/2404095, turning diameter over cross slide: 224 mm, spindle bore: 51 mm, center height: 180 mm, quill diameter: 32 mm, quill travel distance: 100 mm, total length: 1,680 mm, total height: 1,400 mm, TECHNICAL DATA: Centre distance: 1000 mm Centre height: 180 mm Swing diameter over bed: 360 mm Swing diameter over cross slide: 224 mm Swing diameter without gap bridge: 502 mm Gap bridge length: 235 mm Cross slide travel: 170 mm Top slide travel: 95 mm Max. turning tool cross section: 16x16 mm Chuck mounting: D1 - 4 Spindle mounting (lathe spindle): MT 6 Spindle bore: 51 mm Spindle speed: 70 - 2000 rpm Number of speed ranges: 8 Longitudinal feeds: (32) 0.052 - 0.392 mm/rev Cross feeds: (32) 0.014 - 0.380 mm/rev Metric thread pitch: (26) 0.4 - 7 mm Metric module threads: (26) 0.4 - 7 mm Inch threads, TPI: (34) 4 - 56 TPI Inch module threads, TPI: (34) 4 - 56 TPI Leadscrew pitch: 4 mm Leadscrew diameter: 32 mm Quill mounting: MT 3 Quill diameter: 32 mm Quill travel: 100 mm Motor power: 1500 W Coolant pump: 40 W Electrical connection: 400/50 V/Hz Total length: 1680 mm Total height: 1400 mm Weight: 520 kg Standard accessories: - RÖHM 3-jaw chuck Ø 200 mm - 4-jaw faceplate chuck Ø 200 mm - Face plate Ø 320 mm - 2 fixed centre points - Live centre MT 3 - Travelling steady - Fixed steady - Quick-change tool post set ME - Thread dial and change gear set - Halogen machine lamp Rsdpfx Aoxykafjfcop - Emergency stop button / No-voltage release - Chuck guard with safety switch - Machine base / chip tray / splash guard - Tool kit / operating manual / CE
