Guidance and lathe

Bernardo Master 180

Condition: new, turning length 1000 mm turning diameter 360 mm turning dia. in gap 480 mm spindle bore 51,0 mm turning speeds 70 - 2000 U/min bed width 185 mm spindle taper 55029 D 1-5 taper in tailstock 4 MK quill travel 110 mm total power requirement 1,5 kW weight of the machine ca. 540 kg. range L-W-H 1920 x 750 x 1600 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 Laodpfx Amoxaawaemoc - Fixed steady rest - passage diameter max. 70 mm - Follow-on steady rest - passage diameter max. 50 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disk 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake function according to CE - Motor with magnetic brake according to CE standard - Base frame - Operating tools

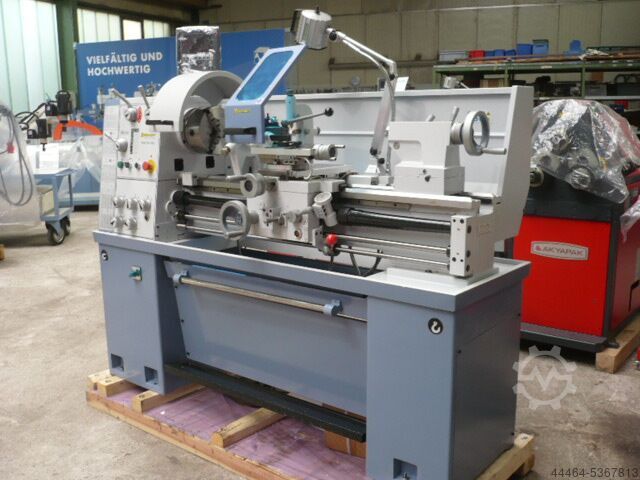

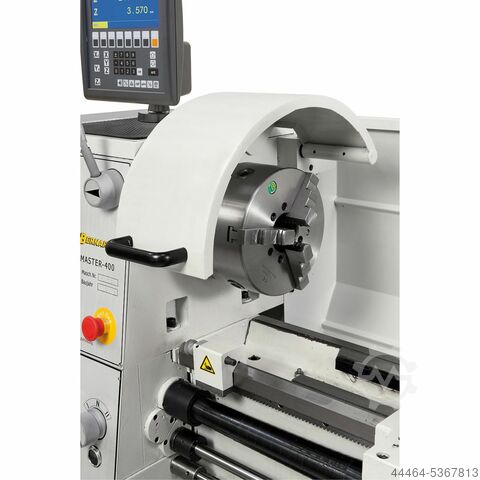

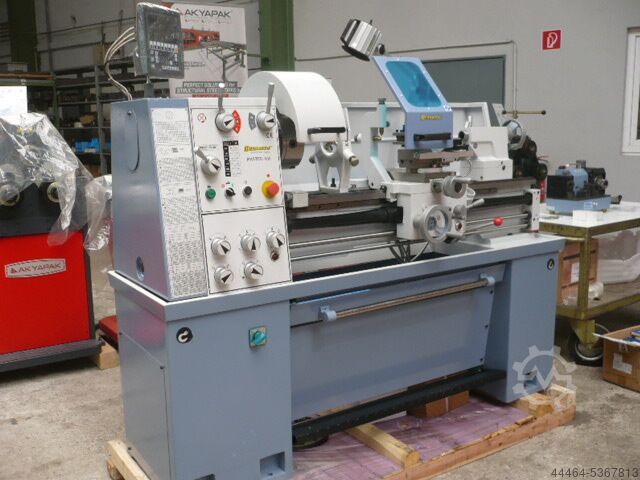

Condition: new, Bernardo Master 400 x 1000 universal lathe, including 3-axis digital display Optional accessories: Multifix steel tool holder, 3 straight inserts, 1 prism insert (672.00 € net, not included in the price) Distance between centers: 1000 mm Swing over bed: 400 mm Swing over cross slide: 240 mm Bed width: 210 mm Spindle bore: 52 mm Spindle mounting: DIN 55029, D1-5 Speed range: (12) 45 - 2000 rpm Longitudinal feed range: (27) 0.06 - 2.78 mm/rev Cross feed range: (22) 0.01 - 0.72 mm/rev Metric threads: (36) 0.8 - 14 mm Inch threads: (30) 2 - 28 TPI Tailstock diameter: 45 mm Tailstock travel: 100 mm Tailstock mounting: MK 4 Motor power: 2.0 / 2.4 kW Machine dimensions (W x D x H): 1860 x 800 x 1600 mm Weight approx.: 810 kg Scope of delivery: • 3-axis digital display ES-12 V with LCD display • 3-jaw chuck DK11-200 mm / D5 • Faceplate 200 mm / D5, according to DIN 55029 • Fixed steady rest - bore diameter max. 90 mm • Traveling steady rest - bore diameter max. 70 mm • Coolant system • Initial filling with Shell Tellus 46 Laedpfegd Iagsx Ammsc • Extendable chip tray • Clamping plate 320 mm • Quadruple steel tool holder • Safety device for quadruple steel tool holder • Slip clutch • Micrometer longitudinal stop • Thread dial • LED machine lamp • Reduction sleeve • Change gears • 2 centers • Foot pedal with braking function according to CE • Motor with magnetic brake according to CE standard / operating tool Optional accessories: Multifix steel tool holder, 3 straight inserts, 1 / Factory installation Price: 672.00 € net, not included in the price )
