Lead/traction spindle latheBernardo
Smart 410 x 1500 Pro
Machine data
- Machine type:
- Lead/traction spindle lathe
- Manufacturer:
- Bernardo
- Model:
- Smart 410 x 1500 Pro
- Condition:
- new
Price & Location
- Location:
- Stahlwerkstrasse 4, 57555 Mudersbach, DE
Details about the offer
- Listing ID:
- A202-42000
- Update:
- 08.10.2025
Description
Technical Specifications
- Distance between centers: 1500 mm
- Center height: 210 mm
- Swing over bed: 420 mm
- Swing over gap: 580 mm
- Swing over cross slide: 255 mm
- Bed width: 250 mm
- Spindle bore: 52 mm
- Spindle mount: DIN 55029, D1–6
- Speed range (16 steps): 45 – 1,800 rpm
- Longitudinal feed range (17 steps): 0.05 – 1.7 mm/rev
- Cross feed range (17 steps): 0.025 – 0.85 mm/rev
- Metric threads (42): 0.2 – 14 mm
- Inch threads (45): 2 – 72 TPI
- Tailstock quill diameter: 50 mm
- Tailstock quill travel: 140 mm
- Tailstock taper: MT 4
- Motor power: 3.0 / 4.5 kW
- Machine dimensions (L x W x H): 2570 x 900 x 1600 mm
- Weight approx.: 1,400 kg
Product Features
• Prism bed made of grey cast iron, induction hardened and precision ground
• Electromechanical foot brake for reduced auxiliary times

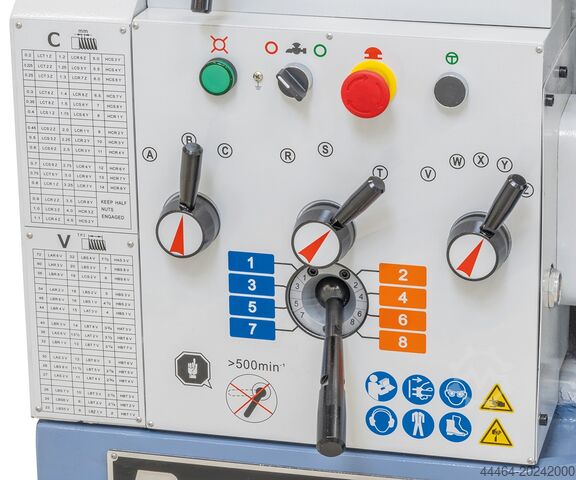

• Central, user-friendly control for feeds and threading with lead and feed screw
• Modern main spindle bearing with precision angular contact ball bearings
• Large-dimensioned, hardened and precision-ground gears
• Hardened and ground gears and shafts, including feed gearbox
• Simple, smooth, and precise adjustment of speed and feeds
• Adjustable tailstock for taper turning, handwheel with fine scale (0.02 mm)
• Removable gap bridge for machining large-diameter workpieces
Scope of Delivery
• 3-axis digital readout ES-12 V with LCD display
• 3-jaw chuck DK11-200 mm / D6
• Face plate 350 mm
• Fixed steady rest – max. capacity 135 mm
• Traveling steady rest – max. capacity 65 mm
• Coolant device
• Four-way tool post
• Safety guard for tool post
• Micrometer longitudinal stop
• Slip clutch
• Turret stop with fine adjustment
• Thread indicator dial
• Motor with electromagnetic brake, CE-compliant
• Foot pedal with brake function, CE-compliant
• Initial fill with Shell Tellus 46
• LED machine lamp
• Change gears
Dcjdoxl Dwuopfx Acwjn
• Reducing sleeve
• 2 dead centers
• Chip guard
• Service tools
The listing was translated automatically. Translation errors are possible.
