Lathe

Bernardo Solid 460 x 1500 Pro Vario

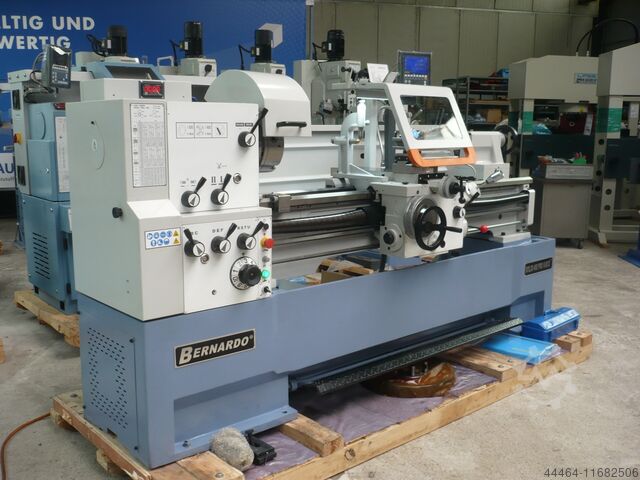

Bernardo universal lathe Solid 460 x 1500 Pro Vario
Technical specifications
center width: 1500 mm
center height: 230 mm
Swing diameter over bed: 460 mm
Gbedpfx Abenfu Amepow
Swing diameter over cranking: 690 mm
Swing diameter over cross slide: 274 mm
bed width: 300 mm
spindle bore: 80 mm
spindle mounting: DIN 55029, D1 - 8
Speed range, 2 steps: 25 - 250 / 250 - 1700 rpm
range of longitudinal feeds: (42) 0,031 - 1,7 mm/rev
Range face feeds: (42) 0.014 - 0.784 mm/rev
Metric threads: (41) 0.1 - 14 mm
inch threads: (60) 2 - 112 Gg/1"
Quill diameter: 60 mm
quill travel: 130 mm
quill mount: MK 4
Motor power: 5,5 kW (7,5 PS)
Machine dimensions: (W x D x H) 2750 x 1080 x 1370 mm
weight approx. 2050 kg
Scope of delivery
3-axis digital display ES-12 V with LCD display
3-jaw chuck PS3-250 mm / D8

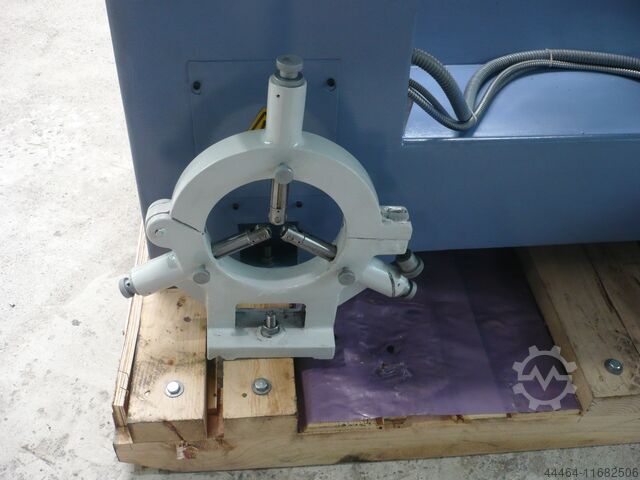

Fixed steady rest - passage diam. max. 150 mm
Moving steady rest - passage diam. max. 110 mm
Initial filling with Shell Tellus 46
Clamping disc 450 mm

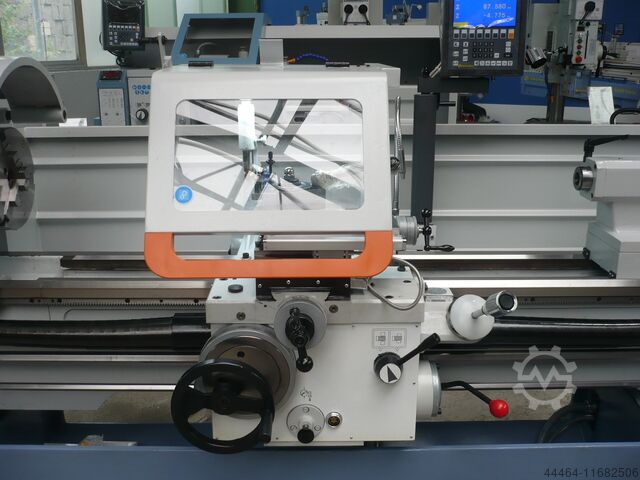

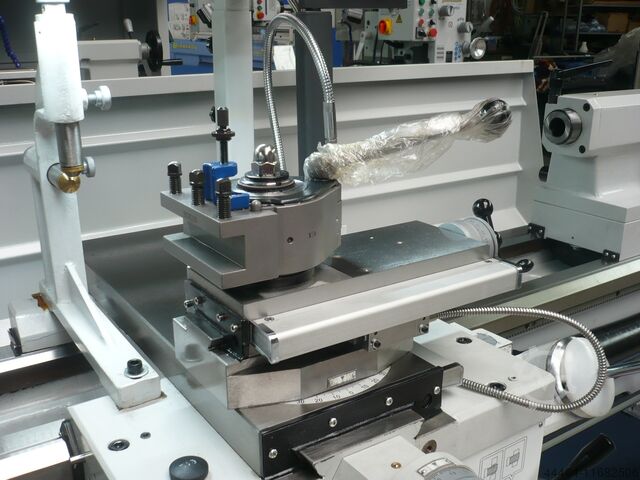

Quick-change toolholder with 4 inserts
Safety device for quick-change toolholder
Foot pedal with brake function according to CE
Coolant device
Frequency converter
Slipping clutch
Change gears
Reducing sleeve
2 centering points
Threaded clock
LED machine light
Chip rear wall
Operating tool
Rapid traverse longitudinal and plane
