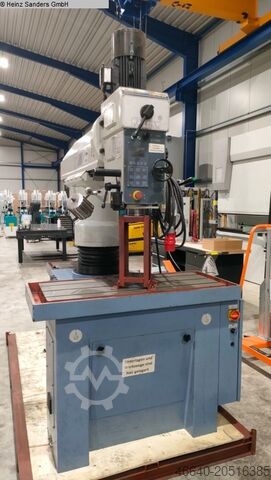

Rapid Radial Drilling Machine

BERNARDO SRB 40 NC

bore capacity in steel (diameter) 40.0 mm
threading 30 M
workpiece height max. 380 - 785 mm
arm length 985 mm
spindle taper 4 MK
boring head swiweling right/left -80 / +80 Grad
table surface area 1210 x 520 mm
turning speeds 50 - 2000 U/min
column diameter 220 mm
column diameter 220 mm
table surface area 1210 x 510 mm
quill stroke 200 mm
feed range - spindle 0.08 - 0.50 mm/U
total power requirement 2.2 kW
weight of the machine ca. 2800 kg
dimensions of the machine ca. 2450 x 1200 x 2720 mm
characteristics
- A variety of clamping and machining options thanks to the
construction-related construction
- Electromotive height adjustment of the drill head without adjusting the
Drilling position, ideal for deep hole drilling
- Drill head can be swiveled 180 °, boom can be moved back and forth and
horizontally pivotable
- Thread cutting device and 6 automatic drilling feeds in the
Basic equipment included

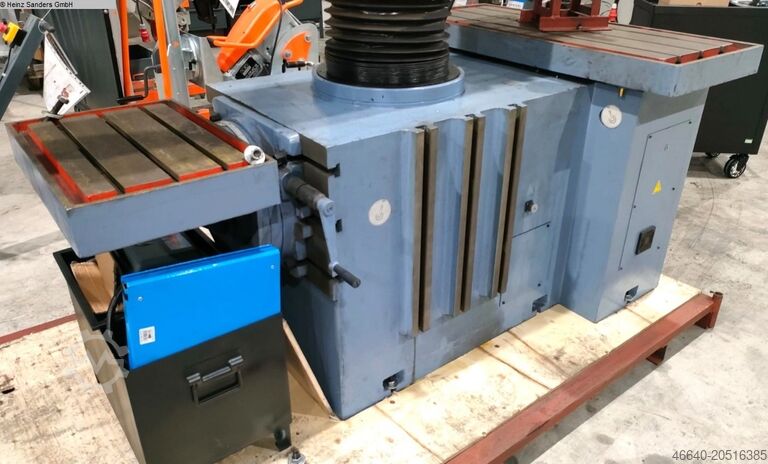

- Large table surface (1195 x 500 mm) for simultaneous clamping
several workpieces

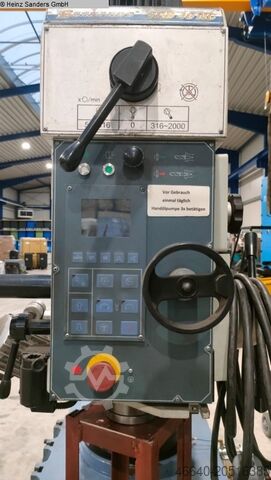

- Digital speed and drilling depth display included in the scope of delivery
- Quick set-up of the drill head on the workpiece, the clamping takes place
hydraulically
- Heavily ribbed column ensures great rigidity of the boom
- Stable construction guarantees vibration-free work
- As standard with electronically infinitely variable speed control
Podexaadyepfx Ac Hjrf

scope of delivery
- Electromagnetic spindle feed
- Digital speed display
- Digital drilling depth display
- Electromotive drill head adjustment
- First filling with Shell Tellus 46
- Keyless chuck 1 - 13 mm / B 16
- Drill chuck arbor MK 4 / B 16
- Reducing sleeve MT 4/3, 4/2, 3/1
- Thread cutting device
- LED machine light
- coolant device
- Height-adjustable protective cover
