Lead/traction spindle latheBernardo
Titan 560 x 3000 Pro Vario
Machine data
Price & Location
- Location:
- Stahlwerkstrasse 4, 57555 Mudersbach, DE
Details about the offer
- Listing ID:
- A202-48685
- Update:
- 09.10.2025
Description
Technical Specifications
Centre distance: 3000 mm
Centre height: 280 mm
Swing over bed: 560 mm
Swing over gap: 785 mm
Swing over cross slide: 350 mm
Bed width: 350 mm
Spindle bore: 105 mm
Spindle mount: DIN 55029, D1 – 8
Speed range: 25 – 220 / 220 – 1500 rpm
Longitudinal feed range (42): 0.055 – 3.061 mm/rev
Cross feed range (42): 0.025 – 1.384 mm/rev
Metric threads (41): 0.1 – 14 mm
Inch threads (60): 2 – 112 TPI
Quill diameter: 75 mm
Quill stroke: 185 mm
Quill taper: MT 5
Motor power: 7.5 kW (10.0 HP)
Machine dimensions (L): 4340 mm
Width x Height: 1150 x 1610 mm
Weight: approx. 3000 kg
Features
• Standard with Delta frequency inverter for high torque at low speed and nearly constant speed under load
• Stepless speed control, with digital speed readout
• Versatile applications in general engineering, production, single-part manufacture, etc.
• Removable gap bridge allows machining of large-diameter workpieces
• Rapid traverse longitudinally and in cross direction as standard, reducing non-productive time
• Modern main spindle bearing with precision angular contact ball bearings
• The machine bed is made from a single casting, extremely torsion-resistant and low-vibration, providing the foundation for precise turning
• Tailstock is adjustable for taper turning
• Central lubrication system for carriage
Scope of delivery

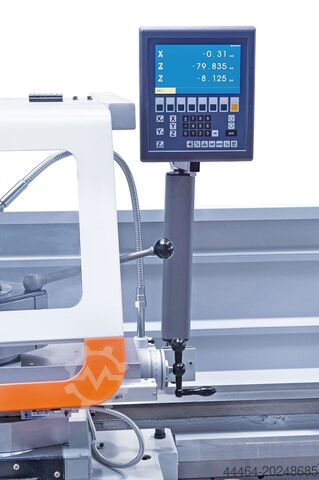

• 3-axis digital readout ES-12 V with LCD display
• 3-jaw chuck PS3-315 mm / D8
• Fixed steady rest – max. workpiece diameter 180 mm
• Travelling steady rest – max. workpiece diameter 120 mm
• Foot pedal with CE-compliant brake function
• Safety guard for quick-change tool post
• LED machine lamp
• Initial fill with Shell Tellus 46
• Faceplate 450 mm
• 2 centre points
• Frequency inverter
• Digital speed readout
• Safety slip clutch
• Rapid traverse longitudinally and in cross direction
• Coolant system
Dkodpfxoxl Tdqj Aghsu
• Quick-change tool post with 4 holders
• Change gears
• Reducing sleeve
• Chip guard
tool kit
The listing was translated automatically. Translation errors are possible.
