Long folder, bender

BIEGEMASTER DURA 6.1,50

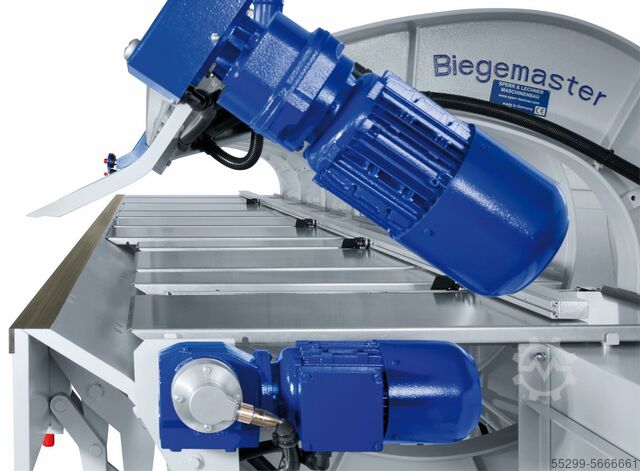

Condition: new, Year of construction: 2004, Working length : 6200 mm Bending capacity steel 400 N/mm² : 1,50 mm stainless steel 600 N/mm² : 1,25 mm alu 190 N/mm² : 2,00 mm Stands + Tension Arms : 7 pcs. Driven linkage joints : 7 pcs. Insertion depth : 1130 mm incl. BMS-Multi-Touch Control incl. electric cutter Directly from the manufacturer. Rbodpfjx Hzdwox Afpjw Made in Germay

Condition: new, Year of construction: 2025, BIEGEMASTER double bender - Model XBend 6.1,25 Effective length: 6400 mm Bending capacity Rbedpevhc Dpofx Afpsw Steel 400 N/mm²: 1.25 mm V2A 600 N/mm²: 1.00 mm Aluminum 190 N/mm²: 2.00 mm Clamping capacity (closed seam): 0.5 mm steel Number of uprights: 4 pieces Driven upper bending joints: 4 pieces Driven bending joints bottom: 4 pieces Incl. touchscreen CNC control with automatic depth stop Incl. electric shears BIEGEMASTER Up- and Down- Bending machine - model XBend 6.1,25 Working length: 6400 mm Bending capacity steel 400 N/mm²: 1.25 mm stainless steel 600 N/mm²: 1.00 mm aluminum 190 N/mm²: 2.00 mm Hemming capacity (closed hem): 0.5 mm steel Stands + Tension Arms: 4 pcs. Driven linkage joints upper beam: 4 pcs. Driven linkage joints down beam: 4 pcs. Incl. touchscreen control and automatic back-gauge Incl. electric cutter

Condition: new, neu ca. 12 - 14 Wochen ab Auf Deutschland 6200 mm 1.5 mm 2 mm 1.5 mm 7 7 1130 mm 180 mm 915 mm Rjdoyrhtbjpfx Afpobw 4 kW 7380 mm 1435 mm 1980 mm 3700 kg 145 ° hydraulic drive standard control additional rail on the bending beam 2x foot pedal removeable material support safety equipment accoring to the control rules BG Germany OPTIONS AS ROTARY SHEAR, CNC CONTROL, BACKGAUGES … ON REQUEST Prices ex works Germany. Transport and commissioningat customers place on request.

Condition: excellent (used), functionality: fully functional, Year of construction: 2020, operating hours: 854 h, year of last overhaul: 2025, Equipment: documentation/manual, Offered direct from first ownership: ----- THALMANN Double Folding Bending Machine – Model TD 150 – 6.4 m Series AB-SE - 6 –150 – S5 – DS 3000 / 1.50 mm (Re 275 N/mm²) DFT system ----- The machine was purchased new from Thalmann in 2020 and installed in our sheet metal workshop in 2021. With only 854 recorded pump hours, it has seen very little use and is therefore in excellent condition. The reason for sale is simply due to insufficient utilization of the machine. It can be inspected and tested at any time in the Munich area. Manufacturer: Thalmann Model: TD 150 - 6.4M Year of manufacture: 2020, 854 pump hours Condition: Excellent Category ID: 1472 Type ID: 1258 Machine type: Panel Folding Machine ---- Included additional equipment: - Freely running cutting unit, 1.5 mm steel, 1 unit Rodpoyu Sbnofx Afpebw - Curved clamping beam, ratio H x D = 1:2, 1 unit - Additional gripper/stop finger unit, 3 units - Clamping beams made from high-strength HARDOX steel, 1 unit - Hydraulic material thickness adjustment, 1 unit - Automatic sheet loading and handling table, 1 unit - Automatic sheet turning device, 1 unit - M-Guard remote maintenance support (instead of TeamViewer), 1 unit - LED bending line illumination with RGB color selection, 1 unit - Machine delivery, installation, and initial instruction, 1 service unit ----- If you have any questions or need more information, please feel free to send us a message or call us.

Condition: as good as new (ex-display), functionality: fully functional, Year of construction: 2024, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, controller manufacturer: Beckhoff, working width: 6,400 mm, warranty duration: 12 months, Equipment: CE marking, cone bending device, emergency stop, Demonstration unit double folder Manufacturer: Thalmann Year of manufacture: 2024 Model: TD 150 / 6.4 m Working length: 6400 mm 12 months warranty Equipment: CNC graphic control Automatic rotary shear Automatic side sheet metal feeding with 6.4 m table Automatic retractable sheet loading table up to 700 mm Automatic sheet turning unit Offset clamping and folding beams Rear gauge range 1250 mm with separate bending zones and conical function 3 conical zones 6 gripper units 6 vacuum gripper units Short part gripper unit Rbjdpfxswxwpas Afpjw Hardox clamping beams Crowning unit Safety area scanner The machine can be inspected at our showroom in A-6800 Feldkirch. Other working lengths and models also available.

Condition: used, Year of construction: 1997, functionality: fully functional, machine/vehicle number: 000326, number of straightening rollers: 7, coil weight: 7,500 kg, coil outer diameter: 1,800 mm, coil inner diameter: 508 mm, product height (max.): 5 mm, number of feed rollers: 2, straightening roller diameter: 50 mm, sheet thickness steel (max.): 5 mm, coil width: 800 mm, Lg 35024 Belt conveyor in long design LORENZ BRM 50/820.7-HH7500.1 Rbjdpfx Afjtrlzaepjw Coil weight max. 7500 kg Coil width max. 800 mm Material thickness 0.8 to 5 mm (steel with yield point approx. 300-350 N/qmm) Number of straightening rollers 7 Further data and detailed offer on request.

Condition: used, Year of construction: 2018, gebraucht 2018 080197 prompt, Zwischenverkauf v Deutschland 1 4010 mm Rbsdpfxoyvvmfj Afpew 1.25 mm 2 mm 1.25 mm 4 4 1130 mm 915 mm 2.2 kW 5240 mm 1435 mm 1950 mm 2600 kg hydraulic drive standard control additional rail on the bending beam 2x foot pedal removeable material support safety equipment accoring to the control rules BG Germany operating manual in German with CE declaration of conformity

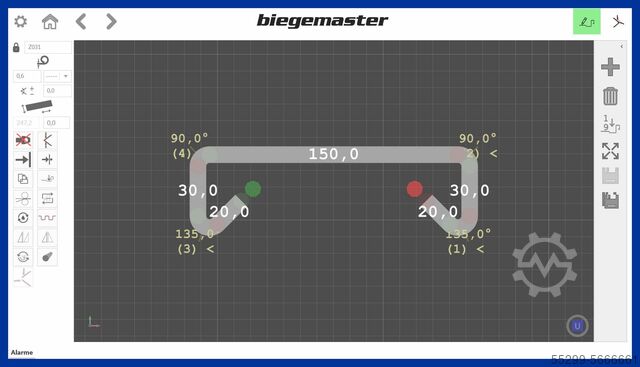

Condition: like new (used), functionality: fully functional, Year of construction: 2023, Usable length: 6200 mm Bending capacity steel 400 N/mm: 2.00 mm Stainless steel 600 N/mm: 1.50 mm Aluminum 190 N/mm: 3.00 mm Number of uprights: 6 Driven bending joints: 6 Insertion depth: 1165 mm Connection: 400V/3Ph/50Hz Other data and dimensions: see brochure Includes hydraulic jaw adjustment to compensate for different sheet thicknesses Includes adjustable jaw preload Includes 2 hydraulic pressure stages Includes safety package Includes 10 x 60 mm, 2-piece bending jaw extension rail Includes 2-way foot switch for clamping jaw open/close + automatic bending jaw start Includes resettable sheet metal grid Includes water groove in the clamping jaw BMS Multi-Touch control with electronic depth stop TAZ 1000 With this Windows-based, graphical touchscreen control, profiles can be selected by simply tapping. The simulation program allows you to observe the complete bending process of a previously saved profile, as well as newly entered profiles. The depth stop is electronically driven via toothed belts and is equipped with four stop fingers. The fingers are infinitely adjustable along the entire machine length. Depth stop measuring range: 10/30 - 945 mm. Network connection for remote maintenance Redpfsyxchnex Afpsbw Electric cutting device S2 Cutting capacity: Steel 400 N/mm²: 2.00 mm Stainless steel 600 N/mm²: 1.25 mm Aluminum 190 N/mm²: 2.50 mm Includes optional conical depth stop for narrow/wide edges for easy joining of sheets Measuring range: 10/30 - 885 mm

Condition: excellent (used), functionality: fully functional, Motorized decoiler Manufacturer: GSW Model: AHM 3000 h Condition: very good Decoiler weight: 750 kg Max. coil weight: 3000 kg Coil width: 600 mm Coil inner diameter (min.): 380 mm Rbedpfoylychjx Afpow Coil inner diameter (max.): 530 mm Motor power: 2.2 kW Hydraulic pump power: 0.75 kW Rotation speed: 17 rpm Dimensions (W / L): 1100 / 2000 mm

Condition: used, functionality: fully functional, Year of construction: 2001, Thalmann THAKO 15 Rsdjyr Eqqspfx Afpjbw Working width: 6.20 m Bending capacity: 1.5 mm Year of manufacture: 2001 Incl. controlled back gauge Incl. motorized cutting unit Available from end of April 2026
