Single Edgebanders

BIESSE AKRON1445 B AIRTEC

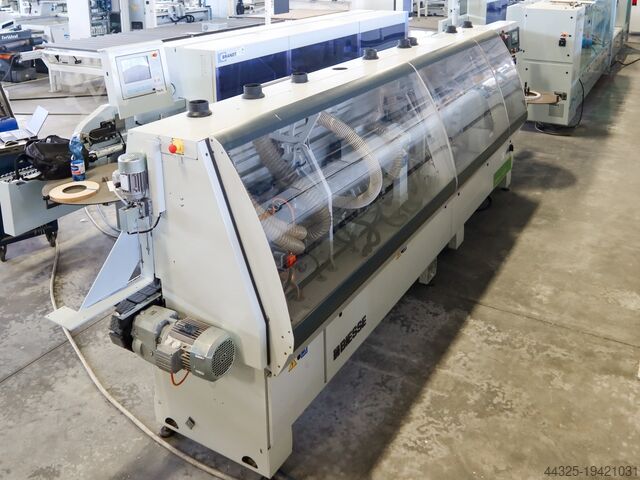

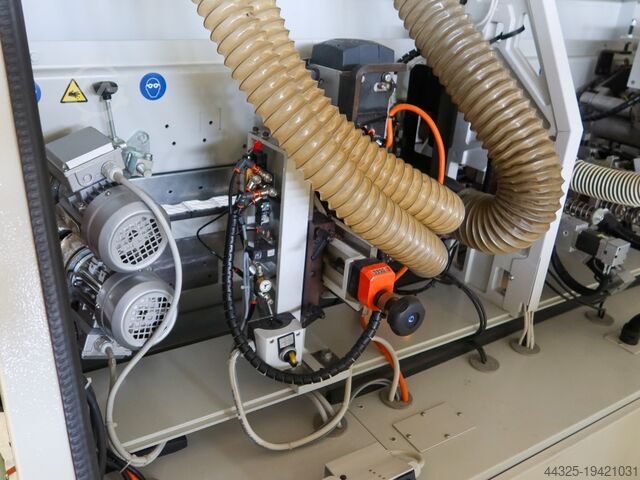

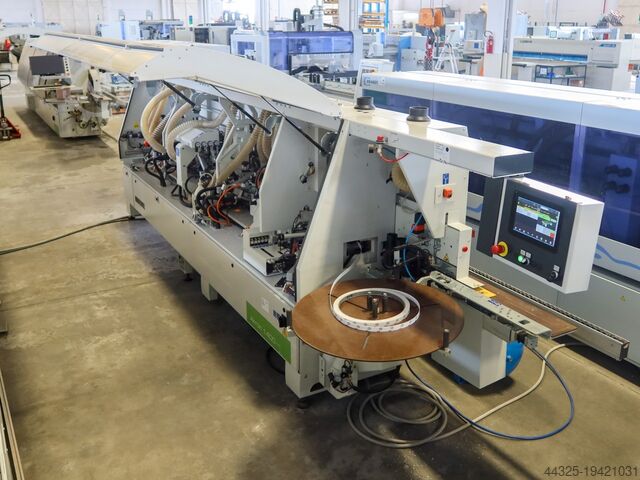

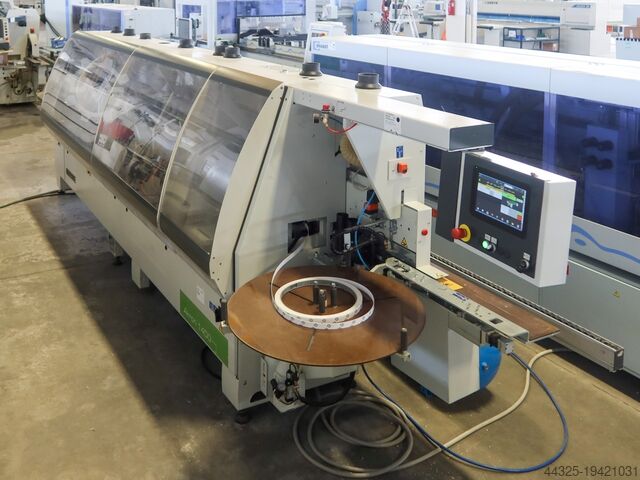

Condition: used, machine/vehicle number: 007647, Position 1: Single Edgebanders BIESSE + FORMETAL-AKRON1445 B AIRTEC Knjdpfx Akewukywewsb Position 2: Panel Return Systems BIESSE + FORMETAL-AKRON1445 B AIRTEC

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Ksdpfxjtu U Ebs Akwjnb

Condition: used, Year of construction: 2000, With electric height and tilt adjustment Used, excellent condition, little used Make Altendorf Type F45 Year of manufacture 2000 Machine number GS-tested Motor 4 kW Steel guides Knsdpfx Akevxlq Hewjb Carriage length approx. 3000 mm Cutting width approx. 1050 mm Pivoting up to 45° Prepared for scoring unit Parallelogram guard Tabletop extension Anodized aluminum parts Electric height adjustment Electric tilt adjustment Digital display: - Cutting angle - Speed Extraction connection D 120/80 mm Space required approx. 3010 mm x 1800 mm x 1500 mm Weight approx. 1000 kg Storage location 97447 Gerolzhofen, free on load, unpacked Sold in the current condition as seen, without warranty or guarantee

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Kedpfxoh T Dzqe Akwonb Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece Knedpfx Akjuhaycjwjb - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: like new (used), Year of construction: 2016, overall weight: 8,200 kg, fuel type: electric, color: white, Type HX426 Blade diameter (mm) 650 Knsdpfxjqmi Irj Akwsb Number of hammers (pcs) 30 Inlet size (mm) 1250 x 250 Screen mesh size (millimeter) 80 Length of chips (mm) 50 -80 Capacity (t / h) 8- 10 Main power (kW) 132 Feeder motor (kw) 7.5 +5.5 Discharge motor (kw) 5.5 +5.5 Oil pump motor (kw) 1.5 Length of conveyor (mm) 4000 Conveyor length (mm) 10000 Weight (t) 8.2 Note: capacity depends on the physical characteristics of the raw material, feeding method, feeding speed and production volume.

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. PANEL DIMENSIONS (WORKING DIMENSIONS): - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) Knjdpfxohknbre Akwjb - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling - Total installed power: 20 kW AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE.

Condition: used, machine/vehicle number: 008357, Max. panel width: 4400 mm Max. panel length: 4300 mm Main saw blade projection: 75 mm Knedox A Tk Eepfx Akweb No of Grippers: 9

Condition: used, functionality: fully functional, operating hours: 3,443 h, CLARK FORKLIFT LOAD CAPACITY: 50 Q. DIESEL NEW FORKS LENGTH: 1.80 MT. ORIGINAL FORKS LENGTH: 1.20 MT. (ALWAYS SUPPLIED) NEW SEAT WITH ELBOW REST MAX. LIFTING HEIGHT: 4.80 MT. WORKING HOURS: 3,443 SERVICE CARRIED OUT IN MAY 2025 Knsdpfx Akowtffxswob READY FOR DELIVERY

Condition: new, Year of construction: 2025, functionality: fully functional, Cutting range: 5300 x 2240/2100 x 80 mm Cutting depth: 80 mm Motor power: 5.5 kW Continuously adjustable scoring unit EPS.X – Electronic positioning system for the X-stop 12" touchscreen display Saw Frame • Manufacture of precision components to 1/100 mm accuracy • Solid, self-supporting, permanently welded, torsion-resistant saw frame • TRK1 full-surface support wall made of birch plywood with integrated small parts support • Auxiliary stop profile with its own measuring tape and 3 auxiliary stops for repeat cuts Ksdoyx H Dtjpfx Akwsnb • Automatic detection of central support • Automatic roller locking during cutting Saw Beam • Stable, durable steel construction of the saw beam • Automatic saw beam locking with interface detection Saw Unit • Play-free, easy-running guides • Robust bearing of the motor carriage ensures high cutting precision • Powerful, high-torque 5.5 kW motor (7.5 HP) • Increased operator comfort thanks to largely automated operation • Laser-assisted display for horizontal cuts • Automatic motor carriage clamping • Automatic plunging and swiveling of the saw motor • Pneumatic clutch for easy switch-over to manual operation • SUPERSILENT sound insulation to reduce saw blade noise • Electromagnetic motor brake • ProLock Easy-Fix tool clamping system Control • 12" touchscreen control panel with optimized user guidance • Multilingual user interface • Tool database for maximum flexibility and repeat accuracy • Fully automatic cutting process • Infinitely variable feed speed from 10–25 m/min • Selectable sawing cycle • Panel end detection • Constant return speed • Operating hours counter • Network connectivity • UPS 24VDC for touch PC (uninterruptible power supply) • Automatic saw beam positioning (ASP) Dimension Setting • Digital measuring system DMS.x (horizontal axis for vertical cuts) • Electronic positioning system EPS.y incl. ABO (vertical axis for horizontal cuts) Design, Ergonomics • Typical STRIEBIG product design • Multiple award-winner (including the Design Prize Switzerland) • Ergonomically optimized for function and user Installation • Wall-mounted or free-standing installation possible
