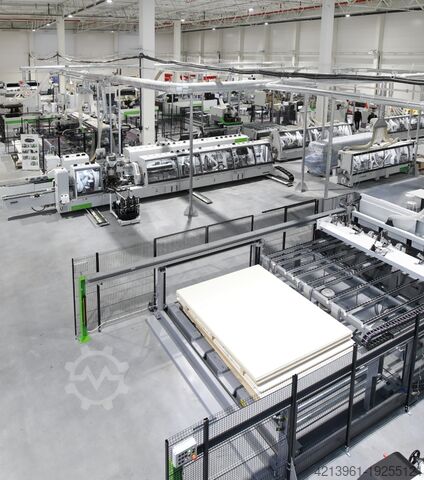

Throughfeed drilling machine

BIESSE BREMA EKO 2.2

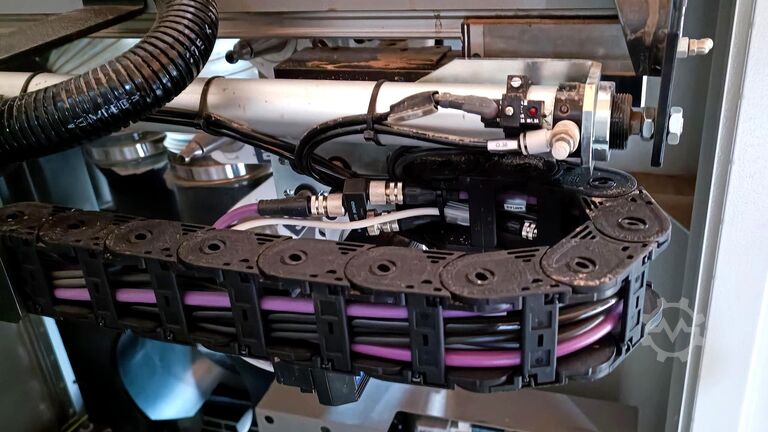

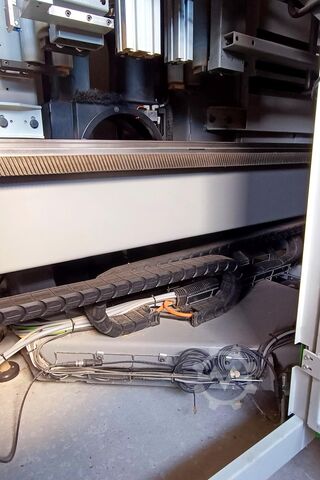

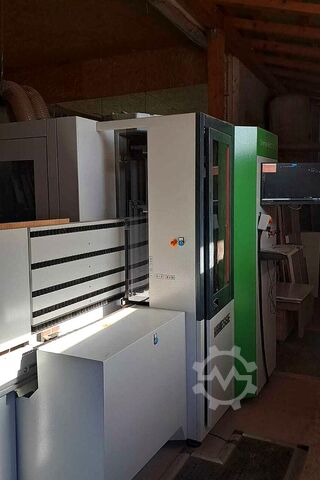

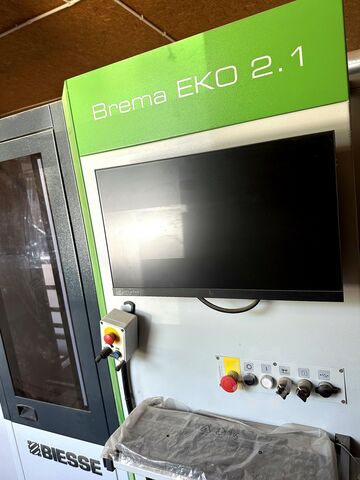

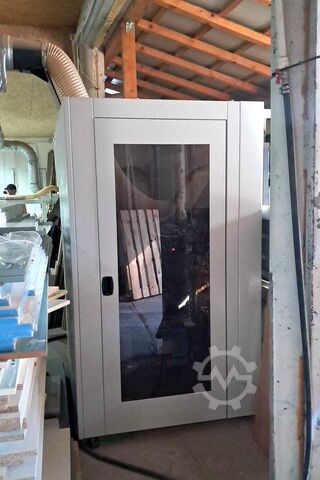

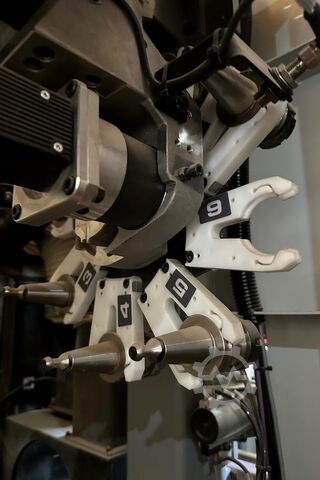

Condition: like new (used), Year of construction: 2018, machine/vehicle number: 1000024667, functionality: fully functional, input voltage: 400 V, input current: 21 A, input frequency: 50 Hz, type of input current: three-phase, workpiece length (max.): 2,600 mm, workpiece width (max.): 900 mm, workpiece height (max.): 60 mm, workpiece weight (max.): 50 kg, total height: 28,840 mm, total length: 64,500 mm, total width: 21,320 mm, overall weight: 1,800 kg, Equipment: CE marking, documentation/manual, For sale: Biesse Brema Eko 2.1 CNC machining center. Prsdjz Azbfopfx Anyeb Machine from 2018, very little use. Operating hours: - Drilling head: 2883 hours - Electrospindle: 535 hours - Saw: 1253 hours Machine condition: Very good Program: bSuite3 The Biesse Brema EKO 2.1 is a compact and versatile CNC machine that enables the processing of parts of various thicknesses and sizes while taking up less space. It is an ideal solution for "just-in-time" production for craftsmen, small businesses, and for the production of special parts in large companies. Panel dimensions: Panel length (X): 200 – 2600 mm, Panel width (Y): 35 – 900 mm, Panel thickness (Z): 8 – 60 mm, Maximum panel weight: 50 kg. BH17 self-selecting drilling unit with 14 vertical spindles + 8 horizontal spindles + 1 120 mm diameter grooving saw, 5.5 kW (6 HP) electrospindle with ISO30 mounting, Foot pedal for opening/closing the clamp Extensions for loading and unloading the table.

Condition: used, Year of construction: 2022, Edge bander for narrow surfaces + XES200 station Manufacturer: HOMAG Type: EDGETEQ S-500 KAL375 AT Year: 2022 Prodpfxozkmqzj Anyjb + XES200 station designed for servicing a PUR adhesive system using airTec technology Control: HOMAG powerControl PC23 with powerTouch screen Equipment: pre-milling unit, glue application unit, airTec technology, trimming units, milling units, rounding units, sanding units, polishing units. Additional equipment: HOMAG XES 200 service station.

Condition: used, Technical Data Machining Area - X = 3200 mm - Y = 1250 mm Workpiece Dimensions - Length X: 200 - 3200 mm - Height Y: 35 - 1250 mm - Thickness Z: 8 - 60 mm - Maximum workpiece weight: 50 kg Workpiece Reference System The preliminary positioning of the workpiece in the longitudinal direction (X-axis) is performed in the loading area on the left side of the machine by means of a stop, which is placed in a fixed position in the work table. Workpiece Positioning Unit The workpiece positioning system in the X-axis is achieved by two clamping jaws that hold the workpiece during the machining process. The movement is controlled by two independently driven servomotors. Pedjzutraopfx Anyerb Workpiece Support Surface The workpiece support surface, on which the machining units are located, consists of a series of rubber-coated rollers that form the workpiece reference in the Z-axis. On the opposite side of the machining unit, a counter-pressure system is installed, which optimally holds the workpiece in the machine. Converter and voltage connection for voltages of 380 - 415 V (+-10%), 50/60 Hz Air conditioning unit for the electrical control cabinet bSolid control system HP kit for the rapid movement of the workpiece clamping jaws The combined system, with servomotor and precision planetary gearbox, enables movement speeds of up to 110 m/min with fast acceleration ramps. Consent pedal for opening/closing the clamping jaw BH28 drilling head with individually addressable spindles - 17 vertical spindles (7 in the X-axis, 10 in the Y-axis) - 5 horizontal spindles (3 in the X-axis, 2 in the Y-axis) - 1 dado blade unit with a fixed working direction in X 11 kW electric spindle with HSK-F adapter with "C" axis torque - 11 kW, 24000 rpm in S1 operation - 6000 - 24000 rpm programmable via NC Angle saw unit HSK F63 for saw blade - Max. speed 8,400 rpm Drilling and milling unit for top and bottom edges / end drilling and milling unit - Max. speed 9,000 rpm - Tool holder with ER20 collet 8-position tool changer magazine - disc changer Accessory kit "Sensitive Surfaces" for workpiece transport Laser device for manual reading of QR codes SOPHIA - IoT Connection Dowel Ø8x40 mm and glue insertion unit Barcode2Hops with variables MultiPost upgrade POST_Element Splitter NC-Hops 7.0

Condition: ready for operation (used), Year of construction: 2017, machine/vehicle number: 1000017221, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 60 mm, controller model: BSuite3, number of spindles: 17, TECHNICAL DETAILS Working area X-axis: 2,500 mm Working area Y-axis: 900 mm Working area Z-axis: 60 mm Number of axes: 3 Tool: ISO 30 Spindles Total number of spindles: 17 6 vertical in X-axis 5 vertical in Y-axis 4 horizontal in X-axis 2 horizontal in Y-axis Podpfxeyzpcds Anysrb MACHINE DETAILS Numerical control: BSolid Software - BSuite3 EQUIPMENT Automatic unloading device Integrated blade for groove insertion Front protective and safety systems with mats Perimetric protective grids External reference: MME002

Condition: excellent (used), Year of construction: 2023, machine/vehicle number: 0-200-87-0913, functionality: fully functional, input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, edge thickness (max.): 3 mm, height adjustment type: electric, total length: 10,825 mm, Equipment: documentation/manual, Used single-sided HOMAG edge-banding machine for straight edges – EDGETEQ S-500 For pre-milling (jointing trimming), gluing and post-processing of various kinds of edging materials. Fixed stop on the left side. Year of Manufacture: 2023 EQUIPMENT / SPECIFICATION BASIC MACHINE - with 80 mm wide conveyor chain with rubber-coated chain pads, - workpiece thickness 8 to 60 mm - top pressure with compound V-belt, automatic height adjustment (to workpiece thickness) - panel support with roller guide, extractable approx. 700 mm Pedpfjztpw Nex Anyjrb - glue roller drive in case of feed stop - hand switch /remote control for setup – mode - adjustable infeed fence with NC-axis (CAN-bus) - Jointing trimming 2 motors each 3 kW (clockwise, counterclockwise), jumping function GLUING SECTION V20, consisting of: - QA65 glue application unit, with PTFE-coating (Teflon), with pneumatically operated glue gates - pneumatic clamping of glue application - Pre-melter for PUR glues - Edge magazine, edge thickness min. 0,4 mm to max. 3 mm Edge width (height) max 65 mm - 2-fold automatic edge roll changing magazine - Pressure zone with automatic horizontal adjustment (NC CAN-axis) to edge thickness, 1 driven & 4 non-driven pressure rollers. POST-PROCESSING SECTION: - Snipping (end-trimming) unit PK25 horizontal, 2 motors, with straight/chamfer cutting function - Edge Trimming MS40 2x0.55 kW, top/bottom - Multifunction Corner Rounding MF60, 2 motors 0.4 kW (top/bottom) with linear motors, soft-touch - Profile (radius-) Scraping MN11, multi scraping tool, automatic positioning and adjustment (NC) - Flat Scraping (glue joint) FA20, top/bottom, (version with 3 tracer rollers), automatic adjustment - Buffing Unit FP10, top/bottom Control / software: - powerControl PC 23 PowerTouch - woodCommander 5 - Edge sequence control - change-over in the gap Machine dimensions 1085 x 180 x 235 cm (with opened doors)

Condition: like new (used), Year of construction: 2021, operating hours: 25,495 h, functionality: fully functional, power: 160 kW (217.54 HP), volume flow: 1,986 m³/h, pressure (max.): 8.3 bar, type of cooling: air, Equipment: refrigerant dryer, type plate available, Screw compressor Atlas Copco GA160VSD+FF. Integrated dryer and frequency converter. 160 kW, 8.3 bar, 33.10 m³/min. Year of manufacture: 2021. Operating hours: 25,495. Pedpfjyzg Eisx Anyjrb

Condition: excellent (used), Year of construction: 2021, 4-SIDE EDGE BANDING LINE Workpieces dimensions: min. mm 195 x 250 x 60 / max. mm 1200 x 2500 x 60 Composed of the following machines: O12044a) Infeed table "HOMAG" Mod. TBL 100/25/12 with motorized rollers Podpfjx Aqbhox Anyerb O12044b) 1st Double-side Sizing & Edge Banding machine "HOMAG" Mod. EDGETEQ D-610 (KFL 525/5/A3/15) O12044c) Turning Station "HOMAG" Mod. TDL 310 / 25 / 12 (from lengthwise to crosswise) O12044d) 2nd Double-side Sizing & Edge Banding "HOMAG" Mod. EDGETEQ D-610 (KFL 526/6/A3/25)

Condition: excellent (used), HOMAG EDGETEQ S-380 edge banding machine Top-mounted material pressure beam, liquids Pre-milling cutters, Glue application, Preheating unit with glue pot Pneumatic preliminary trimming unit, pressure rollers liquids Final trimming saws, R1-R2 top-bottom milling unit 2x R1-R2 corner rounding unit Multi R1-R2 profile trimming unit Flat trimming unit, Liquids Polishing unit, Grooving unit Nesting The machine features NC control; all settings and operations are performed from the control panel. Maximum part height: 60mm, Maximum reel edge band thickness: 3mm, Feed rate: 8-18m/min Prjdozmgh Sspfx Anysb The machine is in very good condition and is almost as good as new. Operating hours: 535h

Condition: excellent (used), Year of construction: 2021, operating hours: 23,369 h, functionality: fully functional, power: 160 kW (217.54 HP), volume flow: 1,986 m³/h, pressure (max.): 8.3 bar, type of cooling: air, Equipment: refrigerant dryer, type plate available, Screw Compressor Atlas Copco GA160VSD+FF Premium Predpsyzgtyefx Anyjb Inverter and dryer integrated. 160 kW 8.30 bar 33.10 m3/min Year of manufacture: 2021 Operating hours: 23,369

Condition: excellent (used), C.N.C. WORKING CENTER with 4 axes for routering, boring, cutting and EDGE BANDING Gantry-drive (axe X) machine Prjdpfx Aoz Eqbwjnysb Numerical Control PowerControl PC86 PowerTouch - Software WoodWOP - TAPIO READY Working table with pods and rails - Support rails (No.) 10 - SPEED PACK Automatic deplacement by CNC (X axis) of the Supports rails Automatic deplacement by CNC (Y axis) of the vacuum pods/cups LED system (on the rails) for the vacuum pods positioning Automatic Tools Changing System - Tools storage plate (No. of folds-positions) 18 Max. useful working area (X - Y - Z) mm 6175 x 1550 x 300 Max. useful working area (X - Y - Z) in edge banding (mm) 6000 x 1550 x 60 Vacuum pump (capacity m3/h) 290 Motorized carpet to evacuate chips and wastes WORKING GROUPS (TOP): N° 21 Independent vertical boring spindles (High-Speed) N° 4 Independent horizontal boring spindles (Crosshead) N° 1 Circular Saw (tiltable 0°- 90°) diam. (mm) 200 N° 1 Vertical electro-spindle (KW 15) Edge Banding unit (always ready on board) POWER EDGE. Glue Unit (Hot Melt + Quick Melt Unit) Edges (tape) thickness in rolls (min/max) mm 0,4 / 3 Edge coils supporting unit (No. of reels) 2 Pre-End cutting (pre-snipping) Unit Aggregate Circular saw / Aggregate Top & Bottom Flush-Trimming/Scraping Unit
