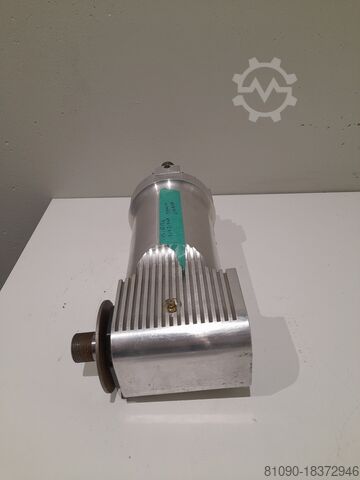

HSK AGGREGATE

BIESSE

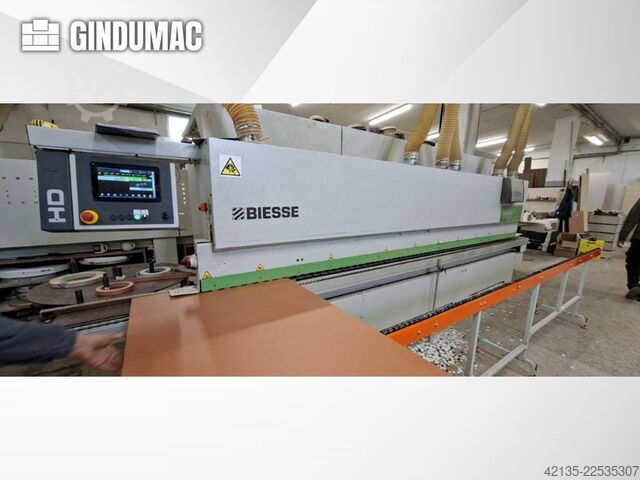

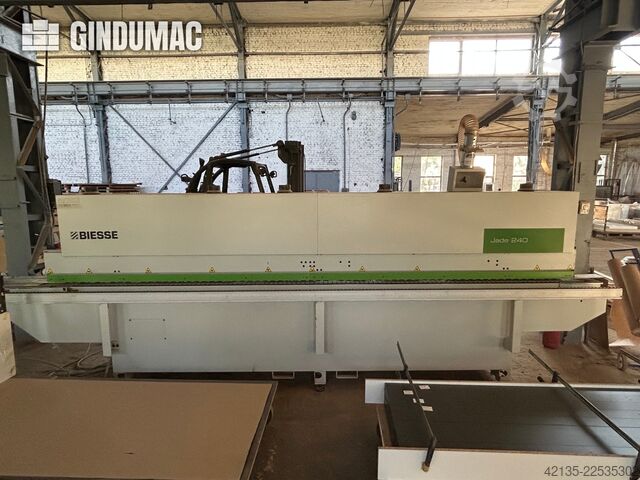

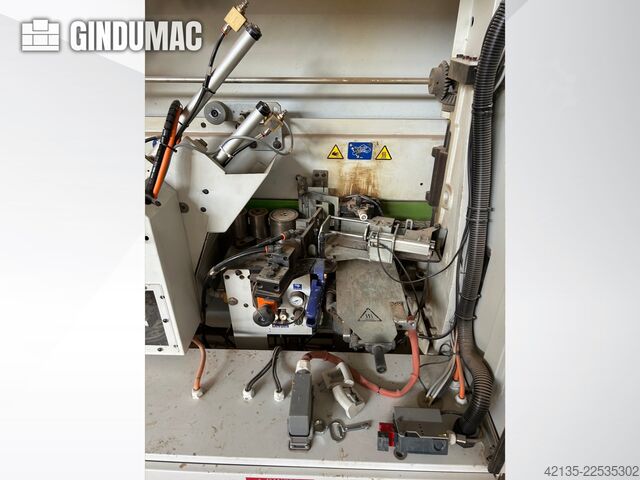

Condition: not inspected (used), Year of construction: 2016, functionality: unexamined, edge thickness (max.): 22 mm, rotational speed (max.): 12,000 rpm, Equipment: CE marking, The machine has the following configuration: Pre-milling unit Automatic, timer-controlled intervention and positioning via NC Edge preheating lamps Edge band magazine Glue pot for EVA hot-melt adhesive Premelter for EVA hot-melt adhesive QM-705 End trimming unit IN-801 Number of motors: 2 Top and bottom flush trimming unit RS-100 Number of motors: 2 Motor power: 2 kW Speed: 12,000 rpm Fine finishing and contour trimming unit RF-100 Number of motors: 2 Motor power: 2 kW Speed: 12,000 rpm Corner rounding unit AR30 Number of motors: 2 Motor power: 0.8 kW Speed: 12,000 rpm Kedpsyxndbefx Afdjlr Automatic, timer-controlled intervention End cutting unit RB02 Positioning by NC Glue scraping unit RCC-701 Polishing unit SP-501 Number of motors: 2 Motor power: 0.25 kW Spraying unit LPT-700 TECHNICAL DETAILS Panel height min: 10 mm Panel height max.: 60 mm Edge thickness min.: 0.4 mm Edge thickness max.: 22 mm MACHINE DETAILS Total connected load: 22 kW EQUIPMENT Feed pressure with rubber belt Panel support guides with NC positioning CE marking The machine is sold and delivered as is (“as seen and approved”) based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and use of the machine at the place of destination. External reference: 7673

Condition: not inspected (used), Year of construction: 2000, functionality: unexamined, travel distance X-axis: 5,900 mm, travel distance Y-axis: 1,560 mm, feed rate X-axis: 80 m/min, feed rate Y-axis: 60 m/min, rotational speed (max.): 20,000 rpm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS X-axis working area: 5,900 mm Y-axis working area: 1,560 mm X-axis travel speed: 80 m/min Y-axis travel speed: 60 m/min Z-axis travel speed: 25 m/min Drilling spindles Kljdpfoyxm Swsx Afder Vertical drilling spindles: 20 Horizontal drilling spindles in X-direction: 6 Horizontal drilling spindles in Y-direction: 2 Total number of vertical and horizontal spindles: 28 Milling spindles Number of controlled axes: 4 Motor power: 10 kW Spindle speed: 20,000 rpm Tool changer Number of positions: 10 Tool: head-mounted MACHINE DETAILS Total installed power: 24 kW Control system: WINDOWS Machine programming software: WRT EQUIPMENT Work table with suction cups Number of suction bar rows: 10 Suction cups for securing the workpiece Vacuum pump The machine is sold and delivered in its actual and legal condition ('as seen and approved') on the basis of photographic documentation and descriptive technical/commercial documents. The buyer is entitled to inspect the item before collection and is responsible for installation, securing and use of the machine at the final destination. External reference: 8173

Condition: ready for operation (used), Year of construction: 2017, machine/vehicle number: 1000017221, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 60 mm, controller model: BSuite3, number of spindles: 17, TECHNICAL DETAILS Working area X-axis: 2,500 mm Working area Y-axis: 900 mm Working area Z-axis: 60 mm Number of axes: 3 Tool: ISO 30 Spindles Total number of spindles: 17 6 vertical in X-axis 5 vertical in Y-axis 4 horizontal in X-axis 2 horizontal in Y-axis MACHINE DETAILS Numerical control: BSolid Software - BSuite3 EQUIPMENT Automatic unloading device Kledpfx Ajyzpcdofdor Integrated blade for groove insertion Front protective and safety systems with mats Perimetric protective grids External reference: MME002

Condition: as good as new (ex-display), Year of construction: 2026, CNC Machining Centers Rover Multi Up M C S Working Area*: X = 3280 mm; Y = from 1580 to 1660 mm, depending on work conditions Z = 200 mm – 5-axis machining unit and drilling unit, with vacuum modules H = 74 mm Z = 245 mm – 5-axis machining unit and drilling unit, with vacuum modules H = 29 mm Workpiece Clearance*: Y = 1900 mm Axis Travel*: X = 3706 mm; Y = 2294 mm; Z1 = 515 mm; Z2 = 371 mm VACUUM SYSTEM Subdivision of the vacuum system into 2 working zones and 2 clamping zones in X. AUXILIARY VACUUM SYSTEM – 2 zones Allows clamping of workpieces using vacuum templates. Remote Control RM850 Rover Multi Up M C S Panel – Multi Purpose Regular Configuration 2 Compatible with the turret tool magazine with 16 positions and the side tool magazine with 12 positions. The tool magazines can also be retrofitted. Uninterruptible Power Supply (UPS) for machine PC. 6 ATS workpiece supports – 18 module carriers — 6 aluminium workpiece supports. The positioning of the workpiece supports is via linear guides with ball bearing slider blocks. Clamping is performed on the front and rear linear guides via pneumatic cylinders. Clamping is released by a push button located at the front of the workpiece support. — 18 module carriers, 132 x 132 x H 41.5 mm, with independent pneumatic clamping. The vacuum modules can be rotated in 15° increments on the module carriers; an ideal solution for shaped parts. — 18 covers for module carriers without template. SA (Set-Up Assistant) working table for tables up to 1550 mm. Supported manual positioning system with motion direction indicator and position indicator. — Sensors on each working table and along the X-axis of the working area. — Display of direction and position achieved for the carriage during positioning phase, mounted on each working table. According to the programmed configuration of the working tables, the system indicates the direction of movement for each working table and carriage, and confirms with a green LED and audible signal when the correct position is reached, with a tolerance of +/- 1.5 mm. Subdivision of the pneumatic system into 2 working areas in X. Machining unit with 5 interpolating axes, 13 kWp (17.4 HP), with HSK F63 adapter, liquid-cooled – 20,000 rpm Extraction hood with 12 NC-controlled positions for the 5-axis electrospindle. Flange for preparation of a 5-axis interpolating machining unit for mounting aggregates. Coolant system Additional Z-axis carrier for rear machining units, with independent Z-axis. Drilling head BH 24 L Side tool magazine with 12 positions, integrated into the machine bed. Turret tool magazine with 16 positions, installed directly on the X machining unit. HSK F63 tool adapter, equipped with a long integrated flange, for saw blades on the 5-axis head. Saw blade 300 mm, for tool holder. Hi-Tech tool set Complete set of tools for the acceptance test Kledpsy Ehrxofx Afdjr Consisting of the following 9 parts Replacement of standard PC with a high-performance PC. Digital device for measuring tool length up to 130 mm diameter. bSolid NC-HOPS 8 MacroCAM Rover 1. AV NC-HOPS MacroCAM 1. License WorkCenter suction cup proposal 5-Axis Simultaneous Material removal simulation 12-month warranty period Location: ex stock 54634 Bitburg - immediately available -

Condition: used, machine/vehicle number: 008480, X axis working area: 4600 mm Y axis working area: 1935 mm Working Table: Pod and Rail Main Electrospindle power: 18 KW Number of controlled axes: 5 axes Kodpsy Edqkefx Afdjlr Total number of drilling spindles: 31 Total number of tool changer positions: 58

Condition: used, machine/vehicle number: 008515, Max. panel length: 3200 mm Ksdpfxoy Edpgj Afdolr No of Bottom Units: 6 No of Top Units: 2

Condition: used, machine/vehicle number: 008272, Position 1: 5 Axis CNC Routers BIESSE + KUKA-ROVER A + KR210 R3100 Position 2: Robot BIESSE + KUKA-ROVER A + KR210 R3100 Kedpfox A Tfvjx Afdelr

Condition: used, machine/vehicle number: 007811, Position 1: Panel Feeding and Loading BIESSE - RBO-STREAM SB Position 2: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB Position 3: Panel Turning Device BIESSE - RBO-STREAM SB Position 4: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB Position 5: Automatic Drilling Machine BIESSE - RBO-STREAM SB Position 6: Automatic Drilling Machine BIESSE - RBO-STREAM SB Position 7: Panel Turning Device BIESSE - RBO-STREAM SB Position 8: Panel Stacking and Offloading BIESSE - RBO-STREAM SB Kledpsv Dyxcefx Afdor

Condition: used, machine/vehicle number: 007289, X axis working area: 3200 mm Y axis working area: 900 mm Main Electrospindle power: 4.5 KW Klsdpowukyqsfx Afdor Number of controlled axes: 3 axes Total number of drilling spindles: 16

Condition: used, machine/vehicle number: 005836, X axis working area: 3000 mm Kodpfx Ajwuckuefdslr Y axis working area: 1000 mm Main Electrospindle power: 3.5 KW Number of controlled axes: 3 axes Total number of drilling spindles: 82
