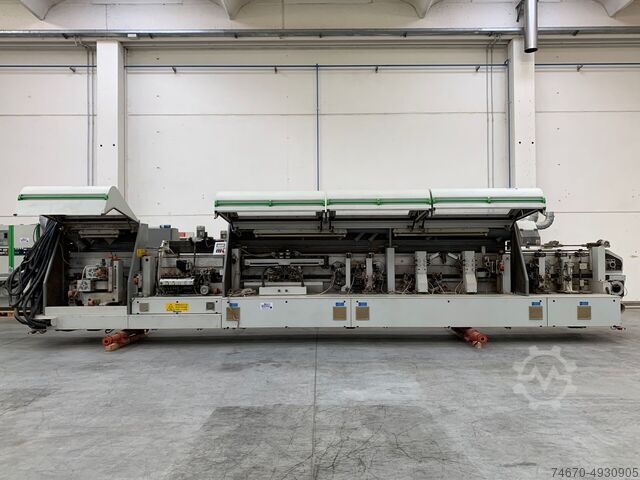

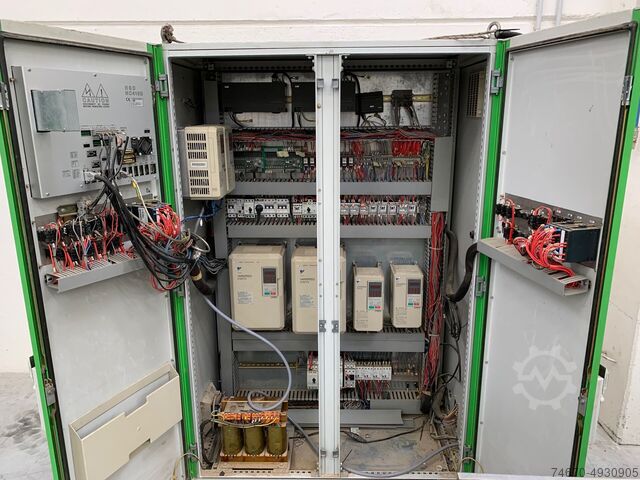

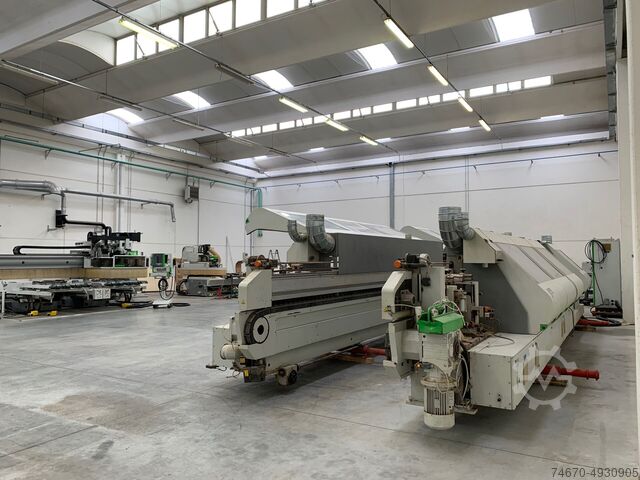

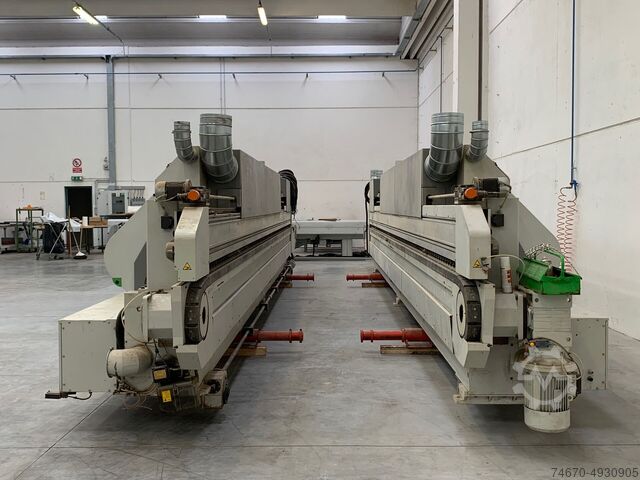

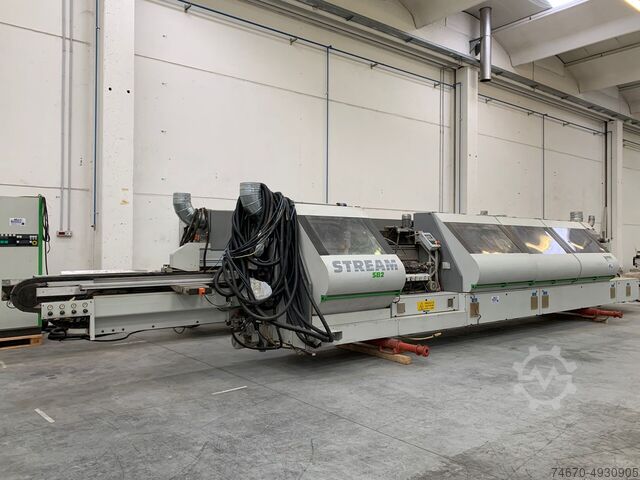

DOUBLE SHOULDER GLUE SQUARING MACHINE PU

BIESSE STREAM SB 2

Condition: used, Year of construction: 2008, UNIVERSAL DOUBLE-SIDE SIZING & EDGE BANDING MACHINE FOR 1st AND 2nd PASS * Numerical Control / Software: SINITRA * Adjustable feeding speed (m/min): 10–40 (INVERTER C.N.) * Safety and sound-proof enclosures/cabins. * Working line (work units support tables), manual adjustment. * Distance (center-axes) of the disappearing dogs: 500 mm SIZING PART (for each side): * Anti-chipping Milling Unit AS 10 * N° 2 Hogging Units (1 Top + 1 Bottom) * Pre-Milling Unit EDGE-BANDING PART: * Glueing Unit: Hot Melt + Quick Melt Unit * Edge magazine with 6 positions * Snipping end-cutting unit * Rough Trimming unit * Fine Trimming unit 0 - 25° * Multi Function Unit - Profile contour Trimming unit with 4 Motors * Combined Milling grooving Unit: Horizontal + Vertical * Profile Scraping unit - Multi-profile, by N.C. 2 positions * Glue scraping unit * Buffing unit * Hot Air Heater to reactivate the color of plastic tape TECHNICAL DATA * Workpiece width: 240 – 1200 mm * Workpiece length: 240 – 2700 mm * Workpiece thickness: 10 – 60 mm * Edge thickness: 0,3 – 3 mm * Panel thickness: 10 – 60 mm * Edge height: 15 – 65 mm * Working table height: 950 mm WORKING UNITS * Anti-splint milling unit * Milling unit with pneumatic time entry AS10 Bwjdoxrc Hnjpfx Abmow * Double-hogging milling unit DT 10 * No. 2 anti-adhesive units * Edgebanding unit SP30 * Roller set to press the edge on straight profiles – 1 + 3 pressure rollers – motorized regulation of depth position automatically by numerical control * Edge magazine – 6 positions for SP10, SP20, SP30, SP40 * End cutting unit IT90-S * Milling unit RF10, straight tools * Multifunctional milling unit AR30 R=2 mm * Edge scraping unit RB10; R=2 mm * Glue scraping unit RC20 * Brushing unit SZ30 * Hot Air Heater (to reactivate the color of plastic tape)

Condition: used, Year of construction: 2004, machine/vehicle number: 44070, Biesse Stream SB2 10.5XB Double Sided Edge Bander (2004) Bsdpfx Abjxncyasmjww

Condition: used, machine/vehicle number: 007357, Position 1: Panel Feeding and Loading BIESSE - RBO-STREAM SB2 9.5 Bwsdpfxowuz Rte Abmow Position 2: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB2 9.5 Position 3: Panel Turning Device BIESSE - RBO-STREAM SB2 9.5 Position 4: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB2 9.5 Position 5: Panel Turning Device BIESSE - RBO-STREAM SB2 9.5 Position 6: Panel Stacking and Offloading BIESSE - RBO-STREAM SB2 9.5

Condition: excellent (used), Universal DOUBLE-SIDE SIZING & EDGE BANDING MACHINE (for both 1st and 2nd pass) Edges (tape) thickness in rolls (min/max) mm 0,3 - 3 Panels thickness (min/max) mm 10 - 60 Working width (min/max) mm 240 - 2700 Numerical Control /Software SINITRA Adjustable feeding speed (m/min ) 10 - 40 (INVERTER C.N.) Safety and sound-proof enclosures/cabins Working line (work units support tables), manual adjustment Distance (center-axes) of the Disappearing Dogs (mm) 500 SIZING PART (for each side): Anti-chipping Milling Unit AS 10 (Kw 5,8) N° 2 Hogging Units (1 Top + 1 Bottom) DT 10 (5,8 + 5,8) Bjdpehvahhefx Abmjww Spraying unit (Anti-sticking liquid) EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt + Quick Melt Unit) SP30 (High Melt + Edge Control EC 40) Band Pressure zone (N.C. adjustment) . Edge coils supporting unit (No. 6 reels) Snipping (end-cutting) unit IT 90-S (Kw 0,65 x 2) speed 28m/min. 0 - 25°. PNEU Fine Trimming unit (Multi-profile, by N.C.) RF 40 (Kw 1 x 2) 0 - 25° Multi Function Unit (Profile contour Trimming unit) AR 80 (Kw 0, 65 x 2) max speed 25 m/min - ROTAX motors with automatic tool change (tools) Milling grooving Unit 2 x FB 30 (Kw 5 x 2) 0 - 90° Profile Scraping unit (Multi-profile, by N.C.) RBK - 503 (2 POSITIONS) Glue scraping unit RC 20 + Spraying Unit (for polishing liquid) + Buffing unit SZ 30 (Kw 0,37 x 2)

Condition: used, Double edgebanding machine BIESSE STREAM SB2 10.5 usable as 1st and 2nd machine in a edgebanding line Numerical Control with Sintra Software Machine suitable for 1st + 2nd pass of the panel Opening of the mobile shoulder motorized by C.N. mm 3000 Panel height 60 mm Pvc/Abs mm 3 Continuously variable feed speed from C.N. (up to 40 m/min) Working height electronically adjustable by C.N. (up to 60 mm) Bsdpfxsu Rim Hj Abmeww Opening of the moving shoulder electronically adjustable by C.N. Motorized rubber belt with higher pressure Track with bearings with hidden pins - distance between PINS mm 500 Automatic system for supporting large panels Anti-adhesive group Part to be squared composed of (for each side): * Automatic timed anti-splinter group * Double shredder group * Two-motor grinding group Border part composed of (for each side): * Gluing unit for EVA hot melt glue with pre-melter * Edge pressure group on straight profiles with electronically adjustable pressure rollers by C.N. * 6-position reel magazine with automatic edge change by C.N. * End trimming unit with 2 motors with automatic inclination * Overlapping trimming group with 2 motors * Edge trimming group with 2 tilting motors electronically adjustable by C.N. * Multifunction rounding unit with 4 motors (cornering tool + rounding tool) with numerical control adjustment automatically * Toupie Group (with 2 motors on the fixed left side \ with 1 0-90° tilting motor on the mobile right side) * Electronically controlled edge scraper group by C.N. * Glue scraper group * Oscillating brush group * Phon group

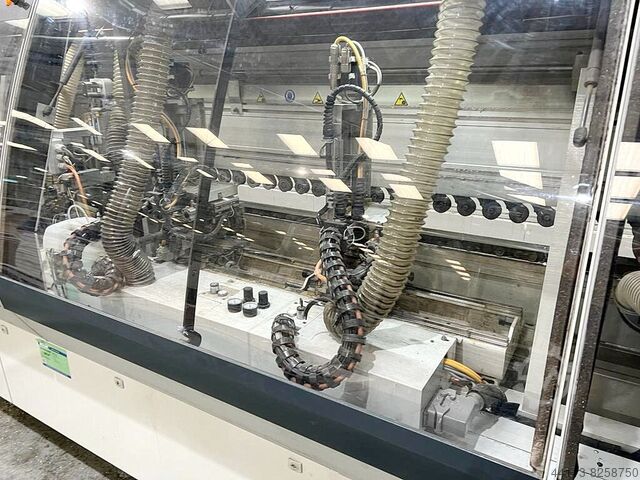

Condition: excellent (used), FULL LINE of Double-side Sizing-Milling & Edge Banding, max working width mm 3000, with automatic handling. Composed of the following machines: X03001A) Double Loader "RBO" Mod. Winner C 3200 with central motorised roller conveyor X03001B) 1st Double-side Sizing & Edge Banding "BIESSE" Mod. Stream SB 1 - 7.5 X03001C) Turning station (90°) lengthwise to crosswise "RBO" Mod. GPK 1 Bsdpei Rbg Tefx Abmjww X03001D) 2nd Double-side Sizing & Edge Banding "BIESSE" Mod. Stream SB 2 - 11 X03001E) Turning station (90°) crosswise to lengthwise "RBO" Mod. GPK 2 X03001F) Double Stacker "RBO" Mod. Winner S 3200 with central motorised roller conveyor

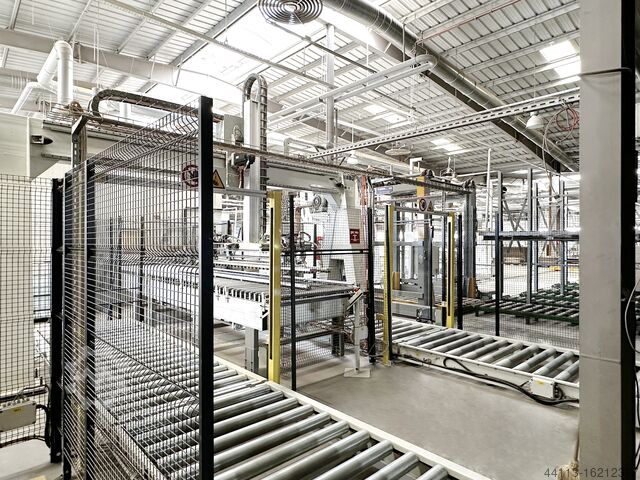

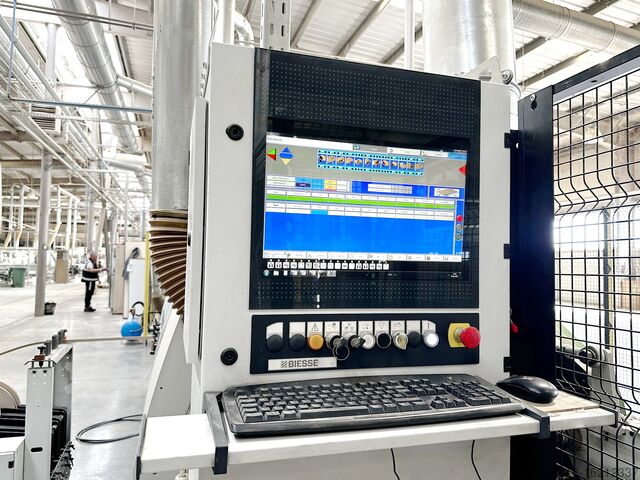

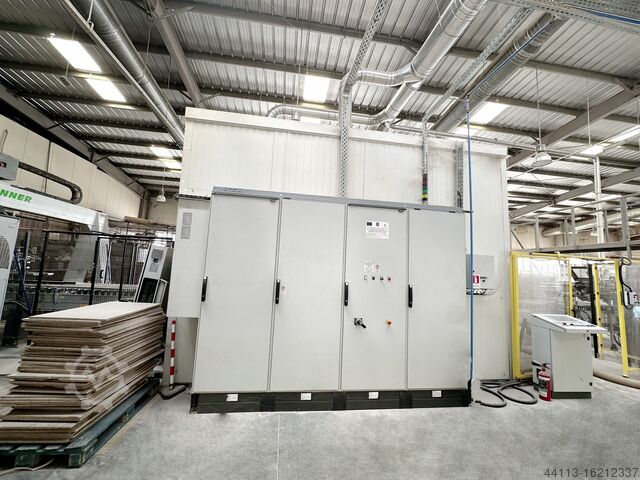

Condition: excellent (used), FULL LINE (4-SIDES) of Sizing-Milling & Edge Banding, with fast automatic handling. also for NARROW PIECES (min. mm 65). With 3 full-CN drilling machines (1 for side-drilling on lenghtwise) and 1 Splitter Composed of the following machines: W05024A) Loader (gantry-portal) "RBO (BIESSE)" Mod. Winner C W05024B) 1st Single-side (Left) Sizing & Edge Bander "BIESSE" Mod. Stream SB1 TWIN W05024C) 2nd Single-side (Right) Sizing & Edge Bander "BIESSE" Mod. Stream SB1 TWIN W05024D) 1st 90° Turning device "RBO (BIESSE)" Mod. GPK-1 (Lengthwise to Crosswise) W05024E) Double-side Sizing & Edge Bander "BIESSE" Mod. Stream SB2 / 11.0 W05024F) Multi-Borer, with CN "BIESSE" Mod. Techno FDT W05024G) Multi-Borer, with CN "BIESSE" Mod. Techno FDT W05024H) 2nd 90° Turning device "RBO (BIESSE)" Mod. GPK-2 (Crosswise to Lengthwise) W05024I) Multi-Borer, with CN "BIESSE" Mod. Techno FDT (side-drilling on lenghtwise) W05024J) Splitting Saw (Splitter) Lengthwise "TECNOLOGICA" W05024K) Brush-cleaning machine "WANDRES" Bjdotr Envjpfx Abmeww W05024L) Stacker (Bridge-Frame) "RBO (BIESSE)" Mod. Winner S

Condition: excellent (used), Universal DOUBLE-SIDE SIZING & EDGE BANDING MACHINE (for both 1st and 2nd pass) Edges (tape) thickness in rolls (min/max) mm 0,3 - 3 Panels thickness (min/max) mm 10 - 60 Working width (min/max) mm 240 - 2700 Numerical Control /Software SINITRA Adjustable feeding speed (m/min ) 10 - 40 (INVERTER C.N.) Safety and sound-proof enclosures/cabins Distance (center-axes) of the Disappearing Dogs (mm) 500 Bwodpfeu Tg Uqjx Abmsw SIZING PART (for each side): Anti-chipping Milling Unit AS 10 (Kw 5,8) N° 2 Hogging Units (1 Top + 1 Bottom) DT 10 (5,8 + 5,8) - Spraying unit (Anti-sticking liquid) EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt + Quick Melt Unit) SP30 (High Melt + Edge Guide Z-axe) Band Pressure zone (N.C. adjustment) . Edge coils supporting unit (No. 6 reels) Snipping (end-cutting) unit IT 90-S (Kw 0,3 x 2) speed 28m/min. 0 - 25°. PNEU Fine Trimming unit (Multi-profile, by N.C.) RF 30 (Kw 0,65 x 2) 0 - 25° Multi Function Unit (Profile contour Trimming unit) AR 80 (Kw 0,3 x 2) max 25 m/min - ROTAX motors with automatic tool change (8+8 position store) Profile Scraping unit (Multi-profile, by N.C.) RB 30 Glue scraping unit RC 20 + Spraying Unit (for polishing liquid) Buffing unit SZ 30 (Kw 0,37 x 2) With ‘hopper’ for panels (useful height mm 80), as a buffer, to speed up the work cycle

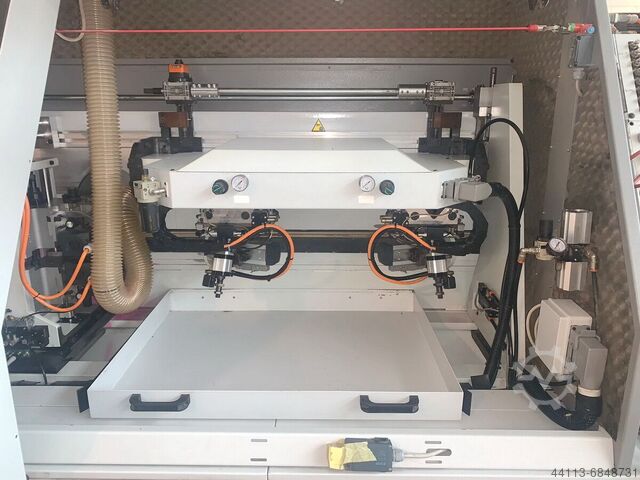

Condition: excellent (used), LINE (half line) of Double-side Sizing-Milling & Edge Banding, with automatic handling system. Composed of the following machines: A) LOADER (Portal) with double station "RBO" Mod. Advantage C 3200 and central motorized rollers table. B) Infeeding Rollerway, with double-cone TURNING Device "RBO" Mod. GPK-1 C) Double-side SIZING and EDGE BANDING machine "BIESSE" Mod. Stream SB2 11.0 D) UPSIDE DOWN 180° TURNING MACHINE "RBO" Mod. Ribaltatore E) Outfeeding Rollerway, with double-cone TURNING Device "RBO" Mod. GPK-2 Bjdpfx Abshvah Nemeww F) STACKER (Portal) with double station "RBO" Mod. Advantage SC 3200, with central motorized rollers table.

Condition: excellent (used), Universal DOUBLE-SIDE SIZING & EDGE BANDING MACHINE (for both 1st and 2nd pass) Edges (tape) thickness in rolls (min/max) mm 0,3 - 3 Panels thickness (min/max) mm 10 - 60 Working width (min/max) mm 240 - 2700 Numerical Control PC Base Windows /Software SINITRA Adjustable feeding speed (m/min ) 10 - 40 (INVERTER C.N.) Distance (center-axes) of the Disappearing Dogs (mm) 500 Bjdpfeu Rc Ansx Abmjww SIZING PART (for each side): Anti-chipping Milling Unit AS 10 (Kw 5,8) pneumatic N° 2 Hogging Units (1 Top + 1 Bottom) DT 10 (Kw 5,8 x 2) Spraying unit (Anti-sticking liquid) EDGE-BANDING PART (for each side): 1° Glueing Unit (Hot Melt + Quick Melt Unit) SP30 (High Melt + Edge Control EC 40) 2° Glueing Unit (Thermofusion with hot air) Air Force System Band Pressure zone (N.C. adjustment) . Edge coils supporting unit (No. 6 reels) Snipping (end-cutting) unit IT 90-X (Kw 0,65 x 2) speed 28m/min. 0 - 25° Rough Trimming unit RS 10 (2 x Kw 2) Fine Trimming unit (Multi-profile, by N.C.) RF 40 (Kw 1 x 2) 0 - 25° Multi Function Unit (Profile contour Trimming unit) AR 80 (Kw 0, 65 x 2) max speed 25 m/min - ROTAX motors with automatic tool change (tools) Profile Scraping unit (Multi-profile, by N.C.) RB 40 (multiprofile) Glue scraping unit RC 20 + Spraying Unit (for polishing liquid) Buffing unit SZ 30 (Kw 0,37 x 2)
