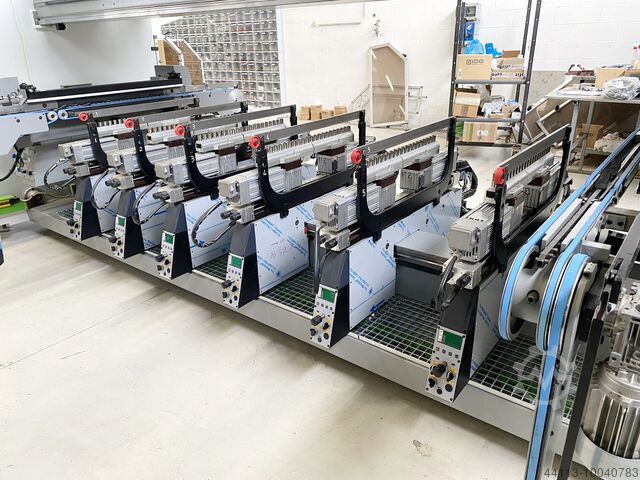

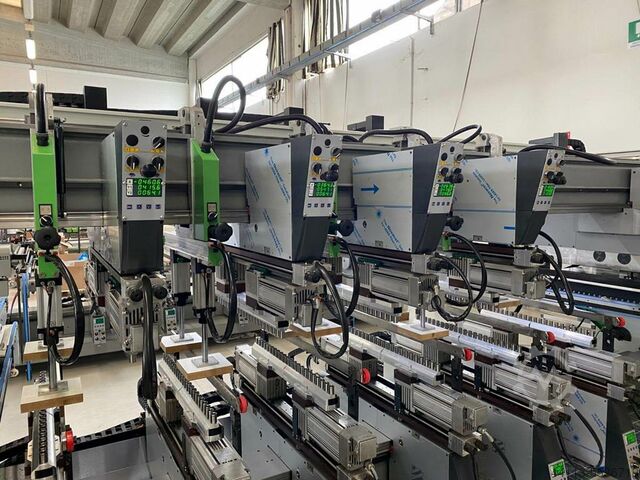

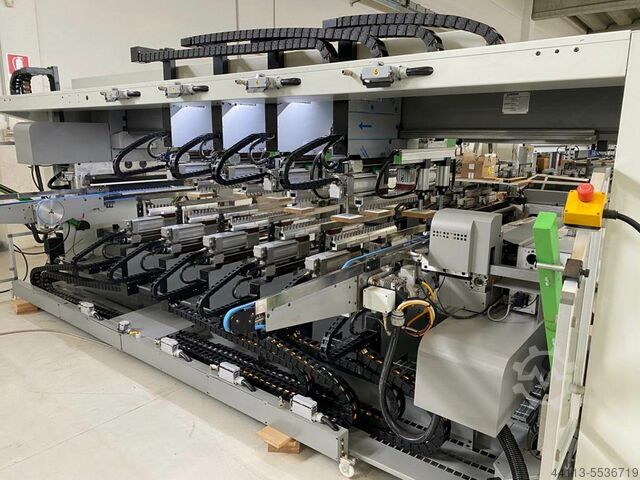

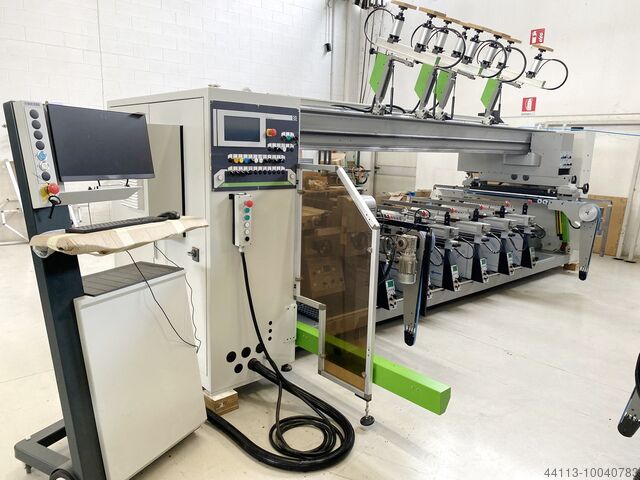

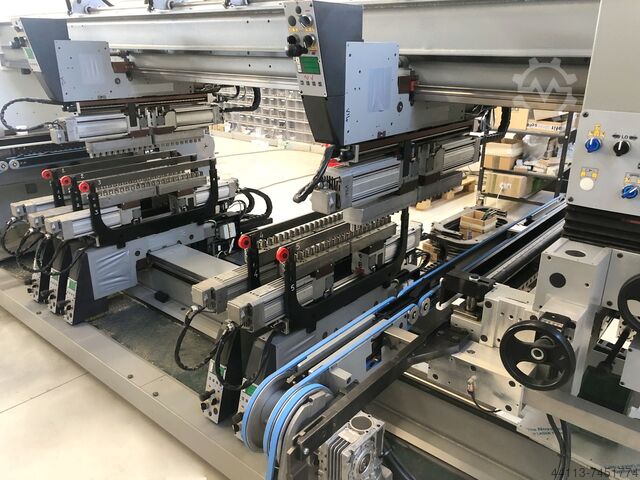

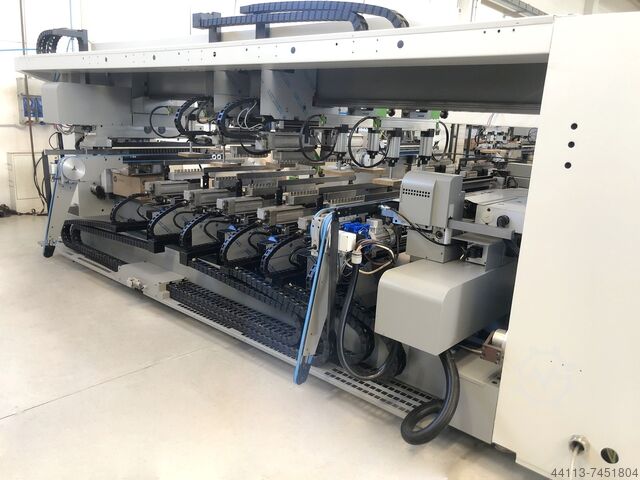

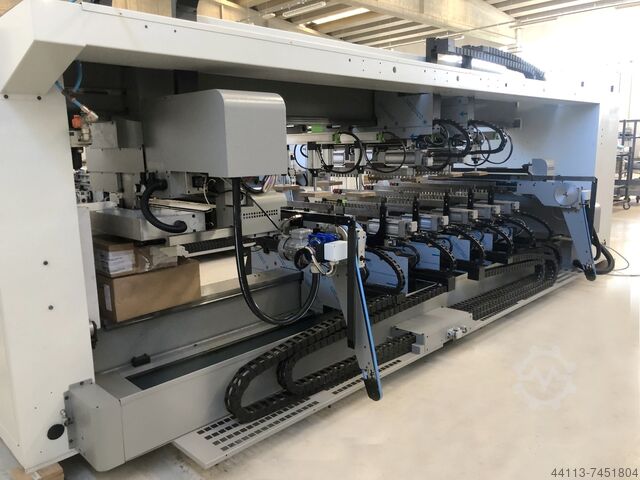

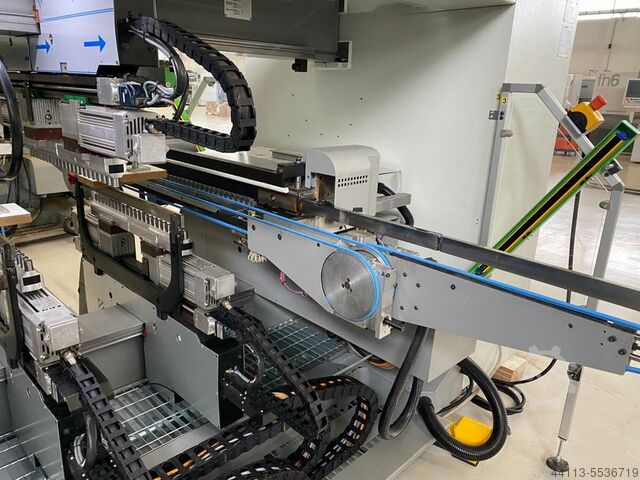

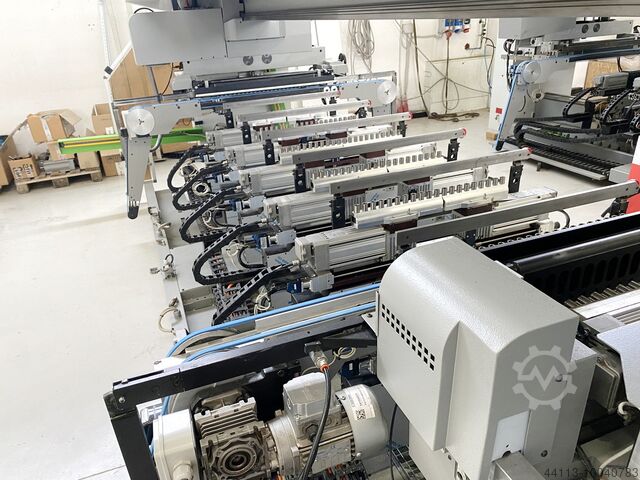

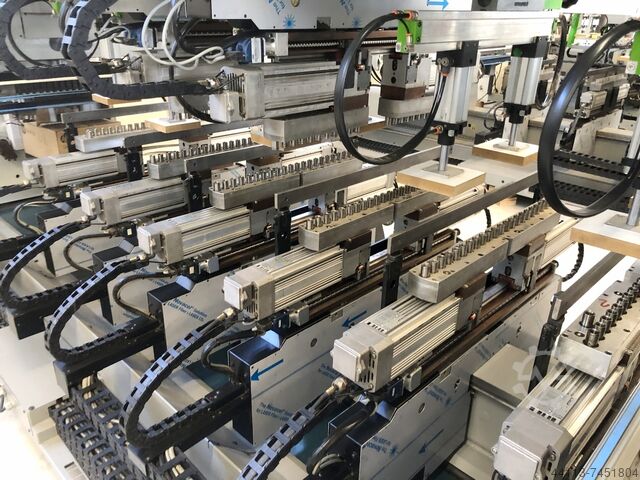

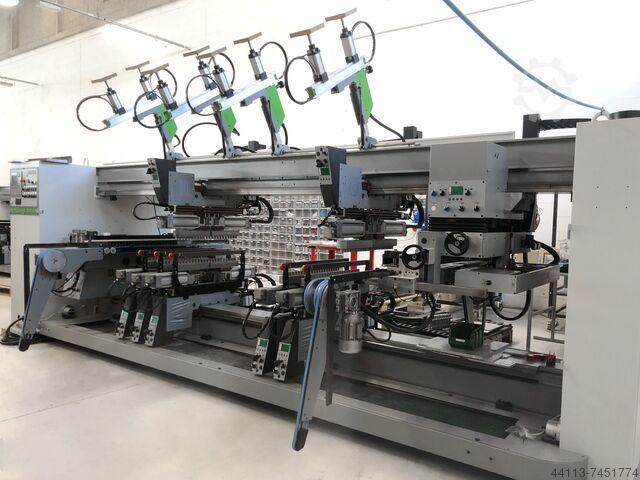

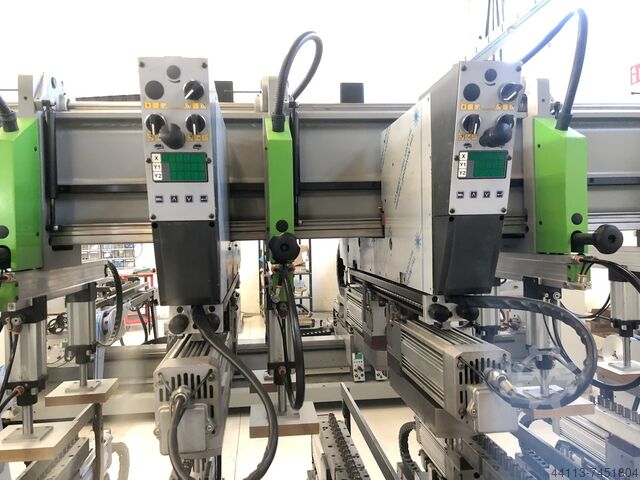

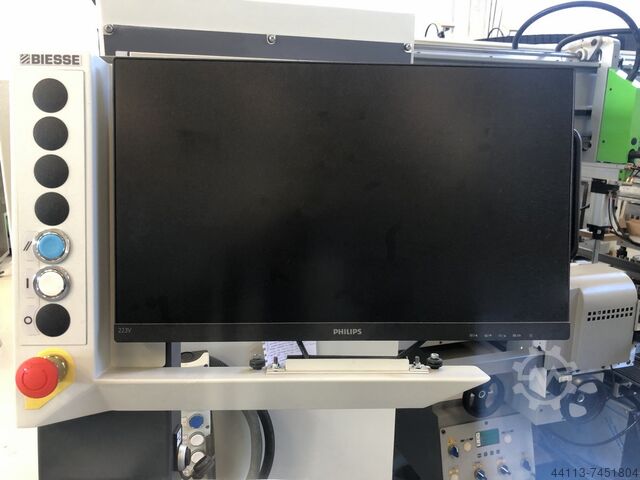

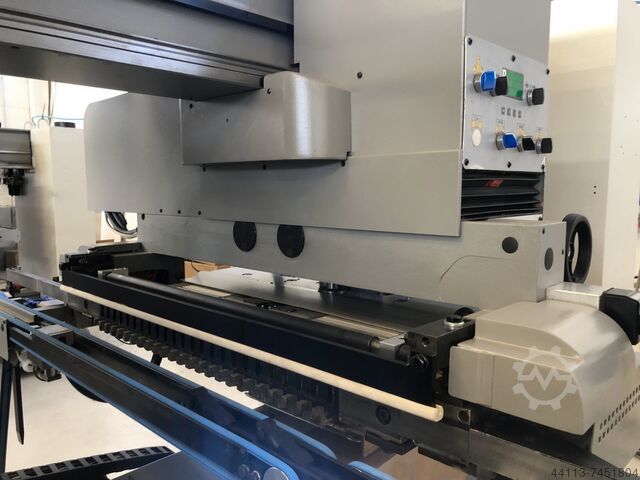

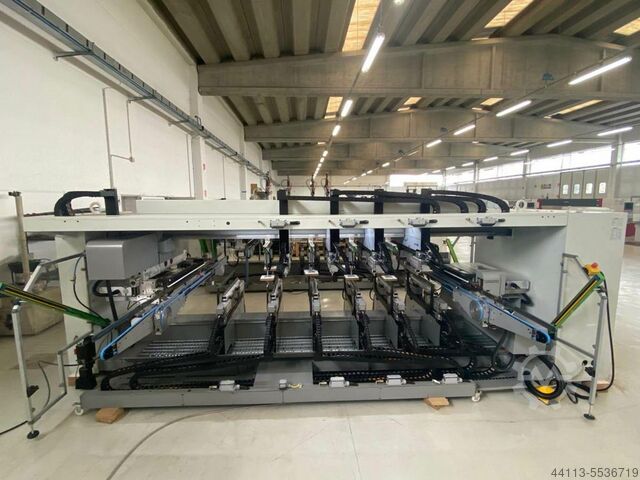

AUTOMATIC BORING (DRILLING) MACHINE

BIESSE Techno FDT

Condition: used, machine/vehicle number: 008598, Max. panel width: 3200 mm Max. panel length: 1000 mm No of Bottom Units: 6 Ndedoz Eyxlepfx Agrsb No of Top Units: 2 Lateral horizontal groups: yes

Condition: like new (used), Year of construction: 2016, Wittmann Battenfeld Eco Power 110/130 Unilog B6P electric (2016) Clamping force: 110 t Screw diameter: 22 mm Shot volume: 41 cm3 Screw L/D ratio: 20 Nodpfxeu Eki Se Agredb Calculated stroke volume : 41,8 cm3 Correct injection pressure : 2,864 bar Max. screw speed : 500 min Screw tongue : 150 Nm Nozzle path contact force : 250/40 mm/kN Injection flow outside : 76 cm3/s Cylinder heating capacity : 6,3 kW Number of heating zones : 4 Working hours: 35.953 hours Type: Horizontal Drive: Electric

Condition: used, machine/vehicle number: 008599, Max. panel width: 3200 mm Ndedpfx Ajz Eyw Usgrjb Max. panel length: 1000 mm No of Bottom Units: 5 No of Top Units: 2 Lateral horizontal groups: yes

Condition: used, machine/vehicle number: 008606, Max. panel width: 3200 mm Max. panel length: 1000 mm No of Bottom Units: 5 No of Top Units: 2 Nsdpfxezqz Rco Agrodb Positioning of Units by NC: yes Lateral horizontal groups: yes

Condition: as good as new (ex-display), FULL LINE of Double-side Sizing-Milling & Edge Banding. Composed of the following machines: VZ0200A) Gantry-portal Loader (Double pick-up station) "BARGSTEDT" Mod. TBH 500/D/30/12 VZ0200B) 1st Double-side Sizing & Edge Bander "HOMAG" Mod. KFL 525/8/A3/15 VZ0200C) In-feeding Rollerway "HOMAG" Mod. TDL 310/30/12 with 90° Turning device (from lenghtwise to crosswise) with double cone system VZ0200D) 2nd Double-side Sizing & Edge Bander "HOMAG" Mod. KFL 526/10/A3/30 VZ0200E) In-feeding Rollerway "HOMAG" Mod. TDL 510/25/12 with 90° Turning device (from crosswise to lenghtwise) with double cone system VZ0200F) Cleaning machine "WANDRES" Ndedpfedt Rgvex Agreb VZ0200G) Gantry-portal Stacker (Double pick-up station) "BARGSTEDT" Mod. TSP 410/D/25/12

Condition: used, machine/vehicle number: 008601, Max. panel width: 3200 mm Max. panel length: 1000 mm No of Bottom Units: 6 No of Top Units: 4 Ndedpfx Agjzbrnhorob Lateral horizontal groups: yes

Condition: used, machine/vehicle number: 008607, Max. panel width: 3200 mm Max. panel length: 1000 mm No of Bottom Units: 6 No of Top Units: 4 Lateral horizontal groups: yes Ndedpfszqz N Eox Agreb

Condition: excellent (used), Year of construction: 2005, Vertical blockmold: KURTZ mod. MFV (4920 x 1274/1000 x 1240mm) Basic data: -Year of manufacture: 2005 -Block dimensions (HxWxL): 4920 x 1274/1000 x 1240mm -Operating voltage: 3×400 V, 50 Hz -Power consumption: 77 kW -Blockmold with movable side wall -Complete vacuum system (GARDNER DENVER / SIEMENS) -Hydraulic system: REXROTH–BOSCH -Operational pre-loading silo for the blockmold with dedusting system -Siemens PLC controller and Siemens touch-screen HMI control panel replaced with NEW units in 2019, including a control software upgrade -Siemens TOUCH SCREEN panel (replaced with a NEW one with a larger display) Ndjdpfx Agsucvq Horjb -MATTHEWS printer for block labeling/date marking -Block evacuation system with block storage -Complete set of documentation -Condition: EXCELLENT It is possible to adjust the maximum block height to, for example, 4550–4600 mm. TAG: Block mold, block mould, block-form, styrofoam, EPS, VIRO, Kurtz, Erlenbach, EREMA, Teubert, Lauscha, Autefa, HIRSCH, EPPINGER, Mert Makina

Condition: used, machine/vehicle number: 008727, Max. panel width: 3200 mm Max. panel length: 1000 mm No of Bottom Units: 8 Nodpfx Agezylv Ujredb No of Top Units: 4 Positioning of Units by NC: yes Lateral horizontal groups: yes

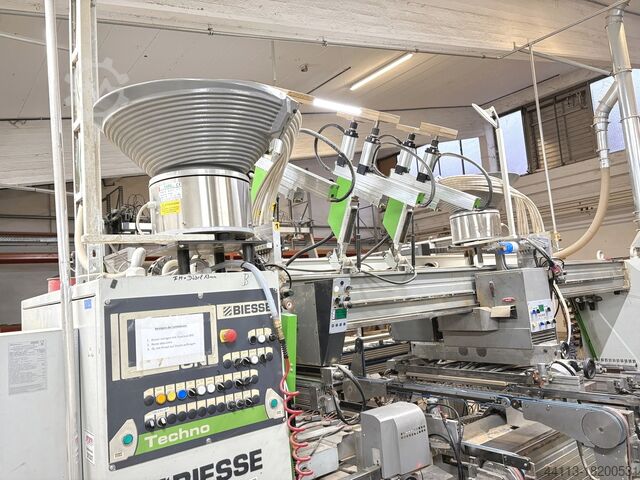

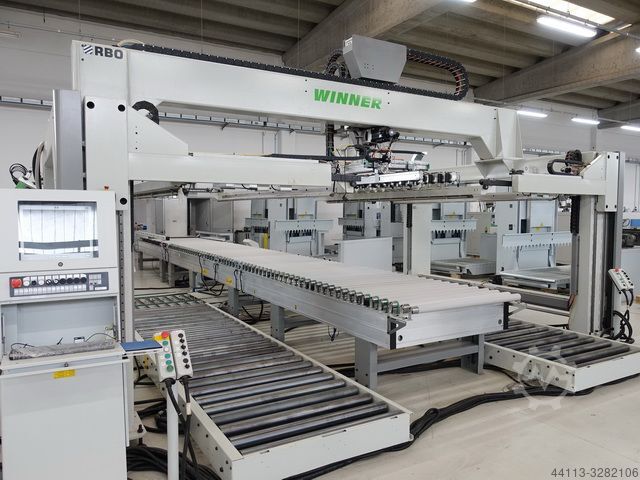

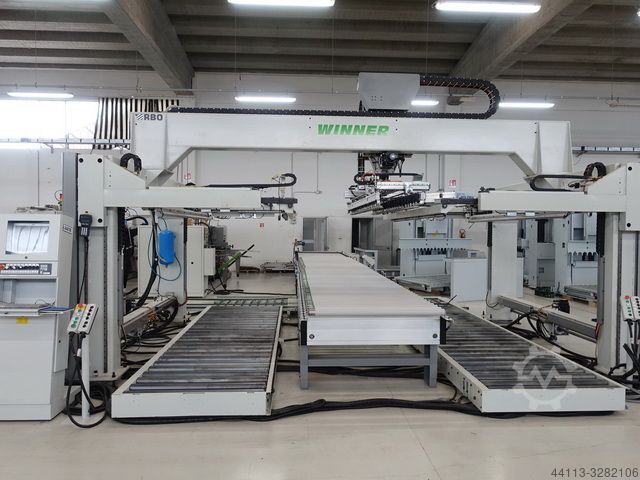

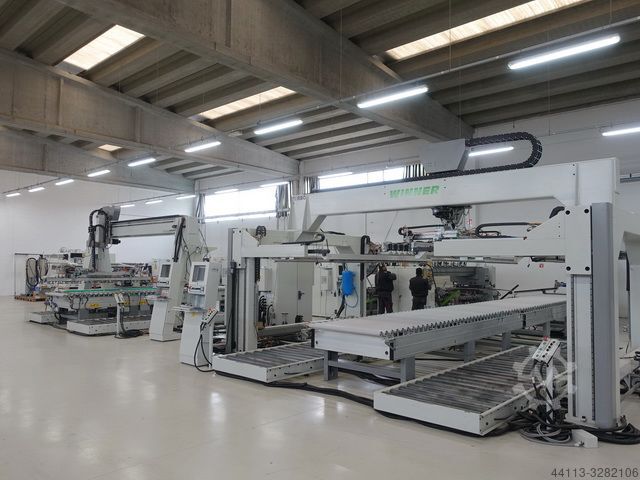

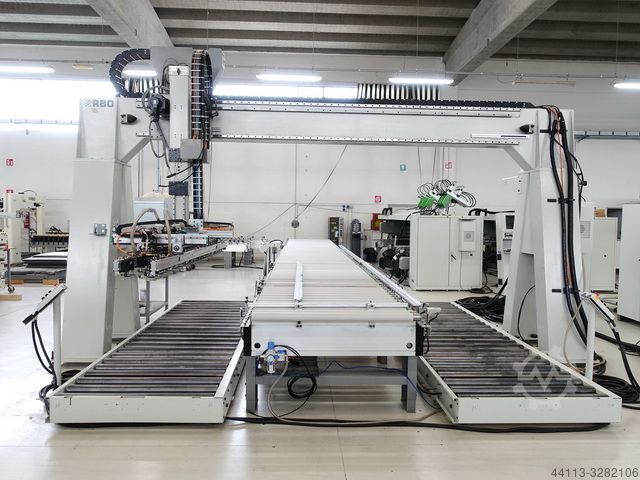

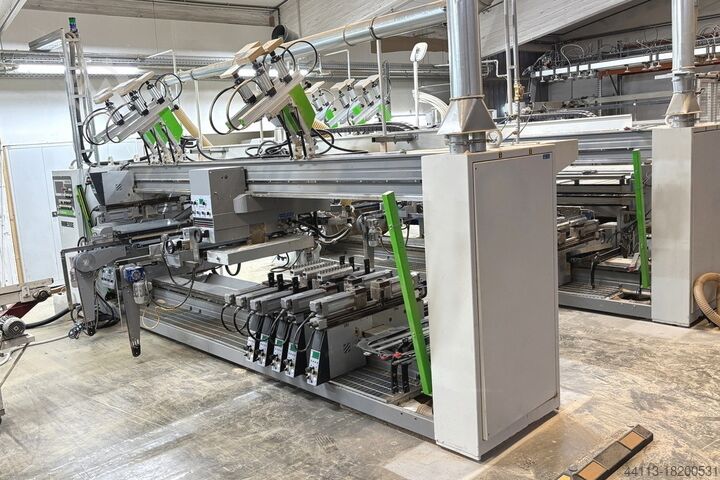

Condition: refurbished (used), FULL LINE of Drilling, max working width mm 3200, with fast automatic handling equipment. Composed of the following machines: A) LOADER (Portal) "RBO" Winner C 3200 with double pick-up and central motorized rollers table. With 2 on-ground motorized rollers ways to in-feed the piles (stacks) of panels to loader. B) TRANSFER (Connecting Rollers Table with 90° conveyoring belts) “RBO” Mod. Transfer TA 90° C) 1st Auotmatic BORER "BIESSE" Mod. Techno FDT with No. 2 Horizontal Units + No. 7 Vertical Bottom Units D) 2nd Automatic BORER "BIESSE" Mod. Techno FDT with No. 2 Horizontal Units + No. 7 Vertical Bottom Units E) TRANSFER (Connecting Rollers Table with 90° conveyoring belts) “RBO” Mod. Transfer TA 90° Nedpfjdfgg Isx Agredb G) UNLOADER-STACKER (Portal) "RBO" Winner SC 3200 with double pick-up, with double storage station, with central motorized rollers table. With 2 on-ground motorized rollers ways to out-feed the piles (stacks) of panels from the Unloader

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Ndodpfx Ajh T Dzqjgrjb Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

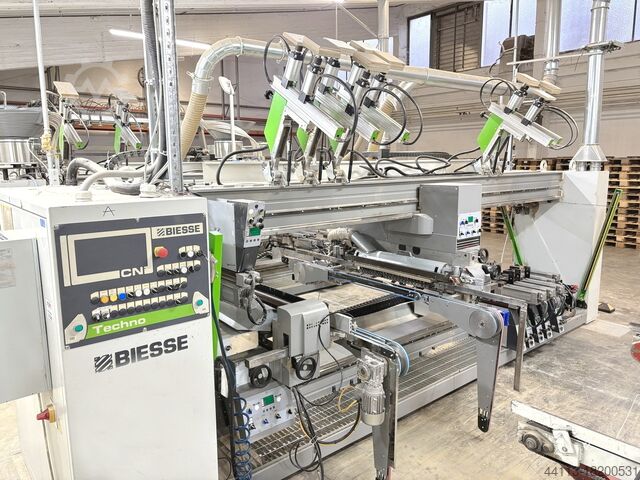

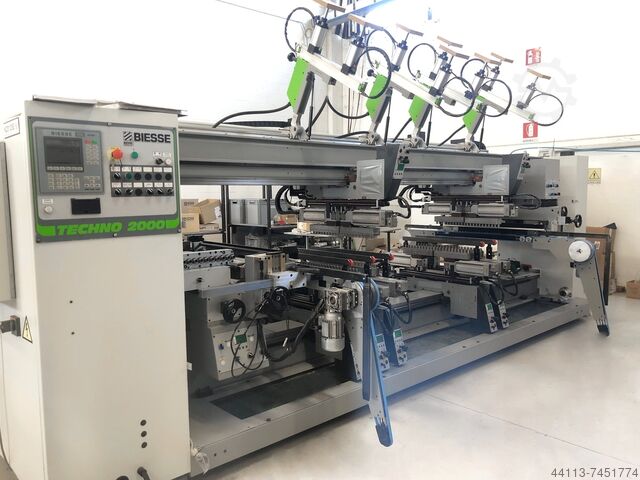

Condition: excellent (used), Electronic programmer NC 400 Through-feed motorized conveyoring belts (No.) 2 Horizontal units/supports (No.) 2 Drilling heads for each horizontal unit (N°) 2 Splindles for each horizontal drilling head (N°) 11 Nodpfelwqrtex Agredb Max. working width (mm) 3200 - Min. working width (mm) 205 (ca.) Bottom vertical units/supports (No.) 6 Drilling heads/blocks for each bottom vertical unit (N°) 2 Vertical top pressure clamps (N°) 4 Motorized endless screws to evacuate wastes/chips (N°) 2 Digital quota (axes) display Total installed power (Kw) 27.7 The CNC controls the movement (X axe) of the mobile horizontal unit The CNC controls the movement (Y axe) of the stops The CNC controls the movement (Z axe) of all the vertical units

Condition: excellent (used), Numerical Control Type NC 400 Through-feed motorized conveyoring belts (No.) 2 No. 2 Horizontal units/supports Drilling heads for each horizontal unit (N°) 2 Splindles for each horizontal drilling head (N°) 11 Ndjdsidqf Rspfx Agrjb Max. working width (mm) 3200 Min. working width (mm) 205 (ca.) No. 6 Bottom vertical units/supports Drilling heads/blocks for each bottom vertical unit (N°) 2 No. 3 Top vertical units/supports Drilling heads/block for each top vertical unit (N°) 2 Vertical top pressure clamps (N°) 5 Transport belt to evacute chips (wastes) Digital quota (axes) display Total installed power (Kw) 59,1 The CNC controls the movement (X axe) of the mobile horizontal unit The CNC controls the movement (Y axe) of the stops The CNC controls the movement (X axe) of the conveyor belts

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. PANEL DIMENSIONS (WORKING DIMENSIONS): - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling - Total installed power: 20 kW Nodpfx Agjhknbrsrodb AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE.

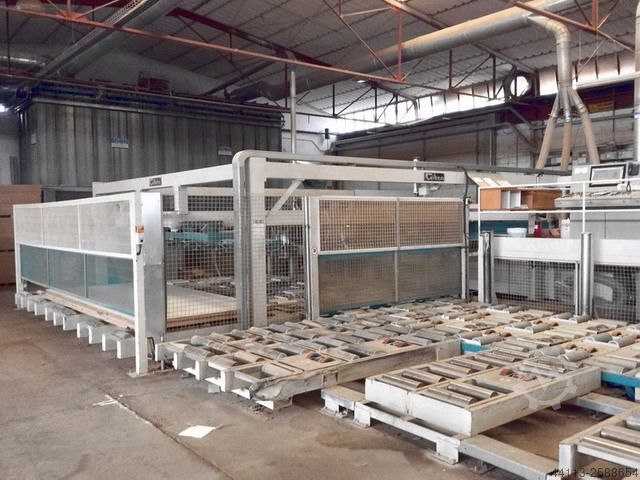

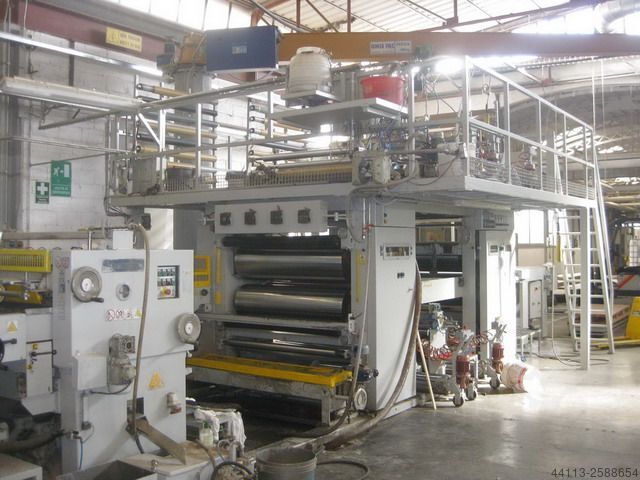

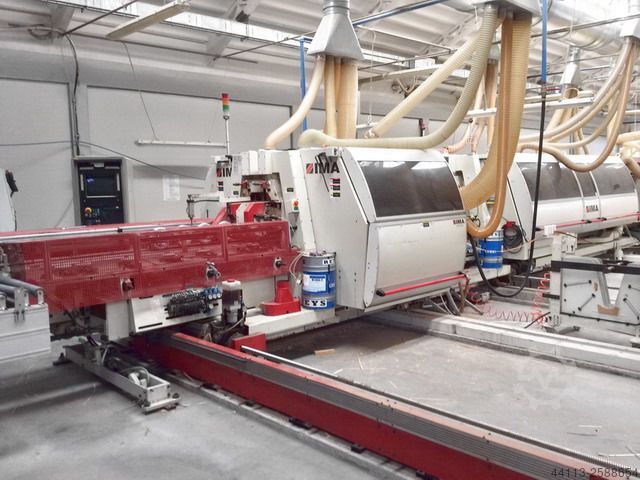

Condition: used, Complete factory for the production of furniture cabinets, composed by: SZ0M23) Angular Panel Saw "GIBEN" Tip 17 (mm 5600x2700) with "SIRIO" automatic unloading and stacking system SZ0M25) Panel Saw “GIBEN” Mod. GammaDue (mm 3800x2200) SZ0M26) Panel Saw (Multi-saws) “GABBIANI” (finished panels mm 4250x2120) SZ0M27) Laminating Line “BARBERAN” for melamine papers (glue on paper) SZ0M29) Pressing Line “COLOMBO REMO” (mm 1400 x 9600) for paper / veneer / laminates SZ0M30) Pressing Line “FRIZ” (mm 1400 x 6200) for paper / veneer / laminates Ndjdpfxscr U Uro Agreb SZ0M41) 4-sides Sizing & Edge Banding Line “IMA” Combima fast handling “RBO-BIESSE” SZ0M42) 4-sides Sizing & Edge Banding Line “IMA” Combima softforming with a second double side Sizing & banding machine STEFANI and automatic handling equipment “TOMASSINI” SZ0M39-40) Edge Banding Line (single side) for narrow pieces “HOMAG” Mod. KAL 310 with Splitter "NARDELLO" Mod. Elegance SZ0M35-36) Multi-Borer “BIESSE” Techno Logic with Loader + Unloader “TOMASSINI” SZ0M45) CNC Multi Boring and Dowels Inserting Line “BIESSE” Techno FDT with fast handling “RBO-BIESSE” SZ0M37) CNC Working Center “MORBIDELLI” Mod. Author 600 KL SZ0M56) Reel Cutting and winding machine “CEFLA-DUSPOHL” Tipo RSW 2200 T SZ0M01) Wooden strips end-cutting Line "OGAM+SALVADOR" SZ0M07) Wooden strips end-cutting and stacking Line “SALVADOR+SACOT” SZ0M08) Wooden strips end-cutting and stacking Line “SALVADOR+CMA” SZ0M11-17) Preparing Line for honey-comb panels SZ0M18) No. 6 Mutli-openings (daylights) hot hydraulic presses "COLOMBO REMO" SZ0M21) Sizing and top & bottom Calibrating line for honey-comb panels "GABBIANI + CELASCHI + ELMAG + COSTA Sanding Machines" And many other machines (i.e. multi-borer "VITAP", circular saws, glue spreaders, etc.), saw-dust suction system, rollers ways, shelvings, fork-lift, transpallets, etc. Machines still installed at the end-user's factory. They can be inspected by appointment.
