Cnc turning and milling centerBIGLIA
SMART TURN 1200 L
Cnc turning and milling center
BIGLIA
SMART TURN 1200 L
Year of construction
2009
Condition
Used
(fully functional)
Location
Urgnano

Basic data
- Machine type:
- Cnc turning and milling center
- Manufacturer:
- BIGLIA
- Model:
- SMART TURN 1200 L
- Year of construction:
- 2009
- Condition:
- used
- Functionality:
- fully functional
- Operating hours:
- 3,483 h
Price & Location
- Location:
- Via Alpini 778 24059, 24059 Urgnano, Italia

Call
Technical details
Dimensions and weight
Overall weight:
8,400 kg
Total length:
5,550 mm
Total width:
2,250 mm
Further details
Bar diameter (max.):
95 mm
Details about the offer
- Listing ID:
- A184-14716
- Update:
- 25.08.2026
Description
Max. workable diameter from bar mm 95
Max. workable diameter from recovery mm 500
Max. workable length mm 1250
Max. rotating diameter mm 700

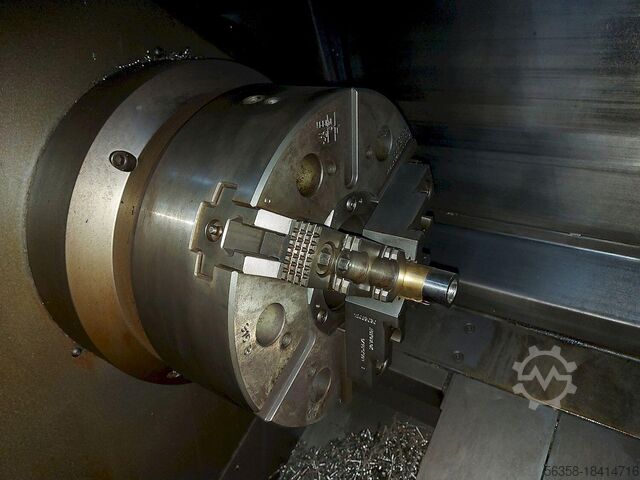

MAIN ELECTROSPINDLE:
Variable rotation range rpm 40-2800
ASA spindle nose 8"
Spindle hole mm 111
Internal diameter of bearings mm 150
Self-centering diameter mm 315
Motor power kW 30
TAILSTOCK TO FOLLOW:
Positioning stroke mm 1,100
Quilt stroke mm 150
Quilt diameter mm 115

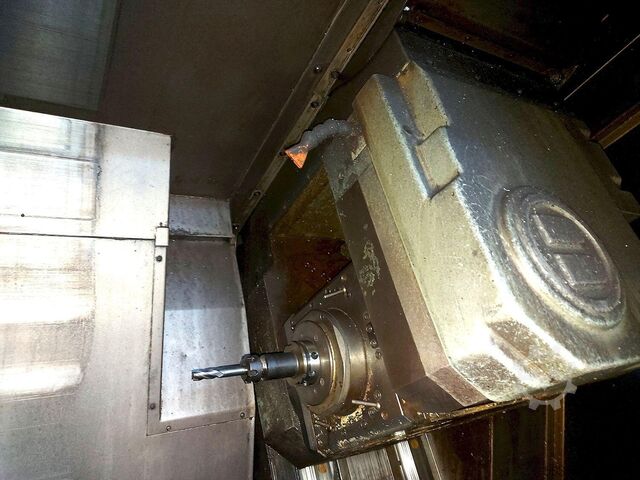

MOTORIZED ELECTROSPINDLE HEAD:
Type of attachment HSK-63
Max. revolutions RPM 6,000
Electrospindle motor power Kw 9
B AXIS UNIT:
Total rotation range 205°
Rotation range beyond the tailstock axis 15°
Rotation range beyond the spindle axis 10°
Angular position with mechanical block Every 5°
CROSS SLIDE
Max. Z stroke mm 1300
Max. X stroke mm 520
Max. stroke Y mm 210 (+120 – 90)
TOOL MAGAZINE
Magazine capacity 40 pos
Max. diameter of tools with adjacent tools mm 80
Max. diameter of tools without adjacent tools mm 140
Kodpjvv Ud Rofx Afdsdw
The listing was translated automatically. Translation errors are possible.
Max. workable diameter from recovery mm 500
Max. workable length mm 1250
Max. rotating diameter mm 700
MAIN ELECTROSPINDLE:
Variable rotation range rpm 40-2800
ASA spindle nose 8"
Spindle hole mm 111
Internal diameter of bearings mm 150
Self-centering diameter mm 315
Motor power kW 30
TAILSTOCK TO FOLLOW:
Positioning stroke mm 1,100
Quilt stroke mm 150
Quilt diameter mm 115
MOTORIZED ELECTROSPINDLE HEAD:
Type of attachment HSK-63
Max. revolutions RPM 6,000
Electrospindle motor power Kw 9
B AXIS UNIT:
Total rotation range 205°
Rotation range beyond the tailstock axis 15°
Rotation range beyond the spindle axis 10°
Angular position with mechanical block Every 5°
CROSS SLIDE
Max. Z stroke mm 1300
Max. X stroke mm 520
Max. stroke Y mm 210 (+120 – 90)
TOOL MAGAZINE
Magazine capacity 40 pos
Max. diameter of tools with adjacent tools mm 80
Max. diameter of tools without adjacent tools mm 140
Kodpjvv Ud Rofx Afdsdw
The listing was translated automatically. Translation errors are possible.
