Bent component manufacturing machine

BIHLER GRM 100

Condition: excellent (used), Year of construction: 1984, Equipped with: 1 Grip feeding system right hand side 3 Press units á 180 kN = Total 540 kN Ksdpfjma S Nrjx Aayjdw 4 Standrad slide units 1 Narrow slide unit working range: wire diameter range: up to 10,0 mm strip metal width: up to 100 mm feeding length: up to 250 mm output: up 135/min.

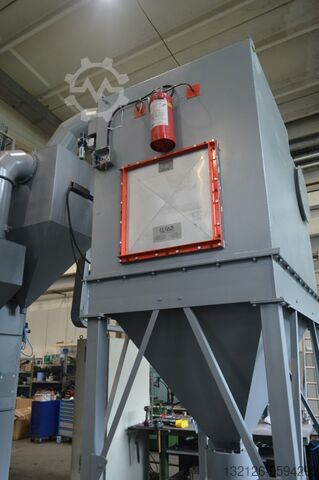

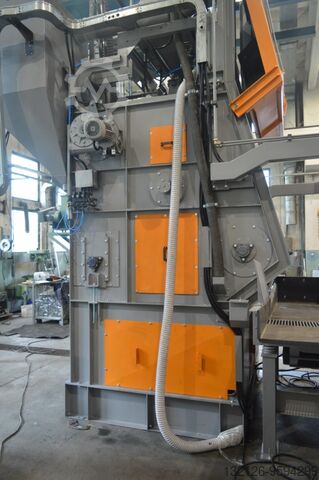

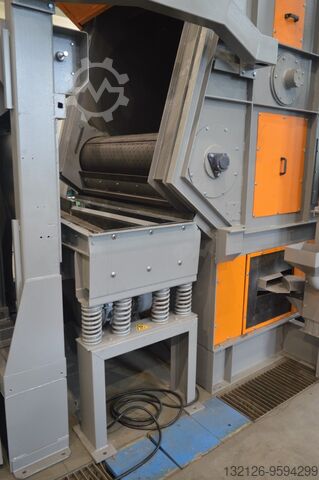

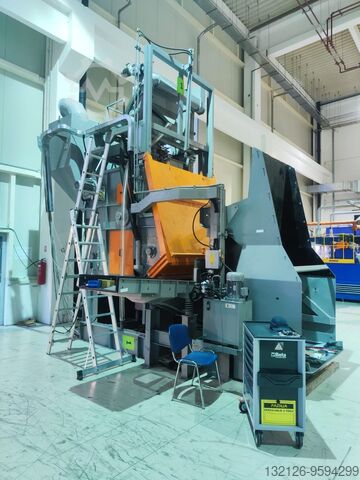

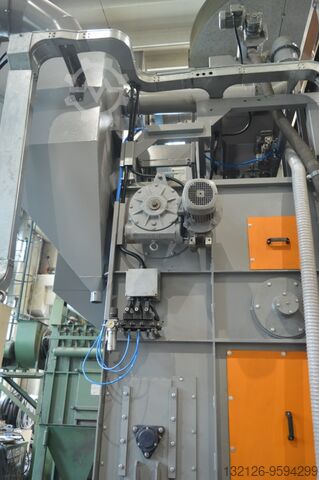

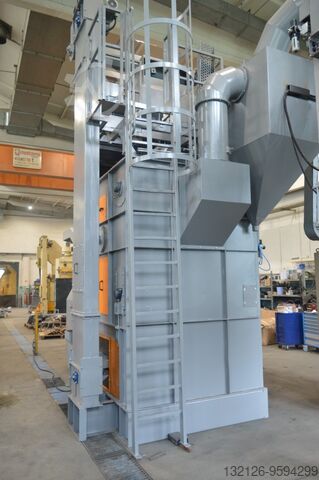

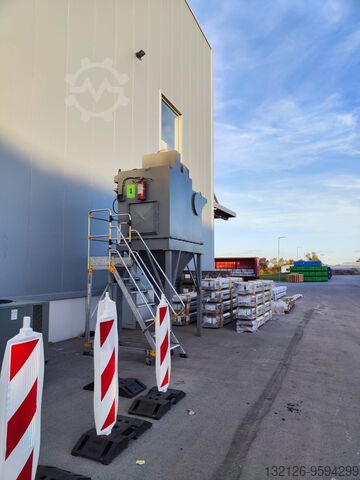

Condition: good (used), Tumble rubber belt blast machine Kedpfx Aelf Hq Noayjdw Max. batch volume: 800 L Max. batch weight: 2000 kg Max. component weight: 150 kg Compartment diameter: 1350 mm Compartment width: 1350 mm Nr. Of turbines: 2 Power of turbine: 11 kW Max. turbine flow: kg/min Cleaner type: air Foundation: no Housing protection: Mn Req. air flow: yes Total width of machine: mm Total height of machine: mm Total length of machine: mm

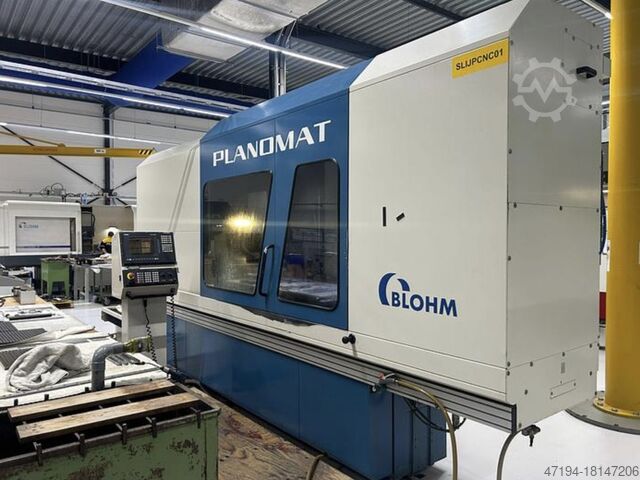

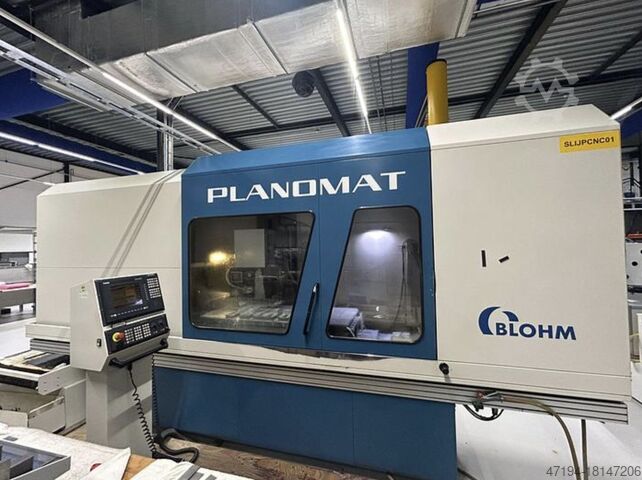

Condition: good (used), Year of construction: 1999, grinding length: 1,600 mm, grinding width: 600 mm, Blohm Planomat 616-CNC Kdjdpfxovl H Rho Aayjw Cutting area 1600 x 600 mm year of construction 1999 Equipment: - Siemens Sinumerik 810D - Grinding spindle with facing unit - Grinding spindle drive by controlled three-phase motor with frequency converter (15 kW from 1000-3400 rpm) - Enable peripheral speed up to max. 60 m/s - Program for reading/editing NC (main and secondary) programs - Profile infeed tool PEA-TL200 with diamond profile rollers - Grinding wheel holder - Automatic balancing device - Paper belt filter attachment - Cooling unit 3.8 KW - Electro-permanent magnet clamping plate 1500 x 600 mm, with 18 mm holding force Cross pole pitch and substructure - Extension of NC memory by 256 kB - ECO grinding program for rough grinding using the pendulum infeed method - Menu-guided surface grinding in 3 shifts

Condition: like new (used), Year of construction: 2024, operating hours: 775 h, functionality: fully functional, grinding length: 2,000 mm, grinding width: 1,200 mm, total height: 720 mm, feed length X-axis: 2,500 mm, feed length Y-axis: 1,050 mm, feed length Z-axis: 1,100 mm, workpiece weight (max.): 3,500 kg, grinding height: 720 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 3 m/min, feed rate Z-axis: 5 m/min, grinding wheel diameter: 600 mm, distance table to spindle center: 1,050 mm, table length: 2,000 mm, table load: 4,000 kg, type of input current: three-phase, table width: 1,000 mm, grinding wheel width: 150 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 5 rpm, overall weight: 36,000 kg, grinding spindle motor power: 22 W, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,050 mm, travel distance Z-axis: 1,100 mm, warranty duration: 12 months, space requirement height: 4,550 mm, space requirement length: 7,850 mm, space requirement width: 4,840 mm, Equipment: documentation/manual, rotational speed infinitely variable,  Easy-to-use Z-Control control system with high levels of comfort  Automatic vertical infeed with dressing amount compensation  Fully automatic grinding cycle with dressing cycles  Grinding cycles: • Surface grinding • Plunge grinding • Roughing / finishing / sparking  Extremely simple operation via touchscreen  Large, clearly arranged 10.4" color screen  Electronic handwheel, effective on the vertical and transverse axes, switchable in two steps to 0.001 and 0.01 mm  Gantry-style machine design for maximum accuracy  Sturdy cast iron construction of all machine components  Heavy machine weight for maximum rigidity  Preloaded linear guide system in the vertical and transverse axes (Bosch Rexroth) for outstanding precision Kjdpfx Aowax U Tjayedw  Scraped double-V sliding guides in the X-axis ensures excellent damping properties and high-quality grinding results.  Hydraulic table drive with separate cooling unit to achieve good surface finishes.  Electromechanical transverse and vertical movement.  Direct measuring system in the vertical axis (Heidenhain) for precise positioning.  Rotary pulse generator in the transverse axis.  Maintenance-free belt filter system with a 2000-liter tank capacity and a 10-bar pressure pump for effective cooling and rinsing.  Integrated channel rinsing.  Upstream magnetic separator for pre-filtration.  Power supply: 400 volts, 3 phases, 50 Hz.  Continuously variable grinding spindle motor with constant cutting speed across the entire working range of the grinding wheel (vconstant).  Roller-bearing grinding spindle guarantees a long service life.  Belt-driven grinding spindle.  2 machine lights in the work area. (LED)  Table-mounted dressing device for high accuracy and surface quality with the option of mounting three diamond dressing tools  Electro-permanent magnetic chuck with integrated polarity reversal device and holding force adjustment, pole pitch p = 25 mm  Holding force adjustment in 16 steps  No heating of the magnetic chuck, therefore highly precise  Automatic central lubrication in the x-axis (slideway oil)  Automatic central lubrication in the y + z axes (grease)  Partially enclosed machine with sliding door and front-mounted service door; Open on the top left, closed on the top right with a 300 mm nozzle for extraction  Effective splash protection with good accessibility  Additional service door on the rear of the machine, including a second electronic handheld unit  Machine prepared for connection to an emulsion mist extraction system; Connection nozzle Ø = 300 mm Standard accessories Consisting of:  Grinding wheel holder  Grinding wheel 500 x 100 x 203.20 mm  Complete documentation  CE declaration of conformity  Acceptance report according to DIN 8632  Leveling elements  Balancing mandrel  Rolling stand Special accessories:  Semi-automatic grinding wheel balancing system with GAP
