Fully automatic SPS parts washer

BIO-CIRCLE RWR 80L Auto KST

BIO-CIRCLE
Type: RWR 80L Auto KST
Description:
RWR 80 L KST fully automatic SPS parts washer
The RWR units from Bio-Circle are the optimum solution for cleaning internal circulation systems without dismantling.
The unit is space-saving, quiet and very easy to operate.
Thanks to the completely closed system, there is no unpleasant odor from the cleaner or the dirty water.
External dimensions → approx. 1200 x 800 x 1050 mm
Power supply → 400 V 50 Hz plug 16A CEE 5p 6h
Drain → 1 1/4" outlet
Technical specification:
Dksdpfxetqfbbs Aghju
Type of soiling: limescale, rust (mineral), oil, grease
Quantity of parts: Individual parts, small series, small quantities
Component geometry: Whole components (without disassembly)
Seal of quality: Stainless steel, service package available
Maximum filling capacity: 80 L
Tank material: V2A stainless steel
Electrical connection: 400V / 50 Hz
Heating: 4.5 kW
Flow rate: 25 l/min
Temperature (default setting): 60 °C
Total weight of the cleaning system without tank filling: 180 KG
Area of application:
The RWR 80 L KST fully automatic PLC has been developed for the plastic injection molding sector
and can be used wherever cooling channels (circulation systems, pipes) need to be cleaned.
Application:
Fill the RWR 80 L KST fully automatic SPS with Power Cleaner KST 2.0.
As soon as the minimum fill level is reached and the system is switched on, the system starts to heat up.
During the heating-up period, the system can already be connected to the tool via the two hoses.
The 5-stage cleaning program and the flow direction change run automatically,

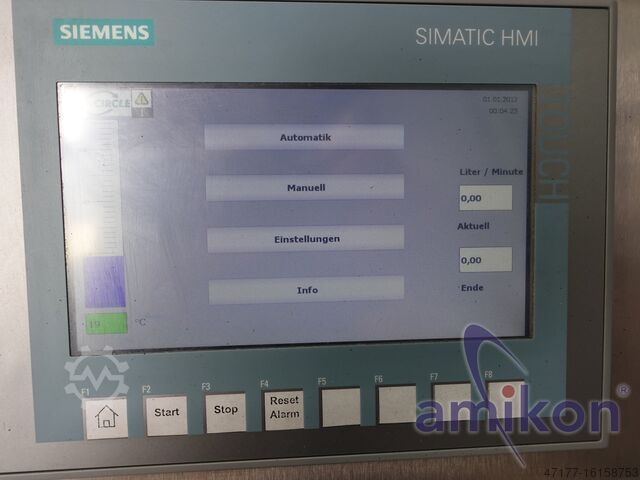

after the instructions shown on the display have been confirmed.
Condition: used
Scope of delivery: (see picture)
(Changes and errors in the technical data, specifications are reserved!)
We will be happy to answer any further questions you may have over the phone.
