Surface Grinding Machine - Horizontal

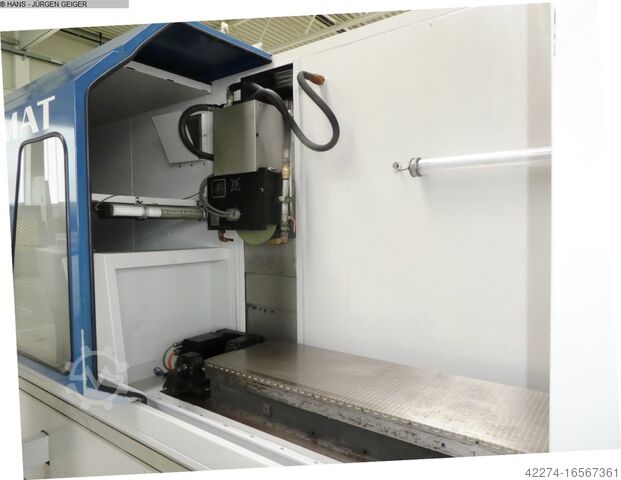

BLOHM PLANOMAT 616

Condition: refurbished (used), Year of construction: 2015, operating hours: 6,840 h, functionality: fully functional, grinding length: 1,600 mm, grinding width: 600 mm, feed length X-axis: 1,700 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 6 m/min, feed rate Z-axis: 6 m/min, grinding wheel diameter: 400 mm, distance table to spindle center: 950 mm, table length: 1,600 mm, table width: 600 mm, grinding wheel width: 30 mm, overall weight: 8,000 kg, grinding spindle motor power: 15,000 W, Equipment: documentation/manual, rotational speed infinitely variable, CNC surface grinder BLOHM Planomat 616 HP TECHNICAL CHARACTERISTICS : Gujdpfxewu R Iuj Afpjh Year of manufacturing : 2015 CNC control : SIEMENS 840D SL Maximum grinding lenght x width : 1600 x 600 [mm] Stroke X axis (table movement) : 1700 [mm] Min. Stroke speed X axis : 30 [mm/min] Max. Stroke speed X axis : 30000 [mm/min] Resolution X axis : 0.001 [mm] Stroke Y axis (vertical movement) : 800 [mm] Min. Stroke speed Y axis : 4 [mm/min] Max. Stroke speed Y axis : 6000 [mm/min] Resolution Y axis : 0.001 [mm] Course axe Z (transverse movement) : 560 [mm] Min. Stroke speed Z axis : 4 [mm/min] Max. Stroke speed Z axis : 6000 [mm/min] Resolution Z axis : 0.001 [mm] Min. distance spindle nose / table : 150 [mm] Max. distance spindle nose / table : 950 [mm] Grinding spindle motor power : 15 [kW] Max. diameter grinding wheel : 400 [mm] Max. grinding wheel width : 30 [mm] Grinding wheel bore : 127 [mm] Dimensions of magnetic plate : 1600 x 600 [mm] Machine dimensions : 5450 x 3560 x 2800 [mm] Supply voltage : 400 [V] Weight : 8000 [Kg] EQUIPMENT INCLUDED: x1 coolant tank + paper filtration system DGS type SBF150/650 x1 oil mist extractor (2000 m3/h) SARA type UC 2 SD/S3 x1 1600*600 [mm] electromagnetic clamping plate SAV type B-243.70 - 1600 x 600 - 13 x1 lifting dressing device for peripheral, side and profile dressing x5 grinding wheel flanges x15 grinding wheels Ø400 [mm] x1 wheel balancing bench x1 set of manuals + CD Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to the brands okamoto , jones shipman , jung , favretto , studer see also cylindrical grinder , lathe , machining centre , milling machine

Condition: repair required (used), Year of construction: 2000, functionality: limited functionality, grinding length: 1,600 mm, grinding width: 600 mm, grinding height: 500 mm, The machine runs and works. However, it urgently needs a service. LG Gedpfx Afetta Eijpeuh

Condition: good (used), Year of construction: 1999, grinding length: 1,600 mm, grinding width: 600 mm, Blohm Planomat 616-CNC Cutting area 1600 x 600 mm year of construction 1999 Equipment: Godpfxovl H Rhe Afpouh - Siemens Sinumerik 810D - Grinding spindle with facing unit - Grinding spindle drive by controlled three-phase motor with frequency converter (15 kW from 1000-3400 rpm) - Enable peripheral speed up to max. 60 m/s - Program for reading/editing NC (main and secondary) programs - Profile infeed tool PEA-TL200 with diamond profile rollers - Grinding wheel holder - Automatic balancing device - Paper belt filter attachment - Cooling unit 3.8 KW - Electro-permanent magnet clamping plate 1500 x 600 mm, with 18 mm holding force Cross pole pitch and substructure - Extension of NC memory by 256 kB - ECO grinding program for rough grinding using the pendulum infeed method - Menu-guided surface grinding in 3 shifts
