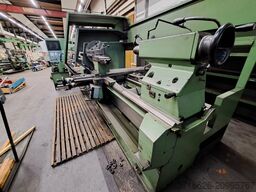

CNC latheBOEHRINGER
VDF DUS 1000
Machine data
- Machine type:
- CNC lathe
- Manufacturer:
- BOEHRINGER
- Model:
- VDF DUS 1000
- Year of construction:
- 1993
- Condition:
- excellent (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Borysław 59, 96-130 96-130 Głuchów, Polska
Technical details
- Turning diameter over cross slide:
- 710 mm
- Turning length:
- 2,000 mm
- Turning diameter:
- 1,000 mm
- Spindle bore:
- 128 mm
- Rapid traverse X-axis:
- 5 m/min
- Rapid traverse Z-axis:
- 2 m/min
- Rotational speed (min.):
- 6 rpm
- Rotational speed (max.):
- 1,600 rpm
- Total height:
- 2,250 mm
- Total length:
- 5,800 mm
- Total width:
- 2,005 mm
- Quill travel distance:
- 280 mm
- Quill diameter:
- 125 mm
- Swing diameter over cross slide:
- 710 mm
- Torque:
- 4,260 Nm
- Overall weight:
- 10,100 kg
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A209-95767
- Update:
- 20.01.2026
Description
- Swing diameter over cross slide: 710 mm
- Feed rate in X, Z axes: 0.01–50 mm/rev
- Feed speed in X/Z axes: 5/2.5 m/min
- Rapid traverse in X/Z axes: 10/5 m/min
- Feed force in X/Z axes: 20,000/12,500 N
- Constant cutting speed: 1–9999 m/min
- Distance between centers: 3300 mm
- Faceplate diameter: 900 mm
- 3-jaw chuck diameter: 500 mm
- Bed width: 560 mm
- Cross slide travel: 540 mm
- Top slide travel: 250 mm
- Metric thread pitch: 0.1–400 mm
- Spindle nose: KK 11 DIN 55027
- Number of motor gear stages: 2
- Spindle speed range (first gear): 6.3–360 rpm
- Spindle speed range (second gear): 28–1600 rpm
- Spindle bearing diameter (front): 170 mm
- Spindle bore diameter: 128 mm
- Spindle internal taper: 136 metric
Ijdpfx Aheya Dz Doujtb
- Tailstock quill diameter: 125 mm
- Tailstock quill stroke: 280 mm
- Tailstock quill internal taper: Morse 6 (MK6)
- Cross slide dimensions (L x W): 1005 x 320 mm
- Top slide width: 200 mm
- Tool cross-section per DIN 770: 40 x 25 mm
- Main drive power (60%/100% duty): 46/37 kW
- Main drive torque (60%/100% duty): 5300/4260 Nm
- Total power requirement: 60 kVA
- Power supply: 400 V
- Control cabinet dimensions (L x W x H): 1800 x 500 x 1600 mm
- Machine dimensions (L x W x H): 5800 x 2005 x 2250 mm
- Machine weight: approx. 10,100 kg
CNC controller: SIEMENS SINUMERIK
- Toolholder: MULTIFIX type D
- AC servo drives
- Reliable stepless AC main drive
- Work area lighting
