Punching and bending machine

Boschert EL 500 digital

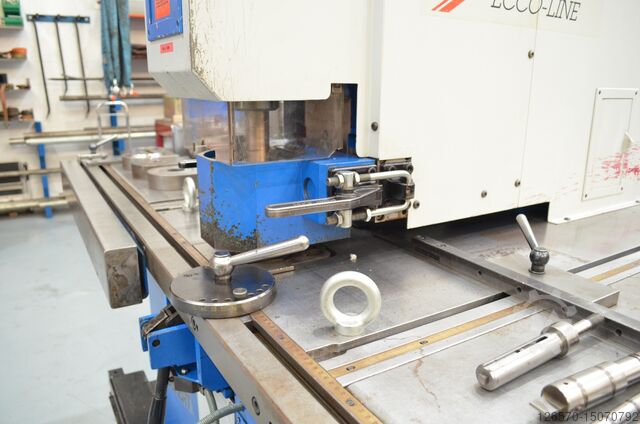

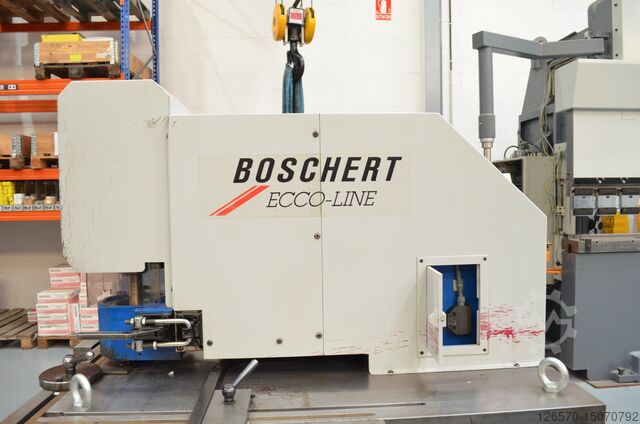

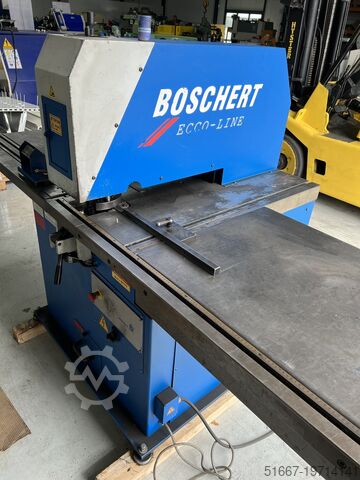

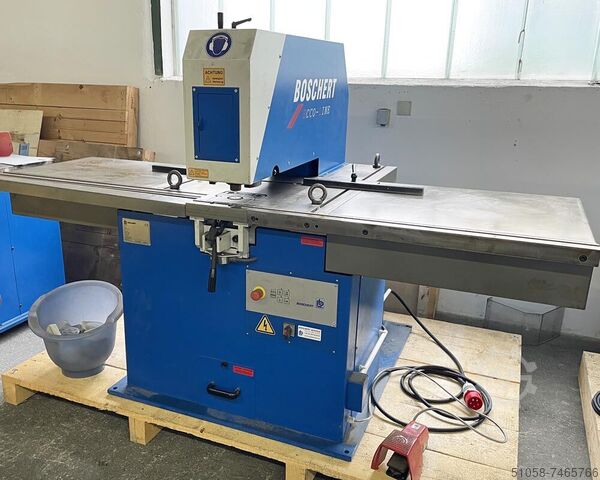

Condition: excellent (used), Year of construction: 2003, Boschert EL500 Digital Punching Machine TRUMPF quick-change tool system up to tool size III = diameter 105 mm Punching force: 280 kN (28 tons) Throat depth: 560 mm Side stop 1000 mm right/left Equipped with digital display X-axis left/Y-axis left Stroke: 40 mm Total weight: 2700 kg Nkjdpfoid I Hhox Afceu Including tool cabinet with tools and accessories

Year of construction: 2012, condition: good (used), Muratec MW120 GT for sale Used, in excellent condition. The machine can be viewed by appointment. Delivery is the customer's responsibility, but we can help with packing and loading of need. Nsdpfx Afeifi D Tecsku Delivery: EXW Székesfehérvár

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 828-043, total width: 1,800 mm, number of ink cartridges: 8, color channels: 7, number of print heads: 64, The Kornit Allegro is a powerful textile printing machine that offers outstanding print quality, high speed and versatility. It is particularly suitable for textile printing companies that want to produce first-class prints in large quantities (roll-to-roll) on a wide variety of fabrics. To date, it has been used primarily for cotton fabrics: jersey, French terry, cotton woven fabrics, canvas, sweat and viscose & modal qualities. For sale due to business downsizing. The textile printing machine is currently still in operation and can be viewed at any time by appointment. Nsdsvmdw Iopfx Afcsku The following are available for sale with the machine: main and backup air compressors, dryer, unwinder & rewinder. So a complete production line. We are also selling all available spare parts, colors, etc. Technical specifications: Ink type: Kornit NeoPigment Intenso, water-based Ink capacity: 4 liters Colors: Cyan, magenta, yellow, black, red, green, gray Print heads: 64 x Spectra Polaris, recirculating - (7 color channels, 1 channel for pre-treatment) Print width up to 180 cm Print speed: Up to 200m²/ hour Print modes: Multiple print modes from 400-1200 dpi Recommended print mode: 600 x 600 dpi in 6 passes in interlaced mode Weight: 3500 kg Power supply: 110/220V, 60/50 Hz, 40A, 3Ph+N+GND 25kW Media transport: High-precision, adhesive belt conveyor system Fabric feed system: Axial unwinding device with adjustable fabric width and Tensioning mechanisms Max media thickness: 15 mm Max roll width 180 cm Max roll outer diameter: 40 cm Max roll weight: 50 kg Compressed air: 6-8 bar/ < 0.4 m³/min

Condition: good (used), Year of construction: 2006, Gebruikte 4 meter CNC-kantbank van Bystronic Nodpfewz Iwasx Afceku Type: PR 200 4100 Bouwjaar: 2006 Capaciteit: 4100 x 200 ton Cybelec CNC-besturing Y1, Y2, X, R, Z1 en Z2 Hydraulische boven- en onderklemming Hydraulische CNC-bombering

Condition: excellent (used), functionality: fully functional, Year of construction: 2016, operating hours: 28,300 h, machine/vehicle number: 16500126, Press force: 400 kN Total bending length: 1030 mm Standard stroke [S]: 200 mm Clearance [D]: 515 mm Distance between columns: 1060 mm Table width: 60 mm X-axis backgauge travel range: 500 mm X-axis travel: 300 mm X-axis travel speed: 1500 mm/s R-axis travel: 100 mm R-axis travel speed: 500 mm/s Z-axis travel: 955 mm Z-axis approach speed: 2000 mm/s Y-axis approach speed: 300 mm/s Maximum Y-axis bending speed: 25 mm/s Y-axis positioning accuracy: 0.004 mm Oil capacity: 100 l Main drive power: 7.5 kW Weight: 4 t Length, approx. [L]: 1520 mm Width, approx. [W]: 1584 mm Height without increased clearance and stroke, approx. [H]: 2449 mm 1. Intelligent control system and drive with an exceptionally low noise emission (below 75 dB) in the Xpert 40 enables part production with about 30% lower energy consumption compared to conventional electrically-driven machines. 2. ByVision software with a 22-inch LCD display and touch technology 3. Intelligent process control guidance with Energy Saver 4. Automatic tool protection system 5. Foot pedal 6. Electrically operated protective sliding doors 7. User manual on CD 8. Ambient temperature from 7°C to 35°C 9. Voltage: 400 V, 50 Hz, 3 Ph 10. 'Bend G2' – optical safety system with manual height adjustment 11. 6-axis backgauge (3 additional axes) 12. 3-backgauge set - Xpert 40 (N0002.0040.000) - Set for integrating a third backgauge in the press brake 13. Ergonomic LED lighting package - Light output: 1500 lux 14. Ergonomic front supports with table. Max. load is 35 kg. Nedpfswv N Naox Afcoku 15. 'At your fingertips' tool cabinet - accommodates 3m of tools within easy reach (1 set of punches and 2 sets of dies). 16. Optical bending guidance system – the operator is guided throughout the bending process by the optical guiding system. 17. Ergo Bending Line Laser – Bystronic Bending Line Laser serves as a visual assistance for the operator by projecting a bending line on the material surface. The operator is supported by a virtual bending line when the backgauge fingers cannot be used (fully or partially). The laser line can be set at different heights depending on the die height (e.g., 55 / 100 mm), depending on material thickness or workpiece size. 18. Productive XPT clamping package (WILA NSCL II upper tool clamp and T12/90 table) 19. WILA hydraulic clamping package includes both upper and lower tool clamping with T12/90 table. 20. WILA NSCL II/XPT upper tool clamping (Productive clamping pack XPT) – XPT-type (Wila) upper tool clamping allows tool mounting in 0 and 180° orientations. 21. T12/90 table (Productive XPT clamping package) – T12/90 table with a height of 90 mm and width of 72 mm offers extensive space for Z-bends. The machine is fully operational. In continuous use. Viewing and testing of the machine are welcome.

Condition: used, Year of construction: 2006, Folding machine with rotating upper beam (straight tool on one side, segmented tools on the other) with the newly installed Prolink control system. Specification: Manufacturer: Göteneds Model: FUTURA 25 Year of manufacture: 2006 Working length: 2 600 mm Bending thickness: 2.5 mm Rear support: automatic 2 000 mm Control system: newly installed ProLink Nedpsrx N U Hjfx Afceku Other features: steel wheels on the rear support, adjustable folding speed, curvature compensation system, quick tool lock, tool height 150 mm. Weight: 4 290 kg. Delivery: two months after order If you have any further questions, we will be happy to answer them.

Condition: new, sheet thickness: 25bending length: 2100upper roll diameter: 330 Technical specifications: - Hardened and polished rolls - Complete body made of ST-52 Steel - Machine have 4 rolls and designed for symmetrical working principle - Hydraulic powered cover for easy material extracting - Digital readout for side rolls (2 digital readout) - Side rolls are free for rotation and upwards downwards movements are hydraulic powered - Top and bottom rolls are driven by hydraulic and gearbox. Bottom roll’s vertical movements are hydraulic powered - Separate control panel form machine - Conic bending device Nedpfx Afod Ab R Djcoku - In accordance for CE norms Options: - variable speed of rotation EURO 4.681,-- - metarial feeding table EURO 3.400,-- - oil coiler EURO 1.040,-- - center support EURO 13.600,-- - side supports EURO 8.400,-- - Automatic material extractor - PLC control - CNC control - Automatic material loading system - Changeable top roll - Adjustable bottom roll support system (for customer’s special requests) We have many references!

Condition: good (used), Year of construction: 1997, pressing force: 200 t, Press brake DARLEY - EHP 200 / 3600 MACH-ID 9153 Manufacturer: DARLEY Njdewrx Nhopfx Afcjku Type: EHP 200 / 3600 Control: DA 65 Delem Year of build: 1997

Condition: new, bending length: 2600sheet thickness: 5upper roll diameter: 170 Technical specifications: - Back roll with motor - Cone bending device - Hardened and polished rolls - Body is made of St 52 steel - Asymmetrical design for perfect bending - Top and bottom rolls are driven by brake electric motor and planetary gearboxes in gear system Nksdpfx Asd Ab Nnjfcou - Portable control panel  - In acccordance with CE norms Options: - Lower roll powered by electric motor EURO 1.650,-- - Digital readout for displaying position of the backroll EURO 1.010,-- - Extended rolls for profile rolls EURO 966,-- - Profile rolls EURO 1.190,-- We have many references!

Condition: new, sheet thickness: 13bending length: 2550upper roll diameter: 270sheet length: 2550 Technical specifications: - Hardened and polished rolls - Complete body made of ST-52 Steel - Machine have 4 rolls and designed for symmetrical working principle - Hydraulic powered cover for easy material extracting - Digital readout for side rolls (2 digital readout) - Side rolls are free for rotation and upwards downwards movements are hydraulic powered Nkodpsd Ab R Tsfx Afcju - Top and bottom rolls are driven by hydraulic and gearbox. Bottom roll’s vertical movements are hydraulic powered - Separate control panel form machine - Conic bending device - In accordance for CE norms Options: - variable speed of rotation EURO 4.681,-- - metarial feeding table EURO 3.400,-- - oil coiler EURO 1.040,-- - center support EURO 8.250,-- - side supports EURO 6.690,-- - Automatic material extractor - PLC control - CNC control - Automatic material loading system - Changeable top roll - Adjustable bottom roll support system (for customer’s special requests) We have many references!
