Notcher

BOSCHERT K 30-120

Condition: good (used), functionality: fully functional, Year of construction: 1989, sheet thickness steel (max.): 6 mm, table height: 900 mm, power: 4 kW (5.44 HP), overall weight: 2,150 kg, total length: 1,550 mm, total width: 1,200 mm, total height: 1,350 mm, cutting length (max.): 200 mm, Hydraulic notching machine, adjustable angle 30-120°, cutting capacity 6 mm, cutting length 200 mm, punching station on the back siede, footpedal, accessoires Gbedpovkg Nusfx Afpeu

Condition: good (used), functionality: fully functional, Year of construction: 1991, sheet thickness steel (max.): 6 mm, power: 0.004 kW (0.01 HP), overall weight: 1,600 kg, Cutting 6 mm at 400 N/mm² 4 mm at 600 N/mm² Stepless angle adjustment 30 - 120° Drive power approx. 4 kW Gbedpfx Afjxctr Aspsu

Year of construction: 1996, condition: good (used), machine/vehicle number: 598, Offer 22391 Technical data: - Cutting length up to 200 mm - Cutting thickness - steel with 400N/mm² strength 6 mm - stainless steel with 600 N/mm² strength 4 mm - stepless cutting angle adjustment 30 - 120 ° - pneumatically clamped - automatic cutting gap adjustment - locking stops left + right 300 mm each - table support surface 1000 x 800 mm - with T-slots and depth stops - table height approx. 900 mm - depth stops - drive 400 V / 4 kW - E - foot switch - space requirement approx. W 1000 x H 1350 x D 1510 mm Gjdpfeiqgd Esx Afpebu - Weight approx. 1800 kg

Condition: used, Year of construction: 1989, Used notching machine from Boschert Godpfxsw Rvk Es Afpobu Model: K 30 120 Adjustable angle Pneumatic clamping of the corner Year of manufacture: 1989

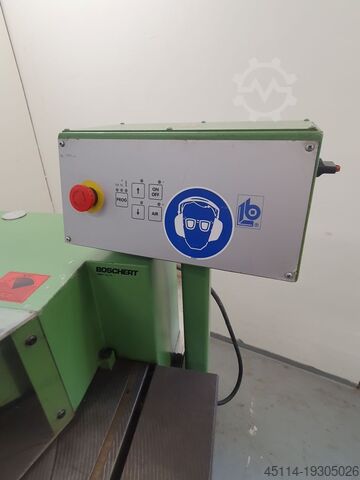

Condition: used, Year of construction: 1996, 4.0 mm 3.0 mm 30 - 120 Grad blade length 150 x 150 mm work height max. 900 mm table: 1000 x 650 mm engine output 3.0 kW weight 850 kg range L-W-H 1250 x 1000 x 1160 mm Furnishing: - Notching machine with angle adjustment 30° - 120° - Simple and functional "Touch Pad" control panel * Set-up stroke * Single stroke * continuous stroke - Plexiglas protection for better transparency - hardened knives also for cutting stainless steel - planed table surface * to avoid 'tilting' or 'slipping' of the metal sheet - adjustable lift height adjustment - Waste bin - free-moving footswitch - Operation manual Gedpfx Ajxabpdjfpjbu BOSCHERT angle adjustment: - the one-piece 30° upper knife is within one tool both with a left and directly connected to a right lower knife - once for each notch over 30° left and once on the right. - the swivel adjustment becomes pneumatic, immediately after completion of the first notch, lightning fast carried out.

Condition: used, Year of construction: 1989, Year 1989 angle stop 30 -120 Grad good condition . Anschlag weight 600 kg +++++ Please note: Gbedpfx Afsliuihopeu The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Year of construction: 1994, condition: excellent (used), Hydraulic notching machine Fab. BOSCHERT Type. K30-120 Very good condition, year 1994 Technical data Make BOSCHERT Type: K30-120 Year of manufacture: 1994 cutting capacity: 6 mm in St 40 / 4 mm in Niro blade length: 200 mm cutting angle: 30-120 working stroke: 40 mm table height: 900 mm Connected load: 6 kVA weight: approx. 1600 kg dimensions: approx. 1500 x 1200 x 1300 mm Gbodpfxshygzto Afpou All data without guarantee. The machine is in a very good condition. A demonstration under power is possible at any time in our exhibition hall.

Condition: excellent (used), functionality: fully functional, Year of construction: 2018, Boschert K30-120 Mini S Angle-adjustable notching machine: - Adjustable from 30° to 120°. - Cutting capacity: 4 mm steel, 3 mm stainless steel - Very good condition - 1 year warranty as for a new machine Gbjdew El Dfspfx Afpju - Immediately available

Condition: good (used), Year of construction: 2000, machine/vehicle number: 581, Item 25127 Technical specifications: - Cutting length up to 150 mm - Cutting thickness - at 400 N/mm² strength: 4 mm Gsdpfewmb Suox Afpebu - at 700 N/mm² strength: 3 mm - Cutting angle continuously adjustable from 30° to 120° - Pneumatic clamping of the cutting angle adjustment - Stroke 22 mm - Stroke rate 60 rpm - Table support surface with T-slots and depth stops - Table height 900 mm - Drive 400 V / 3 kW - Electric foot switch - Space required approx. W 1000 x H 1150 x D 1400 mm - Weight approx. 850 kg
