Beverage making machine

Bottling Sidel Bottling Beverage Line 4.200 bph PET

Condition: excellent (used), TETRA PAK APPLICATOR TCA45 CONVERTED TO HELICAP27 1000 PRISMA YOM 2006 FULL COMPLETE EXCELLENT CONDITION DISMANTLED AND PACKED INTO TETRA BOX VIDEO IN RUNNING CONDITION UNDER REQUEST Cjdpfxsuzv E Rj Af Hsaa

Condition: used, Year of construction: 2016, Overview  The complete filling line for big size PET bottles is located at a mineral water plant and was used for filling water. The line has been regularly serviced and is in very good condition. Output: 3,000 bph List of machines Blow moulder| Kosme| KSB4RG 2016 | 3600 bph Air Transporters| NTS | 2016      Rinser - Filler - Capper| GyM | MONOBLOC 12/3 PVG| 1995|3000bph Caps Feeding Tolva| GyM | 1995      Handles feeder |TAS| VA-1150/75C | 2009 | 3000bph Handle applicator| And&OR | 50SIA5000R8P2-TL | 2009| 3000bph Labeller| Auxiemba | Gacela R-16/8-HM-12 | 2010 | 4100bph Lot Coder| MACSA | K-1030PLUS| 2008      bottle spinner / rotator| GyM | 2001     Divider | SMI |  DIVIPACK 2000  |2002    Shrink Packer| SMI | LSK 30F | 2002 | 7200 bph (30 packs per minute 2*2 on 2,5L / 2 on 5L) Casdpfx Ajtuyq Rof Hsa

Condition: not inspected (used), Used aseptic machine for the production of beverages in cartons. Manufacturer: TETRA PAK Model: AB3-1000 Aseptik Maximum capacity: 3650 packages/hour Main motor: 2.2 kW Technical condition: used machine, untested, for technical inspection or overhaul Caedou Sg Tyopfx Af Hja

Condition: used, Year of construction: 2000, functionality: limited functionality, overall weight: 8,000 kg, type of input current: AC, Equipment: documentation/manual, Curd pre-pressing vat with a capacity of 12,000 litres and filling station cheese moulds from Tetra Pak Tebel. Year of manufacture 1999. In good condition, but with obsolete automation/PCL. We can provide PLC replacement and refurbishment on request. Available to visit. Documentation available. Caedpfx Asulnrvef Hsa

Condition: used, Year of construction: 2015, functionality: fully functional, COMPLETE BOTTLING LINE WINE 9,000 BPH Speed: 9,000 BPH with cork stopper; 9,500 BPH with aluminum screw cap Ape depalletizer Model: Depal 2010 Year: 2015 Speed: 60 layers/hour Automatic operation Type of operation: by layer Workable pallet dimensions: 1200 mm x 800 mm; 1200mm x 1000mm Automatic layer removal system Pallet warehouse MBF triblock Model: Synchrofill 1440.40F1/1440.40LV/360.6R/360.5V Year: 2015 Directions: Counterclockwise Rinser Single treatment 40 clamps Electric height adjustment Fixed nozzle Type of treatment: water Fillers 40 valves Electric tank height adjustment Filling type: light vacuum Mechanical valve Valve functions: gas injection before filling, automatic level adjustment system by operator's panel Corker 6 heads for natural straight corks. Cork size: minimum height 34 mm; maximum height 54 mm Electric head height adjustment Vacuum system, gas injection and 2nd vacuum before capping Corker 5 heads for aluminum screw cap Electric head height adjustment Gas injection system before capping General triblock data Bottle diameters supported: minimum Ø 55 mm; maximum Ø 100 mm Minimum height: 180 mm; maximum height: 360 mm OMAR drying tunnel Model: Asco 4 Year: 2015 Air blade drying system Robino & Galandrino capsuling machine Model: Poker z 6/12 Year: 2019 Electric head adjustment 6 thermal heads 12 rolling heads Long range storage Csdpfxjwditzo Af Hjaa Cavagnino & Gatti labeling machine Model: cg-cll-12-3xpsh-cf-6-mp Year: 2015 Rotary Clockwise Electric adjustment heads 12 plates Electronic cam 3 adhesive stations No. 2 vertical unwinders Label presence control Additional ironing of outgoing bottles Bee carton erector Model: Form 3000 Year: 2015 Closure by hot glue (Nordson) Carton dimensions: • Minimum length: 130 mm; maximum: 470 mm • Minimum width: 130 mm; maximum: 380 mm • Minimum height: 280 mm; maximum: 600 mm Carton storage capacity: 250 (depending on the thickness of the carton) Bee case packer Model: Inca 2010 Year: 2015 Carton formats: 3x2, 4x3, 6x4 Carton dimensions: • Length: minimum 200 mm; maximum 420 mm • Width: minimum 130 mm; maximum 380 mm • Height (with open carton): minimum 250 mm; maximum 590 mm Nr. 1 adjustable head for 3x2 and 4x3 boxes (min and max bottle sizes Ø 62-108 H 200-400) Nr. 1 fixed head for 4x3 and 6x4 boxes for 187 ml Ø 52.2 bottles Bee cartoon closer Model: CH 2010 HM Year: 2015 Closure by hot glue (Nordson)

Condition: used, Year of construction: 2003, Overview This 5 Gallon Water Bottling filler was built in 2003 with proven technology by American manufacturer Steelhead. The machine is already dismantled, in storage and can be viewed in person. Techn. Details Capacity: 600 bph Casdpfx Ajtw Ip Tef Hea

Condition: used, Year of construction: 2007, Overview The filler was built in 2007 by the German company Krones. The machine has been regularly serviced, is still assembled and can be inspected at any time. Technical details Output: 40,000 bph (200 ml) Formats: 200 ml glass bottle 237 ml glass bottle Closure: crown cap Direction of flow: clockwise Inlet/outlet height: 1,150 mm +- 50 mm Filling points: 96 Capping points: 15 Pitch circle diameter: 2,880 mm Pitch: 94 mm Control system: Siemens S7 Energy consumption: 15.17 kW Cajdpfx Ajqqz T Hsf Hea

Condition: used, Complete Bottling Line for Water (PET 1.5L) – Overview This used PET bottling line is configured for still water in 1.5-liter bottles, delivering a performance range of approximately 12,000 to 16,000 bottles per hour. Designed for industrial packaging and beverage production, it combines proven second hand equipment from recognized manufacturers to offer a reliable, efficient solution for a used bottling line. The configuration includes preform handling, blow molding, filling, capping support, labeling, shrink wrapping, handle application, palletizing, and conveyors, enabling a seamless end-to-end packaging process. Key components include a preform tipper and elevator by Sameto Technifil, a Siedel SBO10 blow molder, an Alsim Asmojet filler, an Arol cap feeder, a Kronos Contiroll labeling machine, an ACMI Fenix 165 shrink wrapper, and a Smipack HA50 handle applicator. This versatile packaging machinery set-up is ideal for beverage production facilities seeking to expand or replace an existing second hand line with dependable equipment and consistent output. Technical Specifications & Performance Data Production speed: 12,000–16,000 bottles/hour Primary product: Water Container type: PET Bottle format: 1.5L Preform tipper and elevator: Sameto Technifil EBH 2050 (2010) Blow molding machine: Siedel SBO10 (2010) Filling machine: Alsim Asmojet (1999) Cap feeder: Arol Cjdpfx Afexywglo Heaa Labeling machine: Kronos Contiroll (2004) Shrink wrapper: ACMI Fenix 165 (2019) Handle applicator: Smipack HA50 (2002) Additional units: Mixer, palletizing, conveyors Advanced Automation & Control Systems The line architecture supports synchronized operation across blow molding, filling, labeling, and end-of-line packaging through standard industrial control interfaces. Individual machine HMIs typically enable format-related adjustments, recipe selection, and real-time status monitoring. Safety interlocks, guarding, and emergency stop interfaces allow integrated stop/start logic across conveyors and processing units for consistent flow and minimal downtime during production. Production Line Integration Capabilities This complete line is designed for inline operation with continuous bottle flow from preform handling through to palletizing. Included conveyors facilitate smooth transfers between machines, helping to maintain stable throughput at the specified performance range. The configuration is suited for PET water bottling at 1.5L and can accommodate typical beverage production requirements for industrial packaging. Integration with upstream preform feeding and downstream logistics is supported by standard mechanical and control interfaces. Machine Condition & Maintenance History Offered as a second hand used bottling line, the equipment mix spans manufacturing years from 1999 to 2019. The line is presented for sale in working condition and is suitable for recommissioning for beverage production.

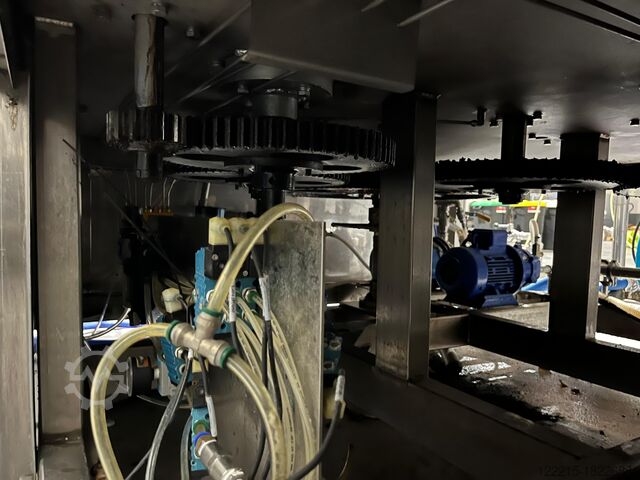

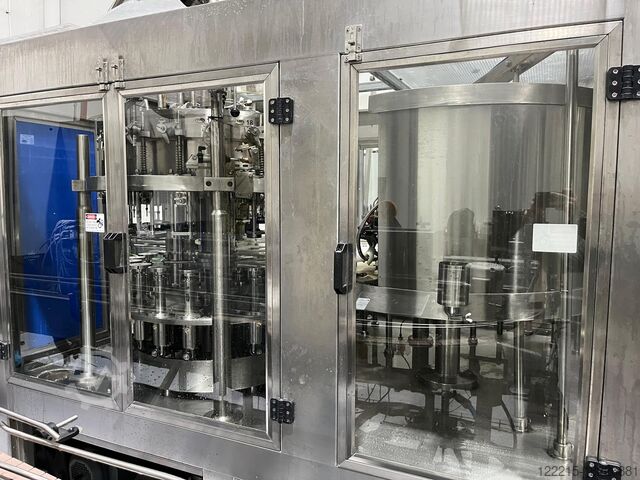

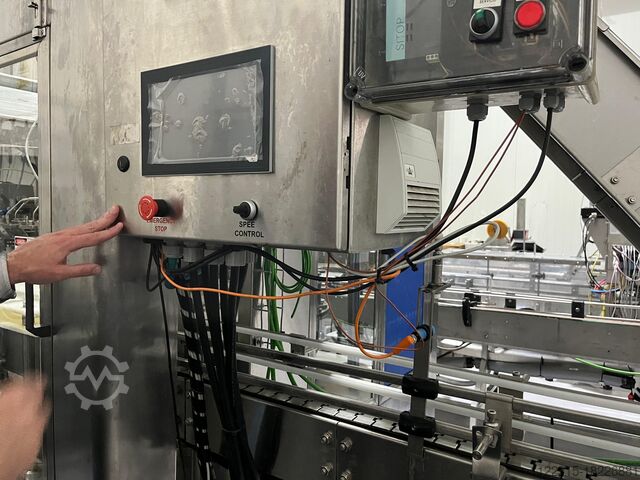

Condition: used, Year of construction: 2018, Overview The ABE GLASSPAK 66 is an isobaric filler that is currently in operation and can be viewed. The machine was manufactured by American Beer Equipment (ABE) in the USA in 2018. It has a maximum output of 4,000 bottles per hour for 0.33-liter bottles. The system is designed for 26 mm crown corks and has 18 filling stations. Technical details  Output: 4,000 bottles/hour (for 0.33-liter bottles) Type of closure: 26 mm crown cork Formats: 0.33L Filling stations: 18 Electrical specifications: Max. Voltage: 208-240 V Total current draw: 38.5 A Maximum motor current: 10.6 A Phase: 3-phase Frequency: 60 Hz Csdevpi Abspfx Af Hsaa

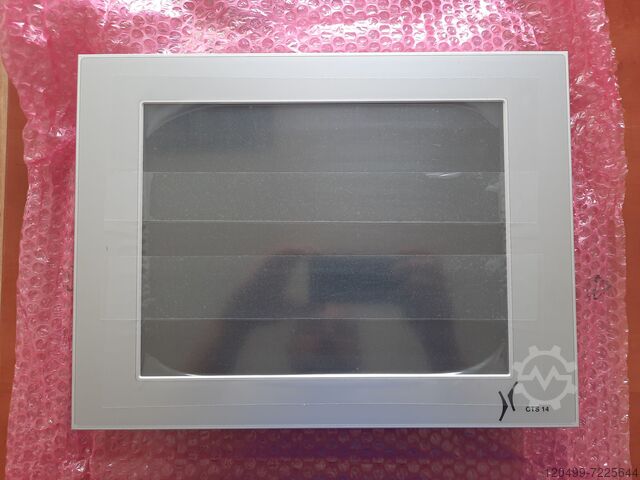

Condition: new, Type: Operator Interface P Brand: Krones B&R Cedjh Rulpjpfx Af Hsaa
