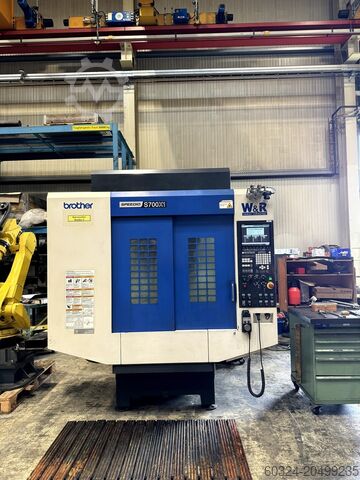

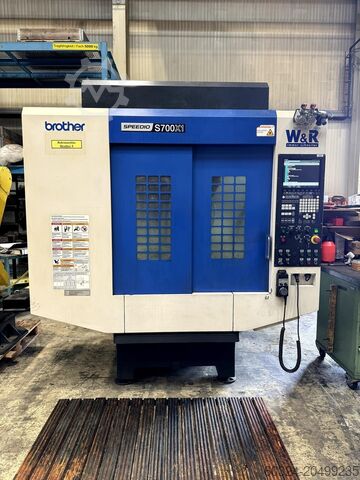

Vertical machining center

BROTHER Speedio S700 X1

Condition: good (used), Year of construction: 2016, Ref. -No.: 10411 Manufacturer: BROTHER Type: Speedio S700X1 Year of construction: 2016 Dcjdpfx Ajy Ed Aasqcjh Type of control: CNC Control: BROTHER CNC Storage location: Halberstadt Country of origin: Germany X-Travel: 700 mm Y-Travel: 400 mm Z-Travel: 300 mm Main spindle drive power: 15,4 kW Main spindle speed range: 16 - 16.000 RPM Table surface: 800 x 400 mm Distance Spindle /Table: 180 - 480 mm Table Load: 300 kg Max. Tool Weight: 25 kg Max. Tool Length: 250 mm Max. Tool Diameter: 110 mm Tool change time: 0,8 s Tool Taper: BT 30 Tool Piece Magazine With: 21 Pcs./pcs. Feed Speeds X/Y/Z Axis: 10.000 - 20.000 mm / min Rapid Traverse X-Axis: 50 m / min Rapid Travel Y-Axis: 50 m / min Rapid Traverse Z-Axis: 56 m / min X - axis acceleration: 2,0 G Y - Axis acceleration: 1,3 G Z - axis acceleration: 2,2 G Acceleration time: 0,30 sec Machine length: 2360 mm Machine width: 2120 mm Machine Height: 2500 mm Weight Of The Machine Ca.: 2,4 t Further information: THREAD Speed: 6,000 rpm Acceleration time: 0.11 s CUTTING CAPACITY Drilling capacity in aluminum: max. 24 mm / F0.2 Drilling capacity in C45 steel: max. 18 mm / F0.1 Tapping capacity in aluminum: max. M22 Tapping capacity in C45 steel: max. M14 Milling capacity in aluminum: max. 660 cm³/min. Face milling cutter: Ø 100 / depth 2.2 mm / F=3000 Milling capacity in steel C45: max. 48 cm³/min. Face milling cutter: Ø 40 / depth 2.5 mm / F=484 HIGH-SPEED TOOL CHANGER Stations with directional logic: 21 Change time T - T: 0.8 seconds Changeover time C - C at n=10,000 rpm and XYZ positioning: 1.4 seconds Positioning accuracy: ± 0.006 mm Repeat accuracy: ± 0.004 mm Accuracy of thread depth: 0.05 mm Air consumption: 45 l/min Air pressure: 0.5-0.6 MPa Air quality: 99% anhydrous Including FANUC robot / automation Machine can be inspected under power.

Condition: good (used), Year of construction: 2007, travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 725 mm, CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 320 tools pallet changing device, 2 pallets 500 mm x 500mm Dsdpfx Asq Ui Hqjqcech coolant through spindle device IKZ (80 bar) chip conveyor coolant device Technische Daten / technical details: X-Weg längs / X-travel longitudinal 750 mm Y-Weg senkrecht / Y-travel vertical 750 mm Z-Weg quer / Z-travel cross 725 mm B-Achse / B-axis 360 ° Spindelaufnahme / spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 50-10000 Upm /rpm Werkzeugplätze / tool places in changer 320 Vorschub / infeed 60000 mm/min Eilgang / rapid feed 60 m/min Antriebsleistung Spindel 40/100% ED / drive capacity spindle 40/100%ED 37/24 kW Gewicht der Maschine ca. / weight ca. 15000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MILLING SPINDLE - Tool holder type : BT30 - Spindle power : 4,9 [kW] - Spindle speeds : 16.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 700 x 400 x 300 [mm] - Rapid traverses rates (X/Y/Z) : 50 / 50 /56 [m/min] - Cutting feed rates (X/Y/Z) : 1 - 30.000 [mm/min] - Distance table / spindle nose (min./max.) : 330 - 630 [mm] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 21 - Tool exchange time : 0,8 [sec] TABLE - Table dimensions : 800 x 400 [mm] - Maximum weight upon table : 250 [kg] POWER SUPPLY - Supply voltage : 220 [V] - Total installed power : 9,5 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.050 x 2.220 [mm] - Machine height : 2.497 [mm] - Machine weight : 2.400 [kg] MACHINE HOURS - Number of hours under power : 23.456 [h] - Number of working hours : 16.703 [h] EQUIPMENT - CNC : Brother CNC-C00 - Interface : Ethernet / USB Dodpfx Aoxzu T Ssqcjch - Electronic handwheel - CNC option : extanded Memory 500 Mo - CNC option : High accuracy mode BⅡ - Type of divisor : 4e axe CNC intégré * manufacturer : YUKIWA * model : DRC170-EU * travel 4th axis : 360 [°] * indexing precision 4th axis : 0,001 [°] * clamping diameter : 140 [mm] * center height : 135 [mm] * with counter bearing * Coolant tank : 150 [l] * with high-pressure pump : 15 [bars] * With cabin washing - Coolant through spindle - Tool probe - Electric transformer

Condition: good (used), CHARACTERISTICS Plate diameter ⌀; 3200 mm Maximum turning/turning diameter ⌀; 3300 mm - With upright forward; 3300 mm Dcsdpfx Aqjr I Aykscoh - With upright set back; 5600 mm Min. turning/turning diameter ⌀ - With advanced upright; 800 mm - With upright set back; 3100 mm Max turning height; 750 mm Control; FAGOR 8025 Spindle RPM (2 ranges); - 0,5 - 10 rpm - 10 - 40 rpm Motor Power; 80 hp Maximum table load; 30.000 kg

Condition: used, TECHNICAL DETAILS Dedpfouhb Uhox Aqcoch - max. power : 40 [t] - max. workpiece diameter : 40 [mm] - spindle diameter : 80 [mm] - spindle length : 120 [mm] - max. tool diameter : 250 [mm] - dimensions : 2400 x 2100 x 2200 [mm] - weight : 7100 [kg] EQUIPMENT - control CNC (base Siemens) - tail stock device - coolant tank with pump - 2 boring wheel 80, diameter : 260 [mm]

Condition: used, Year of construction: 2011, turning diameter 160 mm Dodeyuzfpopfx Aqcoch turning length 550 mm control Siemens weight of the machine ca. 9000 kg

Condition: used, Year of construction: 2001, functionality: fully functional, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Dcodpfow Imq Rsx Aqceh

Condition: excellent (used), Year of construction: 2009, operating hours: 28,742 h, functionality: fully functional, bar passage: 65 mm, FANUC Series 31i-Model A 3 turrets Parts conveyor Magazine Further details on request Dsdeydmbuopfx Aqcsch

Condition: used, TECHNICAL DETAILS - Number of axes : 4 - Number of spindles : 1 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 18,5 [kW] - Spindle speeds : 4.000 [rpm] - Max. bar diameter : 80 [mm] - Max. machining length : 728 [mm] - Max. turning diameter : 460 [mm] - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260/795 [mm] - Y stroke : +/- 50 [mm] - Tool type : BMT - Live tools speed : 10000 [rpm] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM5 - Tailstock stroke : 650 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.110 x 1.922 [mm] - Machine height : 2.120 [mm] Dsdpox Tvklofx Aqcech - Machine weight : 6.100 [kg] MACHINE HOURS - Number of hours under power : 26654 [h] - Number of working hours : 15488 [h] EQUIPMENT - CNC : CELOS - Interactive programming : MAPPS 4 - Interface : USB, PCMCIA, RJ45, RS232 - Tool probe : Renishaw - Coolant tank * with high-pressure pump : 15 [bars] - Chips conveyor - Tool probe - Parts catcher - Parts conveying strip - Bar loader : LNS QUICK LOAD SERVO 80 S2 - Number of fixed tool holders : 9 - Number of turning tool holders : 3 - Electric transformer - Collet chuck

Condition: excellent (used), Year of construction: 2005, X 450 Y 300 Z 300mm, BT 30, 10.000Rpm, cooling trough spindle, paper filter, Mitsubishi Dodpetiyl Ejfx Aqcsch
