High performance punching machine

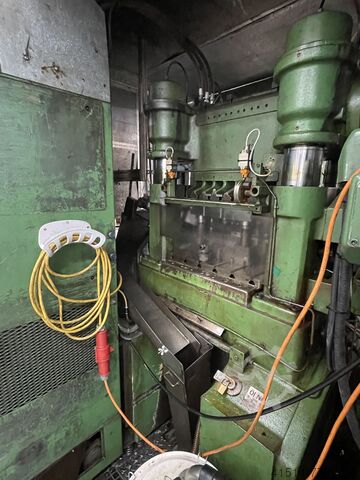

BRUDERER BSTA 60 H

Condition: good (used), Schuler PE4s 50/800 high-speed press  Manufacturer: Schuler   Chedpfx Aegryc Nshmsc Type: PE4s 50/800 High speed press 61/21 600/3 pressing force: 50 t throat depth: 800 mm Stroke rate /min: 125-300 slide stroke: 40 mm Kohler decoiler 500.1 M After the purchase you will also get the documentation We sell a large number of paternosters. In addition to approx. 50 paternosters, there are countless other machines available. After purchase the amount is due within 7 working days. Please also note our other offers. Have fun browsing and buying. Financing through our bank is also possible. komplett-konzept.leasingo.de Further articles - new and used - you will find in our shop! International shipping costs on request!

Condition: used, Year of construction: 2008, functionality: fully functional, The Bruderer BSTA 500-110B is a 500 kN Swiss-built high-speed stamping press, fitted with a BSV 75T double servo feeder for precision two-track strip feeding. Capable of up to 750 strokes per minute with B2 touch-screen control. Including sound insulating cabin. Nominal force: 500 kN (50 tons) Year of manufacture: 2008 Stroke rate: 100–750 spm (variable) Adjustable stroke: 19 / 25 / 34 / 43 / 51 / 57 / 64 mm Ram height adjustment: 64 mm Press table area: 1080 x 650 mm Control: B2, IPC-based touch-screen press control, programmable memory for fast retooling BSV 75T DOUBLE SERVO FEEDER Cedszh Nnwepfx Ahmohc Type: tandem dual-feed servo unit, independently controlled tracks Max. strip width: 70 mm per track Max. material thickness: 2 mm Feed length: variable, freely programmable Feed angle: variable Pilot release angle: variable No clamping/gripper bars — strip held by driven feed rollers during stamping Designed for parallel advancing of two strips or feeding pre-profiled/pre-stamped strip

Condition: refurbished (used), Year of construction: 1985, functionality: fully functional, Completely overhauled BRUDERER high-speed stamping press BSTA125 incl. new press control system Technical data: Tonnage: 1250 kN Tooling opening: 1170 mm Strokes per minute: 100–850 SPM (depending on selected stroke) Adjustable stroke: 16, 19, 26, 35, 43, 51, 58, 64, 70, 75 mm Ram adjustment range: 89 mm Chedpfx Ahoy D H H Esmjc Tool installation height: 268–386.5 mm (depending on selected stroke) Bolster plate: 1150 x 1070 mm Ram area: 1040 x 600 mm Strip pass width: 440 mm Base plate opening: 1120 x 350 mm Strip entry height: 80–180 mm Strip feed direction: left to right Feeder: servo feed

Condition: used, Year of construction: 1994, operating hours: 28,000 h, functionality: fully functional, The Bruderer BSTA 80H is an 80-ton high-speed stamping press built for heavy-duty progressive-die production, fitted with a BBV 320/200 strip feeder and Unidor tool monitoring. In stock in Pforzheim, ready for inspection. Nominal force: 800 kN (80 tons) Tool monitoring: Unidor Stroke rate: 100–1,000 spm Strip feeder: Bruderer BBV 320/200 Chjdpfjzibtbox Ahmjc Adjustable stroke: 16–63 mm Clamping plate area: 970 mm Main drive: 43 kW Power supply: 380 V / 50 Hz Ram area: 760 x 510 mm Table area: 950 x 910 mm Strip inlet height (adjustable): 80–180 mm Max. strip width: 360 mm Max. material thickness: 3 mm Machine dimensions: 2834 x 1742 x 3460 mm Weight: approx. 15,550 kg Operating hours (main drive): approx. 28,067 h More machines from brands Bruderer, Bihler, Soprem, Noxon, Huras, Schaal and Mabu on stock available on request

Condition: refurbished (used), Year of construction: 2027, pressing force: 60 t, Machine made to order: High speed press BSTA 60 Retrofit and general overhaul. Conversion to electronic drive und new Unidor PC-control system. Tool area enlargement possible. Cedpfx Ahozlqlfjmshc Please contact us for detailed offers.

Condition: used, Year of construction: 1995, operating hours: 42,000 h, functionality: fully functional, machine/vehicle number: 10317, The BSTA 50UL is a Bruderer high-speed precision stamping press rated at 500 kN (50 tons) nominal force, engineered for continuous progressive-die production at variable stroke rates from 100 to 1,120 strokes per minute. The press is equipped with a Bruderer BBV 202/120 strip feeder, delivering strip widths up to 203 mm and handling material thicknesses up to 2 mm. Adjustable stroke is set between 16 and 51 mm, with strip inlet height adjustable across a 50–140 mm range to accommodate varying tooling and material profiles. Nominal force: 500 kN (50 tons) Tool monitoring: Unidor Stroke rate: 100–1120 strokes per minute (variable) Strip feeder: Bruderer BBV 202/120 Adjustable stroke: 16–51 mm Mounting space / clamping plate: 760–940 mm Main drive: 22 kW Power supply: 400 V / 50 Hz Table area: 940 x 580 mm Strip inlet height (adjustable): 50–140 mm Max. strip width: 203 mm Max. material thickness: 2 mm Csdozibrqopfx Ahmehc Machine dimensions: 3100 x 2700 x 1800 mm Weight: approx. 8,150 kg Operating hours: 42,416 h Sound-insulating cabin available on request More machines from brands Bruderer, Bihler, Soprem, Noxon, Huras, Schaal and Mabu on stock available on reqest

Condition: refurbished (used), Year of construction: 2027, pressing force: 50 t, Machine available to order (made-to-order): Cjdpszlqk Usfx Ahmshc Fully reconditioned B500-950 high-speed automatic stamping press Table length 950 mm (optionally 1150 mm or 1250 mm available), Adjustable stroke 16 to 51 mm, A servo feed can be installed as an alternative to the Bruderer BBV 202/120 roll feed. Contact us for detailed quotations.

Condition: excellent (used), Year of construction: 2001, KAISER Press Pressing force 1,600 kN Table area 1,400 x 1,000 mm Stroke adjustment 20 - 105 mm Installation height 460 mm Ram adjustment 90 mm Stroke rate 20 - 120 1/min Chedpfjzlp H Ujx Ahmec Machine weight 24,000 kg Includes Lorenz conveyor system, BRM40/320.21 BA-HH3000.2 – BFÜ-3 Discontinued model with magnetic conveyor belt.

Condition: refurbished (used), Year of construction: 2026, functionality: fully functional, machine/vehicle number: 9174, total height: 3,400 mm, ram adjustment: 100 mm, installation height: 530 mm, total width: 2,150 mm, total length: 1,450 mm, pressing force: 100 t, clearance between the columns: 830 mm, overall weight: 15,000 kg, DGUV certified until: 01/2027, year of last overhaul: 2026, punching force: 100 t, The machine is completely overhauled and finished, including new Siemens S1500/MTP1000 press control. Upright spacing: 830 mm Distance table to ram: 530 mm Stroke adjustment: 10 - 120 mm Chodpfx Aox U Ucpshmec Ram adjustment: 100 mm Ram strokes/minute: 30-120 Delivery time: immediately Price on request

Condition: used, Year of construction: 1983, Bruderer BSTA 50 HL with BBV 202/120 Cjdszlqg Aopfx Ahmshc Available, delivery time on request CE conversion possible. Contact us!
