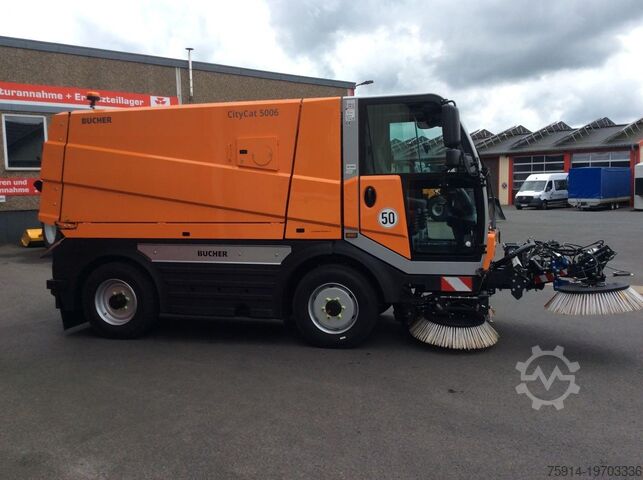

Road sweeper

Bucher - GMeiner - Giletta CityCat 5006 50 km/h

Operating hours: 589, First registration: 18/06/2024

Standard equipment:

Steering
- Hydrostatic four-wheel steering with hydraulic power assistance

Axles
- Rear axle is a steering drive axle with differential
- Front axle is a non-driven axle with coil springs and shock absorbers

Hydraulics
- The latest electronic control concept enables fuel and noise-optimized control of the diesel engine for a hydrostatic drive system across the entire speed range without loss of power
- Diesel consumption and pollutant emissions are significantly reduced thanks to the electronic control system and the Euro 6d diesel engine
- Valuable resources and the entire vehicle system are protected
- Comparative test drives have shown a diesel fuel saving of 30% and a reduction in drive-by noise by 20%; overall, these positive effects are also reflected in the operating costs

Brakes
Ijdpfjw Hlvkex Afpsbc
- Hydraulic dual-circuit braking system with hydraulic power assistance
- Disc brakes front and rear
- Hydraulic spring-loaded handbrake on rear axle
- 4 brake calipers at the front and 2 at the rear

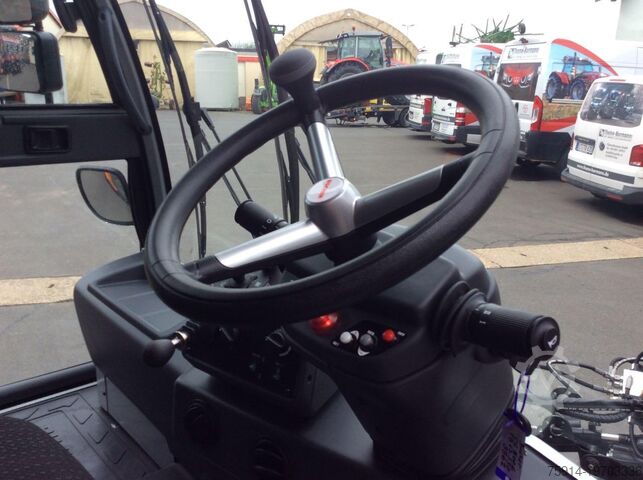

Driver's cab
- Comfortably suspended and sound-insulated cab on hydro mounts
- Windscreen made of heat-insulated, curved, low-reflection safety glass
- 2 sliding windows in each door
- Multi-stage heating blower
- Sun visor
- Windscreen wiper with washer
- Air-sprung driver's seat and sprung passenger seat, both individually adjustable
- Angle and height-adjustable steering column
- Clearly laid out and ergonomically arranged controls and monitoring instruments with a 7'' color display
- Visual and acoustic warning system for temperature and fluid level monitoring
- Visual diagnostic system with intuitive design

Sweeping debris collection
- Suction principle with a trailing, stainless steel suction mouth in front of the axle; combined with side brooms, laterally hydraulically adjustable by 400 mm
- Continuously adjustable high-performance suction fan

Debris container
- Hydraulic tilting and lockable container volume 5.6 m³
- Discharge height 930 mm
- Discharge height (high tipping) 1550 mm
- Discharge width 1700 mm
- Discharge angle 51°

Water system
- Water tank approx. 880 l
- One water pump for water nozzles

Brooms
- 2 sweeping brooms left and right, Ø 900 mm, continuously variable speed from 0-150 rpm, with collision protection
- 3 front brooms for a sweeping width up to max. 3768 mm and for sweeping corners and ramps, deployable left, right, and on a second level

Special equipment:
- RAL 2011 orange
- Suction pipe flap (hydraulic) for closing the inlet pipe
- Leaf grid lifting device for raising and lowering the leaf grid in the debris container via hydraulic hand pump
- Easyclean quick cleaning system for cleaning the debris container side walls, fan, recuperation, and leaf screen
- 1 piece weed brush including special protective skirt / 2 pieces supplied loose without brush filling
- 3rd front brush, reinforced version (only SL) – standard brush, with linear guide, tilt adjustment both directions, brush pressure adjustment, increased reach and sweeping area
- Leaf suction hose mounted on the side – length 3.5 m, diameter 160 mm, can be mounted on both sides
- Fully integrated, CFC-free air conditioning
