Roller coating machine

Buerkle SLC 1300

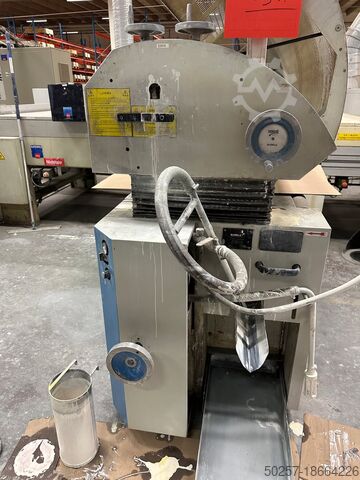

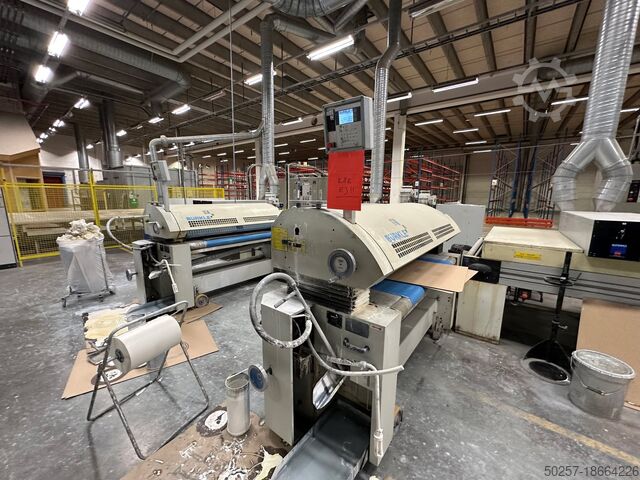

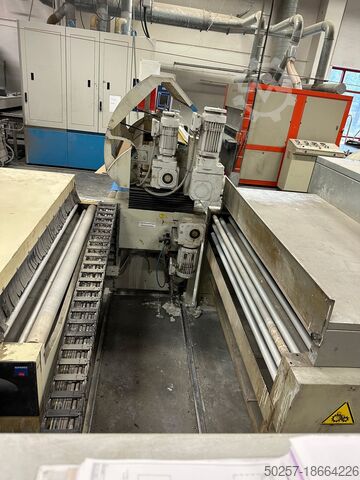

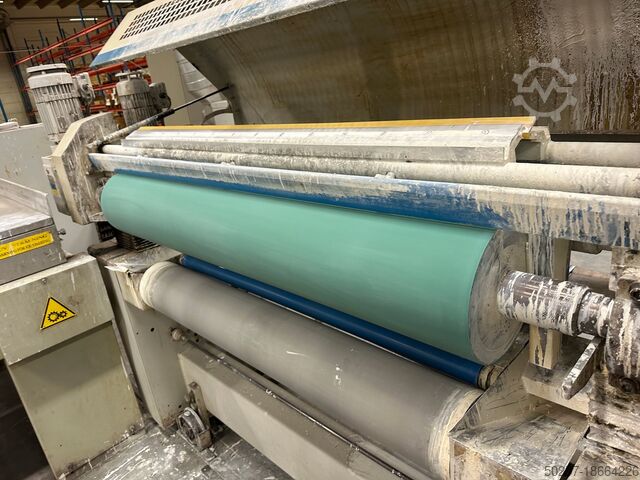

Condition: excellent (used), Year of construction: 2004, I sell the 1-cylinder roller coater BURKLE SLC1300. Year 2004 Working width 1300mm Very good condition. Fully working. Fjdpfx Aswun Hbofpegh Available immediately.

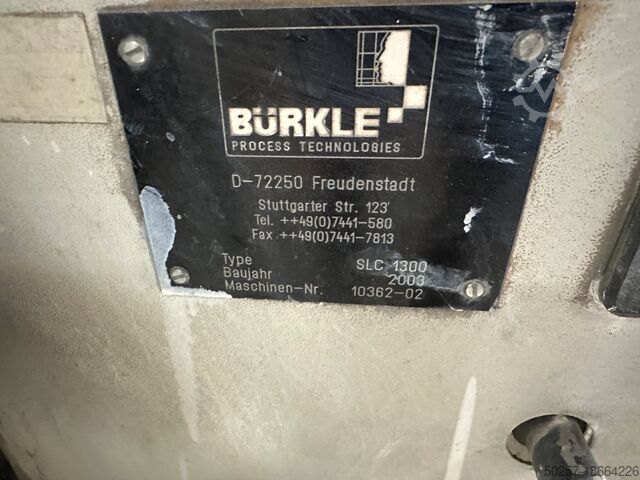

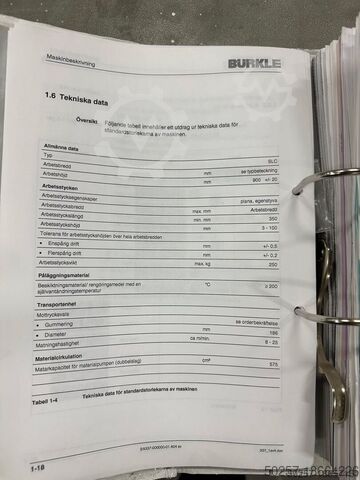

Condition: ready for operation (used), Year of construction: 2003, machine/vehicle number: 10362, Brand: Burkle Model: SLC Machine no: 10362-01 Year of manufacture: 2003 Technical data of the machine (BURKLE SLC) Fgedpfx Afev Hn N Ujpeh General data - Type: SLC - Working width: 1300 mm - Working height: 900 ± 20 mm Workpieces - Workpiece characteristics: Flat, self-rigid - Workpiece width (max): Working width - Workpiece width (min): 350 mm - Workpiece length: 3 - 100 mm - Tolerance of the workpiece height over the entire working width: - Single track operation: ± 0.5 mm - Multi-track operation: ± 0.2 mm - Workpiece weight (max): 250 kg Piling material - Inspection material/cleaning agent with a self-ignition temperature: ≥ 200 °C Transport unit - Back pressure roller: See order confirmation - Rubber ring: See order confirmation - Diameter: 186 mm - Feed speed: 8 - 25 m/min Material circulation - Material pump feed capacity (double stroke): 575 cm³ Piling unit Piling roller - Rubber ring: See order confirmation - Diameter: 238 mm - Temperature (in case of optional heating/cooling application roller): Max 60 °C - Peripheral speed: Approx. 8 - 25 m/min Dosing roller - Diameter: 174 mm - Temperature (with optional heated/cooled dosing roller): Max 60 °C - Peripheral speed: Approx. 3 - 9 m/min Accuracy of application over the entire working width at: - Application rate > 10 g/m²: ± 5 %. - Application rate < 10 g/m²: ± 10 % Adjustment of the feed-through height - Feed-through height (max): 120 - 5 mm - Accuracy of setting: ± 0.1 mm Compressed air connection - Required air pressure: 6 bar - Compressed air consumption: Approx. 50 NI/min Dimensions / weights - Dimensions: See installation drawing - Weight at working width 700 / 1300 / 1600 mm: 1250 / 1450 / 1600 kg Electricity - Connection values, voltages: See data sheet for electricity Other information - Noise level: < 70 ± 4 dB (A) Table 1-4: Technical data for standard sizes of the machine (continued) Note: The speed is limited to a maximum of 20 m/min when the dosing roller and height setting are set to a safety distance exceeding 120 mm (cleaning coupling). Stock no: 2002443BXM
