1-Cylinder Roller coating machine

Buerkle SLC1300

Condition: ready for operation (used), Year of construction: 2003, Brand: Burkle Model: SLC Machine no: 10362-02 Year of manufacture: 2003 Technical data of the machine (BURKLE SLC) General data - Type: SLC - Working width: 1300 mm - Working height: 900 ± 20 mm Workpieces - Workpiece characteristics: Flat, self-rigid Njdov Hw Hcepfx Ah Nedd - Workpiece width (max): Working width - Workpiece width (min): 350 mm - Workpiece length: 3 - 100 mm - Tolerance of the workpiece height over the entire working width: - Single track operation: ± 0.5 mm - Multi-track operation: ± 0.2 mm - Workpiece weight (max): 250 kg Piling material - Inspection material/cleaning agent with a self-ignition temperature: ≥ 200 °C Transport unit - Back pressure roller: See order confirmation - Rubber ring: See order confirmation - Diameter: 186 mm - Feed speed: 8 - 25 m/min Material circulation - Material pump feed capacity (double stroke): 575 cm³ Piling unit Piling roller - Rubber ring: See order confirmation - Diameter: 238 mm - Temperature (in case of optional heating/cooling application roller): Max 60 °C - Peripheral speed: Approx. 8 - 25 m/min Dosing roller - Diameter: 174 mm - Temperature (with optional heated/cooled dosing roller): Max 60 °C - Peripheral speed: Approx. 3 - 9 m/min Accuracy of application over the entire working width at: - Application rate > 10 g/m²: ± 5 %. - Application rate < 10 g/m²: ± 10 % Adjustment of the feed-through height - Feed-through height (max): 120 - 5 mm - Accuracy of setting: ± 0.1 mm Compressed air connection - Required air pressure: 6 bar - Compressed air consumption: Approx. 50 NI/min Dimensions / weights - Dimensions: See installation drawing - Weight at working width 700 / 1300 / 1600 mm: 1250 / 1450 / 1600 kg Electricity - Connection values, voltages: See data sheet for electricity Other information - Noise level: < 70 ± 4 dB (A) Table 1-4: Technical data for standard sizes of the machine (continued) Note: The speed is limited to a maximum of 20 m/min when the dosing roller and height setting are set to a safety distance exceeding 120 mm (cleaning coupling). Stock no: 2002442BXM

Condition: used, Year of construction: 1993, machine/vehicle number: 4610.17, - Manufacturer Bürkle - Type DAL 1-1300 R - Year of manufacture approx. 1990 - 1993 - Working width 1300 mm Ndsdpfxeumvkvj Ah Njd - Machine is being overhauled, then in very good condition - Working height 870 mm - Part height 3 - 80 mm - Operating side right - Paint application roller 50 Shore - Dosing roller hard chrome-plated approx. 174 mm - Counter-pressure cylinder rubberized - Belt transport - Length 1050 mm - Feed adjustable via handwheel 6 - 30 m/min - Total connection approx. 2 kW - Weight 3250 kg - With control cabinet - Volt, Hz 400 / 50 - Machine number 4610.17 - Product number 8479 8997 - Voltage fluctuations max. +/- 5 %

Condition: ready for operation (used), Year of construction: 2003, machine/vehicle number: 10362, Brand: Burkle Model: SLC Machine no: 10362-01 Year of manufacture: 2003 Technical data of the machine (BURKLE SLC) General data - Type: SLC - Working width: 1300 mm - Working height: 900 ± 20 mm Workpieces - Workpiece characteristics: Flat, self-rigid - Workpiece width (max): Working width - Workpiece width (min): 350 mm - Workpiece length: 3 - 100 mm - Tolerance of the workpiece height over the entire working width: - Single track operation: ± 0.5 mm - Multi-track operation: ± 0.2 mm - Workpiece weight (max): 250 kg Piling material - Inspection material/cleaning agent with a self-ignition temperature: ≥ 200 °C Transport unit - Back pressure roller: See order confirmation - Rubber ring: See order confirmation - Diameter: 186 mm - Feed speed: 8 - 25 m/min Material circulation - Material pump feed capacity (double stroke): 575 cm³ Piling unit Piling roller - Rubber ring: See order confirmation - Diameter: 238 mm - Temperature (in case of optional heating/cooling application roller): Max 60 °C - Peripheral speed: Approx. 8 - 25 m/min Dosing roller - Diameter: 174 mm - Temperature (with optional heated/cooled dosing roller): Max 60 °C - Peripheral speed: Approx. 3 - 9 m/min Accuracy of application over the entire working width at: - Application rate > 10 g/m²: ± 5 %. - Application rate < 10 g/m²: ± 10 % Adjustment of the feed-through height - Feed-through height (max): 120 - 5 mm - Accuracy of setting: ± 0.1 mm Compressed air connection Ndsdpfov Hn N Ujx Ah Nsd - Required air pressure: 6 bar - Compressed air consumption: Approx. 50 NI/min Dimensions / weights - Dimensions: See installation drawing - Weight at working width 700 / 1300 / 1600 mm: 1250 / 1450 / 1600 kg Electricity - Connection values, voltages: See data sheet for electricity Other information - Noise level: < 70 ± 4 dB (A) Table 1-4: Technical data for standard sizes of the machine (continued) Note: The speed is limited to a maximum of 20 m/min when the dosing roller and height setting are set to a safety distance exceeding 120 mm (cleaning coupling). Stock no: 2002443BXM

Condition: like new (used), Year of construction: 2017, Barely used UV line for panels or flooring Nsdpfxjv Ux R Se Ah Nodd

Year of construction: 2008, condition: excellent (used), For sale is a little used drying channel of the brand Hymmen. Year of construction 2008; max. workpiece width 1.300 mm, 400 V, suitable for UV-lacquers and water-soluble lacquers up to 5 % solvent, materials wood and plastic. Nodpfohabf Aex Ah Njdd

Condition: as good as new (ex-display), Year of construction: 2017, machine/vehicle number: 0141550020, working width: 1,300 mm, The BÜRKLE LFC painting line is used for the continuous application of primer, base coat or protective varnish to surfaces. The use of a UV lamp tunnel simultaneously hardens the varnish on the surface of wood, glass, etc. The machine is used very little, only for tests, additionally a new rubber roller for the machine. Ndodpfx Ajp Uanfeh Ned

Condition: used, Coating roller machine, roller application machine -Transfer in current condition as seen -Manufacturer: Giardina Ndodpfx Aoc Uv Ncsh Nsd -Max. Width: 1260 mm -Casting gap: adjustable -with: 3x brush units -Connection power: 11 kW -Dimensions: 4600/2360/H1600 mm -Weight: approx. 4000 kg

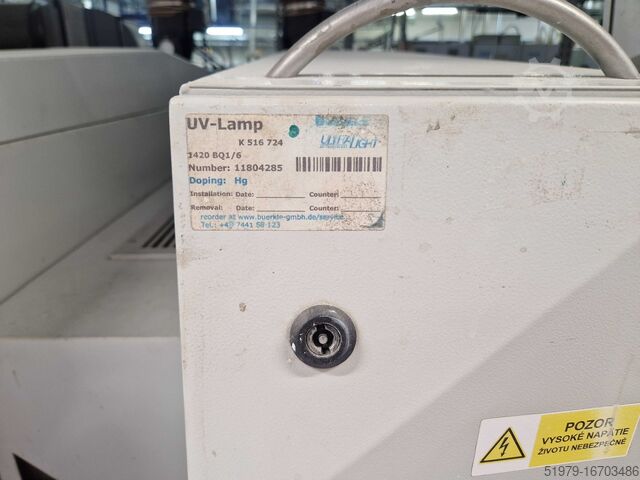

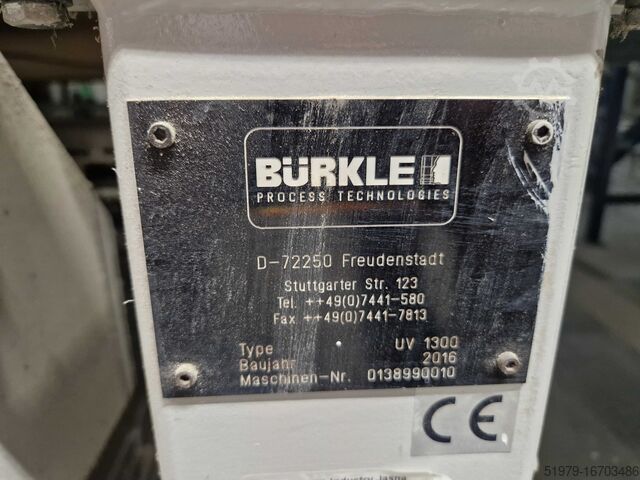

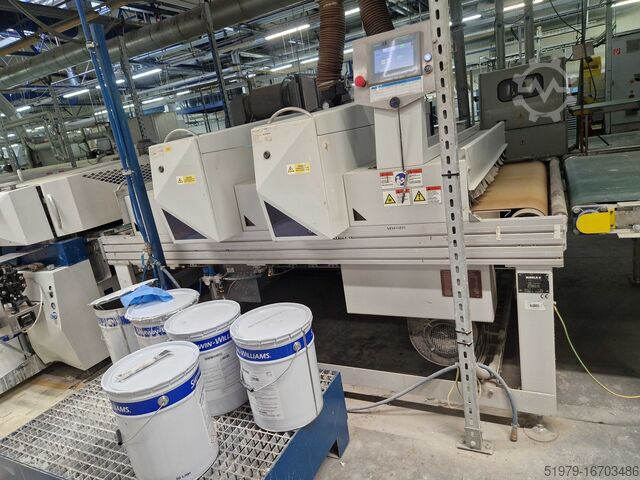

Condition: excellent (used), Year of construction: 2016, I sell the 2-head 2-lamp UV-drying tunnel Burkle UV2 1300 Year 2016 Working width 1300mm. Total length 2,80m Total power 36,6kW 2 Lamps GA 120 W + HG 120 W Nedpfot S D U Tox Ah Nedd Very good condition, available immediately.

Condition: good (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 8484.20, height adjustment type: mechanical, total length: 2,690 mm, total width: 1,200 mm, total height: 1,700 mm, input frequency: 50 Hz, Bürkle glue spreader Manufacturer Bürkle - year of construction 1998 - DAH 1300 Technical data: - Type DAH Ndodpfx Aot I S H Aeh Nod - 4 roller machines - Workpiece width 50-1300mm - Workpiece length 250mm - Working height 3-100mm - Application roller diameter 239mm - Dosing roller diameter approx. 174mm - Main motor approx. 3kW - Feed rate max. 45 m/min The sale takes place under exclusion of any warranty.

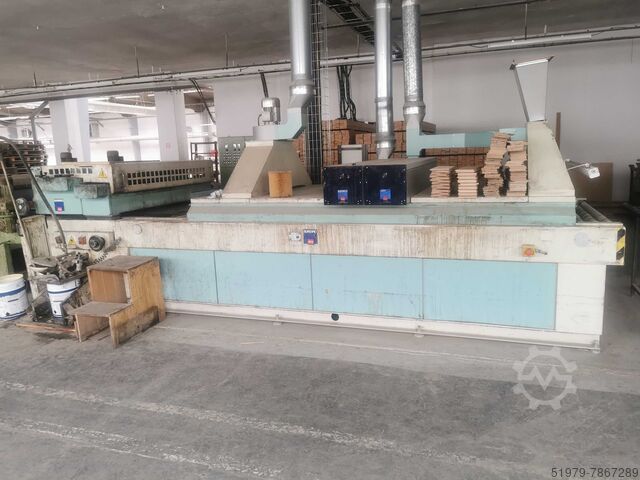

Year of construction: 2005, condition: excellent (used), I sell the combined tunnel for surface finishing Superfici Elmag Combiline. Nodpfeiuc R Hox Ah Nodd Configuration: 1-head roller coater Cleaning unit with dust exhaust system 2-head UV-drying tunnel Cleaning unit with dust exhaust system Model: Combiline. Working width: 1500mm Year 2005. Working hours: 4600 mthrs. Total length: 5,30m Total width: 2,40m Weight: 4000kg Available immediately. Fully working.
