Automatic sealing machine

Bystronic

Condition: ready for operation (used), Year of construction: 2017, machine/vehicle number: 17650001, functionality: fully functional, power: 34 kW (46.23 HP), pressing force: 250 t, stroke length: 400 mm, throat depth: 250 mm, working width: 3,100 mm, TECHNICAL DETAILS Number of axes: 8 Press force: 250 t Max. working width: 3,100 mm Frame spacing: 3,200 mm Overhang: 250 mm Rear gauge depth: 750 mm Max. stroke: 400 mm MACHINE DETAILS Control system: Bystronic ByVision Power: 34.0 kW Dimensions & Weight Dimensions (L x W x H): 4,850 x 2,390 x 3,340 mm Weight: 20,500 kg Transport packages: 3 EQUIPMENT Crowning system: CNC-controlled Ram holder: Hydraulic Tool holder type: WILA standard Tools included Itedpfszk Dv Iex Ah Aei Documentation CE marking and certificate Additional finger stop Stroke assistance Finger protection Offline software

Condition: reconditioned (used), functionality: fully functional, Lenhardt sealing table. Itodpfx Aszmmkyeh Aei

Condition: ready for operation (used), Year of construction: 2006, laser power: 4,400 W, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, number of axes: 3, This 3-axis Bystronic BySpeed 3015 was manufactured in 2006. It features a powerful 4.4 kW CO2 resonator and can accommodate a maximum sheet size of 3000 x 1500 mm. The machine includes 20 pallet positions for efficient operation. If you are looking to get high-quality laser cutting capabilities, consider the Bystronic BySpeed 3015 CO2 laser cutting machine we have for sale. Contact us for further details. • Resonator: 4.4 kW CO2 • Max. sheet size: 3000 x 1500 Ijdpszl D N Djfx Ah Aeti Additional equipment • ByCell • 20 pallet positions

Condition: excellent (used), Year of construction: 2011, operating hours: 32,000 h, pressing force: 400 t, Equipment: CE marking, safety light barrier, High-Quality Used Bystronic XPERT 400x4100 CNC Hydraulic Press Brake For Sale Overview Available for immediate acquisition is a premium, Swiss-manufactured Bystronic XPERT 400x4100 CNC Hydraulic Press Brake. This down-stroke bending and folding machine is in exceptional condition, meticulously maintained, and fully prepared for heavy-duty precision fabrication. Key Technical Specifications: Manufacturer: Bystronic Ijdpfx Ahezl D Efs Asti Model: XPERT 400X4100Bending Capacity: 400 Tonnes Bed Length: 4100 mm (4.1 Metres) Configuration: Extended daylight and extended stroke for versatile, large-capacity component handling Condition and Maintenance: Status: Excellent operational condition ("Very Clean") and in full working order. Service History: This machine has been fully serviced directly by Bystronic UK, ensuring adherence to original manufacturer standards and peak performance reliability. Control System: Equipped with a modern, high-precision Swiss-made Bystronic MMC Control for streamlined programming and operation.

Condition: repair required (used), Year of construction: 2007, operating hours: 67,367 h, functionality: not functional, machine/vehicle number: W288, repeat accuracy: 0.01 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 200 mm, positioning accuracy: 0.01 mm, workpiece weight (max.): 3,000 kg, type of input current: three-phase, input voltage: 250 V, sheet thickness aluminum (max.): 100 mm, table length: 3,000 mm, operating speed: 6,000 mm/s, table width: 1,500 mm, tank capacity: 5,500 l, pressure: 3,600 bar, positioning speed: 60 m/min, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 2 m/min, table height: 1,000 mm, operating pressure: 3,600 bar, year of last overhaul: 2024, waste water connection: 50 mm, input frequency: 50 Hz, power: 120 kW (163.15 HP), controller manufacturer: Bystronic, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, Equipment: safety light barrier, Bystronic Byjet 3015 Waterjet. This machine has a 3000 x 1500 cutting table up to 200mm thickness, complete with two cutting heads. The waterjet is powered by a Bypump 50 APC hydraulic unit. This machine was regularly serviced by a Bystronic service engineer. Ijdpfxezlt Aye Ah Aeti This machine is being sold as as a spare parts machine, but could be easily put back in production. It has a new hydraulic pump fitted shortly before it was taken out of production. It comes complete with a chain conveyor with paddles for the automatic removal of used garnet from the cutting beds. It also comes with an air blower and reservoir tanks for the raising and lowering of the water levels in the cutting bed for reducing the noise levels during the cutting process.

Condition: new, Year of construction: 2026, Laser power: 6000 Watt Working range laser: 3050 x 1550 x 270 mm Itjdpfx Ahexq Rczs Aji positioning speed X/Y/Z: 90 m / min simultanious: 120 m / min Max. workpiece weight: 1000 kg Max. steel: 20 mm Max. stainless steel: 16 mm Max. aluminium: 14 mm Max. copper: 8 mm Max. brass: 14 mm Length: 10050 mm Width: 5100 mm Height: 2600 mm Machine weight: 8100 kg Electrical connected load: 54 kW

Condition: good (used), functionality: fully functional, Year of construction: 2005, control type: CNC control, laser power: 4,400 W, sheet thickness steel (max.): 25 mm, sheet thickness stainless steel (max.): 20 mm, sheet thickness aluminum (max.): 12 mm, with ByLaser 4400 with turning axis ByVision cnc control with changing table Ijdpfx Ajy N Rgmjh Asti Technische Daten / technical details: Blech-Nennmass X, Y / sheet nominal size X, Y 3000, 1500 mm Schneidbereich X, Y / cutting range X, Y 3048, 1524 mm Hub Schneidkopf Z / stroke cutting head Z 170 mm Drehachse: / turning axis: Profilaufnahme Spannfutter / profile taper clamping chuck 15-315 mm Profilzuführung durch das Spannfutter / profile feed through the clamping chuck 15-155 mm max. Profilbearbeitungslänge / max. profile working length 2700 mm Laserleistung / laser capacity 4,4 kW Materialdicke Stahl / thickness of the material steel 25 mm Materialdicke Edelstahl / thickness of the stainless steel 20 Mm Materialdicke Alu / thickness of the material Aluminium 12 mm Gewicht ca. / weight ca. 13500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: ready for operation (used), Year of construction: 2017, pressing force: 41 t, stroke length: 200 mm, overall weight: 4,000 kg, Press brake manufactured in 2017. This Bystronic Xpert 40/1030 features a press force of 400 kN and a bending length of 1030 mm. It includes a ByVision Bending control system and a 6-axis backgauge for enhanced precision. If you are looking to get high-quality bending capabilities, consider the Bystronic Xpert 40/1030 machine we have for sale. Contact us for further details. • Control: ByVision Bending • Backgauge: 6-axis • Interface: OPC • Oil cooling system • Safety system: Fast Bend G2 • Electrical: 3-phase 400V / 50 Hz Iedpjy Tw R Tjfx Ah Aeti • Main motor power: 7.5 kW • Made in Germany • The PLC Runtime is 1812 hours • The Robot Runtime is 140 hours. Additional equipment • Bystronic Mobile Bending Robot (Integrated robotic bending cell) • Year of manufacture: 2017 • Electrical: 3-phase 400V / 50 Hz • Power consumption: 3 kW • Pneumatic pressure max: 8 bar • Weight: approx. 1000 kg LIST OF TOOLS Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=300 mmBystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=275 mmBystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=200 mmBystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=100 mmBystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=50 mmBystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=30 mmBystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=20 mmBystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=15 mmBystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=10 mmBystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=275 mmBystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=200 mmBystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=100 mmBystronic P5RFA/30° Left Angle – 750 kN/m – R=1 mm – H=250 mm – L=100 mmBystronic P5RFA/30° Right Angle – 750 kN/m – R=1 mm – H=250 mm – L=100 mmBystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=50 mmBystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=30 mmBystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=20 mmBystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=15 mmBystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=15 mm Technical Specification Bending Length 1030 mm

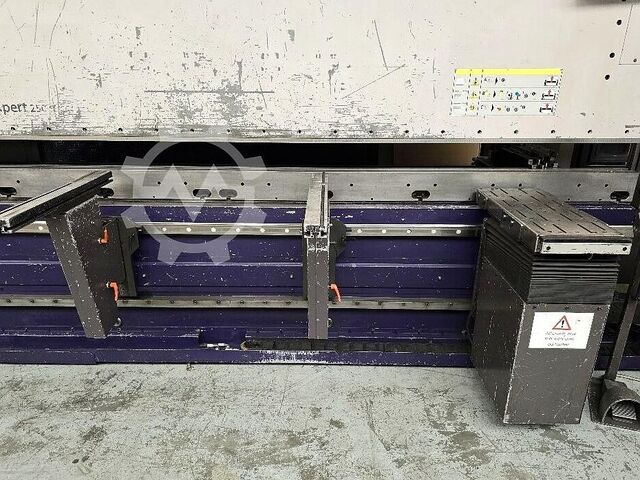

Condition: used, Bystronic Xpert 250x4100 - CNC Press Brake Itjdpfszizybex Ah Aei Bending length: 4100 mm Capacity: 250 t - Bystronic 2D and 3D graphics control, ergonomic operating terminal with 15-inch color monitor - 8 axes (Y1, Y2, X, R, Z1, Z2, A1, A2) - AKAS laser safety device, manually adjustable in height - Hydraulic crowning - Air bending - Radius bending - Without tooling - Includes operating manual - Year of manufacture: 2007 Technical data - Press force: 2500 kN - Bending length: 4100 mm - Standard stroke: 265 mm - Installed height (clearance between lower and upper beam): 550 mm - Distance between side supports: 3750 mm - Overhang: 400 mm - Back gauge area: 1050 mm - X-axis travel: 590 mm - X-axis speed: 500 mm/s - R-axis travel: 250 mm - R-axis speed: 150 mm/s - Z-axis speed: 1000 mm/s - Z-axis speed (6 axes): 500 mm/s - Y-rapid traverse: 190 mm/s - Y-working speed: 1 - 10 mm/s - Y-working speed for robot operation: 1 - 12 mm/s - Y-return speed: 150 mm/s - Crowning: hydraulic - Adjustable support arms: 750 mm - Maximum surface pressure without wear strip: 100 N/mm2 - Maximum surface pressure with wear strip: 120 N/mm2 - Oil capacity (tank volume): 610 l - Noise emissions: 74 dB(A) - Main motor power: 22 kW - Voltage: 3x 400 V / 50/60 Hz - Transport dimensions WxHxD: 5200 x 3200 x 2100 mm - Weight: 19200 kg

Condition: used, Year of construction: 2007, Bystronic AFM EP 31-160 - CNC Press Brake Bending length: 3100 mm Capacity: 160 t - Cybelec DNC 880S CNC control - Laser safety device - Hydraulic crowning - Air bending - incl. many tools - incl. operating manual - Operating hours: 7266 - Bending cycles: 315673 - Year of manufacture: 2007 Technical data - Capacity: 160 t - Table length: 3150 mm - Work table width: 60 mm - Working height: 920 mm - Distance between side frames: 2450 mm - Overhang: 300 mm - Opening height: 465 mm - Number of cylinders: 2 - Stroke: 200 mm - Approach speed: 100 mm/s - Bending speed: 9.8 mm/s - Retraction speed: 95 mm/s - Tilting of the upper beam: +/- 13 mm - Crowning: Hydraulic - Air bending: Yes - Adjustment of the upper tool: Manual - Adjustment of the die: Manual - Number of fingers on the ram: 2 - X-axis travel of the ram: 600 mm Itsdpfx Ahoziduzs Aji - X-axis movement: 600 mm - Min. X-axis movement speed: 400 mm/s - R-axis movement: 150 mm - R-axis traverse speed: 150 mm/s - Z1-Z2 movement: 2400 mm - Z1-Z2 traverse speed: Manual - Accuracy of the X-axis: 0.1 mm - Accuracy of the Y-axis: 0.01 mm - Accuracy R-Z1-Z2: 0.1 mm - Accuracy Z1-Z2: Manual - Above-floor installation: Yes - Machine dimensions WxHxD: 4100 x 2680 x 2200 mm - Motor power: 15 kW - Machine weight: 9400 kg
