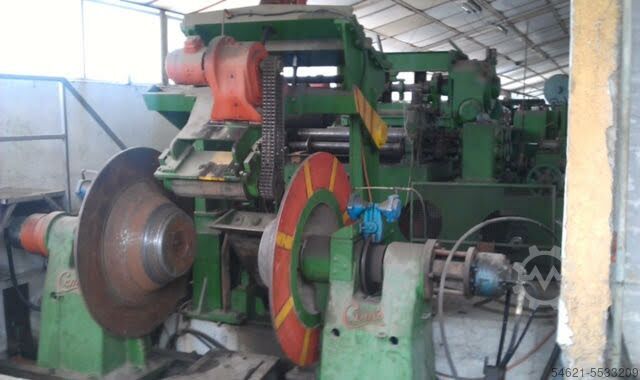

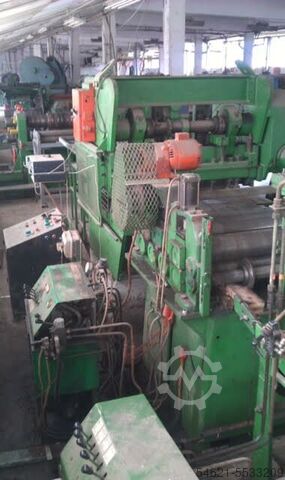

Slitting Line

CAMS SHEFIELD 1250/6

Condition: good (used), travel distance X-axis: 2,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,200 mm, spindle diameter: 110 mm, table length: 1,400 mm, table width: 1,600 mm, Bench drill Control Heidenhain 407 Kodpfx Aeq E Ryfsg Aedw

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm gear width 1200 mm max. module 32 min. module 3 total power requirement 25 kW weight of the machine ca. 60 t dimensions of the machine ca. m Gear , min. / max. 180 / 2,500 mm Module 3 - 32 Helix angle, max. 10 - 35 ° Gear width for straight gears 1,200 mm Stroke length, approx. 100 - 1,200 mm No. of strokes 80 - 350 /min Stroke position adjustable 300 mm Stroke speed 4 - 40 mm Max. weight of workpiece, approx. 18,000 kg Min. / max. no. of teeth 16 / 576 Table size x bore 1,400 x 500 mm Grinding wheel Ø, approx. 500 mm Grinding wheel peripheral speed 34 m/s Total electrical load, approx. 45 kW - 380 V - 50 Hz Weight of machine, approx. 60,000 kg Kdodpfx Ajt Hwqqsg Aew Accessories / Special Features: * Hydrostatic guides in grinding slide, table and in all other guideways. * Completely covered working area with sliding doors. * Automatic grinding process for various cycles, with settings for roughing, finishing, fine finishing and automatic dressing cycle after preset number of teeth. * Profile correction is possible via appropriate dressing, as well as additional movement of grinding slide (depth and width crowning). * Approx. 50 change gears. * Grinding slideTilt display device. * Large coolant device with band filter and oil mist exhaust. * Separate switch cabinet. * Separate hydraulic unit. * Separate oil cooling unit. Condition : Very good. Machine can soon be inspected in our showrooms. It is not under power at present. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. The machine comes directly from a first class gear factory, where it was grinding Quality 5 - 6. Grinding diagrams are available. This type and quality of machine is rarely available. Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: good (used), Year of construction: 1979, Complete production line for Technical and Commercial Chain Manufacturer - WAFIOS / VITARI / DANIELI / IPSEN Year - 1979/1989 Factory Consists : - Welding machines 14 pieces - Bending machines 10 pieces - Bending + welding machines - 2 pieces ( Wafios KEH3 +KER3 ; Wafios KEH5 + KER5 ) - Wire drawing line 7 blocks - Danieli with spooler - Cementation furnace - Annealing furnace Kjdpfxsqy E I Ue Ag Asdw Lots of sapare parts

Year of construction: 1985, condition: used, spindle diameter 110 mm x-travel 900 mm y-travel 600 mm z-axis 200 mm table length 1020 mm table width 860 mm taper MK 40 Table size, approx. 1,020 x 860 mm Max. weight of workpiece 800 kg Table travel, longitudinal, max. (X) 900 mm Boring head travel, cross, max. (Y) 600 mm Boring spindle stroke (Z) 200 mm Vertical travel of cross beam (W) 635 mm Vertical distance between table and boring spindle 15 - 850 mm Distance between columns 950 mm Spindle Ø 110 mm Spindle taper internal/external ISO 40 18 spindle speeds 10 - 2,500 rpm Milling feeds of table, infinitely variable 1 - 6,000 mm/min 4 milling feeds of boring head 30 - 180 mm/min 6 boring feeds 0.01 - 0.39 rpm Accuracy of all 3 axes when the machine was new 0.003 mm Quick feeds for table, boring head slide, and Kdjdpfx Agjt Hwyxj Aew boring spindle, max. 6,000 mm/min Spindle drive 6.2 kW Weight, approx. 9,000 kg Total electrical load 15 kW - 380 V - 50 Hz Accessories / Special Features - BOSCH CNC Control, Model MICRO 8, in 3 axes, with monitor. Program input is either manual or via cassette, or via interface entry. - Digital display for Z Axis. - Separate switch cabinet. - Various tools. - Oil cooler for spindle lubrication.

Condition: good (used), functionality: fully functional, Year of construction: 2011, operating hours: 73,483 h, machine/vehicle number: A0435A0050, laser hours: 44,000 h, laser power: 3,000 W, For sale: Trumpf TruLaser Cell L45, a high-precision 5-axis 3D laser cutting system, ideal for demanding applications in automotive, aerospace, and general engineering. Built in 2011, the machine is equipped with a 3000W TRUMPF laser source and offers excellent performance on complex components, tubular parts, and deep-draw metal forms. The machine is currently disassembled, professionally prepared for shipment. While on-site inspection is possible, test cutting is not available due to its current state. Key features: • TRUMPF laser source (3000W) – excellent power and reliability • Multi-axis 3D capability for intricate parts and precise detailing • High-speed and high-accuracy processing for both small batches and series production • Machine ready for international shipment, carefully disassembled • Includes full documentation and technical history from TRUMPF Machine details: • Year of manufacture: 2011 • Laser power: 3000W • Condition: Disassembled, stored securely indoors • Inspection: Available on-site (test cuts not possible in current state) • Serial number: A0435A0050 • Location: LeTheil, France • Availability: Immediately Extras & Services Offered: • We offer a complete turnkey logistics solution, including: Kdodpfx Asqgcn Sog Ajw • Professional disassembly • Loading and transport (domestic and international) • Delivery to final installation site • Reinstallation with qualified technicians • Commissioning and setup until fully operational • Optional post-installation support available on request • Attractive pricing due to current disassembled condition This is a unique opportunity to acquire a high-end Trumpf 3D laser cutting machine with full service and support, at an excellent price-performance ratio.

Condition: used, Slitting line SECO 60″ x 0.375″ x 50,000Lb (A3791) is perfect solution for longitudinal coil metal cutting into strips with maximum metal thickness 0.375” and maximum coil width 60” Cold Rolled and Hot Rolled Steel 18-60” Strip Width 2 Speed Gear Box 200-500 FPM Thickness: .032″-.375” Complete Line with the Following Components: L-Type Entry Coil Car 40,000# Max Coil Weight Uncoiler: Coil ID: 23-30.50” Coil OD: 72” Maximum Kdjdpfjtiy Ntox Ag Aew Coil Weight: 40,000# Maximum Sliding Base Hydraulic Expansion Peeler and Hold Down Roll 5 Roll Coil Breaker Entry Adjustable Edge Guides Entry Crop Shear Slitting Head: 10” Arbors 40 HP Motor Drive 2 Scrap Winders Recoiler: Coil OD: 72” Max Coil ID: 24” 150HP DC Motor 3 Arm Exit Turnstile 40,000# per Arm Motorized Turn Complete Line with Knives, Rubbers, and Spacers Controls, Hydraulics, and Electrics

Condition: good (used), grinding diameter: 1,600 mm, grinding length: 6,000 mm, Manufacturer: CINCINNATI Type: 60 x 216 Year of manufacture: 1970 Covex and Concave grinding 6 steady rest included 2 steady rest hydrostatic Coolant system with magnetic filter Measuring system with 5 arms caliber: Kjdpfsvvvw Esx Ag Aedw Arm 1: Working area 1300 to 1600 mm Arm 2: Working area 1000 to 1300 mm Arm 3: Working area 700 to 1000 mm Arm 4: Working area 400 to 700 mm Specifications Metric US Standard Center height 787 mm Grinding diameter Ø 1574 mm Grinding length 5800 mm Grinding stone dimensions 914 x 101.6 x 304.50 mm Grinding stone speed 1800 rpm Dimensions (estimate) Length 15100 mm Width 5500 mm Height 3550 mm Weight 120000 kg Please note: The information on this page is correct to the best of our knowledge and belief and, where possible, has been obtained from the manufacturer. The information is given in good faith but accuracy cannot be guaranteed. Accordingly, it will not constitute a representation and terms of contract. We recommend that you check all important details.

Condition: used, 72″ x .187″ x 50,000Lb Paxson Loop Slitting Line Make: Paxson Material Width: 12″ – 72″ (Uncoiler 60″) Material Width: .010″ – .187″ Coil Weight: 50,000Lb Coil ID: 20″ – 24″ Coil OD: 72″ Speed: 500 /1000 fpm Direction: Right to Left Material Strength: 40,000 yield / 50,000 psi shear Kdedsihf Ufepfx Ag Aow Material: CR, HR, Galvanized Entry Transfer Cart Entry Coil Car Mandrel Uncoiler Powered Hold-Down Roll Powered Expansion Sliding Base Hydraulic Peeling Table Driven Pinch Rolls

Condition: good (used), centerless grinding machine Kedpotrguvjfx Ag Ajdw

Year of construction: 1989, condition: good (used), strip width: max. 1.840 mm strip thickness: 0,3 – 3 mm blade shaft Ø: 224 mm blade Ø: 350 mm Kdedeg Iih Nepfx Ag Asw
