Straightener for shafts and pipes

SMS MEER

Year of construction: 2000, condition: excellent (used), SMS MEER CNC DOUBLE SIDED CHAMFERING MACHINE Manufacturer: SMS MEER Type: RFA 14 Yom: 2000 Working range: tube Ø 21,3 – 114,3 mm Prjdpfxeghrgus Ai Tjc Wall thickness 2,3 - 11 mm Length: 6-12m Composed of two RFA14 chamfering machines with transport devices between the machines. The task of machines is to chamfer inside and outside both ends of the tubes. The range of diameters of chamfered tubes 21.3-114,3mm and wall thickness of 2.3-11mm in the length range of 6-12m. The task of transport in the area of the chamfering machines is to collect the tubes from the roller table and move them between the chamfering machines.

Year of construction: 1978, condition: ready for operation (used), A Haeusler CNC large-format 4-roll plate bending machine is available. Number of rolls: 4, Roll width: 3050mm, Max. prebending plate width: 3000mm, Max. prebending plate thickness: 60mm, Max. rolling capacity at max. plate width and 3500mm bending diameter: 70mm, Roll diameter top/bottom/side: 620mm/600mm/500mm, Max. top roll load: 12000kN, Operating speed: 4m/min, Connected load: 132kW, Weight: approx. 85t. Including cone bending device. Documentation available. An on-site inspection is possible. Podpfozka H Aex Ai Torc

Condition: excellent (used), Year of construction: 2012, section dimension max. 150 x 50 mm pipe Ø 50 – 150 mm wall thickness 1,5 - 5,5 mm reference material (tensile strength) 600 N/mm² Prsdpfx Aiouc Sw As Toc coil Ø max. 2.100 mm coil weight max. 10 t finish pipe length max. 9.000 mm round pipe Ø according to list rectangular pipe according to list speed 100 m/min working direction left → right The line consists of: 1. entry part: double carousel decoiler coil opener/pinch roll unit/leveller crop shear strip tail end welding machine strip guide strip twister/pinch roll unit/strip accumulator entry strip accumulator edge trimming exit twister 2. forming part: No. of horizontal stands: 4 No. of vertical stands: 3 3. welding part (HF) 4. calibrating part 5. separation 6. edge bevelling 7. blowing out 8. bundling 9. hydraulics 10. electrics

Condition: new, Year of construction: 2026, We have various kinds of ball grinding mill such as batch ball mill, rod mill, cement ball mill, mining ball mill, welcome to contact our team for further details according to your specific requirements. Prodpsq I Nw Ijfx Ai Tec

Condition: excellent (used), Year of construction: 1970, functionality: fully functional, I am selling this machine, it is connected and can be tested. A video of the machine can be sent via WhatsApp. Diameter over the bed: 1250 mm Prjdpfexwqk Eox Ai Tsc Diameter over the carriage: 900 mm Turning length: 6000 mm Workpiece weight between centers: 14,000 kg

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, overall weight: 120,000 kg, total height: 5,600 mm, pressing force: 1,250 t, air pressure: 6 bar, distance between side stands: 1,200 mm, distance between stands: 1,400 mm, stroke length: 500 mm, table length: 1,850 mm, table width: 1,600 mm, Straight-sided eccentric press ERFURT type PKZe 1250 Superb working condition, after full, professional overhaul. After - newer used. Specification: Capacity: 1250 ton force Slide stroke: 500 mm Slide adjustment: 215 mm Psdpfxeubyrxo Ai Terc Maximum shut height between bolster plate and slide (stroke down, adjustment up): 860 mm Bed area (width x depth): 1600x1850 Slide area (width x depth): 1300x1400 mm Opening in the bed (width x depth): 1100x1100 mm Main motor rating: 90 kW at 1478 RPM Ram adjusting motor rate: 7.5 kW at 1450 RPM Number of single strokes: 8 min-1 Cushion capacity: 200 ton force Cushion stroke: 200 mm Height above floor: 7900 mm Press weight: 130 000 kg.

Condition: good (used), Center height: 1,000 mm Distance between centers: 15,600 mm Maximum diameter allowed above the bed: 2,019 mm Maximum diameter allowed above the carriage: 1,625 mm Diameter of the faceplate: 1,800 mm Maximum clamping between chucks: 1,500 mm Maximum load: 75 tons Spindle motor power: 82 Approximate dimensions: Length = 21,570 mm, Width = 4,765 mm Accelerated carriage travel: 2,000 mm/min Metric thread possibilities: from 2 to 25 mm Maximum thread length: 800 mm Minimum distance from faceplate to tool: 2,000 mm Accessories: 2 faceplates with a diameter of 1,100 mm on a traveling steady rest 2 steady rests, 150 to 450 mm 2 steady rests, 450 to 750 mm Pjdpozbt S Iefx Ai Torc 2 steady rests, 750 to 1,000 mm (on a traveling steady rest) Videos available.

Condition: good (used), Manufacturer: INNOCENTI Type: PM 325 FT Year of construction: 2012 Specifications: Metric Metric US Standard Table length 4250 mm Table width 4250 mm Table load 130.000 V-axis feed 3000 mm B-axis rotation 360.000 ° High-speed rotation B-axis 0.16 - 34.5 Omw/min. Psdotwllfopfx Ai Torc Dimensions (estimate) length 8000 mm width 4250 mm height 2000 mm weight 62500 kg Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 700 mm, spindle speed (max.): 2,000 rpm, table length: 1,100 mm, table width: 842 mm, X axis: mm 1.000 Y axis: mm 700 Spindle travel: mm 300 Table dimensions: mm 1.100 x 842 Spindle speed: rpm 40 – 2.000 Spindle cone: MT 4 Max power: kW 10 Podpfx Aiezizgbe Terc Max loading on table: ton 1 Machine weight: ton 15 EQUIPPED WITH A LOT OF ACCESSORIES

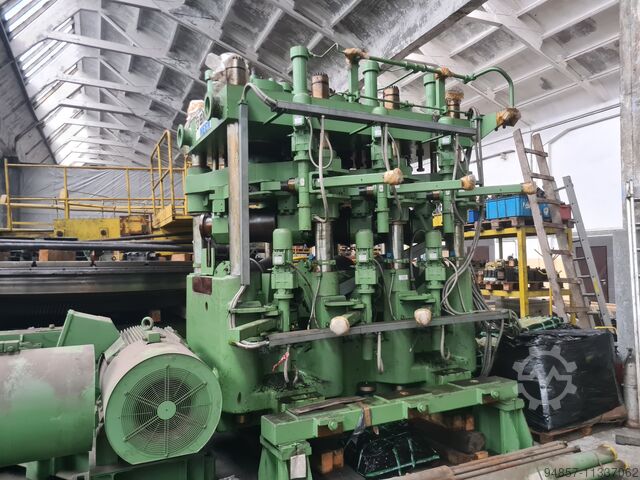

Condition: refurbished (used), Tube Straightener VRM60/75, made by KIESERLING Tube diameter : 8 – 60 or 14 - 75 mm Tube length : Depending on accessories (loading table, channels). Minimum 0.5m The ratio diameter/thickness depends on the yield. Strength Example: - 300 N/mm2 = Max. 6.5mm Pjdevtpghspfx Ai Tjrc - 400 N/mm2 = Max. 5.7mm - 500 N/mm2 = Max. 5.1mm - 600 N/mm2 = Max. 4.7mm *The first 4 photos are examples of revamping of similar machines that we can offer in case of interest. The following are pictures of the machine in its current state. Tube diameter: 8 – 60 or 14 - 75 mm Tube length: Depending on accessories (loading table, channels). Minimum 0.5m
