Beamsaw

Casadei AXO 300

Casadei AXO 300 Beamsaw (4.500mm)

Technical description
Working height 950mm
1 fixed airtable 2500 x 600mm
3 moveable airtables 1500 x 600mm
Central fan for airtables
Footpedal for start/stop of saw cyclus (ideal for large panels)
Cjdsw E H Hbopfx Abwjhc
Optimized pneumatically, double guide 2.200mm
Linear prism guide with ballbearings for 4.500
Length of sawcarriage 4.500mm
Usefull depth of saw 3.200mm
Length recognition by photocell
Saw height 87mm
Max. sawblade diameter 350mm
Diameter of the scoring unit sawblades160mm
Speed of the sawcarriage 6-30 mtr./min upgrade to 0-135mtr./min
Speed of the pusher 24 mtr./min (due to CE regulations)
Motor power of the main saw 9,0kW (50Hz S6)
Motor power of the scoringunit 1,9 kW (50Hz S6)
Number of clamps 5
Dustextraction points 3 x 120mm + 1 x 150mm
Dimensions 7.000 x 7.200

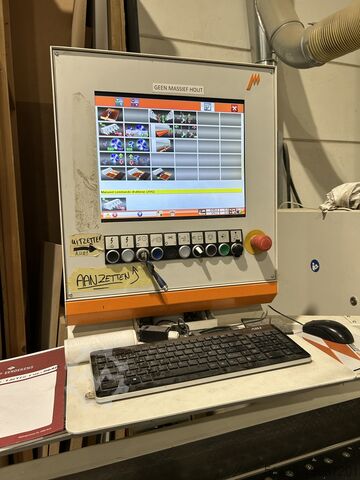

System PC/API PC Control 1000 (WinNCC 12
Software - Cut I optimization
CE
