Dryer

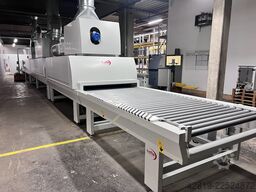

Cefla SP-FEV, ECOGEL E4/5 + AQUADRY LA/5

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, working width: 1,300 mm, transport length: 7,500 mm, volume flow: 40,000 m³/h, total length: 7,500 mm, Used for drying coated glass, furniture, and wood-like materials. Consists of: - Tunnel 1. Dryer CEFLA FEV E: LAMINAR AIR DRYER (ECOGEL E4/5) Type: SP-FEV E - 90 kW - Tunnel 2. Dryer CEFLA FEV EU: AIR KNIFE DRYER (AQUADRY LA/5) Type: SP-FEV EU - 110 kW - Tunnel 3. Cooling zone CEFLA AIR KNIFE COOLING ZONE (AQUADRY RLA/2) Type: SP-FEV RU - Roller conveyor CEFLA TR 3000 Dodpjw H Aw Sjfx Akhswa Heating medium - Electricity 1. Dryer CEFLA FEV E: LAMINAR AIR DRYER (ECOGEL E4/5) Type: SP-FEV E - 90 kW This in-line hot air dryer is suitable for rapid evaporation and curing processes. This dryer is configured with a laminar hot air flow in a direction opposite to the panel feed and with adjustable recirculation. Overall length: 7500 mm Working width: 1300 mm Overall width: 1783 mm Max. drying height: 1780 mm (excluding conveyor) Usable height of the passage: 80 mm Solvent-containing air exhausted to the outside: 0-4000 m³/h Machine control via LCD 5.7" touch control panel VS-Spark-proof fresh air/recirculation fan: Power: 2.2 kW; Flow rate: 40000 m³/h; Fresh air into the room: 0-4000 m³/h; Installed heating power: 76400 kcal/h (heating register 90 kW) 2. Dryer CEFLA FEV EU: AIR KNIFE DRYER (AQUADRY LA/5) Type: SP-FEV EU - 115 kW This in-line hot air dryer is suitable for rapid evaporation and curing processes. This dryer is configured with a laminar hot air flow in a direction opposite to the panel feed and with adjustable recirculation. Overall length: 7500 mm Working width: 1300 mm Overall width: 1783 mm Max. drying height: 1780 mm (excluding conveyor) Usable height of the passage: 80 mm Installed electrical power: 115 kW Solvent-containing air exhausted to the outside: 0-4000 m³/h Machine control via LCD 5.7" touch control panel VS-Spark-proof fresh air/recirculation fan: Power: 2.2 kW; Flow rate: 40000 m³/h; Output electrical power: 1.5 kW; Fresh air into the room: 0-4000 m³/h; Installed heating power: 76400 kcal/h PR-Antifreeze for heating register no. 1, with sensor and automatic control of the shut-off valve. 3. Cooling zone CEFLA AIR KNIFE COOLING ZONE (AQUADRY RLA/2) Type: SP-FEV RU Drum cooling tunnel with air knives is very efficient for achieving increased heat exchange due to the high air velocity. The ventilation unit consists of: - Fresh air and recirculation fan: 3 kW; Flow rate: 6000 m³/h - Exhaust fan: 1.5 kW; Flow rate: 6000 m³/h Digital adjustment of the ventilation via touchscreen. The air knives are installed transversely across the entire tunnel area. Air velocity at the air knife outlet max. 32.5 m/sec Overall length: 3000 mm Usable width: 1300 mm Overall width: 1783 mm Usable height of the passage: 80 mm Max. tunnel height: 1780 mm (excluding conveyor) Installed electrical power: 4.5 kW Machine control via LCD 5.7" touch TT 4000 slat conveyor with double chain, steel guides and chrome-plated slats: 4. Roller conveyor CEFLA TR 3000 Motorized with PVC-coated rollers Length: 3000 mm Photoelectric barrier for thin panels, thickness 4 mm (Changes and errors in technical data as well as prior sale are reserved)
