Band saw

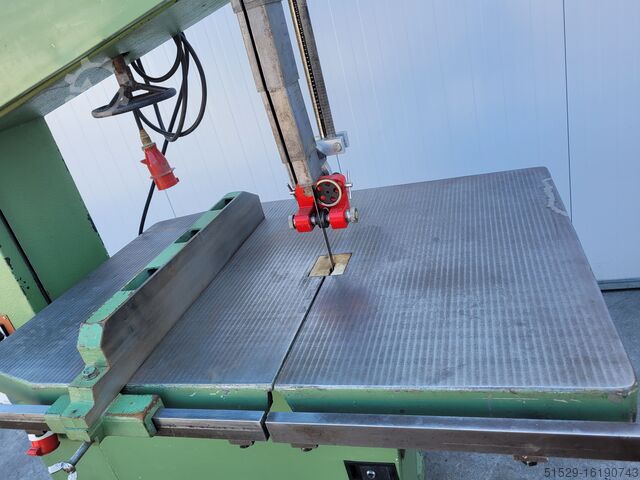

Centauro 800 CO

Condition: used, SECOND-HAND BAND SAW CENTAURO MOD. 800 Gedpfxsr Ilxcs Aa Ieil

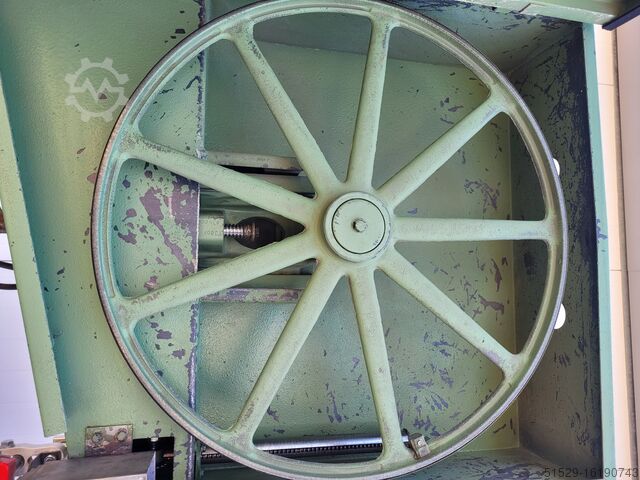

Condition: used, functionality: fully functional, saw band length: 5,550 mm, saw band width: 80 mm, type of input current: three-phase, cutting height (max.): 400 mm, table width: 1,060 mm, table length: 800 mm, working height: 400 mm, input voltage: 400 V, - Italian manufacture - Lamella band saw - Unpainted - Very good condition - Used saw Band Saw: - Wheel diameter: 800 mm - Max. blade width: 80 mm - Max. cutting height: 400 mm - Main drive motor: 11 kW - Feed speed range: 2–40 m/min - Feed system with pneumatic pressure to the guide - Metal slip-in feed roller - Blade length: 5550 mm - Throat (blade-to-frame distance): 780 mm - Screw-type blade tensioning - Table size: 1060x800 mm - Tilting worktable: up to 15° - Extraction port diameter: 120 mm - Blade lubrication system - Foot brake - Cast wheels - Star/Delta starting - Power supply: 380V - Dimensions (LxWxH): 1600x1100x2400 mm - Weight: 860 kg Feed Unit: - Metal, toothed, drive roller - Five feed speeds, selectable by belt adjustment Giodpfxsw H Rq Hs Aa Isl - Roller height: 30 mm - Feed motor: 0.75 kW - Pressure system

Condition: excellent (used), Saw wheel diameter 800 mm Gsdstrdk Djpfx Aa Ieil Max. Cutting height 520 mm Max. Cutting width 780 mm Table height from floor 970 mm Table dimensions 1170×800 mm Max. min. belt length 5670/5540 mm Max. Belt width 45 x 0.7 mm

Condition: new, Year of construction: 2025, New machine Year of manufacture: 2025 TECHNICAL DATA Wheel diameter 500 mm Belt speed 1300 m/min Cutting height 330 mm Cutting width 480 mm Blade length max. 4140 mm Saw blade width min. / max. 15 mm / 25 mm Optional with special covering saw blade width min. / max. 6 mm / 20 mm Table size 670 x 495 mm Table height 900 mm Extraction nozzle 2 x Ø 100 mm Motor power 1.5 kW / 2 HP Special voltage: 400 V / 50 Hz Color RAL 7035 light gray and RAL 5000 violet blue Net weight approx. 210 kg TECHNICAL DESCRIPTION Solid German mechanical engineering Machine stand in elegant, modern, torsion-free, double-chamber welded steel construction, upper and lower doors secured by limit switches, upper and lower precision band saw blade guides APA 2, size. 1 Finely planed gray cast iron table Table top can be swiveled up to 45° Dyn. balanced band saw wheels with Godpfsv Huggox Aa Ioil vulcanized rubber bandages Stop ruler can be used to the left of the saw blade, Stop profile can be folded over Blade tension indicator 1 saw blade 4140 x 20 x 0.45 mm, tooth width 6 mm, No. 3783.20K Mechanical height adjustment of the saw blade guard using a handwheel with locking pinion Push button switch for start/stop with emergency stop button and motor protection relay Wear-free, electric motor brake CE-compliant GS tested Machine stand left-hand version Drive motor 1.5 kW / 2.0 HP Availability: short term Storage location: Flörsheim

Year of construction: 2007, condition: excellent (used), AUTOMATIC BAND SAW BENETA MOD VENUS SECOND HAND Bandsaw Beneta Mod Venus for curved and straight automatic with outfeed table for second hand pieces. - Vertical axis X 1600 mm - Vertical axis Y 450 mm - Maximum speed X axis 50 mts/min - Maximum speed Y axis 50 mts/min - Total installed electrical power 6,5 KW - Maximum installed pressure 6-7 bar - X axis brushless motor 6 Nm - Y axis brushless motor 2,3 Nm - Digital control Gedpshknb Defx Aa Ijil - Standard cutting length 0-1500 mm - Standard cutting height 0-120 mm - Diameter of cast iron flywheels 800 mm - Band saw dimensions Min 5330 mm , max 5350 mm, width min 13 max 20 - Motor power 7,5 HP - Machine dimensions 3.900x3500x2500 h weight 4650 kg
