Line for impregnation, lamination

Cerutti, Vits

We are closing the production line for decorative paper used in furniture production, including finish foils and paper edges. The entire equipment listed below is now available for sale. Prices are negotiable. For more information or to make an inquiry, please contact us via email or phone.

1. Cerutti Printer + Rewinder + Laboratory Printer

Cerutti Printer
Year of manufacture: 1987
Control software: No data, manual control
Working width: 600 mm to 2200 mm
Number of printing columns: 4
Dryer type: Electric
Speed: 120 m/min
Unwinder: 2-axis
Winder: 3-axis
Approximately 50 printing cylinders available
Automatic ink mixing system

Rewinder
Year of manufacture: 2010
Working width: Up to 2200 mm
Rewind roll diameter: Up to 1000 mm
Speed: Up to 300 m/min
Automatic web guide system, three cutting knives
Shaft diameters: 76 mm and 152 mm

Laboratory Printer
Year of manufacture: 2018
Control software: LENZE
Working width: Up to 730mm
Number of printing columns: 4
Dryer type: Oil (one converted to electric)
Speed: 100 m/min
Shaft diameter: 76 mm

2. Impregnator + Related Equipment

Manufacturer: Vits
Year of Manufacture: 1970s
Working width: 600 mm to 2100 mm
Control software: Manual
Dryer components: 2 dryers, each 10 m long
Csdpfev Dxfbjx Agmerh
Installed components: Impregnating tank, varnishing station
Dryer medium: Oil, heated by a gas furnace
Working speed: Impregnation: 12-17 m/min, Varnishing: 40 m/min, Maximum mechanical speed: 50 m/min

Resema Cutting Machine
Cuts paper rolls up to 600 mm in diameter, with a 152 mm core

Kacper Edge Cutting Machine
Edge cutting width: 700 mm
Automatic web guide system
Available knives and sleeves for cutting widths from 16 mm to 60 mm
Unwinder and winder shafts: 152 mm

Hardo Edge Gluing Machine
For applying hot-melt glue to edges, can process up to 4 rolls simultaneously
Speed: 35 m/min
Power supply: 400V
1 complete unit, 2 units for parts

Rewinders for Edges
Programmable rewinding meters - 6 units

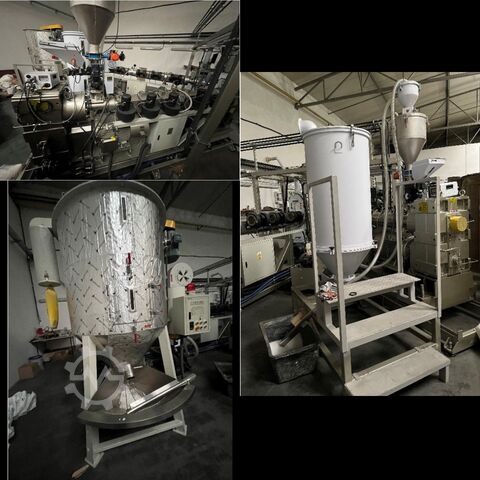

3. Film Embossing Machine + Related Equipment
Full documentation available separately

4. Laboratory Press
Year of manufacture: approx. 2015
Heating method: Electric, 400V
Maximum temperature: 250°C
Cylinder diameter and stroke: 100 mm (distance between press plates)
Maximum hydraulic pressure: Not available
Heating plate dimensions: 320 mm x 320 mm

5. Other Laboratory Equipment

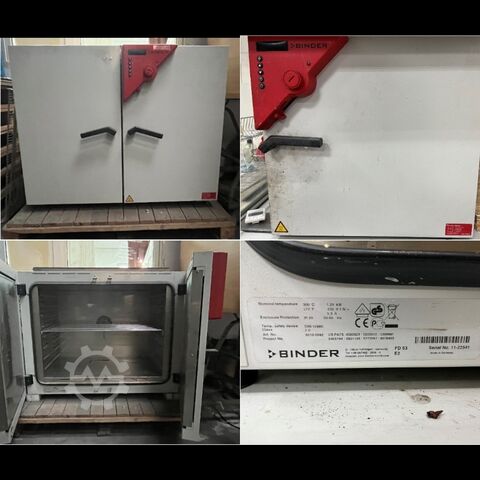

Laboratory dryers: BINDER, up to 300°C
Microscope
Platform scale: 2000 kg

6. Reactors, Mixers
Water-heated jacketed mixer (new), capacity: 1500 l, 400 W
Dispersion mixer with two stirrers and interchangeable tanks: 2 x 500 l and 1 x 100 l, speed: 800-1200 rpm, rotor diameter: 270 mm, 400V
Slow-speed mixer with two stirrers, capacity: 2000 l
Storage tanks: 2 tanks, capacity: 30,000 l

For more details or to schedule a viewing, please contact us via email or phone.
