CHARMILLES ROBOFORM 350 & ROBOT QCRI – 2004 Die Sinking EDM machine

CHARMILLES ROBOFORM 350

Condition: used, Year of construction: 2003, Diesinking / EDM Travel distance X: 350 mm Travel distance Y :250 mm Travel distance Z: 300 mm Duedpfx Aevyzf Noh Ssl table size X: 500 mm table size Y: 400 mm max. workpiece size X: 780 mm max. workpiece size Y: 530 mm max. workpiece size Z: 300 mm max. electrode weight: 50 kg max. workpiece weight: 500 kg electrode changer: 4 - time generator: 64 Ampere drop tank control Charmilles

Condition: good (used), Year of construction: 1997, Parts shown by hand not come. Dedpfx Ahjpy Errs Soul

Condition: refurbished (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 500 kg, Charmilles Roboform 350 Year of manufacture 2004 C-frame design Fixed table with retractable tank Travel: X=350 mm, Y=250 mm, Z=350 mm Max. workpiece size: X=780 mm, Y=530 mm, Z=300 mm Max. workpiece weight: 500 kg Max. electrode weight: 50 kg Distance table - chuck: 150 - 450 mm Working current 64 Amps Best achievable surface finish Ra 0.1 µm Integrated Accura C-axis Linear glass scales with 0.05 µm measuring resolution Incl. pneumatic chuck Erowa ITS 50 Incl. 16-fold rotary electrode changer Dsdowxwm Espfx Ah Sjul Machine weight (net): 2800 kg Machine dimensions (L x W x H): 1900 x 1690 x 2522 mm The machine will be cleaned, serviced, and subsequently tested after receipt of order. We are also happy to commission the machine for you.

Condition: ready for operation (used), Year of construction: 2001, operating hours: 25,539 h, functionality: fully functional, machine/vehicle number: 0.2633/331852, workpiece weight (max.): 500 kg, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 200 mm, total height: 200 mm, total length: 800 mm, total width: 500 mm, workpiece height (max.): 200 mm, type of input current: three-phase, overall weight: 2,200 kg, table load: 500 kg, positioning accuracy: 0.005 mm, Equipment: cooling unit, documentation/manual, fridge, CHARMILLES TECHNOLOGIES from 2001 Model: ROBOFIL 290 P 0.25MM AND 0.30MM WIRE EROSION MACHINE MAKE AN OFFER TO BUY BACK Features: - Maximum part dimensions: 850 x 500 x 200 [mm] - Maximum weight: workpiece weight: 500 [kg] - X x Y x Z strokes: 400 x 250 x 200 [mm] - U x V stroke: 400 x 250 [mm] - clearance/height angle: ±30 [°] / 200 [mm] - wire diameter: 0.25 [mm] - acceptable coil types: P3 and P5 Dusdpfxsv Rfm Ss Ah Ssl - tank capacity: 300 [l] - generator: 10 [kVA] - 400/400V isolation transformer - dimensions: 1800 x 1600 x 2130 [mm] - weight: 2200 [kg]

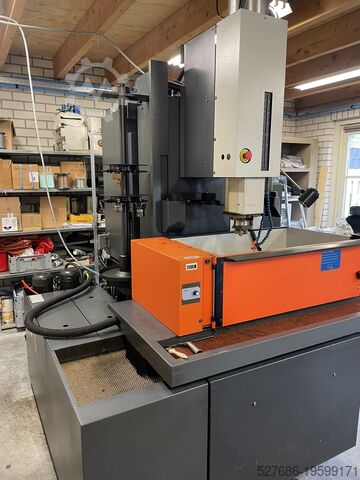

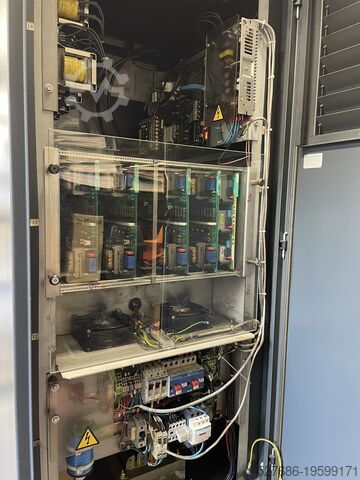

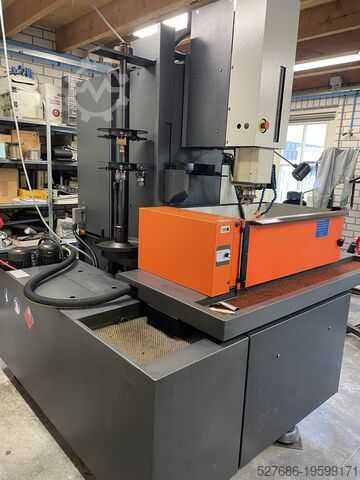

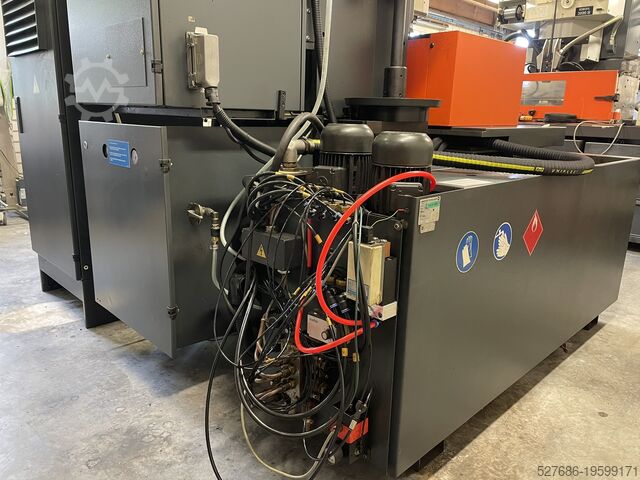

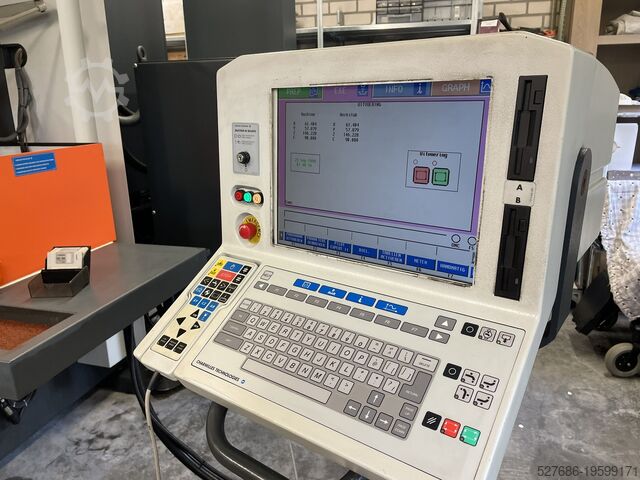

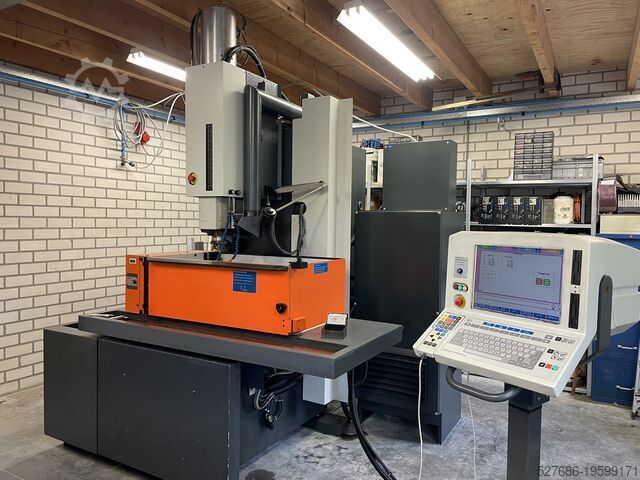

Condition: reconditioned (used), Year of construction: 1999, operating hours: 25,984 h, machine/vehicle number: 125128, travel distance X-axis: 320 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 320 mm, workpiece weight (max.): 550 kg, total height: 2,790 mm, total width: 2,540 mm, total length: 1,910 mm, table width: 880 mm, type of input current: three-phase, table length: 560 mm, table height: 225 mm, workpiece length (max.): 880 mm, workpiece width (max.): 550 mm, workpiece height (max.): 225 mm, year of last overhaul: 2025, In very good condition: Refurbished Charmilles Roboform 2000+ completely refurbished with 16-fold RTC changer. Extensive maintenance according to dealer prescrition performed: all air-valves and tubing replaced, filters replaced, motors refurbished with new bearings and cleaned up, fans replaced, screen replaced. C-axis seals have been replaced and is accurately aligned again. This is a 64A machine. Software and documentation is provided, onsite installation including warranty can be discussed! Optionally floppy drives can be exchanged for USB drives. Tested and fully functional. Can be viewed and tested in working order. Immediately available! Dusdpfx Ahsw Ad Ids Sol
