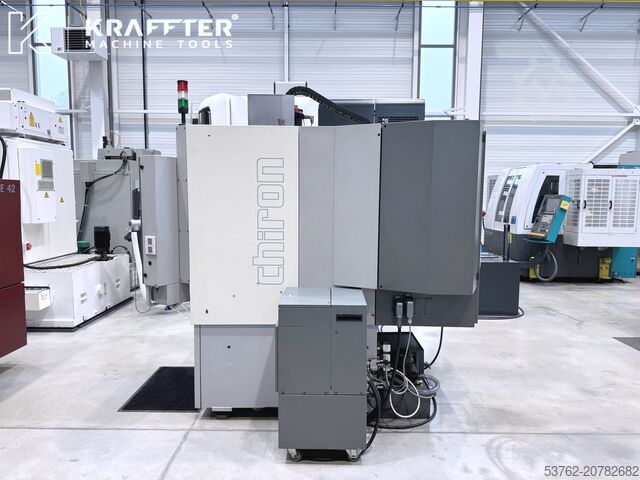

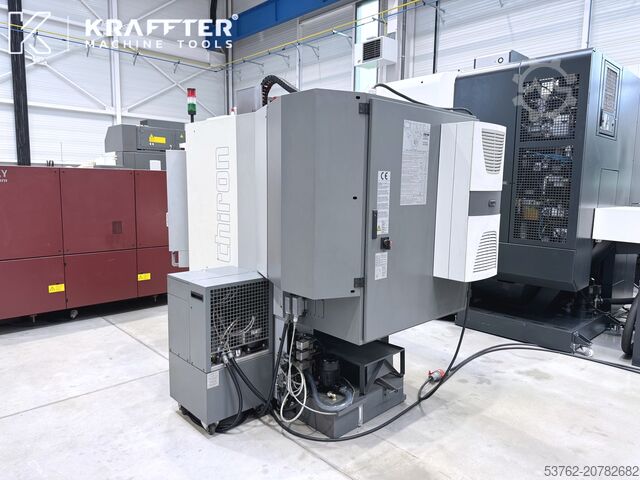

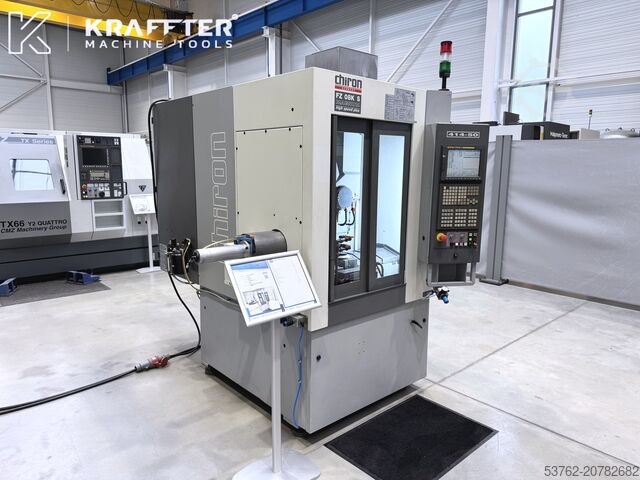

Vertical machining center

CHIRON FZ 08K S Magnum

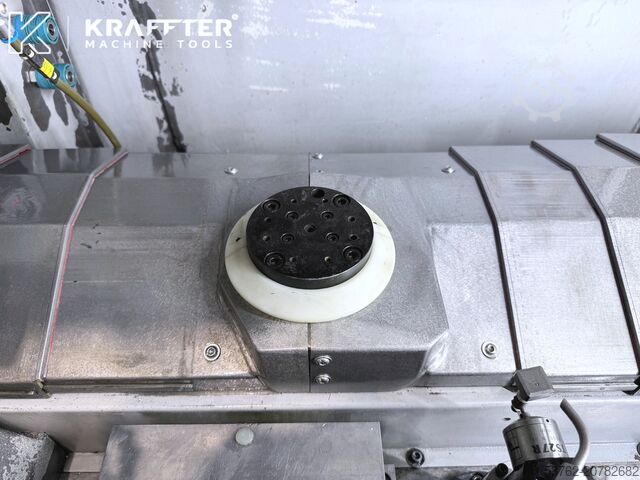

Condition: excellent (used), Year of construction: 2006, operating hours: 14,300 h, functionality: fully functional, machine/vehicle number: 414-46, Year 2006 with Fanuc Series 18i-MB5 Country of manufacture: CE - Germany Net machine weight: 3,400 kg Dimensions: 185x259x250 cm TECHNICAL SPECIFICATIONS Travel X / Y / Z: 450 / 270 / 310 mm Acceleration X / Y / Z: 0.7 / 0.7 / 1.0 g Rapid traverse X / Y / Z: 40 / 40 / 60 m/min Spindle speed max.: 15,000 rpm Tool interface: HSK A 40 Gbodpfexqmwbex Abpjw Milling capacity in St 60: max 60 cm3/min Drilling capacity in St 60: max Ø 16 mm Threading: up to M12 Tool magazine / positions: 24 – special version with 40 on this machine Tool change time: approx. 0.8 sec Chip-to-chip time: approx. 2.2 sec 5-axis version NC rotary tilting table: +/- 100° Rotary plate diameter: 100 mm Grid drill pattern: M6 x 50 mm 4th axis speed: 40 rpm 5th axis speed: 60 rpm Direct measuring system for 4th and 5th axes: +/-20’’ / +/-20’’ Distance spindle nose – table surface: 170 – 450 mm Maximum workpiece weight: 6 kg Technical information is provided without engagement and subject to errors or omissions.

Condition: as good as new (ex-display), Year of construction: 2006, operating hours: 9,911 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, number of slots in tool magazine: 49, input voltage: 400 V, type of input current: three-phase, Vertical machining center CHIRON FZ08 KS Magnum TECHNICAL CHARACTERISTICS: CNC control FANUC 18i-MB5 Number of axes: 7 Stroke X axis: 450 [mm] Stroke Y axis: 270 [mm] Stroke Z axis: 310 [mm] Traversing feeds X, Y and Z axes: 30000 [mm/min] Max. bar diameter in turning spindle: 32 [mm] Angular A axis stroke: 360 [°] A axis indexing precision: 0.001 [°] B axis swivelling stroke: -20° / +115° [°] Gbedpfxjww H D Dj Abpow B axis indexing precision: 0.001 [°] Spindle type: HSK40 Max. spindle speed: 30000 [rpm] Tool changer magazin number of stations: 49 Part turnaround by robot (6th side machining): Yes RS232 Interface: Yes Total power required: 17 [kVA] Supply voltage: 400 [V] Number of hours under power: 20292 [h] Number of running hours: 9911 [h] Dimensions: 1500 x 2600 x 2300 [mm] Weight: 3400 [Kg] EQUIPMENT INCLUDED: x1 spindle cooling unit x1 parts catcher with conveying strip x1 coolant tank x1 unit for 6th face machining x1 collet chuck x30 tool holders type HSK40 BIG KAISER x15 collets type F37 SCHAUBLIN x1 maintenance manual x1 electrical diagrams manual x1 operator's manual Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine.
