Machining Center - Vertical

CHIRON FZ 15 KW HS

Condition: used, Year of construction: 2001, Technical data: Tool holder: SK 40 Travels: X-axis: 530 mm Y-axis: 450 mm Z-axis: 450 mm Max. Tool weight: 260 kg Spindle speed: 12000 1/min Max. Table load: 380 kg Weight, approx.: 6500 kg Dimensions (DxWxH), approx.: 2000 x 2200 x 2400 mm Gbjdpfx Aot Hr Ahsbpjw Equipment: - Control Heidenhain TNC 430 - 4-axis from SMP (France)

Condition: good (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 129-41, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, controller manufacturer: Siemens, controller model: 840D, table width: 260 mm, table height: 540 mm, number of slots in tool magazine: 48, Equipment: chip conveyor, - Spindle 12,000 1/min Gbedpfxotyx Nps Abpow - 48 tool positions in chain magazine (chain and guides replaced in 2021) - HSK A63 tool holder

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Controller MITSUBISHI MELDAS M70 Table size 910 x 400 mm Max. table load 960 kg X travel 760 mm Y travel 445 mm Z travel 520 mm Spindle speed 12000 rpm Gjdpjv H D E Sofx Abpsbw Tool holder type MAS BT40 Spindle power 22 kW ATC Magazin 22-fold Weight 4400 kg Dimensions LxWxH = 2200 x 2200 x 2700 mm Features, accessories - Coolant unit - Chip conveyor - Manuals

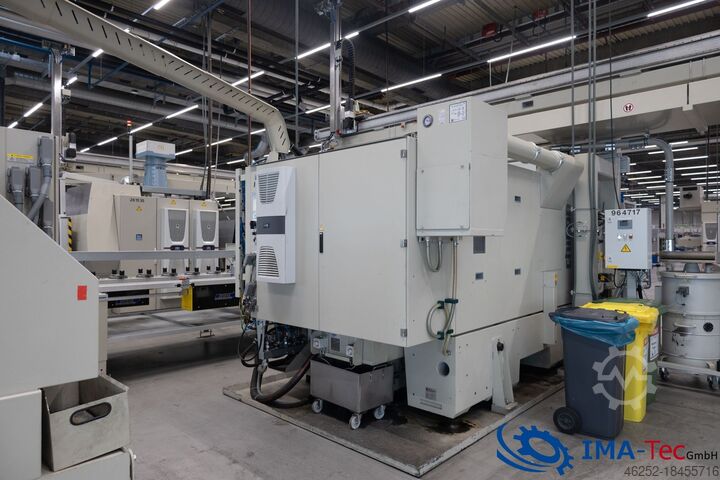

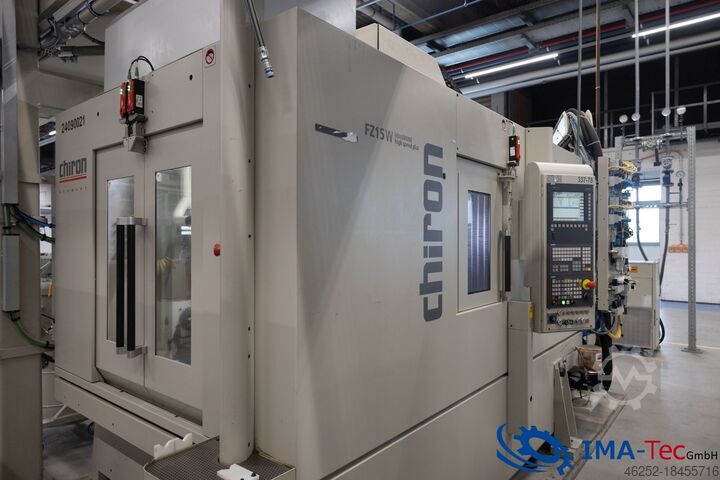

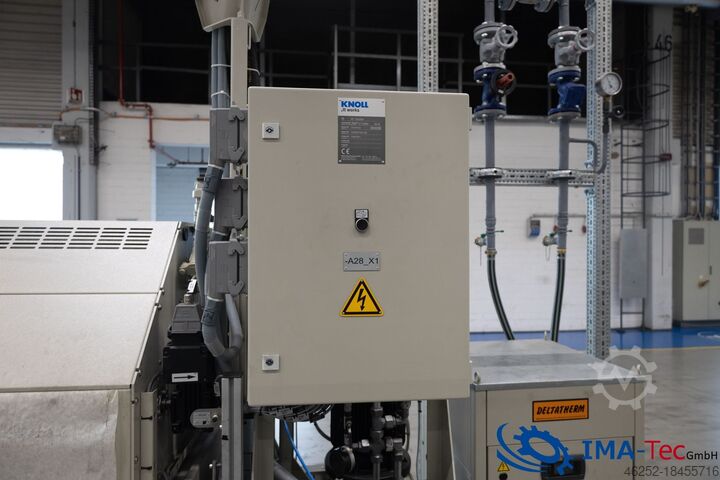

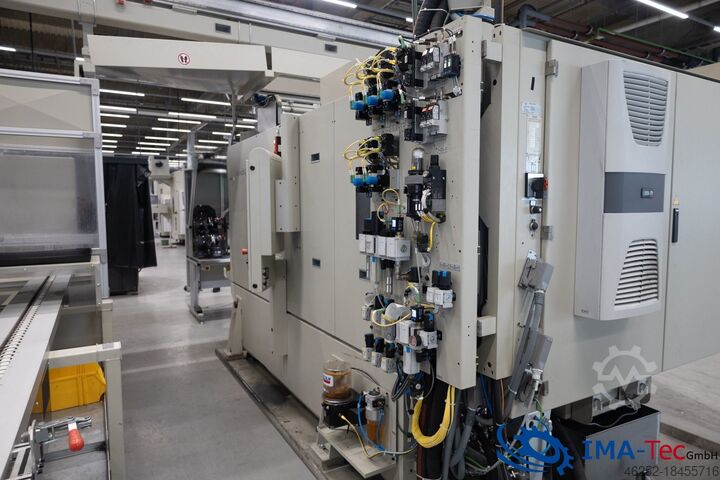

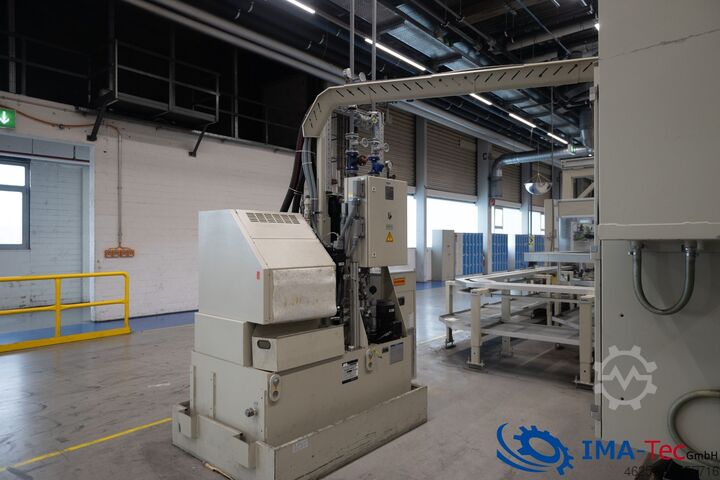

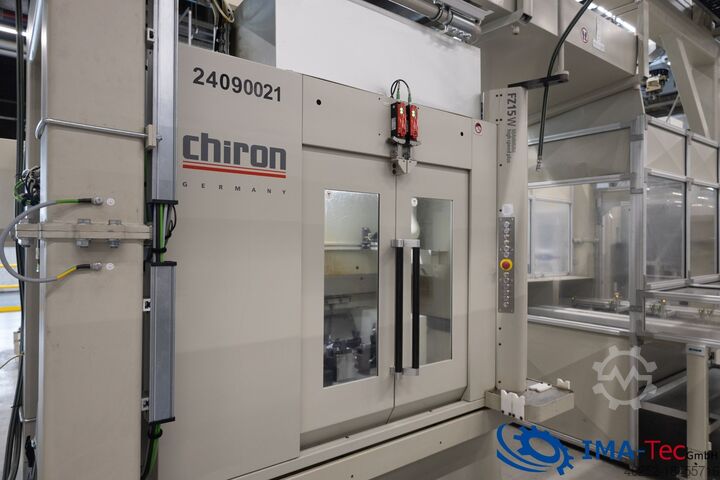

Condition: used, Year of construction: 2019, functionality: fully functional, machine/vehicle number: 337-78, travel distance X-axis: 730 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 425 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, feed length X-axis: 730 mm, feed length Y-axis: 400 mm, feed length Z-axis: 425 mm, feed rate X-axis: 75 m/min, feed rate Y-axis: 75 m/min, feed rate Z-axis: 75 m/min, nominal power (apparent): 30 kVA, torque: 95 Nm, controller manufacturer: Siemens, workpiece length (max.): 940 mm, workpiece width (max.): 520 mm, workpiece weight (max.): 400 kg, total height: 2,880 mm, total length: 6,490 mm, total width: 2,725 mm, table width: 1,060 mm, table load: 500 kg, overall weight: 10,500 kg, spindle speed (max.): 12,000 rpm, coolant supply: 70 bar, spindle motor power: 15,000 W, number of spindles: 1, tool length: 300 mm, tool diameter: 78 mm, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Technical data CHIRON FZ 15 W Magnum HS (German) Manufacturer: CHIRON Type: FZ 15 W Magnum HS General features: Machine type: High-performance machining center with vertical spindle Area of application: Milling and drilling for industrial applications Change system: High-speed basket magazine for fast tool change times Automation: Optional integration of robot systems or workpiece handling for series production Main spindle: Spindle speed (max.): 12,000 rpm Spindle power: 22 kW Spindle mount: HSK-A 63 Torque: 95 Nm Travel paths & axes: X-axis: 730 mm Y-axis: 400 mm Z-axis: 425 mm Rapid traverse X/Y/Z: 75 / 75 / 75 m/min Feed length X/Y/Z: 730 / 400 / 425 mm Feed speed X/Y/Z: 75 / 75 / 75 m/min Table & workpiece dimensions: Table width: 1,060 mm Table height: 430 mm Table length: 1,060 mm Table load: 500 kg Workpiece size (max.): 940 x 520 mm Workpiece weight (max.): 400 kg Tool magazine & handling: Tool holder: HSK-A 63 Tool positions: 48 / 64 Tool diameter: 78 mm (140 mm with free positions) Max. tool length: 300 mm Max. tool weight: 10 kg Tool change time: approx. 0.9 s Chip-to-chip time: approx. 2.1 s Electrical & operating data: Input voltage: 400 V Type of input current: Three-phase Gedpsvxigfefx Abpjbw Operating pressure coolant supply: 30 / 70 bar Air connection: 6 bar Dimensions & weight: Total length: approx. 6490 mm Total width: approx. 2725 mm Total height: approx. 2,880 mm Total weight: approx. 10.5 t

Condition: excellent (used), Year of construction: 2004, Machine type: - Kondia B640 - Year of manufacture 2004 Control system: Gsdpfxew H N R Es Abpobw - Heidenhain iTNC 530 - Electronic handwheel Tool measurement: - Tool Eye - 3D probe Tool changer: - 22 magazine pockets Travel paths: - X - 600, Y - 400, Z - 510 mm Main spindle: - Max. 12,000 rpm (new main spindle in 2020) - Tool holder BT 40 Table: - Clamping surface 800 x 400 mm Coolant system: - Through-spindle coolant 20 bar - External coolant supply - Spindle cooling Accessories: - Chip conveyor - Various tool holders - Various clamping studs - Machine documentation Availability: - Immediately

Condition: used, Year of construction: 2016, 3 axes HYUNDAI WIA F400 year of production 2016 Siemens 828D XYZ Linear Guides travel: X-800mm Y-460 Z-520mm table 1000x460mm spindle 12,000 rpm max Gsdpowbgkrsfx Abpebw tool magazine for 30 pieces BT40 spindle cone on BT40 cooling through the spindle chip conveyor

Condition: good (used), Year of construction: 2008, In good technical condition and fully functional. Control: Fanuc 0i-MF Plus Year of manufacture: 2008 X-axis: 510 mm Y-axis: 360 mm Z-axis: 300 mm Spindle taper: BT-30 Number of tools in magazine: 20 Rapid traverse (X/Y/Z): Up to 48 m/min Motor power: 5.5 kW Machine dimensions (L x W x H): 2,700 x 1,600 x 2,310 mm Machine weight: 2,000 kg Equipment: Renishaw tool probe Gbodpsw Eil Hsfx Abpsw Chuck CNC-controlled 5th axis TSUDAKOMA TN-101

Condition: ready for operation (used), Year of construction: 2005, A machining center is available. Travel X/Y/Z: 550mm/400mm/425mm, A-axis: +/-100°, rapid traverse: 40m/min, speed: 10500rpm, tool positions: 20, tool holder: SK40, table load: 300kg, control: Siemens Sinumerik. The screen of the machine is defective. Documentation available. On-site inspection is possible. Gedpfjwxfa Hox Abpebw

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: -, travel distance X-axis: 725 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 460 mm, Equipment: rotational speed infinitely variable, Travel paths X/Y/Z: 725mm/460mm/460mm, Work table: size LxW 760mm x 420mm / table load capacity 450kg, Main drive: power 10kW / infinitely variable speed range 10–8,000 rpm / tool holder SK40, Tool magazine: 20 stations / max. tool diameter 100mm / max. tool length 200mm / max. tool weight 7kg, Basic machine data: machine base made of cast iron / weight 4,000kg / machine dimensions (LxWxH) 2.2x2.2x7.6m / electrical connected load 16kVA / compressed air requirement 260l/min – 6 bar, Siemens CNC control, Siemens/Heidenhain digital drives, incl. various tools. Gsdowzl I Njpfx Abpjbw

Condition: used, Year of construction: 2000, Number of axles 4 St. 2 Godpfewhq Disx Abpobw tool change unit 20 Plätze spindle turning speed range 20.000 U/min control Siemens 840 D tool taper HSK 63 weight 6670 kg 143-68
