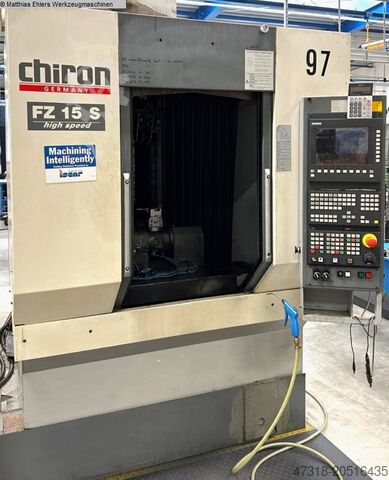

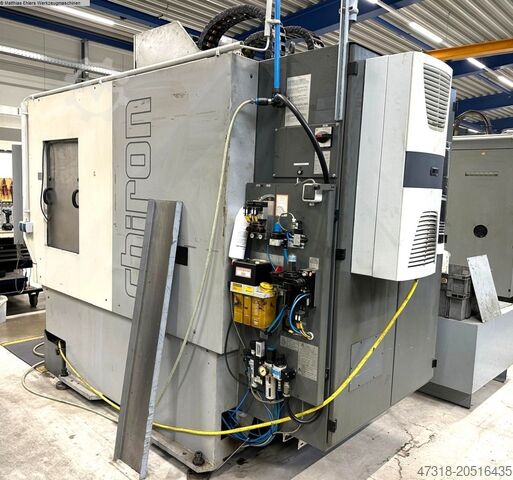

CNC Machining Center

Chiron FZ 15 S

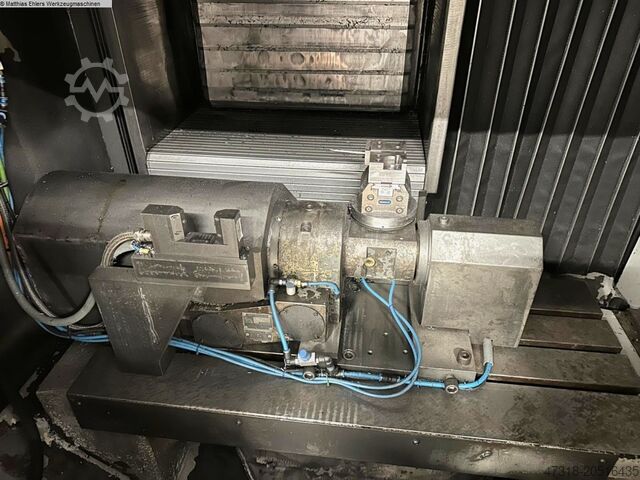

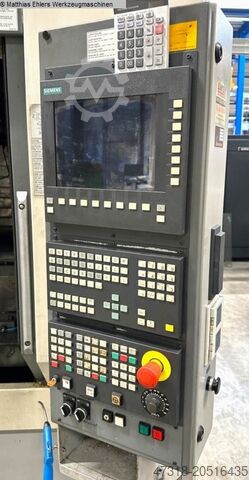

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: 191-89, Technical characteristics: - Machining workspace: X 550 mm; Y 400 mm; Z 360 mm - Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary divider head axes B, equipped with direct angular measuring system, max rotation speed 50 rpm, accuracy +/- 5" - Axis A swivel range: +/- 110° - Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg - Rapid traverse rate: X/Y/Z 40/40/40 m/min - Distance between divider heads B1/B2: 250 mm - Spindle speed: 1–10,000 rpm - Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) - Automatic tool changer: 1x48 positions / chip-to-chip average 2.5 sec - Max. tool diameter: 82 mm / max. tool length: 250 mm / max. tool weight: 5 kg Electrical specifications: - Supply voltage: 3x400V/50Hz - Installed power: approx. 45 kVA / 80A Dimensions: - Installation space: approx. 4.4 x 2.3 x 3.1 m - Weight: approx. 8,500 kg Equipment includes: - CNC control: Siemens 840D Power Line - Chip conveyor: Spring Knoll - Oil cooling system - High-pressure oil filtration system (max. 80 bar): Knoll HL 450/1200 - Shaft cooling system, guideways and control cabinet - 2 oil lubrication units - Oil mist extraction/recovery: LTA Hedexxi Rmspfx Agijg - Fire protection: Kraft & Bauer - Part presence P/Y detection: with low-pressure air sensors - In-process inspection: Marposs T25 - Tool holder presence detection in spindle - Documentation: incomplete Machine status: NOT OPERATIONAL: Hydraulic power unit motor burned out.

Condition: used, Year of construction: 2010, 2 Number of axles 4 St. tool taper HSK 63 toll turrets 60 Hodpeqn A Rksfx Agiog weight 9600 kg

Condition: used, Year of construction: 2001, x-travel 305 mm y-travel 610 mm z-travel 100 mm Control Fanuc 21-M spindle tunring speed 12.000 U/min tool taper SK 40 number of tool places 12 Pos. In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Hedpswth Snofx Agijg Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: excellent (used), Year of construction: 2002, CHIRON FZ 15S with 4 axis in Perfect Condition Hedpfx Aorgqu Hsgijg Machine can be inspected any time under power

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Controller MITSUBISHI MELDAS M70 Table size 910 x 400 mm Max. table load 960 kg X travel 760 mm Y travel 445 mm Z travel 520 mm Spindle speed 12000 rpm Tool holder type MAS BT40 Spindle power 22 kW Hjdpfx Aov H D E Sjgijg ATC Magazin 22-fold Weight 4400 kg Dimensions LxWxH = 2200 x 2200 x 2700 mm Features, accessories - Coolant unit - Chip conveyor - Manuals

Condition: good (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 129-41, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, controller manufacturer: Siemens, controller model: 840D, table width: 260 mm, table height: 540 mm, number of slots in tool magazine: 48, Equipment: chip conveyor, - Spindle 12,000 1/min - 48 tool positions in chain magazine (chain and guides replaced in 2021) Hjdpfx Aetyx Npegijg - HSK A63 tool holder

Condition: repair required (used), Year of construction: 2009, functionality: not functional, machine/vehicle number: 281-06, Technical Specifications: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis Description: 3 linear axes (X, Y, Z) + 1 rotary axis (rotary table A) and 2 rotary axes (B, indexer head) with direct angular measuring system, maximum 50 rpm, accuracy +/- 5 seconds # A axis swivel: +/-110˚ # Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg # Rapid traverse rate: X/Y/Z 40/40/40 m/min # Distance between divider heads B1/B2: 250 mm # Spindle speed: 1–10,000 rpm # Spindle taper: DIN69893-HSK-A63 (with internal coolant) # Automatic tool changer: 1x48 tools / chip-to-chip time approx. 2.5 sec # Max tool diameter: Ø82 mm / max. length 250 mm / 5 kg Electrical connection: # Voltage: 3x400V/50Hz Hodpjxxivcsfx Agiog # Installed power: approx. 45 kVA / 80A Dimensions: # Installation area: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Equipment includes: # CNC control: Siemens 840D Powerline # Chip conveyor: Spring Knoll # Oil cooling system # High-pressure oil filtration system, max. 80 bar: Knoll HL 450/1200 # Shaft, guideways, and electrical cabinet cooling system # 2 oil lubrication systems # Oil mist extraction/recovery: LTA AC3002 # Fire protection: Kraft & Bauer # Presence detection: with low pressure air sensors (part present) # In-process control: Marposs T25 # Tool breakage monitoring: Blum Novotech # Tool presence detection system in spindle # Documentation: incomplete Machine condition: NOT OPERATIONAL # Cover for tool magazine # Tool magazine presence sensor (BERU)

Condition: excellent (used), Year of construction: 2004, Machine type: - Kondia B640 - Year of manufacture 2004 Hjdpfxew H N R Ej Agieg Control system: - Heidenhain iTNC 530 - Electronic handwheel Tool measurement: - Tool Eye - 3D probe Tool changer: - 22 magazine pockets Travel paths: - X - 600, Y - 400, Z - 510 mm Main spindle: - Max. 12,000 rpm (new main spindle in 2020) - Tool holder BT 40 Table: - Clamping surface 800 x 400 mm Coolant system: - Through-spindle coolant 20 bar - External coolant supply - Spindle cooling Accessories: - Chip conveyor - Various tool holders - Various clamping studs - Machine documentation Availability: - Immediately

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: 191-88, Technical specifications: # Working area: X 550 mm; Y 400 mm; Z 360 mm # Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary axes B with indexing head, direct angular measuring system, max. speed 50 rpm, accuracy +/- 5" # A-axis swivel: +/-110˚ # Max. clamping/part size: Ø247 x 830 mm; max. weight 360 kg # Rapid traverse rate: X/Y/Z 40/40/40 m/min # Distance between dividing heads B1/B2: 250 mm # Spindle speed: 1-10,000 rpm # Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) # Automatic tool changer: 1x48 tools, tool-to-tool average 2.5 sec # Max. tool diameter: Ø82 mm / max. tool length: 250 mm / max. tool weight: 5 kg Electrical system: # Voltage: 3x400V/50Hz # Installed power: approx. 45 kVA / 80A Dimensions: # Installation footprint: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Hjdpoxw Upljfx Agijg Equipment includes: # CNC control: Siemens 840D Power Line # Chip conveyor: Spring Knoll # Oil cooling unit # Oil filtration system up to 80 bar: Knoll HL 450/1200 # Shaft, linear guide and electrical cabinet cooling system # 2 oil lubrication systems # Oil mist extraction/recovery unit: LTA AC3002 # Fire suppression: Kraft & Bauer # Part presence check with low-pressure air sensors # In-process control: Marposs T25 # Tool support monitoring system at spindle # Documentation: incomplete Machine condition: NOT OPERATIONAL # Operator protection screen damaged – operator panel functional # Tool magazine chain # Ballbar X # Ballbar Y # Pullbar spindle # Axis drive power supply X # Axis drive power supply Y # Main drive power supply # Complete hydraulic unit defective

Condition: repair required (used), Year of construction: 2009, functionality: not functional, machine/vehicle number: 281-09, Technical Characteristics: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis Description: 3 linear axes (X, Y, Z) + rotary table axis A and 2 rotary axes B, equipped with an index divider head with direct angular measuring system, max. rotation speed 50 min⁻¹, accuracy +/- 5" # Axis A swivel: +/-110˚ # Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg # Rapid traverse: X/Y/Z 40/40/40 m/min # Distance between divider heads B1/B2: 250 mm # Spindle speed: 1-10,000 rpm # Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) # Automatic tool changer: 1x48 tools / chip-to-chip time approx. 2.5 sec # Max. tool diameter: Ø 82 mm / max. length 250 mm / max. weight 5 kg Electrical Connection: # Voltage: 3x400V/50Hz # Total installed power: approx. 45 kVA / 80A Dimensions: # Installation footprint: approx. 4.4 x 2.3 x 3.1 m Hsdpfexwmvkox Agisg # Weight: approx. 8,500 kg Equipment Includes: # CNC control: Siemens 840D Power Line # Chip extractor: Spring Knoll # Oil cooling system # High-pressure oil filtration system, up to 80 Bar: Knoll HL 450/1200 # Cooling system for spindle, linear guides, and control cabinet # 2 independent oil lubrication systems # Oil vapor extraction/recovery system: LTA AC3002 # Fire suppression system: Kraft & Bauer # Part presence detection: with low-pressure air sensors # In-process measurement: Marposs T25 # Tool breakage detection: Blum Novotech # Tool holder detection system in spindle # Documentation: incomplete Machine Condition: NOT OPERATIONAL # Hydraulic oil leakage at Peiseler rotary table # New hydraulic pump available in stock

Condition: good (used), Year of construction: 2008, In good technical condition and fully functional. Control: Fanuc 0i-MF Plus Year of manufacture: 2008 X-axis: 510 mm Y-axis: 360 mm Z-axis: 300 mm Spindle taper: BT-30 Number of tools in magazine: 20 Rapid traverse (X/Y/Z): Up to 48 m/min Motor power: 5.5 kW Machine dimensions (L x W x H): 2,700 x 1,600 x 2,310 mm Machine weight: 2,000 kg Equipment: Hsdpfjw Eil Hex Agijg Renishaw tool probe Chuck CNC-controlled 5th axis TSUDAKOMA TN-101
