Vertical Machining Center

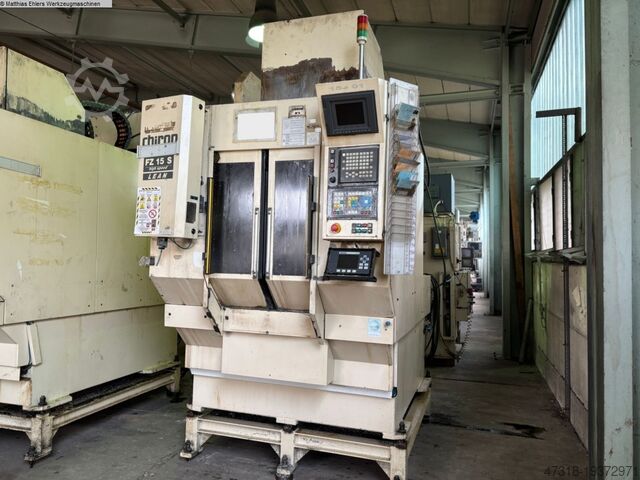

CHIRON FZ15S

Condition: used, Year of construction: 2001, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, nominal power (apparent): 47 kVA, rotational speed (min.): 20 rpm, rotational speed (max.): 12,000 rpm, overall weight: 8,700 kg, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, We offer this used Chiron FZ 15K S machine, manufactured in 2001. CNC control: Fanuc Series 18i 2-axis rotary table (A and C axes) 48-position tool changer Chip conveyor Coolant unit X-axis travel / X-axis stroke: 550 mm Y-axis travel / Y-axis stroke: 400 mm Z-axis travel / Z-axis stroke: 360 mm C-axis / C-axis: 360° A-axis / A-axis: +-100° Spindle taper: HSK A63 Weight: approximately 8700 kg Pedpozyyqyofx Ai Tjgu Spindle speed: 20-12000 rpm If you have any questions or require further information, please send a message or contact us by phone.

Condition: good (used), Year of construction: 2001, functionality: fully functional, Technical data will follow... Pgsdpfx Aoz Rka Soi Teu

Condition: excellent (used), Year of construction: 2002, CHIRON FZ 15S with 4 axis in Perfect Condition Pgedpfxorgqu Hj Ai Tou Machine can be inspected any time under power

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: 191-89, Technical characteristics: - Machining workspace: X 550 mm; Y 400 mm; Z 360 mm - Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary divider head axes B, equipped with direct angular measuring system, max rotation speed 50 rpm, accuracy +/- 5" - Axis A swivel range: +/- 110° - Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg - Rapid traverse rate: X/Y/Z 40/40/40 m/min - Distance between divider heads B1/B2: 250 mm Psdpfexxi Rmox Ai Tegu - Spindle speed: 1–10,000 rpm - Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) - Automatic tool changer: 1x48 positions / chip-to-chip average 2.5 sec - Max. tool diameter: 82 mm / max. tool length: 250 mm / max. tool weight: 5 kg Electrical specifications: - Supply voltage: 3x400V/50Hz - Installed power: approx. 45 kVA / 80A Dimensions: - Installation space: approx. 4.4 x 2.3 x 3.1 m - Weight: approx. 8,500 kg Equipment includes: - CNC control: Siemens 840D Power Line - Chip conveyor: Spring Knoll - Oil cooling system - High-pressure oil filtration system (max. 80 bar): Knoll HL 450/1200 - Shaft cooling system, guideways and control cabinet - 2 oil lubrication units - Oil mist extraction/recovery: LTA - Fire protection: Kraft & Bauer - Part presence P/Y detection: with low-pressure air sensors - In-process inspection: Marposs T25 - Tool holder presence detection in spindle - Documentation: incomplete Machine status: NOT OPERATIONAL: Hydraulic power unit motor burned out.

Condition: repair required (used), Year of construction: 2009, functionality: not functional, machine/vehicle number: 281-06, Technical Specifications: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis Description: 3 linear axes (X, Y, Z) + 1 rotary axis (rotary table A) and 2 rotary axes (B, indexer head) with direct angular measuring system, maximum 50 rpm, accuracy +/- 5 seconds # A axis swivel: +/-110˚ # Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg # Rapid traverse rate: X/Y/Z 40/40/40 m/min # Distance between divider heads B1/B2: 250 mm # Spindle speed: 1–10,000 rpm # Spindle taper: DIN69893-HSK-A63 (with internal coolant) Pgedpfx Aexxivcji Teu # Automatic tool changer: 1x48 tools / chip-to-chip time approx. 2.5 sec # Max tool diameter: Ø82 mm / max. length 250 mm / 5 kg Electrical connection: # Voltage: 3x400V/50Hz # Installed power: approx. 45 kVA / 80A Dimensions: # Installation area: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Equipment includes: # CNC control: Siemens 840D Powerline # Chip conveyor: Spring Knoll # Oil cooling system # High-pressure oil filtration system, max. 80 bar: Knoll HL 450/1200 # Shaft, guideways, and electrical cabinet cooling system # 2 oil lubrication systems # Oil mist extraction/recovery: LTA AC3002 # Fire protection: Kraft & Bauer # Presence detection: with low pressure air sensors (part present) # In-process control: Marposs T25 # Tool breakage monitoring: Blum Novotech # Tool presence detection system in spindle # Documentation: incomplete Machine condition: NOT OPERATIONAL # Cover for tool magazine # Tool magazine presence sensor (BERU)

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: 191-88, Technical specifications: # Working area: X 550 mm; Y 400 mm; Z 360 mm # Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary axes B with indexing head, direct angular measuring system, max. speed 50 rpm, accuracy +/- 5" # A-axis swivel: +/-110˚ # Max. clamping/part size: Ø247 x 830 mm; max. weight 360 kg # Rapid traverse rate: X/Y/Z 40/40/40 m/min # Distance between dividing heads B1/B2: 250 mm # Spindle speed: 1-10,000 rpm # Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) # Automatic tool changer: 1x48 tools, tool-to-tool average 2.5 sec # Max. tool diameter: Ø82 mm / max. tool length: 250 mm / max. tool weight: 5 kg Electrical system: # Voltage: 3x400V/50Hz # Installed power: approx. 45 kVA / 80A Dimensions: # Installation footprint: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Equipment includes: # CNC control: Siemens 840D Power Line # Chip conveyor: Spring Knoll # Oil cooling unit Pgedpfexw Uplox Ai Tsu # Oil filtration system up to 80 bar: Knoll HL 450/1200 # Shaft, linear guide and electrical cabinet cooling system # 2 oil lubrication systems # Oil mist extraction/recovery unit: LTA AC3002 # Fire suppression: Kraft & Bauer # Part presence check with low-pressure air sensors # In-process control: Marposs T25 # Tool support monitoring system at spindle # Documentation: incomplete Machine condition: NOT OPERATIONAL # Operator protection screen damaged – operator panel functional # Tool magazine chain # Ballbar X # Ballbar Y # Pullbar spindle # Axis drive power supply X # Axis drive power supply Y # Main drive power supply # Complete hydraulic unit defective

Condition: repair required (used), Year of construction: 2009, functionality: not functional, machine/vehicle number: 281-09, Technical Characteristics: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis Description: 3 linear axes (X, Y, Z) + rotary table axis A and 2 rotary axes B, equipped with an index divider head with direct angular measuring system, max. rotation speed 50 min⁻¹, accuracy +/- 5" # Axis A swivel: +/-110˚ # Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg # Rapid traverse: X/Y/Z 40/40/40 m/min # Distance between divider heads B1/B2: 250 mm # Spindle speed: 1-10,000 rpm # Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) # Automatic tool changer: 1x48 tools / chip-to-chip time approx. 2.5 sec # Max. tool diameter: Ø 82 mm / max. length 250 mm / max. weight 5 kg Electrical Connection: # Voltage: 3x400V/50Hz # Total installed power: approx. 45 kVA / 80A Dimensions: # Installation footprint: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Pgjdpfx Aiexwmvkj Tou Equipment Includes: # CNC control: Siemens 840D Power Line # Chip extractor: Spring Knoll # Oil cooling system # High-pressure oil filtration system, up to 80 Bar: Knoll HL 450/1200 # Cooling system for spindle, linear guides, and control cabinet # 2 independent oil lubrication systems # Oil vapor extraction/recovery system: LTA AC3002 # Fire suppression system: Kraft & Bauer # Part presence detection: with low-pressure air sensors # In-process measurement: Marposs T25 # Tool breakage detection: Blum Novotech # Tool holder detection system in spindle # Documentation: incomplete Machine Condition: NOT OPERATIONAL # Hydraulic oil leakage at Peiseler rotary table # New hydraulic pump available in stock

Condition: ready for operation (used), Year of construction: 2005, A machining center is available. Travel X/Y/Z: 550mm/400mm/425mm, A-axis: +/-100°, rapid traverse: 40m/min, speed: 10500rpm, tool positions: 20, tool holder: SK40, table load: 300kg, control: Siemens Sinumerik. The screen of the machine is defective. Documentation available. On-site inspection is possible. Psdpfxewxfa Hj Ai Tegu

Condition: excellent (used), Year of construction: 2020, Unique opportunity to purchase this high quality CHIRON 5-axis machining center for profiles. Built and first use in 2020. The spindle was replaced in June 2022 and currently has 4500 operation hours. Machine is in very good condition and it can be inspected under power upon appointment. Availability: on request Including: Chip conveyor (scraper type) Profile bar feeder for bar lengths up to 6 m, for guiding profiles up to Ø 212 mm Coolant system TPF 350 / FKA 900 Coolant through the spindle Fixed 3D probe Type TS 27 R – RENISHAW Renishaw RLP40Q probe system Cnc control SIEMENS 840D X-axis 730 mm Y-axis 400 mm Z-axis 425 mm Pedpsyt I Uhjfx Ai Togu Maximum spindle speed 15,000 rpm Maximum torque 140 Nm Drilling capacity Ø 42 mm Thread tapping M30 Tool magazine capacity 20 tools Tool taper DIN 69893 HSK A63 Maximum tool diameter 65 mm Milling capacity 500 cm³/min in E355 steel Full technincal specifications in the attached document. Optional: ARMIN automatic robot cell (2024)
