Machining centre

CHIRON FZ18L

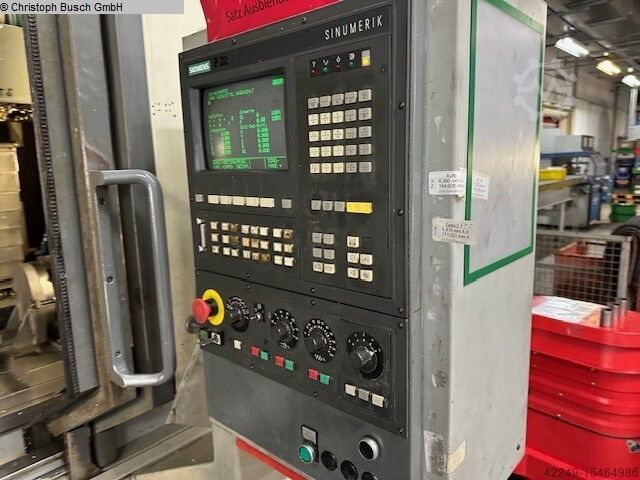

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 194-03, travel distance X-axis: 2,000 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 425 mm, table width: 450 mm, table length: 2,280 mm, TECHNICAL DETAILS Travel X-axis: 2,000 mm Travel Y-axis: 400 mm Travel Z-axis: 425 mm Total number of axes: 3 Table length: 2,280 mm Table width: 450 mm Number of T-slots: 3 T-slot spacing: 150 mm T-slot width: 18 mm Spindle speed: 10,500 rpm Number of tools: 20 Tool diameter: 65 mm Diameter with free adjacent slots: 180 mm Max. tool length: 220 mm Max. tool weight: 8 kg MACHINE DETAILS Control: SIEMENS SINUMERIK 810 M Connection: 50 Hz 3x 400 Volt Spindle motor: 18 kW Total power requirement: 31 kVA Dimensions & Weight Dimensions (L x W x H): 4,000 x 3,010 x 3,040 mm Machine weight approx.: 7,200 kg Kdjdsyhnfcspfx Afvjh EQUIPMENT Coolant system Chip conveyor Electronic handwheel

Condition: ready for operation (used), travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 725 mm, Equipment: chip conveyor, documentation/manual, 4-axis machining center, year 2016, control: Siemens 840D Solution Line, NC rotary table 360 x 0.001 degrees, 2-fold pallet changer, pallet size: 500 x 630 mm, 60-fold tool changer, HSK63 tool holder, IKZ, Knoll PF 210/1750 gravity belt filter, Hyfra TKR 30 coolant temperature control, Knoll 450 K-1 scraper belt conveyor, infrared measuring probe Kdedpfxorx Sh Ae Afvoh

Condition: good (used), Year of construction: 2007, travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 725 mm, CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 320 tools pallet changing device, 2 pallets 500 mm x 500mm coolant through spindle device IKZ (80 bar) chip conveyor coolant device Technische Daten / technical details: X-Weg längs / X-travel longitudinal 750 mm Y-Weg senkrecht / Y-travel vertical 750 mm Z-Weg quer / Z-travel cross 725 mm B-Achse / B-axis 360 ° Spindelaufnahme / spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 50-10000 Upm /rpm Werkzeugplätze / tool places in changer 320 Vorschub / infeed 60000 mm/min Eilgang / rapid feed 60 m/min Antriebsleistung Spindel 40/100% ED / drive capacity spindle 40/100%ED 37/24 kW Gewicht der Maschine ca. / weight ca. 15000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Kdedoq Ui Hqjpfx Afvjh Technical data, accessories and description of the machine are not binding.

Condition: good (used), Year of construction: 2015, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 650 mm, 1 Horizontal machining center Make: STARRAG HECKERT, type: HEC 400D, year 2015, Control system, Siemens, type Sinumerik 840D, travel X/Y/Z = 650 x 650 x 650 mm, 2-fold pallet changer, pallet size 400 x 400 mm, NC rotary table 360x 0.001°, 80-fold tool changer, HSK 63 tool holder, spindle speed 15,000 rpm, IKZ 50 bar, belt filter, coolant temperature control, spindle cooling, chip conveyor, sound and control cabinets, operating hours Ksdsuav H Nepfx Afvjdh 43,698, spindle hours 5,401

Condition: good (used), Year of construction: 2008, functionality: fully functional, Make: STARRAG HECKERT, type: HEC 400D, year 2008, Control system, Siemens, type Sinumerik 840D, travel X/Y/Z 650 x 650 x 650 mm, 2-fold pallet changer, pallet size 400 x 400mm, NC rotary table 360 x 0.001°, 80-fold tool changer, HSK 63 tool holder, max. speed 15,000 rpm, IKZ 50 bar, Kdjdpfxeuav Igo Afvsh coolant temperature control, belt filter, chip conveyor, spindle cooling, preparation for infrared measuring probe, operating hours 56,194; spindle hours 9,196

Condition: good (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 650 mm, Make: STARRAG HECKERT, type: HEC 400D, year 2014, Control system, Siemens, type Sinumerik 840D, travels X/Y/Z = 650 x 650 x 650 mm, 2-fold pallet changer, pallet size 400 x 400 mm, NC rotary table 360x 0.001°, 60-fold tool changer, HSK 63 tool holder, spindle speed 20,000 rpm, IKZ 50 bar, Kedpouav Hpjfx Afvedh belt filter, coolant temperature control, spindle cooling, chip conveyor, Switch and control cabinets - Operating hours 26,558
