CNC automatic lathe Citizen Cincom M12

Citizen Cincom M12

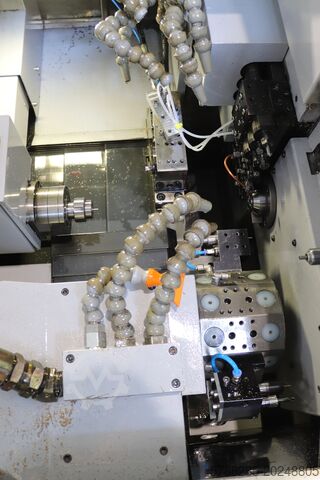

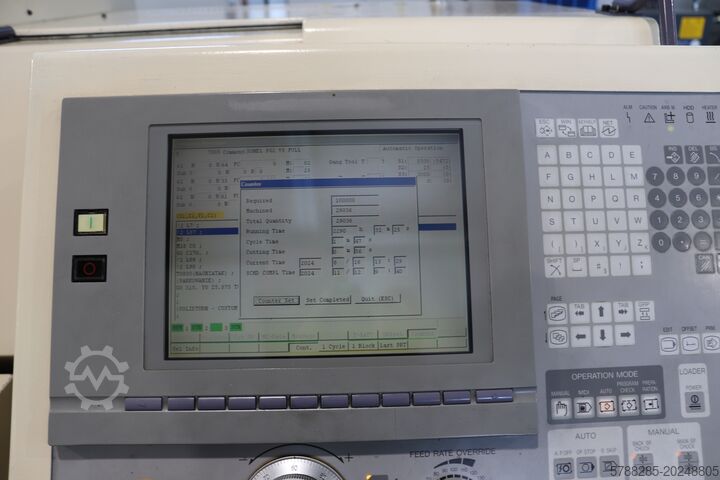

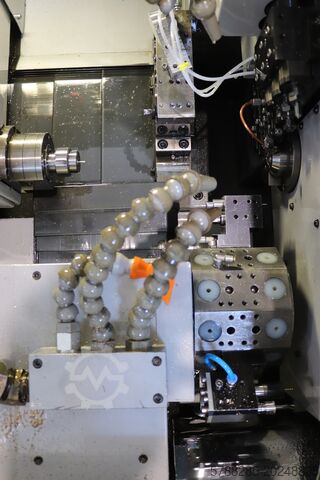

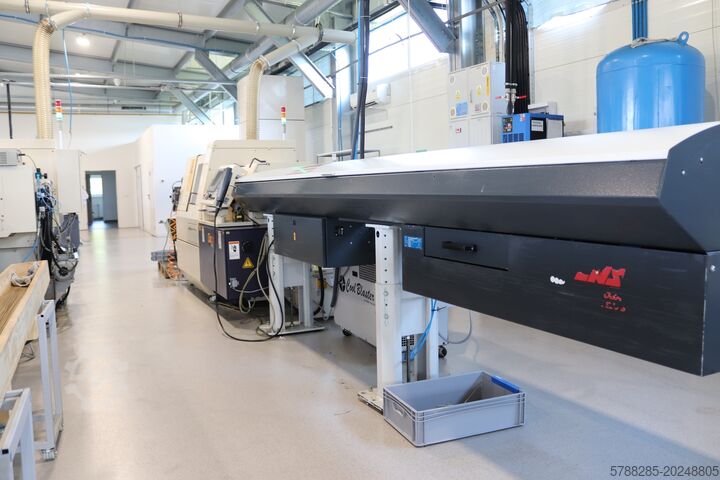

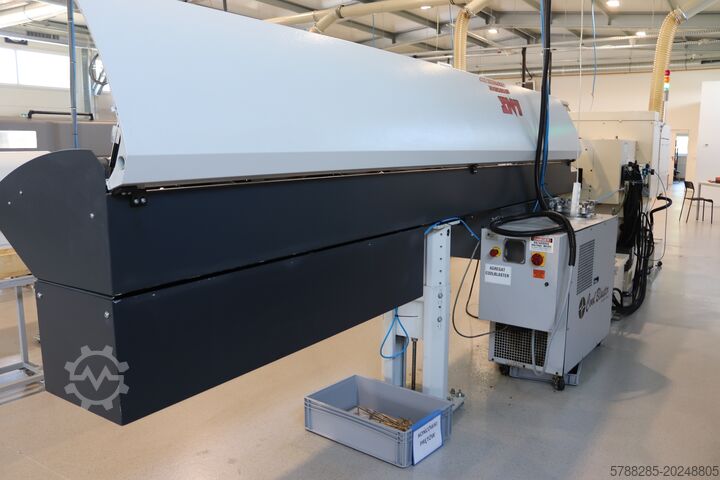

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: P10037, Citizen CINCOM M12 – Swiss-type Sliding Headstock Automatic Lathe Machine year of manufacture: 1999 Bar feeder year of manufacture: 2009 Technical Data: • Max. bar diameter: 12 mm • Max. turning length: 200 mm • Main spindle speed: 12,000 rpm • Spindle power: 2.2 kW • Number of axes: X1, Y1, Z1, X2, Z2, X3, Z3, C1, C2 • CNC control: Cincom / Mitsubishi M6 • Full C-axis on both main and sub spindle Tool Configuration: Gang Tool Post: • T1–T5 – fixed tools • T6–T8 – driven tools (holders included) Turret: • T20–T29 – fixed or driven tools (more than one tool can be mounted per station) • No driven tool holders for the turret Backspindle Tool Post: • T41–T43 – fixed tools only, no provision for driven tools Fedpfx Aexlqq Iefpsgh Equipment: • LNS Tryton 112 bar feeder • Guide bushes • Set of fixed and driven tool holders Technical Condition: Machine in very good condition, mechanically and electrically fully functional, ready for operation. Additional Information: • Machine can be demonstrated under power. • Complete technical documentation available.

Condition: ready for operation (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: FA2097, turning length: 135 mm, spindle speed (max.): 15,000 rpm, turning diameter: 12 mm, TECHNICAL DETAILS Max. machining diameter: 12 mm Max. machining length: 135 mm Number of axes: 6 + 2 Main spindle: Z1 + C1 Vertical holder: X1 / Y1 Main spindle Max. drilling diameter: 8 mm Max. tapping diameter: M6 Spindle passage diameter: 20 mm Speed with/without guide bush: max. 15,000 / 12,000 rpm Gripping spindle Max. clamping diameter: 12 mm Max. overhang length: 80 mm Max. overhang length over workpiece: 30 mm Max. drilling diameter: 8 mm Max. tapping diameter: M6 Speed: max. 12,000 rpm Tools in the vertical holder Max. drilling diameter: 5 mm Max. tapping diameter: M4 Speed: max. 10,000 rpm Driven tools for back machining Fodpfxevyhxpj Afpsgh Max. drilling diameter: 5 mm Max. tapping diameter: M4 Speed: max. 9,000 rpm Tool capacities Vertical holder 1 turning tools: 7 x 12 mm Driven tools on the vertical holder: 4 Drilling tools: 2 Driven tools on the back machining: 8 (4 fixed + 4 rotating) Tool dimensions Turning tools: 12 mm Drill sleeves: 19.05 mm MACHINE DETAILS Power: 6.6 kVA Voltage: 400 V Own weight: 2,300 kg Dimensions: 1,840 x 970 x 1,710 mm EQUIPMENT - CNC control Meldas 70M - Siemens control panel Logi TDE (year of manufacture. 2022) - Integrated coolant treatment with filter system - LNS bar magazine Tryton / Barfeeder (year of manufacture 2022) - Büchele pressure booster system SFB-200 Small

Condition: like new (used), Year of construction: 2018, functionality: fully functional, turning diameter: 20 mm, overall weight: 2,350 kg, For sale Citizen L20E-2M12 lathe with 3 meter bar feeder. Fgjdsvdyi Ujpfx Afpoh
