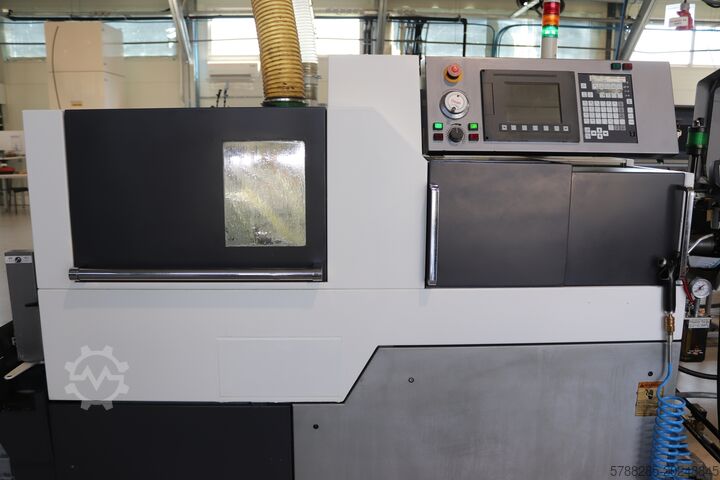

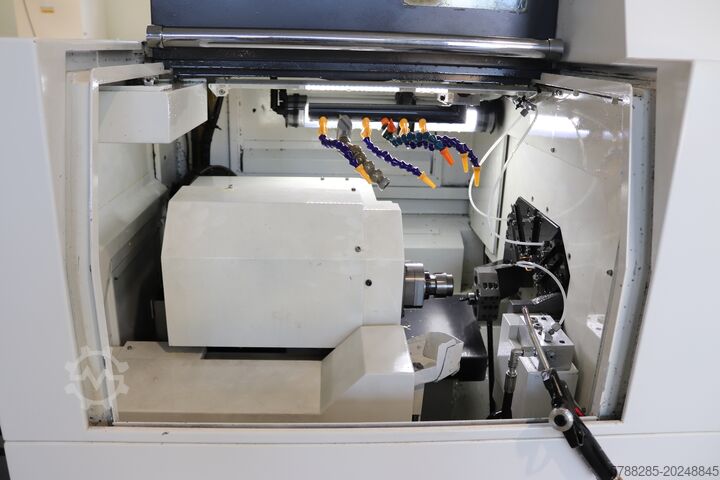

Citizen K16 VIP – Swiss automatic lathe

Citizen K16 VIP

Condition: ready for operation (used), Year of construction: 2005, General Data Measurements width 1610 mm Measurements depth 1850 mm Measurements height 1050 mm Machine weight 1950 kg Main Drive Number of spindles 2 Spindle speed range 15000 rpm // 10000 rpm Spindle motor power 3.7 kW // 1.1 kW Number of axis 4 Additional Equipment Turning tools: 5 Bdjdpfsxpyw Sex Af Hjk Drilling tools (front): 4 End working tools (back): 4 Tool holder, quill (diameter): 20 mm Tool holder, turning tools (shank section): 12 mm This 4-axis Citizen K16 VIP swiss type turning machine was manufactured in 2005. It features a max machining diameter of 16 mm, with spindle speeds up to 15,000 rpm on the main spindle and 10,000 rpm on the sub-spindle. Ideal for precision work, it supports a variety of tooling options. A great opportunity to buy this Citizen K16 VIP swiss type turning machine. For more information about this swiss type turning machine, please reach out to us. Application Types Turning

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: K00447, Citizen K16 VIP – Swiss-Type CNC Sliding Headstock Lathe General Information: • Year of manufacture: 11/2006 • Serial number: K00447 • Manufacturer: Citizen Machinery Co., Ltd. (Miyota Nagano, Japan) • Machine weight: 1,950 kg Overall Dimensions: • Width: 1,610 mm • Depth: 1,850 mm • Height: 1,050 mm Technical Specifications: • Max. bar diameter: 16 mm • Max. turning length: 200 mm • Main spindle speed: 15,000 rpm (2.2 / 3.7 kW) • Sub-spindle speed: 10,000 rpm (0.55 / 1.1 kW) • Control: Fanuc Series 31i • Number of axes: X1, Y1, Z1, Z2, C1, C2 • Full C-axis on both spindles • 20 bar high-pressure pump, dual channel Tooling Configuration: Front Tool Post: • T1–T5 – stationary tools • T11–T14 – driven tools (radial or axial) Tool Holder Block: • T21–T24 – stationary tools for main spindle operations Bsdpfx Afexl Tl Ij Hedk • T31–T34 – stationary tools for sub-spindle operations Equipment Included: • IEMCA Genius 118 Type 37 LL bar feeder (year 2007, serial no. 020704BA02) • Set of guide bushings for machine and bar feeder • Turning tool holders and driven tool holders • Automatic fire extinguisher (fire protection system with activation sensor) • 20 bar high-pressure pump / 2 channels Technical Condition: The machine is in very good technical condition, fully operational and ready for immediate use. Regularly serviced and used in precision manufacturing. Additional Information: • Nameplate: model K16 VIP, serial no. K00447, year of manufacture 11/2006, weight 1,950 kg. • Machine can be demonstrated under power.
