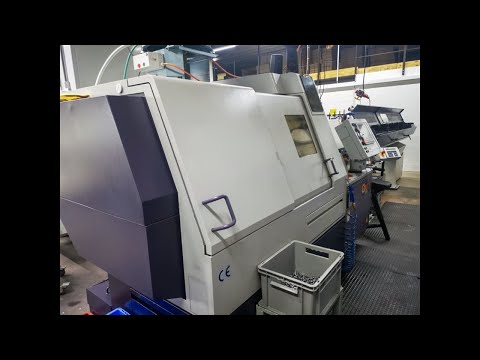

CNC Swiss-Type Automatic Lathe CITIZEN L32 VII

CITIZEN L32 VII

Condition: repair required (used), Year of construction: 2006, CNC Swiss-type automatic lathe Brand: CITIZEN Model: L32 VII Year: 2006 with Mitsubishi Meldas control Synchronous spindle Kjdpfx Aforh Efwsvjdh Driven tools Backworking Fire extinguishing system Chip conveyor Bar loader IEMCA BOSS 332 E/R (Machine has a fault – tools cannot be selected, e.g. T01, T06, etc.)

Condition: good (used), Year of construction: 2003, functionality: fully functional, Technical details working diameter max. 32 mm spindle passage 36 mm turning length 320 mm Control MITSUBISHI MELDAS 635LC travel max. (X1) 108 mm travel max. (Y1) 275 mm travel max. (Z1) 325 mm travel max. (X3) 238 mm travel max. (Z3) 410 mm main spindle speeds: 200 - 8000 U/min c-axis 0,001° deg. Subspindle spindle speeds 200 - 7000 U/min c-axis 0,001° deg. rapid traverse 20 m/min main drive 3,7 / 5,5 kW Subspindle motor 1,5 / 2,2 kW dimensions of machine 2,77 x 1,24 x 1,79 m weight of the machine ca. 2850 kg Additional information CNC Swiss-Type Lathe First put into operation December 2005 The machine was used for a single shift and is in good condition with no maintenance backlog. Equipment: FMB Turbo 5-42/3200C bar loader, built 2004 High-pressure pump Kodsx Uzcvjpfx Afvodh Many collet chucks for main spindle Various collets Drive unit for synchronously driven guide bush Synchronously driven guide bush Drive unit for transversely driven spindle on linear support Pick-up spindle Collet chuck for pick-up spindle Blow-out device for pick-up spindle Five fixed tool holders on the rear Workpiece removal device Coolant tank Central lubrication system Door lock Ejection device for workpieces with through holes Machine documentation The machine will be sold without tools and extraction system.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, turning length: 320 mm, spindle speed (max.): 8,000 rpm, turning diameter: 32 mm, spindle bore: 39 mm, controller model: Mitsubishi Meldas, TECHNICAL DETAILS Maximum machining diameter: 32 mm Maximum machining length per clamping: 320 mm Kdsdpfsxxlkpjx Afvjh Main spindle speed: 8,000 rpm Spindle bore: 39 mm Sub spindle (rear-side spindle): 32 mm Max. frontal milling/drilling: 12 mm Max. frontal thread cutting: M12 Tool capacity: 30 tools Number of axes: 7 MACHINE DETAILS Control: Mitsubishi Meldas Connected load: 10 kW Dimensions & Weight Dimensions (L x W): 2,800 mm × 1,240 mm Machine weight: 2,800–2,900 kg EQUIPMENT High-pressure coolant system Fire suppression system Chip conveyor Parts catcher Parts conveyor belt 4 driven tool holders Standard tool holders

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: MGL203279932, turning diameter: 32 mm, Equipment: bar feeder, documentation/manual, The machine has only been operated in single-shift use! TECHNICAL DETAILS Max. machining diameter: 32 mm Spindles Main spindle: with collet chuck Sub spindle: with collet chuck and air blast device MACHINE DETAILS Operating hours: estimated approx. 25,000 - 30,000 h EQUIPMENT Bar feeder FMB Turbo 5-42/3200C Kedpfx Aoxrcpvefvedh Documentation High-pressure coolant pump Workpiece removal unit Various collets Central lubrication system Ejector for workpieces with through-hole

Condition: good (used), Year of construction: 2007, functionality: fully functional, turning diameter: 32 mm, type of input current: three-phase, bar passage: 32 mm, bar diameter (max.): 32 mm, Equipment: rotational speed infinitely variable, Citizen Cincom L32VII lathe, year 2007. LNS Hydrobar Express 332 bar feeder LNS chip conveyor. Mitsubishi Meldas control. Maximum machining diameter 32mm. The feeder set includes several guide channels. Kdodpfx Ajt Hu Awjfvsh The machine is available immediately.
