Welding robot system

Cloos

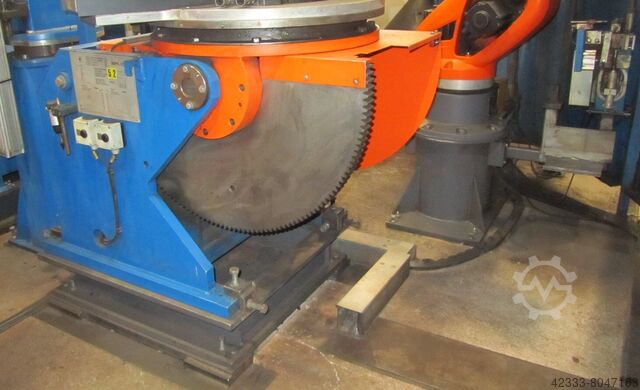

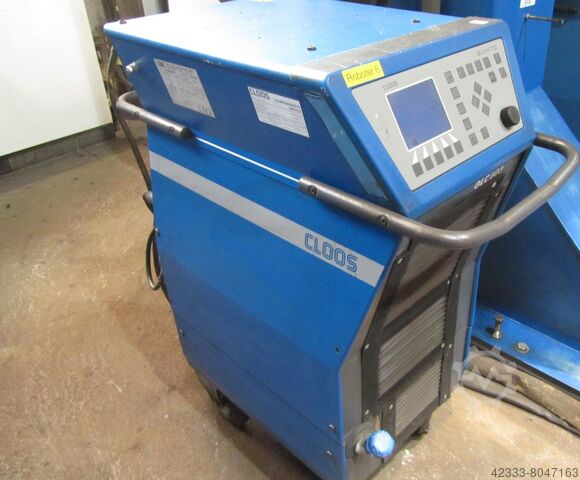

Condition: used, Year of construction: 2002, Equipment: documentation/manual, Technical data in the attachment. Robot including workpiece positioner and welding technology. Njdpfoy Emz Sjx Ag Dowf

Condition: ready for operation (used), Year of construction: 2013, This CLOOS QRH 390 was manufactured in 2013. It features a QRH 390 with a QIROX Controller V6 and a C-stand MH=24330. Equipped with advanced welding technology and an extraction system, this welding robot is ideal for enhancing your production capabilities. Contact us for more information about this machine. Nsdpjx S Siuofx Ag Djwf

Condition: used, Year of construction: 2015, 2015 Cloos GLW 270 CNC Welder and Plasma Cutter with Robot Nwodpfx Aoy Dr Ihsg Djf CNC Control: Qirox C QRC 350, Welding source: Cloos Qineo Pulse 450, TIG Welding source: Cloos GLW 270, Plasma: Hypertherm HPR260XD, Basic parameters: diameter of processed ends from 500 to 5000 mm, end weight up to 5000 kg, diameter of processed pipes up to 1000 mm, length of processed pipes up to 3000 mm, pipe weight up to 500 kg, maximum cutting current of the plasma generator 230 A, maximum TIG welding current 270 A, maximum MAG welding current 450 A, Robotic station functionality: plasma cutting and chamfering of holes in bottoms with diameters ranging from 500 to 5000 mm, plasma cutting and chamfering of holes in shells with diameters ranging from 500 to 5000 mm (shell axis vertical), including at an angle to the vertical axis of the bottom, plasma cutting and chamfering of nozzles with a diameter of up to 1000 mm, welding of nozzles in bottoms with guaranteed penetration layers. The condition for obtaining proper penetration welds is proper preparation and assembly of the part – e.g., lack of end ovality (faulty material), even gap (incorrect assembly), etc. In the case of densely packed nozzles in the bottom, welds may be impossible due to lack of access with the welding torch. - welding of nozzles in shells, welding of tubes in tube sheets with diameters ranging from 500 to 5000 mm. The tubes in the tube sheets should be repeatedly secured and expanded. When welding tubes in tube sheets with diameters greater than 3000 mm, it will be necessary to rotate the tank several times. TIG process, MAG process, Maximum bottom thickness: 20 mm, Maximum jacket thickness: 12 mm, Station equipped with a filtration system, Station equipped with an automatic torch change system, Station equipped with a system enabling automatic joint position recognition, Station equipped with a vision system enabling process monitoring on a separate monitor with the option of connecting a plant recorder, Welding parameter recording and reading system, Manifold with a solenoid valve for shielding gas in the rotary table, Self-centering chuck in the 500-5000 range for the rotary table, Self-centering chuck for a vertical rotary table up to Ø600, S/No: 163 (2015)

Condition: refurbished (used), functionality: fully functional, type of input current: three-phase, input voltage: 380 V, type of cooling: water, welding current (min.): 60 A, welding current (max.): 450 A, Carl Cloos GLC 451 C - Water-cooled Mig Mag Step-controlled Specifications: 60-450 AMP 380 Volt Water-cooled 30 steps adjustable Nodpfjyy Skuox Ag Dowf 2/4 stroke 4 roller driven Adjustable burnback time Includes: Mig welding torch, earth cable with clamp, gas hose, and 10 metre intermediate package. Visits by appointment only. Test welding is possible. A video of the machine in welding condition is possible. We also deliver to countries like Spain, Germany, Austria, Lithuania, Greece and all other countries inside and outside Europe with Euro pallets per freight. All our machines have been serviced and are 100% ready to use unless otherwise indicated. The pictures above show the real machine. We can also offer you other types of machines such as: Used, New, Mig, Mag, Co2, Tig, Pulse, AC/DC, Plasma, Water-cooled, Electrode, Brands we offer: OTC, Migatronic, Lincoln, Miller, Fronius, Kemppi, Parweld, Tico, Lorch, Rehm, Selco, Carl Cloos, Cebora, Esab, Saf, EWM, Ess, Kemper. You always do business with Cjays Lastechniek itself and never with third parties.

Condition: used, Year of construction: 2023, 2023 Cloos Robot Welding Cell With QRC-300 Robot & Qineo Next 452 Premium MIG/MAG Welding Source - With Leuze Electronic MLS Safety Light Curtains, Welding Torch Cleaner & Pendant Controls. Dual Rotary Transfer Table dimension 650 x 450mm. Cloos QRC-300 Robot- Swivelling Range Axis 1 -170 ° / +170 °, Axis 2 -90 ° / +125 °, Axis 3 -220 ° / +70 °, Axis 4 -170 ° / +170 °, Axis 5 -135 ° / -135 °, Axis 6 -300 ° / +300 °, Swivelling Speed Axis 1 200 °/sec, Axis 2 200 °/sec. Axis 3 230 °/sec, Axis 4 490 °/sec, Axis 5 540 °/sec, Axis 6 520 °/sec. Working Area Ø3,000mm. Range 2,000mm. Pay Load 8kg. Repeatability +/-0.1mm. Floor Space 400 x 400mm. Weight 110kg. S/No. 0881590000-20040 (2023). Qineo Next 452 Premium- Welding Current 25A/15V-450A/36.5V. Welding Current At 60% Duty Cycle* 450A/36.5V. Welding Current At 100% Duty Cycle* 350A/31.5V. Open Circuit Voltage 80V. Mains Voltage 380V-480V/3 Phases. Connection Cable 4 x 6mm2. Mains Fuse Slow-Acting 32 A. Type Of Protection IP. Insulation Class F. Type Of Cooling F. Dimensions L720 x W340 x H500mm. Weight Of Power Unit 63kg. Weight Of Cooling Module 28kg. S/No. Qinx 1963 (2023). Wire Drive Units QINEO NexT-Wire Feed 30m/min, Wire Ø0.8-2mm. Overall Dimensions W350 x D270 x H230mm. Weight 10.2kg. Nwedpfxjyx Hzxo Ag Djf

Condition: used, MIG MAG welding machine, shielding gas welder CLOOS type GLC 357 N MIG MAG welding power source Serial no. 576 Year of manufacture approx. 1985 Rated output 350 Amp. Output 350 Amp. - 80% duty cycle 310 Amp. - 100% duty cycle Continuously adjustable output range Connection hose package: 4.5 meters Power supply: 380 Volt, 50 Hz, 32 Amp plug - 2-stroke and 4-stroke welding function - External wire feeder type CK 72 ZK with 2-roller drive and 4.5 meter hose package Nwjdpfx Aohubg Tog Dof - 3 meter hose package with central connection and CLOOS hand torch - Water-cooled - Pressure gauge for gas cylinder - Welding unit equipped with 1 mm welding wire Space requirements (L x W x H): 1250 x 600 x 1100 mm Weight: 260 kg Machine tested – fully functional

Condition: excellent (used), Year of construction: 2020, CLOOS QIROX Robotic Welding Line – Dual Gantry System – 2020 General Description For sale: high-performance robotic welding line based on the renowned CLOOS QIROX system, designed for automated welding of medium to large steel structures. The system consists of two gantry-mounted welding robots working on a shared linear axis, combined with rotary positioners, allowing efficient welding of long components and complex assemblies. This is a modern (2020), industrial-grade solution suitable for heavy fabrication, steel structures, frames, and serial production. Key Equipment & Configuration Robots • Model: CLOOS QIROX QRC 410 • Year: 2020 • Type: 6-axis articulated robot • Payload: 10 kg (wrist capacity) • Repeatability: ±0.1 mm • Working range: approx. Ø 5000 mm • Welding processes: MIG/MAG, TIG, optional cutting & sensor integration ✔ High dynamics and precision ✔ Modular design for flexible applications ✔ Suitable for complex welding paths and long seams Controllers • Model: QIROX Controller QC2.02 / QRC 410 • Industrial PC-based control system • Simultaneous control of robot + external axes • Power supply: 3x 400V / 32A 3x 400V / 19A • Frequency: 50/60 Hz • Power: up to 21.5 kVA ✔ Robust cabinet design ✔ Optimized human-machine interface ✔ High path accuracy and process stability Positioners (Rotary Tables) • Model: CLOOS QR-CTU-100-09 2.0 • Load capacity: 10,000 N (≈1,000 kg) – vertical position 20,000 N (≈2,000 kg) – horizontal position • Torque: up to 1600 Nm • Tilting moment: 8800 Nm Nwedpfx Ajyvaahjg Dof • Drive power: 4.5 kW ✔ Programmable axes synchronized with robot ✔ Ideal for complex geometries ✔ Enables optimal welding position and accessibility System Layout • Dual gantry system (2 robots on linear track) • Long working area for large structures • Integrated working tables for long parts • Suitable for: – frames – steel constructions – long welded assemblies Typical advantages of this configuration: • Extended working range via linear axis • Possibility of simultaneous welding operations • High productivity and reduced cycle time Advantages ✔ High productivity and repeatability ✔ Excellent weld quality ✔ Flexible configuration (different parts & sizes) ✔ Proven CLOOS industrial reliability ✔ Suitable for serial and custom production Typical Applications • Steel structures • Machine frames • Automotive components • Construction elements • Heavy fabrication Technical Highlights (Summary) • Robots: 2x QIROX QRC 410 • Axes: 6-axis robots + external axes • Control: QIROX QC2.02 • Positioners: up to 2,000 kg capacity • Power: 400V / 50–60 Hz • Year: 2020 • System type: gantry welding line Condition & Availability • Condition: Very good, fully operational • Available for inspection under power • Can be dismantled and shipped worldwide

Year of construction: 2010, condition: ready for operation (used), A robot-assisted welding system from Cloos with a Kuka robot is available. Robot weight: 1155kg, control system: Qirox C Romat 520, control weight: 300kg, robot axes: 6. Documentation available. An on-site inspection is possible. Nwsdpfx Agjyt N Aye Def

Condition: ready for operation (used), Year of construction: 2016, number of axes: 6, This 6-axis CLOOS QRC 350 QIROX welding robot was manufactured in 2016. It features a maximum load capacity of 15 kg, a workstation reach of 3400 mm, and advanced V6 control. Equipped with a 450A Qineo Pulse A welding machine, it ensures precise and efficient welding. The robot includes a touch sensor and an arc sensor for enhanced accuracy during operations. Consider the opportunity to buy this CLOOS QRC 350 QIROX welding robot. Contact us for more information about this machine. Additional equipment • Premium control panel with wall bracket and cable holder • External gas cleaning device Nedpfxeyaliis Ag Dowf • Adjustable electro-pneumatic valve • Wire feed equipment Machine Benefits Technical Machine Benefits • Built-in welding interface and software • Protective tube for wire transfer • High usability with movable counter-side support • Workstation: 3400 mm • Longitudinal track travel speed: 1. 8 m/sec • Longitudinal track travel length: 7000 mm • Qineo touch sensor: 60 v • Arc sensor for welding path adjustment Extra Information Includes standard height robot stool and computer connector for enhanced usability. Control Unit Control: V6 Advanced Digital inputs and outputs: 16 USB connectors: 2 Connectivity: Expandable up to 16 axes, CAN-Bus, serial interfaces

Condition: ready for operation (used), Year of construction: 2023, This CLOOS Instant pro IRPS was manufactured in 2023. It features a QIROX welding robot with a maximum payload of 10 kg and a working range of Ø 3900 mm. Equipped with advanced QC 2 control system, it includes a programming handheld device and supports new tandem leading/trailing processes. Ideal for high-quality welding applications, it also comes with a comprehensive set of welding and sensor technologies. Contact us for more information about this machine. Machine Benefits Technical Machine Benefits • Working range: Ø 3900 mm • Programming handheld device with touchscreen • Qirox technology interface • Tool controller ctms • Tcp measuring device Extra Information Welding Technology Power source Arc sensor Water cooling module Control module Wire drive unit Robot welding torch Software Parameter grinding Distance-dependent transition between parameter lists Multi-layer technology Programmable pendulum figures Software language: German IRPS Scanner Control IPC Rittal control cabinet Touch screen Scanner interface Uninterruptible power supply Scan width: 1000 mm at 500 mm product height Scan speed: 300 to 1000 mm/sec Burner Cleaning Unit Torch cleaning device Compressed air amplifier Wire cutter Control Unit Digital inputs/outputs: 16 Serial interface Computer connection: QIROX controller CAN bus USB interfaces: 2 Flash memory: 8 GB Buffer module: 24V Nsdpfx Agsyaimlo Dowf Point editor Expandable to up to 16 axes
