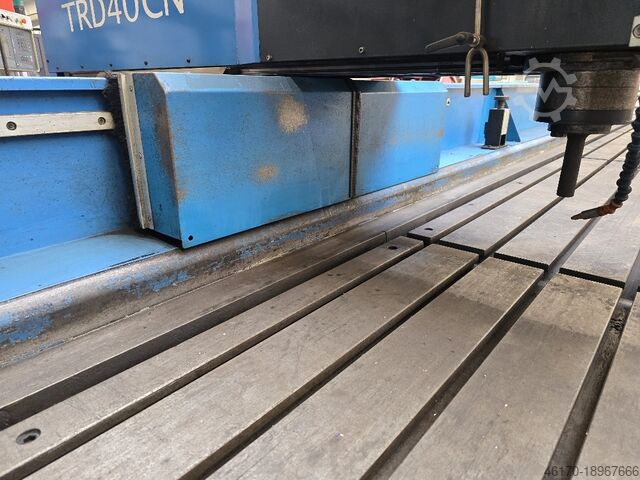

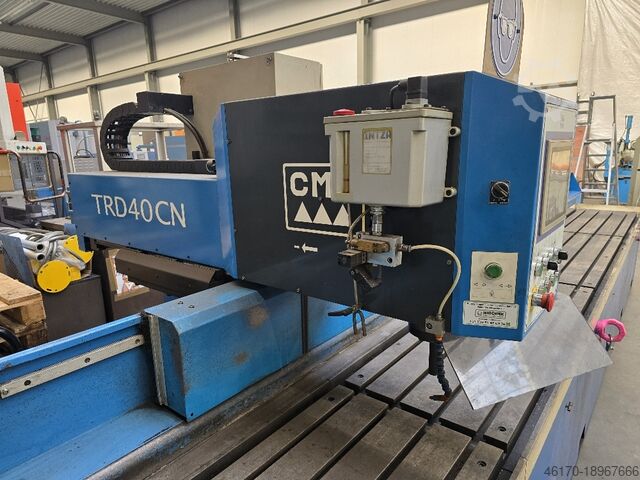

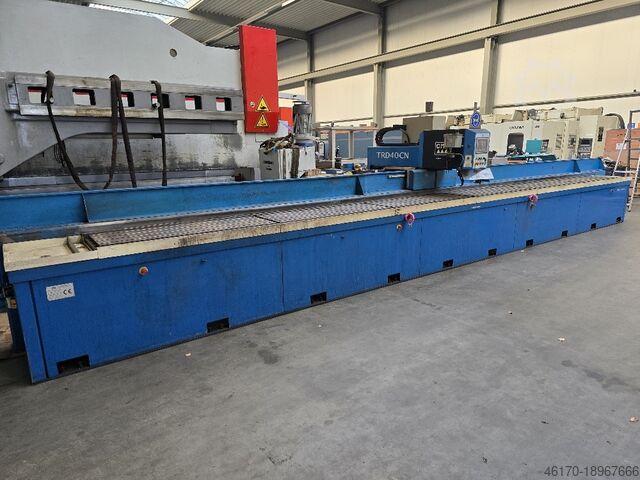

Drilling center

CMA TRD 40 CN 9000

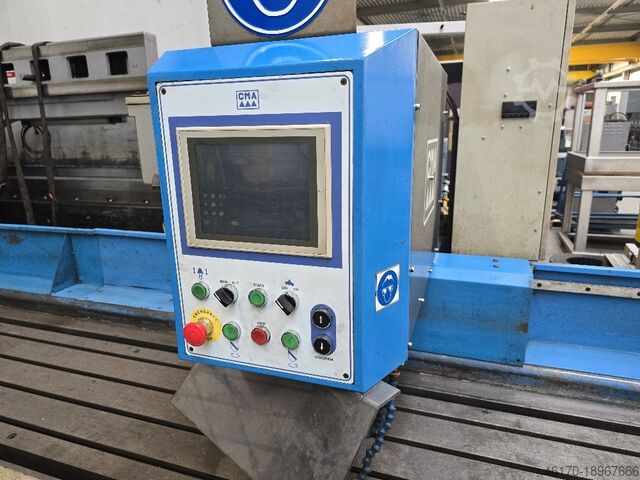

Condition: new, Year of construction: 2024, travel distance Y-axis: 600 mm, travel distance Z-axis: 450 mm, - Simple graphic programming, including GoTo function in manual mode - Machining lengths from 3000 - 16500mm, depending on version - Free programming in DIN/ISO (G commands) - 2-axis interpolation for X/Y-axis, including arcs - 3-axis linear interpolation (X/Y/Z) - 3-axis interpolation (X/Y/Z) for helical milling and thread milling - Rapid traverse X-axis = 30 m/min., Y-axis = 25 m/min. Main spindle BT 40 - 5 bearings, diameter 110/60 mm (3x angular contact ball bearings 7212, 2x deep groove ball bearings 6212) - Suitable for both high axial and radial loads = drilling and milling - Maximum tool length : 290 mm Dujdpfxorb Afas Adpel - Maximum tool diameter : 88 mm Guide X-axis - 2 pieces 45 mm linear guides with 2 full ball bearing carriages each X-axis drive - helical precision rack, travel 3,000 to 16,500 mm Y-axis guide - 2 35 mm linear guides, each with 2 fully spherical carriages Y-axis drive - Ball screw diameter 25 mm, travel 600 mm Z-axis guide - 2 35 mm linear guides, each with 2 fully spherical carriages Z-axis drive - Ball screw diameter 32 mm, travel 450 mm Standard version Automatic tool changer with 10 positions, mounted in the machine column

Condition: excellent (used), Year of construction: 2011, Buderus GE515 low-temperature 455 kW Dsdpfjw Ey Dasx Adpoul

Condition: new, Year of construction: 2025, Semi-automatic sawing sequence with workpiece clamping-sawing-raising to set height after cutting is complete Stepless hydraulic cutting pressure and feed monitoring on the saw blade back. This ensures optimum conditions for every sawing task, i.e. constant pressure for solid material and constant feed for thin-walled profiles. Particularly suitable for universal use with different cross-sections, materials and frequently changing mitre cuts The machine control system complies with CE standard 89/289 Technical data: Cutting range in mm round/flat Djdpfxot D Azce Adpeul 90° 325/500 x 300 45° 300/300 x 300 30° 200/200 x 200 45° 300/300 x 300 Rapid traverse lowering of the saw frame via pushbutton to material edge Manual miter adjustment from 45°-90° - 30°, infinitely variable according to scale The miter pivot point is the intersection point between the saw blade and fixed clamping jaw, therefore no change in the length dimension when changing the angle position Hydraulic full-stroke workpiece clamping - CETOP hydraulic system The material is clamped in parallel at 90° for every angular position of the saw frame Complete coolant system with electric immersion pump Central machine operation Saw blade drive with limit switch Movable band guide arm, adjustment to material width Saw band deflection roller carbide guide Rotating chip cleaning brush Saw blade tensioning with torque wrench Paintwork silver-grey/ blue-grey (RAL 7001/ RAL 7031) Remaining piece length: 60mm Cutting speed: AC frequency-controlled drive 15-150 m/min infinitely variable on the control panel Drive unit Saw band 3,0kW ; 400V, 50Hz Hydraulics 1.1kW Coolant pump 0.1kW Saw frame feed: Infinitely variable up to 300mm/min, hydraulically controlled Saw blade tension: Mechanical with torque wrench Saw blade dimensions: 4200x34x1.1mm Working height: 750mm (without set-up elements) Weight: 850kg Dimensions (LxWxH): 1450x2350x1350mm

Condition: good (used), Year of construction: 2005, Straight and cut machine Dsdspxnv Dspfx Adpjul Brand - RAVNI ( France ) Min/Max wire diam. - 4- 10 mm Max cutting length - 6 meters Construction year - 2005.
