CNC turn-mill center

CMZ TTL-66-66-T1Y-T2Y

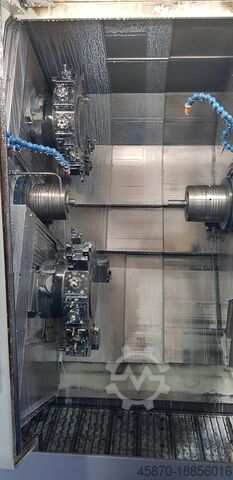

Condition: like new (used), Year of construction: 2021, functionality: fully functional, This multi-axis CNC lathe, CMZ TTL-66-66-T1Y-T2Y, was manufactured in 2021. It features a maximum bar capacity of 66 mm (both spindles), a turning diameter of up to 220 mm, and a main spindle power output of 35.5 kW. The machine is equipped with two high-performance spindles with a 66 mm bar passage, two turrets with 12/24 tool stations, driven tools with 14 kW and 12,000 rpm, and Y-axis capability on both the upper and lower turrets. It includes a 35-bar high-pressure coolant system, complete with a filtration system and an additional tank. For more information about this lathe, please refer to the attached brochure or contact us directly. Equipment includes: - LPS for left spindle - Reduction tube for left spindle - Hainbuch AXFIX 65 collet chuck (standard) 2703/0008 for left spindle - Hainbuch AXFIX 65 collet chuck (standard) 2703/0008 for right spindle - Tool presetting device - Side-mounted chip conveyor (standard version) - Upper tool turret (T1) high-pressure coolant pump with three programmable pressure levels (35, 15 & 6 bar), including 75µm filter - Lower tool turret (T2) high-pressure coolant pump with three programmable pressure levels (35, 15 & 6 bar), including 75µm filter - Coolant wash nozzle - TA/06000/10 8,000W coolant chiller unit - Machine status indicator light - Tool life management system - Tool load monitoring - Programmable automatic parts catcher (pneumatic) - The workpiece extractor is equipped with a pneumatic gripper for automatic opening and closing to retrieve finished parts - Pneumatic ejector for the sub-spindle with 100 mm adjustable stroke. End position detection via sensor - Coolant supply through right spindle - Interface for bar feeder (unimag) - Preparation for extraction unit, connection flange Ø100 Fgsdpfx Afoxmhdnepsh The machine comes complete with a chip conveyor, coolant unit, and tool package. It is available for immediate inspection under power, and available at short notice. Single-shift operated. Further information available on request.
